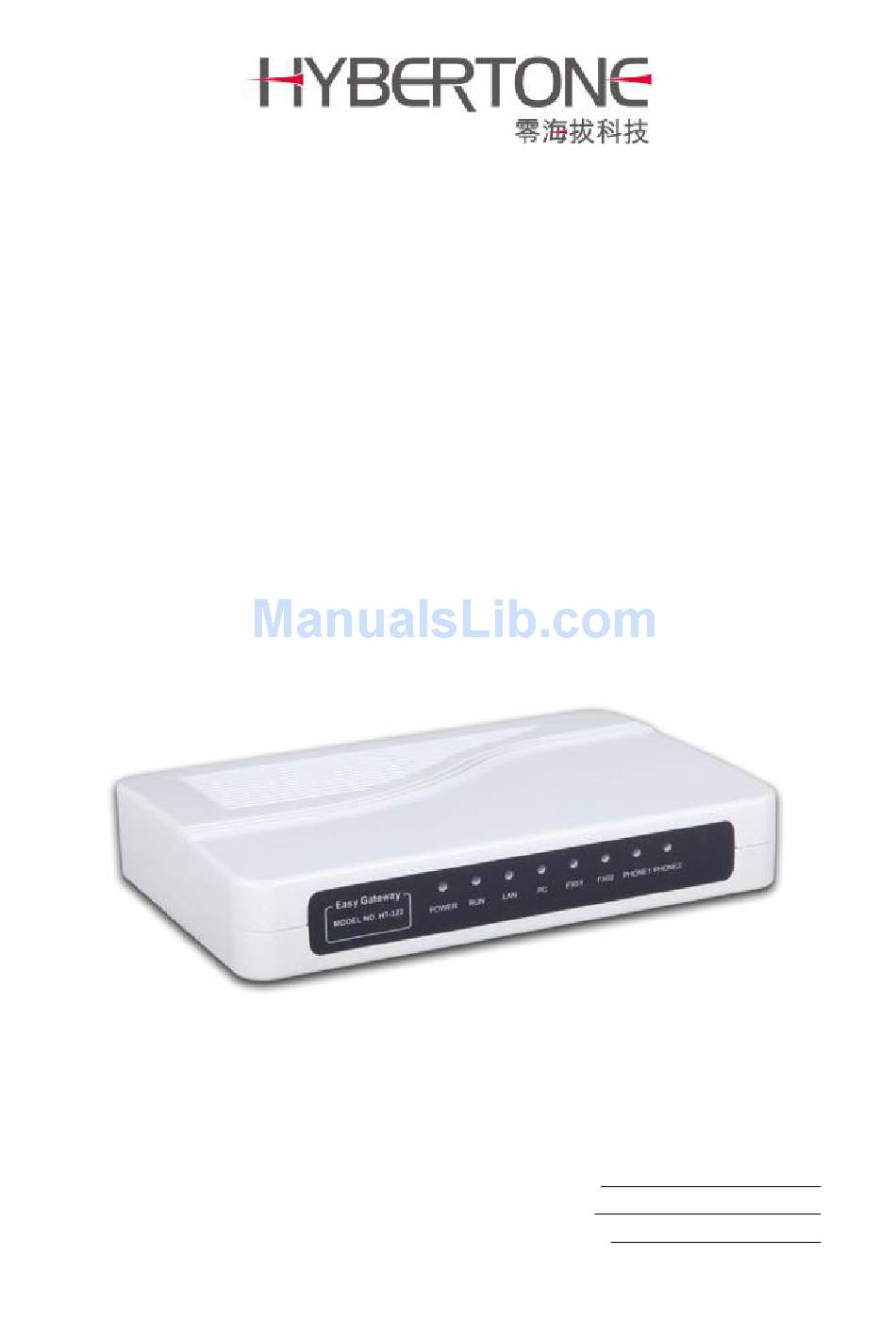

Page 1: User Manual
User Manual VOIP FXO Gateway Model: HT-322 For DC12V Only Shenzhen HyberTone Technology Co.,Ltd. Http://www.hybertone.com Marketing@hybertone.com Support@hybertone.com... -
Page 2: Table Of Contents
Http://www.hybertone.com HT-322 Two FXO Gateway Contents Contents....................1 1 Product Introduction...............3 1.1 General Information......................3 1.2 Protocol..........................3 1.3 Hardware Specification.......................4 1.4 Software Specification ......................4 1.5 List of the Package......................4 1.6 View of the Appearance ......................4 2 Installation..................5 2.1 Installation Steps .........................5 2.2 Connection Diagram ......................5 2.3 LED Light Pattern Indication....................6... - Page 3 Http://www.hybertone.com HT-322 Two FXO Gateway 3.4.5 NAT Traversal .....................22 3.4.5.1 Signaling NAT Traversal................22 3.4.5.2 Media NAT Traversal..................22 3.5 Call divert .........................23 3.6 Gain Settings….........................24 3.7 Network Configurations....................25 3.7.1 LAN Port configurations ..................25 3.7.2 PC port configurations ..................27 3.7.3 Primary DNS .......................28 3.7.4 Secondary DNS....................28...
-
Page 4: Product Introduction
DHCP, LAN Phone System. The HT-322 FOX Gateway is an all-in-one VoIP integrated device, which is designed to be a total solution for network’s providing VoIP services. Its functions are available via a standard PSTN line. -
Page 5: Hardware Specification
Http://www.hybertone.com HT-322 Two FXO Gateway 1.3 Hardware Specification ARM9E Processor DSP for voice codec and voice processing Two 100M BaseT Ethernet ports in comply with IEEE 802.3 for both LAN and PC connection. LEDs for Ethernet port status Two PSTN Line ports Build in Ethernet switch 1.4 Software Specification... -
Page 6: Installation
Please follow the steps below to install an HT-322 IP ADAPTOR: Connect the PSTN lines to the FXO1 and FXO2. Insert the Ethernet cable into the LAN port of HT-322 IP ADAPTOR and connect the other peer to the internet access equipment. -
Page 7: Led Light Pattern Indication
Http://www.hybertone.com HT-322 Two FXO Gateway 2.3 LED Light Pattern Indication The following table shows the LED light pattern indication. DESCRIPTION 1. When the device is booting up, the LED will flash 100ms ON and 100ms OFF. 2. When the account is logon, the LED will flash 1s ON and 1s OFF. -
Page 8: Configuration Guide
Line2 No use in this version 3 Configuration Guide Before configuring the HT-322 IP ADAPTOR, first you must configure you computer’s IP in Static Mode and it must use 192.168.8.x. The default network setting of HT-322 is: LAN Port: DHCP PC Port: 192.168.8.1... - Page 9 HT-322 Two FXO Gateway A login dialog window will pop up: The default user name is “admin” and the default password is “admin”. Press OK then accessing the configuration page as below. Administrator (user admin) can setup every thing of the HT-322.
-
Page 10: Status
Http://www.hybertone.com HT-322 Two FXO Gateway 3.2 Status Status page shows the status of the gateway. 3.2.1 Phone Information A. Serial Number Each gateway has a unique serial number assigned by the factory such as . This number is important for centralized configuration, technical HT304O12VTEST01 support, and warranty. -
Page 11: Language
3.3.2 Time Zone and Time Server The HT-322 using Network Time Protocol (NTP) to get the date time information from an NTP server (Time Server). The time is in GMT ± offset. For example, Pacific Standard Time is GMT-8, and Pacific Daylight Time is GMT-7. -
Page 12: Auto-Provision
Auto-provision has been made common because of the low cost of microprocessors and other embedded controller devices. It includes Auto-provision Server and Auto-update. This is the special service only. It must support by HyberTone’s Auto-provision Server. 3.3.4 Pound (#) Key and Auto-dial Timeout If you want the terminal send out your telephone number shortly, please click the Pound (#) Key enable. -
Page 13: Call Settings
Http://www.hybertone.com HT-322 Two FXO Gateway The parameters are fill-in as true digits as below format: nc, rpt, c1on, c1off, c2on, c2off, c3on, c3off, f1, f2, f3, f4, p1, p2, p3, p4 Chapter Descriptor: nc: number of cadences rpt: repeat counter(0 - infinite, 1~n - repeat 1~n times) -
Page 14: Single Configuration
Http://www.hybertone.com HT-322 Two FXO Gateway configured: 1） Single Configuration; 2） Configuration by line ; 3）Configuration by Group . 3.4.1.1 Single Configuration In this mode, the two lines will login to the server with single number or prefix: A. H.323 Phone Number H.323 phone number: fill the login number (E164) here. -
Page 15: Configuration By Line
Http://www.hybertone.com HT-322 Two FXO Gateway If H.235 Authentication is needed click the “H.235 Auth” and fill the Authenticate message 3.4.1.2 Configuration by Line In the “Config by line” mode user can setup each of the two lines with difference numbers or prefixes. -
Page 16: Advance Settings
Http://www.hybertone.com HT-322 Two FXO Gateway 3.4.1.4 Advance Settings Click “Advance Settings” in the H.323 menu, the configuration screen of advance settings will be displayed as follows. User can modify all information of H.323 and the preference of the media. A） RAS Port RAS Port is connected to an unreliable channel, which is used to convey the registration, admissions, bandwidth change, and status messages between two H.323... -
Page 17: Direct Mode
Register Multiple Numbers: The HT-322 send registration request in one signaling packet to the gatekeeper. In the mode, one signaling packet includes two VoIP line’s registration information. Register Multiple Times: In this mode, the HT-322 will register like two terminals. F） DTMF Signaling 1） DTMF TYPE DTMF TYPE is used for telephone signaling over the line in the voice frequency band to the call switching center. -
Page 18: Sip Phone
Http://www.hybertone.com HT-322 Two FXO Gateway 3.4.2 SIP Phone When user using SIP system, select SIP Phone in the “Endpoint Type”. There are two configuration modes: 1) Single Server Mode; 2) Configuration by Line Single Server Mode 3.4.2.1 In this mode, the two lines will login to the server with single number. -
Page 19: Configuration By Line
H） Backup Server When system support backup server fill in the messages of the backup server. When the first server is failed HT-322 will try the backup server. I） Outbound Proxy When Outbound proxy is needed fill in the IP address or domain name.. -
Page 20: Advance Settings
Http://www.hybertone.com HT-322 Two FXO Gateway 3.4.2.3 Advance Settings Click on “Advance Settings” in the SIP menu, the configuration screen of advance settings will be displayed as follows. In this part, you will have more advance control over the SIP signaling and media preference. - Page 21 Http://www.hybertone.com HT-322 Two FXO Gateway Periodically send out a packet (with no content) to the SIP proxy to keep NAT open for incoming traffic. C） Advanced Timing D） Signaling Qos If local network supporting Qos, Choice one of them. E） DTMF Signaling 1）...
-
Page 22: Media Setting
Http://www.hybertone.com HT-322 Two FXO Gateway country-specific tones and trunk events. 3.4.3 Media Setting Click on “Media Settings” in the “Call Setting” menu, Media setting allow user change the preference of the media and RTP etc. A） RTP Ports RTP (Real Time Protocol) Port id the Flexed port of the RTP. -
Page 23: Nat Traversal
It includes address, ports, user name, and password. Note: This RELAY proxy is only working with the RELAY Server software developed by HyberTone independently. It was free software; user can get it from our technical support. 3.4.5.2 Media NAT Traversal Click on the “Media NAT Traversal”... -
Page 24: Call Divert
When system support STUN then choice it and fill in the STUN server IP (or domain name) address. D） Relay Proxy Relay proxy is HyberTone's proprietary NAT traversal technology which allow HyberTone's VoIP terminals to achieve anywhere of the complicated network environments. It includes address, ports, user name, and password.. -
Page 25: Gain Settings
When the forward Password is filled, the call to PSTN needs input the “Password” before the call is making. The call flow is: call the HT-322 -> hears the indication tone -> input the password by press the keypad (by DTMF) -> get the PSTN dialing tone -> make call. -
Page 26: Network Configurations
Http://www.hybertone.com HT-322 Two FXO Gateway Note: A too low or too high input gain will make DTMF detector insensitive. 3.7 Network Configurations Click on Network Configuration in the left menu of the Configuration page and the network configurations screen will be displayed as below. - Page 27 Http://www.hybertone.com HT-322 Two FXO Gateway 1） DHCP Choice DHCP when the network offering DHCP service. 2） Static IP Choice Static IP when network needs a static IP and fill in the messages of then. 3） PPPoE PPPoE, point-to-point protocol over Ethernet, is a network protocol for encapsulating PPP frames in Ethernet frames.
-
Page 28: Pc Port Configurations
Http://www.hybertone.com HT-322 Two FXO Gateway Fill in if the MAC address and broadcast need to change to specify. 3.7.2 PC port configurations . Strongly recommend user using PC port can setup into Bridge Mode or Static IP static IP mode because of in bridge mode PC port don’t has a IP for login the configuration page. -
Page 29: Primary Dns
Fill in if the MAC address and broadcast address need to change to specify. 3.7.3 Primary DNS When LAN port is setting to static IP DNS must be set. If there is not DNS IP filled HT-322 and the device(S) behind the HT-322 can not access any address with Domain Name. -
Page 30: Discard Changes
Click on the “Tools”, the web page will pop-up a subordinate options and the screen will be displayed as below: 3.10.1 Online Upgrade WARNING! Performing an online upgrade is for experienced users or administrators only! Click Online Upgrade. Enter the update link which provide by HyberTone like: http://202.96.136.145/update/A34HS-3.07-18.pkg， And click the Start button. -
Page 31: Change Password
Http://www.hybertone.com HT-322 Two FXO Gateway WARNING! When the terminal is updating, never power down the HT-322. It will destroy the equipment. 3.10.2 Change Password A） User Password (default:1234) User password is for the user of “user”. “user” is the lower level user of the configuration, when “user”... -
Page 32: Reboot The Device
Http://www.hybertone.com HT-322 Two FXO Gateway After reset all the configured will be lost. 3.10.4 Reboot the Device Click on this field to reboot the device. -
Page 33: Products Parameter
Http://www.hybertone.com HT-322 Two FXO Gateway 4 Products Parameter Characteristics of the hardware Parameter Remarks Processor ARM9E 133MHz VDS924PM4 200MHz FLASH Power DC12V/500mA +-10% Consumption The maximum 3 W Impedance 600 ohm Ring Detect Range 30-150Vrms 18Hz-55Hz PSTN Port Voltage Upper Limit...
