Summary of Contents for Jensen JSIR900B

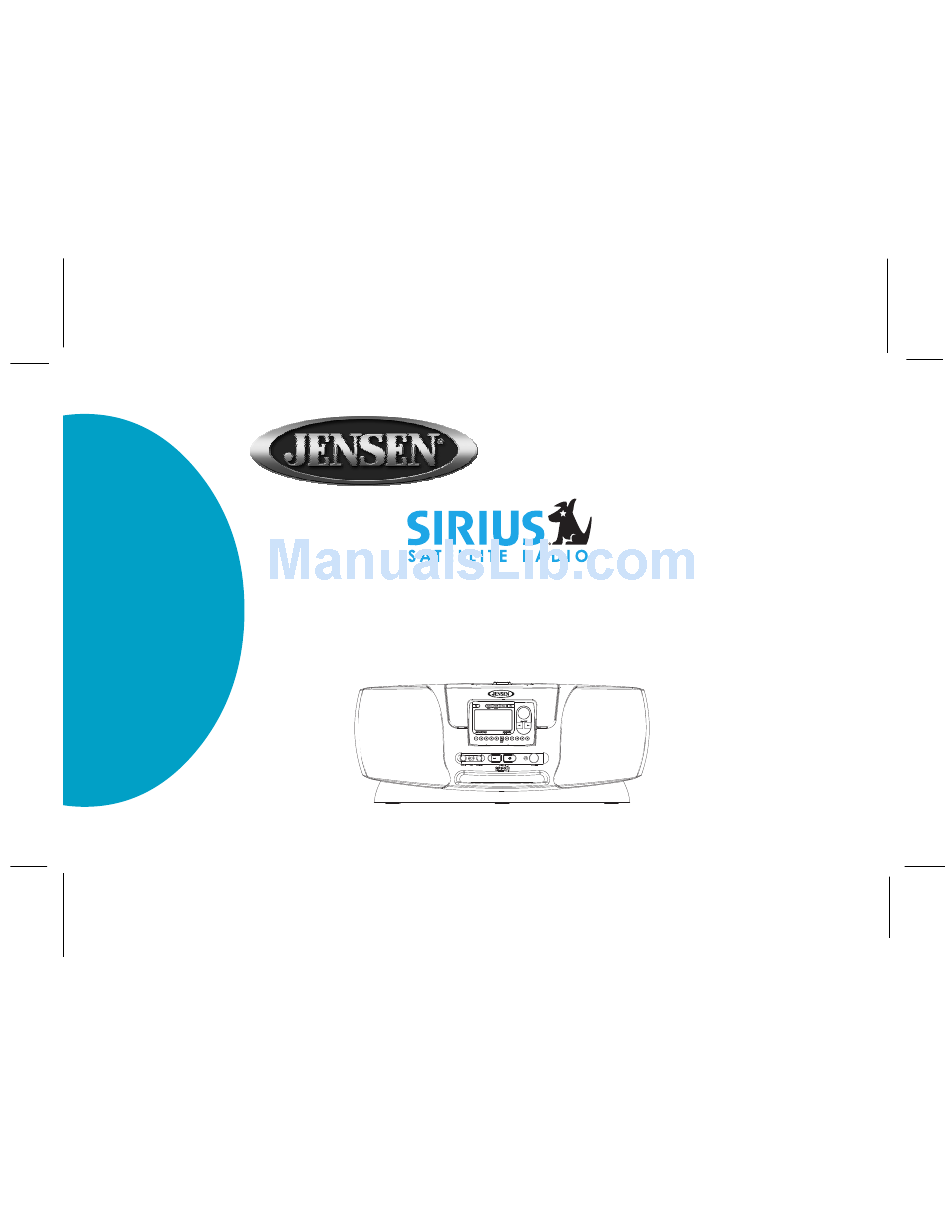

- Page 1 RECEIVER BOOM BOX JSIR900B User Guide AUDIO OX 128-7369 Released 03-07-05. 1 of 12...
- Page 2 You are one step closer to experiencing the latest innovation in Sirius Satellite Radio. Sirius will revolutionize your portable in-home, vehicle and family entertainment, such as camping trips and beach excursions, using the Sirius Model JSIR900B Boom Box as the base receptacle for your Receiver Receiver. Sirius entertainment will enhance your listening enjoyment with: •...
-
Page 3: Fcc Regulations
Television, or stereo system indicators displays. 2. Do not install or use the JSIR900B in locations exposed to direct sunlight, or in areas subject to extreme temperatures; do not operate the unit in moist areas, in rain, or in areas adjacent to water such as pools, hot tubs, etc. -
Page 4: Installation/Wiring Precautions
Contents JSIR900B Users Guide P/N 128-7369 (P/N 118C1129) AC/DC Power Adapter (P/N 136C3585) 1 pc. AC Power Cord 1 pc. (P/N 112B3376) Boom Box (P/N JSIR900B) AUDIO OX 1 pc. Installation/Wiring Precautions 1. If using the adapter, make sure the adapter cable... - Page 5 Box. 4. VOLUME +/- Pushbuttons: Increase or decrease the volume of the audio output signal from the JSIR900B. To increase the volume level, press the + pushbutton; to decrease the volume level, press the - pushbutton. NOTE: When the JSIR900R Receiver is installed,...
- Page 6 JSIR900B by following the interconnect diagram. 3. Installing the Receiver in the JSIR900B Install the Receiver as follows: 1. Press the EJECT button at the top of the JSIR900B BOTTOM OF to open the spring-loaded cover. Carefully line up BOOM BOX the Receiver rear spine grooves with the Boom Box guide spines;...
-
Page 7: Interconnect Diagram
Receiver to mate the connectors together. The Receiver should now be nestled securely in the Boom Box compartment. Lower the JSIR900B cover into position over the Receiver; This will prevent accidental Receiver disconnect. Apply power to the JSIR900B by pressing the Power ON/OFF button;... - Page 8 (if indoors) and disconnect the antenna cable. d. Plan the routing of the antenna cable to the JSIR900B ANT input when indoors. Make sure you avoid any obstructions that could crimp, kink or twist the cable;...
-
Page 9: Specifications
Headphone Output Impedance Headphone Output Level Headphone Connector Type Auxiliary Input Impedance Auxiliary Input Level Auxiliary Connector Type Equalizer Frequency Overall JSIR900B Dimensions Overall AC Adapter Dimensions JSIR900B Weight 5.0 Watts Rms 0.3% at 1 Watt 30Hz to 20kHz >... -
Page 10: Maintenance
Maintenance Periodic Inspection The JSIR900B Boom Box should be inspected periodically for external damage. At least once every 30 days of use, perform the following checks: Inspect the 20-pin Receiver connector for loose, bent or broken pins, misalignment, etc.; make sure the SAT connector is intact and exhibits no apparent damage. -
Page 11: Troubleshooting
Troubleshooting t i l -11- t i l l t t t i l 128-7369 11 of 12... -
Page 12: 12 Month Limited Warranty
U.S.A. : AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 CANADA : CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA © 2005 Audiovox Electronics Corporation 12 MONTH LIMITED WARRANTY For Customer Service Visit our Website at www.jensen.com Product Information, Photos, FAQs, Owner’s Manuals 1-800-645-4994 128-7369 128-7369...
