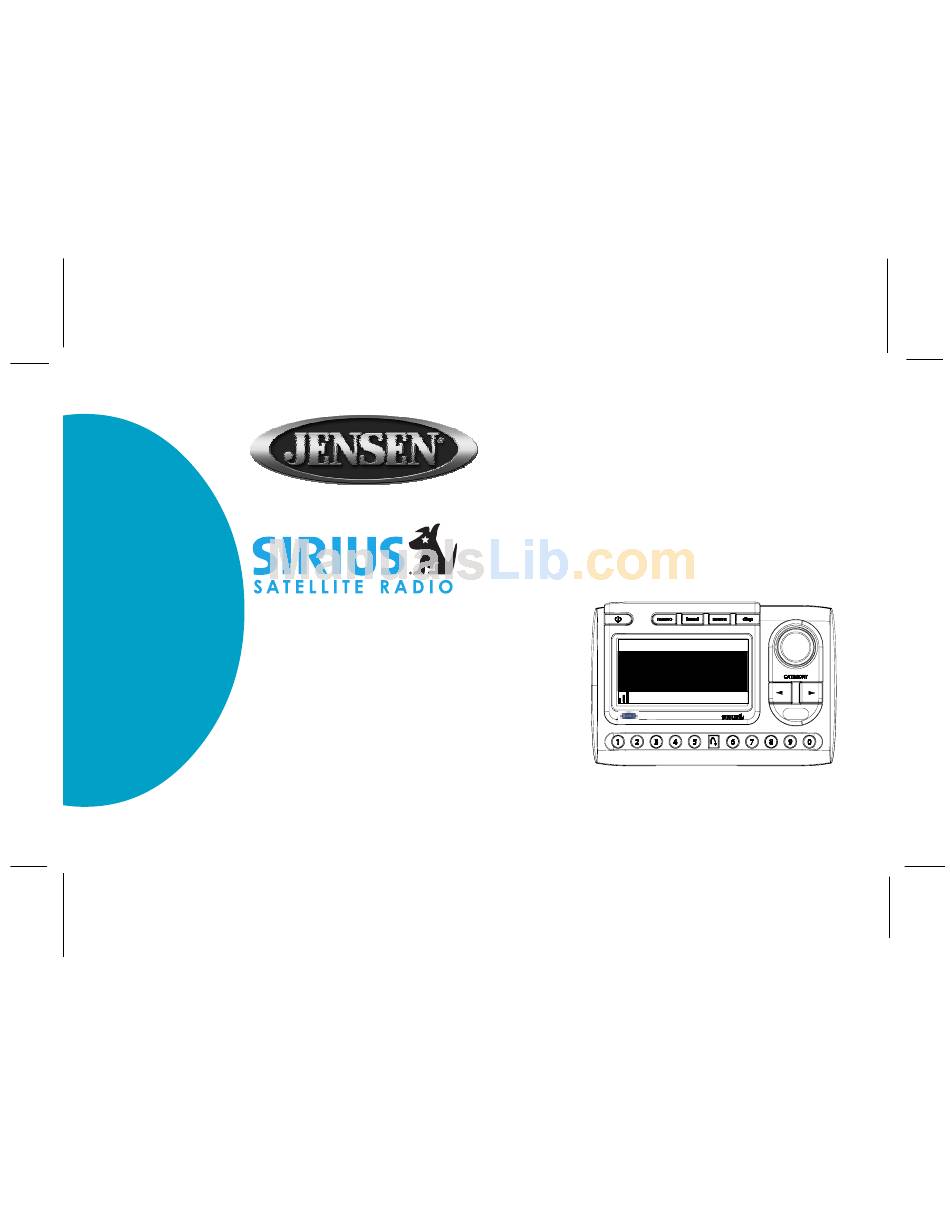

- Page 1 Home Installation Guide JSIR900H Released 3-7-05. p.tune s.seek Channel Name Artist Song Category 12:00P JUMP 128-7370 1 of 12...
-
Page 2: Table Of Contents
CONTENTS Congratulations ... 3 Cautions and Warnings ... 4 Contents JSIR900H ... 5 Installation/Wiring Precautions ... 5 Setting Up and Installing Your Kit ... 5 Cabling Connections ... 6 Installing/Positioning the Antenna ... 6 Interconnect Diagram ... 6 Installing the Shuttle On the Cradle ... 7 Antenna Placement ... -
Page 3: Congratulations
Your Jensen JSIR900R Shuttle must be used with an adapter kit, such as the Jensen Home kit, Boom Box or Vehicle Kit as required by your specific installation needs. These kits are available at retailers whereJensen main units are sold. Jensen Home Kit: JSIR900H Jensen Vehicle Kit: JSIR900C Jensen Boombox: JSIR900B... -
Page 4: Cautions And Warnings
Cautions and Warnings 1. Do not install the Shuttle in a position that obstructs viewing of any home entertainment component, such as Television, or stereo system indicators and dis- plays. 2. This unit complies with the interference limits relative to a Class B digital device, applicable under Part 15 of the FCC Rules regarding installation in a residential environment. -
Page 5: Contents Jsir900H
Contents JSIR900H Install Manual Audio Cable (P/N 128-7370) (P/N 112B3293) 1 pc. Antenna (P/N 118-1136) Cradle (P/N 136-3802) 1 pc. DC Power Adapter (P/N 136-3805) 1 pc. 1 pc. Installation/Wiring Precautions 1. Make sure the adapter cable is not connected to an AC wall outlet until all interconnections have been made and verified. -
Page 6: Cabling Connections
1. Cabling Interconnections You can begin to enjoy Sirius® Satellite Radio as soon as the Shuttle and home Kit installation are complete. Set up your Jensen Shuttle using the following installation instructions, or enlist the help of a professional installer. 2. -
Page 7: Installing The Shuttle On The Cradle
continuously. If you experience a loss of signal or audio, reposition the antenna inside the home or outside as necessary. 3. Installing the Shuttle on the Cradle Install the shuttle as follows: a. Carefully line up the shuttle rear spine grooves with the cradle guide spines;... -
Page 8: Antenna Placement
4. Antenna Placement To ensure strong reception in your home, observe the following antenna placement considerations: a. For BEST reception, place the antenna outside on the roof; the antenna is waterproof. This position will afford the clearest view of the sky for best reception. - Page 9 d. Apply power to the Shuttle system as outlined in the associated User Guide and obtain an audio output. If no audio is heard, move the antenna to different positions on the surface until an audio output is heard. This is the desired antenna position and should be marked with masking tape or by another non- scratch method.
-
Page 10: Warranty
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 11 THIS PAGE LEFT BLANK INTENTIONALLY -11- 128-7370 11 of 12...
- Page 12 © 2005 Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, New York 11788 128-7370 -12- 128-7370 12 of 12...
