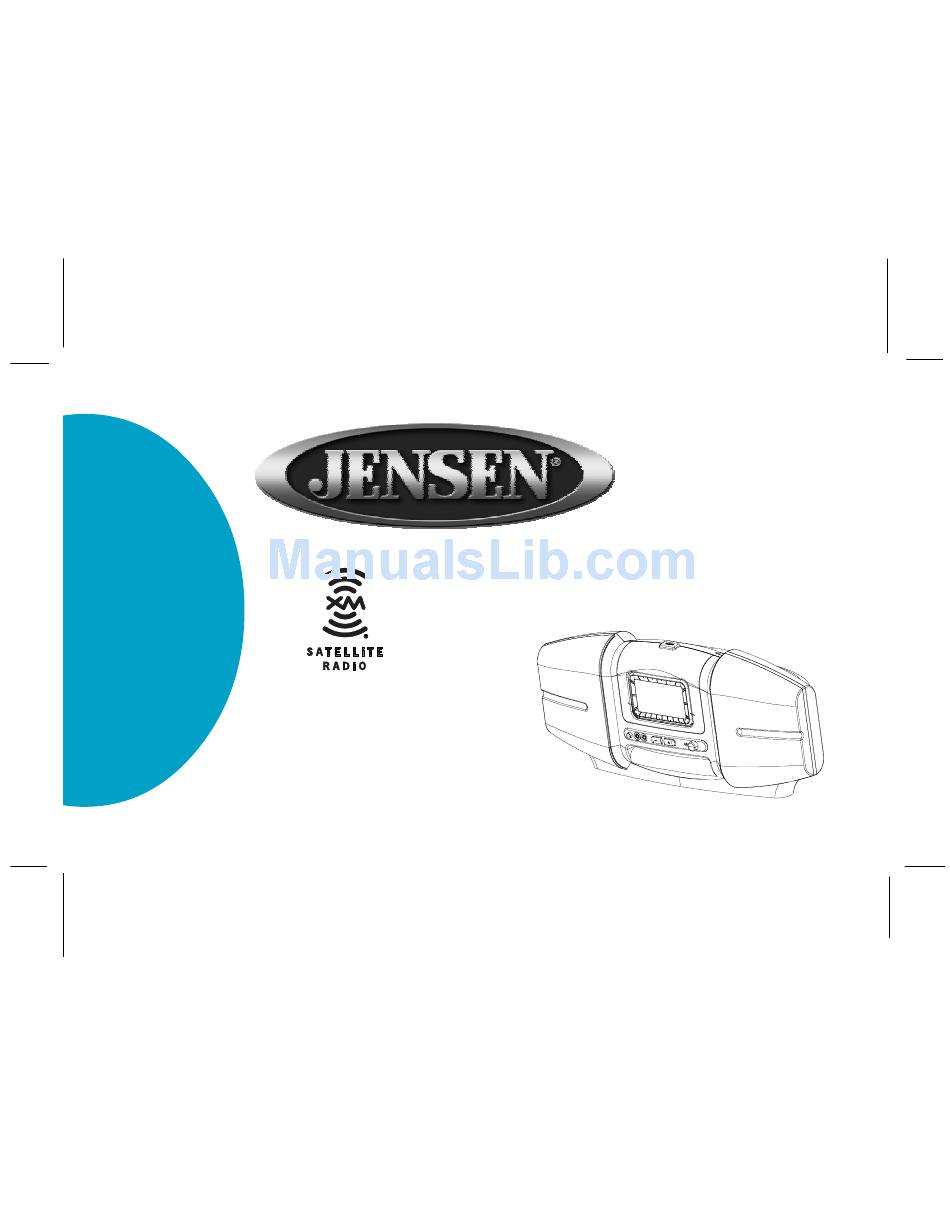

- Page 1 JXM900B BOOM BOX User Guide 128-7377 Released 3-31-05. 1 of 16...
- Page 2 (c) 2005 XM Satellite Radio Inc. XM is a trademark of XM Satellite Radio. All rights reserved. All other trademarks are the property of their respective owners. Congratulations Part Number JXM900H Part Number JXM900C Part Number JXM900B 128-7377 2 of 16...
-
Page 3: Fcc Regulations
Television, or stereo system indicators and displays. 2. Do not install or use the JXM900B in locations exposed to direct sunlight, or in areas subject to extreme temperatures; do not operate the unit in moist areas, in rain, or in areas adjacent to water such as pools, hot tubs, etc. -
Page 4: Installation/Wiring Precautions
Contents JXM900B Antenna (P/N 118-1155) Users Guide P/N 128-7377 AC/DC Power Adapter (P/N 136-3990) 1 pc. 1 pc. Boom Box (P/N 144-2478) 1 pc. Installation/Wiring Precautions 1. If using the adapter, make sure the adapter cable is not connected to an AC wall outlet until all inter- connections have been made and verified. - Page 5 Boom Box JXM900B Controls The Jensen XM® Boom Box JXM900B provides Power ON/OFF and VOLUME +/- pushbuttons, and a MODE pushbutton to toggle between Satellite Radio or an aux- iliary audio input signal. A power-on/low battery LED is also located on the front panel.
- Page 6 IMPORTANT: Make sure boom box power is off before installing and removing the JXM900R Receiver. a. Press the EJECT button at the top of the JXM900B; the spring-loaded mounting plate will tilt forward. Carefully line up the receiver rear spine grooves with the guide spines on the mounting plate;...
- Page 7 Press the receiver into position in the boom SPINES box housing; it will click into place. Apply power to the JXM900B by pressing the Power ON/OFF button; the LED indicator lights green. If the Receiver does not turn on at the same time, press the Power On/...
-
Page 8: Interconnect Diagram
Interconnect Diagram ANTENNA RECEIVER STORAGE BOOM BOX JXM900B SHELF ANTENNA JACK (ANT) DC 12V TO AC WALL RECEIVER OUTLET ANTENNA 5. Installing the Antenna For best reception, the supplied antenna should be placed near a window if in the house or, if outdoors, in... - Page 9 JXM900R Satellite Radio Receiver User Guide (128-7328). 7. Positioning the XM Antenna The antenna supplied with the JXM900B is a high- gain type that can receive XM’s signal from one of XM’s satellites and/or, depending on where you live, XM’s terrestrial repeaters.
- Page 10 Failure to do so could damage the unit. a. Apply power to the JXM900B Boom Box as outlined previously in section 3b and obtain an audio output. If no audio is heard, move the antenna to different positions on the surface until an audio output is heard.
-
Page 11: Specifications
Headphone Output Impedance Headphone Output Level Headphone Connector Type Auxiliary Input Impedance Auxiliary Input Level Auxiliary Connector Type Equalizer Frequency Overall JXM900B Dimensions Overall AC Adapter Dimensions JXM900B Weight 5.0 Watts Rms 0.3% at 1 Watt 30Hz to 20kHz >... -
Page 12: Maintenance
Maintenance Periodic Inspection The JXM900B Boom Box should be inspected periodically for external damage. At least once every 30 days of use, perform the following checks: Inspect the Receiver connector for loose, bent or broken pins, misalignment, etc.; make sure the JXM900R connector is intact and exhibits no apparent damage. -
Page 13: Troubleshooting
As long as the AC power connector is at- batteries tached to the rear panel, operation is disabled Intermittent operation Low battery level Satellite antenna not connected to JXM900B ANTENNA error message rear panel JXM900R Receiver not firmly seated in cradle mounting plate... -
Page 14: 12 Month Limited Warranty
12 MONTH LIMITED WARRANTY AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 15 THIS PAGE LEFT BLANK INTENTIONALLY -15- 128-7377 15 of 16...
- Page 16 © 2005 Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, New York 11788 128-7377 -16- 128-7377 16 of 16...
