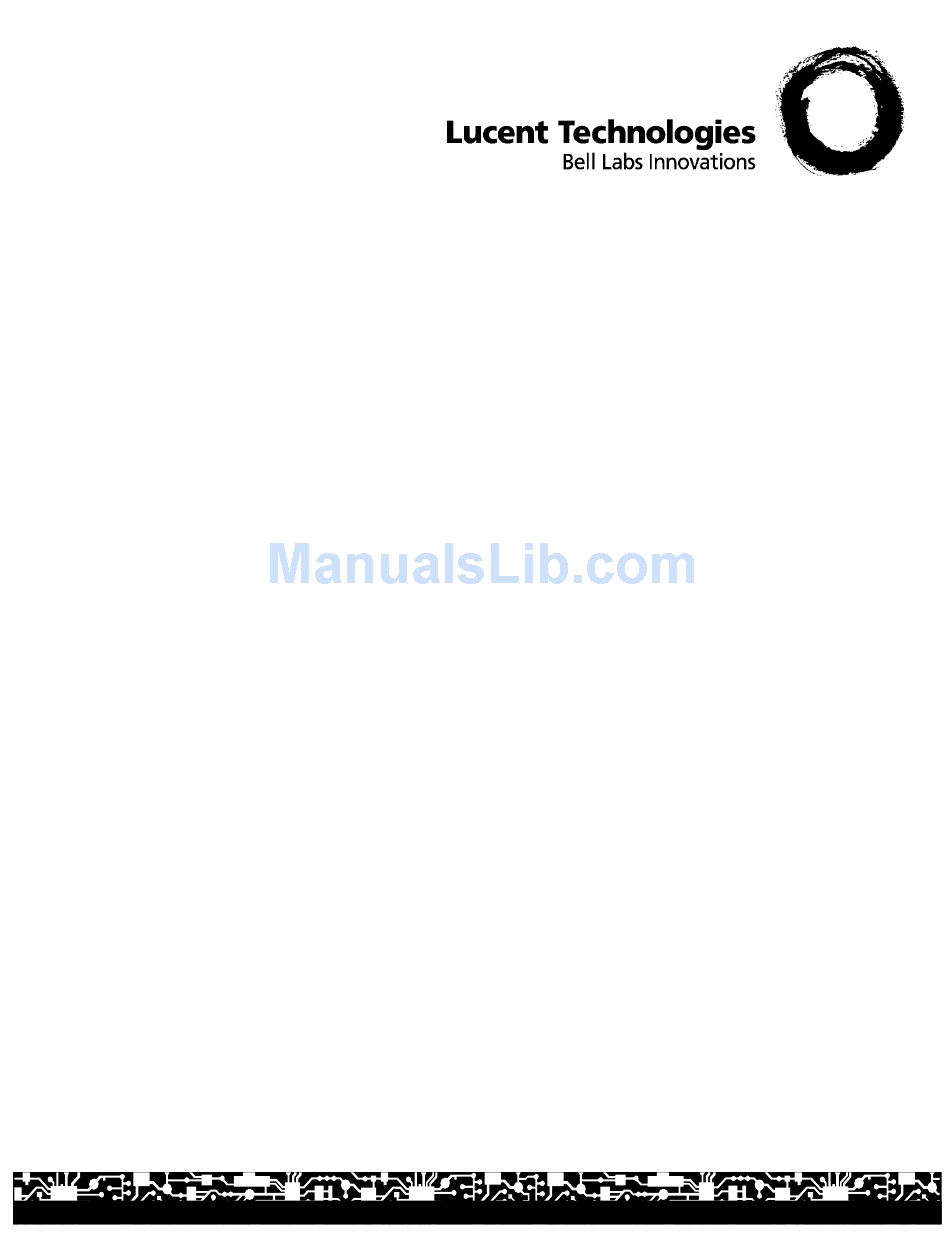

Metropolis
DMX plore Access Multiplexer
Release 2.0
Installation Manual
365-372-334 R2.0
C109536243
Issue 4
Lucent Technologies - Proprietary
This document contains proprietary information of
Lucent Technologies and is not to be disclosed or used except in
accordance with applicable agreements
Copyright © 2004 Lucent Technologies
Unpublished and Not for Publication
All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Metropolis DMXplore and is the answer not in the manual?

Questions and answers

Related Manuals for Lucent Technologies Metropolis DMXplore

Summary of Contents for Lucent Technologies Metropolis DMXplore

  • Page 1 C109536243 Issue 4 Lucent Technologies - Proprietary This document contains proprietary information of Lucent Technologies and is not to be disclosed or used except in accordance with applicable agreements Copyright © 2004 Lucent Technologies Unpublished and Not for Publication All Rights Reserved...
  • Page 2 In rare instances, unauthorized individuals make connections to the telecommunications network. In such an event, applicable tariffs require that the customer pay all network charges for traffic. Lucent Technologies and its predecessors cannot be responsible for such charges and will not make any allowance or give any credit for charges that result from unauthorized access.

  • Page 3: Table Of Contents

    Contents .................................................... About this information product Safety Information and Instructions Related Documentation and Training xxviii xxviii Documentation Ordering Information xxxi xxxi Worldwide Services xxxiii xxxiii .................................................... ® DMX plore Access Multiplexer Physical Part I: Metropolis Installation and Powering .................................................... ® Equipment and Cable Installation for Metropolis DMX plore Shelf (Wall-Mount)
  • Page 4 .................................................... ® Equipment and Cable Installation for Metropolis DMX plore Shelf (Rack-Mount) Overview Planning Connector References Inspection ® Metropolis DMXplore Rack-Mount Shelf Installation Power Cable Installation 2-13 2-13 DS1 Cable Installation 2-18 2-18 DS3 Cable Installation 2-22 2-22 Ethernet Cable Installation 2-24 2-24 Office Alarm Cable Installation...
  • Page 5 .................................................... ® Part II: Metropolis DMX plore Access Multiplexer Stand-Alone Installation Tests .................................................... Software Download and Circuit Pack Installation Software Installation Circuit Pack Installation Use of WaveStar® CIT Software A Short Tour of the Command Builder 5-14 5-14 Circuit Pack Firmware Version Verification 5-18 5-18 ®...
  • Page 6 Cover Installation Wall-Mount 8-19 8-19 Cover Installation Rack-Mount 8-21 8-21 Final Operations 8-23 8-23 .................................................... ® DMX plore Access Multiplexer Part IV: Metropolis Supplementary Information and Installation Checklist .................................................... Laser Safety and Classifications Overview Laser Safety Laser Product Classification ® Metropolis DMXplore Optical Specifications ....................................................
  • Page 7 Fiber Labels .................................................... Glossary Acronyms and Abbreviations GL-1 GL-1 Terms and Definitions GL-17 GL-17 ................................................... 365-372-334 R2.0 C O N T E N T S v i i Issue 4, November 2004...
  • Page 8 ................................................... C O N T E N T S 365-372-334 R2.0 v i i i Issue 4, November 2004...
  • Page 9 List of figures About this information product ..................................® Equipment and Cable Installation for Metropolis DMX plore Shelf (Wall- Mount) Connector Types and Pinouts ® Metropolis DMXplore Shelf Wall-Mount (with Cover) 1-10 1-10 Mounting Screw 1-10 1-10 Wall Plate 1-11 1-11 Safety Ground Screw 1-12...
  • Page 10 ..................................® Equipment and Cable Installation for Metropolis DMX plore Shelf (Rack- Mount) Connector Types and Pinouts ® Metropolis DMXplore Rack-Mount Shelf (with Cover) Mounting bracket position for 19 inch frame 2-10 2-10 Mounting bracket position for 23 inch frame 2-11 2-11 Safety Ground Screw...
  • Page 11 ® Rack-Mount Metropolis DMXplore Shelf with cover Cover Removal Rotated Cover ® Rack-Mount Metropolis DMXplore shelf - cover down 4-10 4-10 ..................................Software Download and Circuit Pack Installation WaveStar® CIT Banner WaveStar® CIT Login Prompt WaveStar® CIT Legal Notice 5-10 5-10 WaveStar®...
  • Page 12 ..................................Laser Safety and Classifications ..................................Fiber Cleaning Cleaning the Ferrule Endface CLETOP Cleaner Acceptability Criteria for Fiber Cleaning B-10 B-10 ..................................Installing Fiber Connectors and LBOs LC-type Connector Ports on Circuit Pack LC-type LBO LC-type LBO inserted into LC-type Connector Port Removing LC-type LBO from LC-type Connector Port LC-type Fiber Connector LC-type Fiber Connection...
  • Page 13 List of tables About this information product ® Metropolis DMXplore Documentation Set xxviii xxviii ® Metropolis DMXplore Drawings xxix xxix Ordering Documentation via Phone, Fax, or Email xxxi xxxi Ordering Documentation via the Internet xxxi xxxi ..................................® Equipment and Cable Installation for Metropolis DMX plore Shelf (Wall- Mount) Cable Requirements and Options...
  • Page 14 1-16 LAN 10BASE-T Cable Assemblies 1-45 1-45 1-17 LAN 10BASE-T Cross-over Cable Connections 1-47 1-47 1-18 LAN 10BASE-T Straight-through Cable Connections 1-47 1-47 ..................................® Equipment and Cable Installation for Metropolis DMX plore Shelf (Rack- Mount) Cable Requirements and Options Power Cable Assemblies 2-13 2-13...
  • Page 15 ..................................® Powering and Initial Circuit Pack Installation for Metropolis DMX plore Shelf (Rack-Mount) ® Metropolis DMXplore Shelf Power Supply Requirements Release 2.0 Circuit Pack Slot Compatibility ..................................Software Download and Circuit Pack Installation ..................................Installation Tests ..................................Operational Tests Office Alarm Connections Miscellaneous (Environmental) Discrete Inputs Telemetry Connections ..................................
  • Page 16 Glossary ................................................... T A B L E S 365-372-334 R2.0 x v i Issue 4, Novmeber 2004...

  • Page 17: About This Information Product

    About this information product This document provides the information and procedures necessary to Purpose ® install, self-test and turn up the Metropolis DMXplore Access Multiplexer system........................This document is reissued to include the OC12 OLIU VLNC 25 and Reason for reissue VLNC 26 circuit packs as well as the VLNC15 Fast Ethernet circuit pack which provides functionality of 10/100 Base T introduced with software Release 2.0.
  • Page 18 About this information product How to use this This manual is divided into the following sections with a brief information product description of the contents of each major part/chapter/appendix: • describes the purpose, intended audience, “About This Document” reason for reissue, and organization of this document. This section references related documentation and explains how to order, make comments or recommend changes to this document.

  • Page 19: Installation Checklist

    About this information product ® Part IV: Metropolis DMXplore Access Multiplexer Supplementary Information and Installation Checklist • Appendix A, Laser Safety and Classifications provides lightwave and laser safety information and precautions. • Appendix B, Fiber Cleaning describes the Lucent recommended method for the cleaning and inspection of optical connectors using specific tools and materials that have been proven to be effective in the assembly and testing of optical transmission equipment.
  • Page 20 About this information product Conventions Used Italic typeface denotes a particular product line or information product. Helvetica Bold typeface signifies a window, section, command or parameter used with the TL1 Command Builder. ® Helvetica typeface indicates a faceplate or Metropolis DMXplore label designation, as in the ACTIVE LED on a circuit pack.

  • Page 21: Safety Information And Instructions

    Safety Information and Instructions About this information product Safety Information and Instructions ..................................This document may contain safety labels in the form of Safety Labels DANGER , and statements. WARNING CAUTION These admonishments have the following definitions: ................................... DANGER shows the presence of a hazard that will DANGER cause death or severe personal injury if the hazard is not avoided.
  • Page 22 Safety Information and Instructions About this information product Electrostatic Discharge Electrostatic discharge (ESD) (for example, caused by touching with (ESD) Considerations the hand) can destroy semiconductor components. The correct operation of the complete system is then no longer assured. Electrostatic discharge (ESD) warning ...................................
  • Page 23 Safety Information and Instructions About this information product • Wear working garment made of 100% cotton to avoid electrostatic discharge. • Handle all circuit packs by the faceplate or latch and by the top and bottom outermost edges. Never touch the components, conductors, or connector pins.
  • Page 24 Safety Information and Instructions About this information product Figure 1 Static Control Wrist Strap GROUND CONNECTION ..........................................................................x x i v 365-372-334 R2.0 Issue 4, November 2004...

  • Page 25: Important Safety Instructions

    This product should be only operated from the type of power sources indicated on the marking label. Connect this product only to the type of power sources recommended by Lucent Technologies. For information on the powering instructions, consult the Installation Manual (DMXplore 365-372-334).
  • Page 26 Safety Information and Instructions About this information product 17. To reduce the risk of an electrical shock, do not disassemble this product. Service should be performed by trained personnel only. Opening or removing covers and/or circuit boards may expose you to dangerous voltages or other risks.
  • Page 27 Safety Information and Instructions About this information product • Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. • The socket outlet shall be installed near the equipment and shall be readily accessible. •...

  • Page 28: Related Documentation And Training

    Related Documentation and Training About this information product Related Documentation and Training ..................................® ® Table 1, Metropolis DMXplore Documentation Set lists the documents Metropolis DMX plore ® Documentation Set that comprise the Metropolis DMXplore Access Multiplexer documentation set. ® Table 1 Metropolis DMX plore Documentation Set...
  • Page 29 Related Documentation and Training About this information product ® Table 2 Metropolis DMX plore Drawings Drawing Drawing Title Number ® Metropolis ED8C947-10 DMXplore Access Multiplexer, Engineering and Ordering Information ® Metropolis ED8C947-20 DMXplore Access Multiplexer, Interconnect Circuit Information Training This document expects a user to be familiar with the basic functions of the system before performing tasks that could damage the system, affect system operations, or impede communication traffic within the system.
  • Page 30 Related Documentation and Training About this information product Suitcasing To arrange for a suitcase session at your facility, • Within the United States, call (888-582-3688): 1-888-LUCENT8 Prompt 2. • Outside the continental United States, – Contact your in-country training representative –...

  • Page 31: Documentation Ordering Information

    Commercial Customers placement on the standing order list (for reissues of any document) by mail, telephone, fax, email, or the internet. The postal address for CIC is: Lucent Technologies Attention: Order Entry 2855 N. Franklin Road P.O. Box 19901 Indianapolis, IN 46219...
  • Page 32 Commercial customers may use one of the following methods of payment: • Check (payable to Lucent Technologies) • Money order (payable to Lucent Technologies) • Invoice upon receipt of a purchase order. (Purchase orders may be faxed or mailed using the information provided above.) •...

  • Page 33: Worldwide Services

    Realignment, System Capacity Planning, System Health Assessment Installation Services Lucent Technologies offers Installation Services focused on providing the technical support and resources customers need to efficiently and cost-effectively install their network equipment. We offer a variety of options that provide extensive support and deliver superior execution to help ensure the system hardware is installed, tested, and functioning as engineered and specified.
  • Page 34 Worldwide Services About this information product Technical Support Lucent Technologies provides the following Technical Support Services: • Remote Technical Support (RTS) - remote technical support to troubleshoot and resolve system problems. • On-site Technical Support (OTS) - on-site assistance with operational issues and remedial maintenance.

  • Page 35: Part I: Metropolis Dmxplore Access Multiplexer Physical Installation And Powering

    ® Part I: Metropolis DMXplore Access Multiplexer Physical Installation and Powering Overview ..................................® Part I covers the physical mounting of the Metropolis DMXplore Access Multiplexer Wall-Mount and Rack-Mount shelf, the running and connecting of power cables, interconnecting cables, alarm cables, and as required, communication cables.
  • Page 36 ® Metropolis DMXplore Access Multiplexer Physical Installation and Powering ................................................... P A R T I 365-372-334 R2.0 Issue 4, November 2004...
  • Page 37 ® Metropolis DMXplore Access Multiplexer Physical Installation and Powering Tools, Test Equipment, and Accessories Overview This section lists the tools, test equipment and accessories needed to perform all the procedures in this installation manual. Listed below are the required tools, test equipment and accessories. Tools, Test Equipment and Accessories Quantity...
  • Page 38 ® Metropolis DMXplore Access Multiplexer Physical Installation and Powering Quantity Description Comments Wire-Wrap Gun The wire-wrap gun is required for terminating DS1 cable and must be able to accommodate 24-gauge wire. R-4496A ESD Wrist Strap A wrist strap must be worn when handling circuit packs. Use the electrostatic discharge (ESD) jack provided on the shelf.
  • Page 39 ® Metropolis DMXplore Access Multiplexer Physical Installation and Powering Quantity Description Comments Noyes VFS-1 ITE-7187 This equipment may not be necessary at all locations. It is to be used Video Fiber Scope when the ports need to be verified for cleanliness. If care is exercised when cleaning fibers, the video scope may not be needed.
  • Page 40 ® Metropolis DMXplore Access Multiplexer Physical Installation and Powering PC and Cable This section lists the required and optional equipment needed to run the ® ® Requirements for WaveStar CIT software with the Metropolis DMXplore. ® WaveStar Quantity Required Description Comments Personal Computer (PC) See PC Minimum Requirements below.
  • Page 41 ® Metropolis DMXplore Access Multiplexer Physical Installation and Powering and speed as well as the memory size will all factor in to CIT performance.................................................... 365-372-334 R2.0 P A R T v i i Issue 4, November 2004...
  • Page 42 ® Metropolis DMXplore Access Multiplexer Physical Installation and Powering ................................................... P A R T I 365-372-334 R2.0 v i i i Issue 4, November 2004...

  • Page 43: (Wall-Mount)

    Equipment and Cable Installation ® for Metropolis DMXplore Shelf (Wall-Mount) Overview .................................................... This section provides installation and cabling instructions for the Purpose ® Metropolis DMXplore Wall-Mount Shelf. Mounting options for the Wall-Mount unit are: Wall Bay-frame (using optional equipment) This chapter provides information on the following topics: Contents Planning Connector References...
  • Page 44 ® Overview Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) OC-3/OC12 Main Optical Fiber Cable Installation 1-41 1-41 RS-232 Serial CIT Cable Installation 1-43 1-43 SYSCTL LAN Cable Installation 1-45 1-45 Final Operations 1-49 1-49 ................................................... 1 - 2 365-372-334 R2.0 Issue 4, November 2004...

  • Page 45: Equipment And Cable Installation For Metropolis Dmx Plore Shelf (Wall-Mount)

    ® Planning Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Planning .................................................... This section provides information about the following: Description • tools, test equipment and accessories • mounting options • cabling checklist ................................... Listed below are the tools, test equipment and accessories necessary to Tools, Test Equipment and Accessories perform the procedures in this section.
  • Page 46 ® Planning Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Quantity Description Comments ® If the shelf is Metropolis DMXplore Wall-Mount to be installed above or below existing equipment in a rack that does not have a heat baffle, then a heat baffle must be installed between the shelf and the existing equipment.

  • Page 47: Equipment And Cable Installation For Metropolis Dmxplore Shelf (Wall-Mount)

    ® Planning Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) ® Mounting options The Wall-Mount mounting brackets for the Metropolis DMXplore Access Multiplexer are designed to allow for mounting in the following: • 12-inch bay-frames • 19-inch bay-frames • Standard 23-inch wide network bay-frames The recommended network bay-frames are the ED-8C500-50 and the ED-8C501-50 (also allows for rear access).

  • Page 48: Equipment And Cable Installation For Metropolis Dmxplore Shelf (Wall-Mount)

    ® Planning Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) ® Metropolis DMXplore (not included with equipment). 3. One "Single DS1 Cable Assembly" is required for each DS1 supported by the main pack (maximum of 16). Each DS1 Cable Assembly supports 1 pair of 24-gauge RJ45/blunt-cut or RJ45-RJ45 cables.

  • Page 49: Connector References

    ® Connector References Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Connector References .................................................... Figure 1-1, Connector Types and Pinouts (page 1-7) provides the Description pinouts of some of the connectors used to interface with the ® Metropolis DMXplore. Figure 1-1 Connector Types and Pinouts Connector B GROUP...

  • Page 50: Inspection

    ® Inspection Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Inspection .................................................... ® Perform the following procedure before installing the Metropolis Description DMXplore shelf and cables.................................... Procedure Inspect the shelf for visible damage including bent or touching Step 1 backplane pins.

  • Page 51: Metropolis ® Dmxplore Wall-Mount Shelf Installation

    ® ® Metropolis DMXplore Wall-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Installation ® Metropolis DMXplore Wall-Mount Shelf Installation .................................................... ® This section provides instructions for mounting the Metropolis Introduction DMXplore Wall-Mount on a wall and in the supported bay-frames sizes using the appropriate bracket.

  • Page 52: Mounting Screw

    ® ® Metropolis DMXplore Wall-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Installation ® Figure 1-2 Metropolis DMX plore Shelf Wall-Mount (with Cover) ................................... ® Remove wall-plate from the rear of the Wall-Mount Metropolis Step 2 DMXplore Shelf by doing the following: Loosen the mounting screw in the top right hand corner of ®...
  • Page 53 ® ® Metropolis DMXplore Wall-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Installation ................................... ® Step 3 Determine the wall mounting location for the Wall-Mount Metropolis DMXplore shelf. Use wall plate as a stencil to mark screw positions. Important! Figure 1-4 Wall Plate ...................................

  • Page 54: Safety Ground Screw

    ® ® Metropolis DMXplore Wall-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Installation Grounding wire must be of the same gauge as the Important! cables used to power the shelf. Figure 1-5 Safety Ground Screw ................................... ® Verify with an ohmmeter that the Metropolis DMXplore shelf is Step 7...
  • Page 55 ® ® Metropolis DMXplore Wall-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Installation ® 12-inch, 19-inch, and 23- As an example of the Metropolis DMXplore shelf installation, the Inch Bay-frame Installation following steps describe mounting a single shelf from the front of a 23- inch bay-frame.

  • Page 56: Exploded Bay-Frame (23" Mounting Bracket)

    ® ® Metropolis DMXplore Wall-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Installation ................................... Step 3 Remove bay-frame mounting bracket from box, and assemble as indicated in Figure 1-6, Exploded Bay-Frame (23" Mounting Bracket) (page 1-14). Figure 1-6 Exploded Bay-Frame (23" Mounting Bracket) Important! Tie-downs are to be positioned to the right of the shelf.

  • Page 57: Safety Ground Screw

    ® ® Metropolis DMXplore Wall-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Installation must be installed above the shelf to prevent accidental damage to the power cables at the top of the shelf.................................... Position the bay-frame mounting bracket in the frame and secure to the Step 5 frame using 3 thread-forming screws side (not included).

  • Page 58: Metropolis ® Dmxplore Shelf Wall-Mount (With Cover)

    ® ® Metropolis DMXplore Wall-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Installation ................................... Step 7 Loosen plate mounting screws on mounting bracket and position wall- plate onto it. See Figure 1-6, Exploded Bay-Frame (23" Mounting Bracket) (page 1-14) ...................................

  • Page 59: Wall-Mount Bay-Frame Mounting Brackets

    ® ® Metropolis DMXplore Wall-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Installation Figure 1-8 Wall-Mount Bay-Frame Mounting Brackets ................................................... 365-372-334 R2.0 1 - 1 7 Issue 4, November 2004...

  • Page 60: Power Cable Installation

    ® Power Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Power Cable Installation .................................................... This section provides instructions on installing the power cabling for Description ® the Metropolis DMXplore shelf. Each power feeder (A and B) requires a single power feed from; the AC/DC power converter (408812394), the battery distribution fuse board (BDFB), or the battery distribution circuit breaker bay (BDCBB) ®...
  • Page 61 ® Power Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Table 1-3 Power Connections Shelf Power Designation Name BAT B -48-B BAT B RTN-B BAT B RTN Important! To tie RTN-A and RTN-B together use a MESH Ground Strap to jumper between RTN-COM and GND of the power terminal block.

  • Page 62: Power Connection

    ® Power Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Figure 1-9 Power Connection Table 1-4 Power Cable Color Coding Color Coding Connection -48V-A Red/Black RTN-A Blue -48V-B Blue/Black RTN-B ................................... Route the power cables toward the power source (e.g. AC/DC Step 3 Converter, BDCBB, BDFB etc.) ®...
  • Page 63 ® Power Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) ................................... Step 5 If not using the orderable AC/DC converter (C), verify that the converter is fuse limited to on each lead. 2-amperes If the AC/DC converter is not fuse limited to 2 Important! , it will be necessary to add a 2A inline fuse for each power amperes...
  • Page 64 ® Power Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) The BDFB requires the removal of fuses to inhibit Important! power flow.................................... Check off the appropriate box in Appendix E, Installation Checklist. Step 10 End of Steps ...................................

  • Page 65: Ds1 Cable Installation

    ® DS1 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) DS1 Cable Installation .................................................... Description This section describes how to connect the DS1 transmission cables to the A/D function group of the shelf. If applicable, route the cables out of the bay and connect the cables to the DSX panel.

  • Page 66: Ds1 Transmission Connections

    ® DS1 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Table 1-5 DS1 Cable Assemblies Description Cable Length Cable (feet) Assembly # Single DS1 Cable, 26-gauge, 109468132 RJ45 blunt-cut 109142323 109142331 109142349 109142356 109142364 109142372 109142380 Bundle of 16 DS1 Cables, 26 109308437 gauge, RJ45 blunt-cut 109308445...

  • Page 67: Ds1 Access Panel Cable Connectors

    ® DS1 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Procedure Refer to the engineering job specification. Obtain the DS1 cables per Step 1 Table 1-5, DS1 Cable Assemblies (page 1-23). Label the cables, indicating bay and shelf, and direction (IN or OUT of the bay) at each end.
  • Page 68 ® DS1 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Figure 1-11 DS1 Cable Routing ................................... Step 4 Route the cables along the cable rack and into the terminating bay or along the wall if mounting on a wall....................................

  • Page 69: Ds3 Cable Installation

    ® DS3 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) DS3 Cable Installation .................................................... This section describes how to connect the DS3 transmission cables to Description the B function group of the shelf. If applicable, route the cables out of the bay and connect the cables to the DSX panel.

  • Page 70: Ds3 Access Panel Cable Connectors

    ® DS3 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Procedure Refer to the engineering job specification. Obtain the DS3 cables per Step 1 Table 1-7, DS3 Cable Assemblies and note the function group where each cable will be used. Label the cables, indicating bay, shelf, function group (B) and direction (IN or OUT of the bay) at each end.
  • Page 71 ® DS3 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) ................................... Step 5 Check off the appropriate box in Appendix E, Installation Checklist. End of Steps ................................................... 365-372-334 R2.0 1 - 2 9 Issue 4, November 2004...

  • Page 72: Ethernet Cable Installation

    ® Ethernet Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Ethernet Cable Installation .................................................... This section describes how to route the Fast Ethernet (10/100Base T) Overview ® cables from the Wall-Mount Metropolis DMXplore shelf to the 10/100BaseT terminating equipment. If Fast Ethernet Cabling is not available yet, this section may be completed later.
  • Page 73 ® Ethernet Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Figure 1-13 10/100Base-T Cable Installation PWR-A -48V-A RTN-A RTN-COM PWR-B RTN-B -48V-B C GROUP B GROUP A/D GROUP C GROUP ALARM ................................... Label the cables, indicating bay (if required), shelf, pack and position Step 4 (1 through 4).

  • Page 74: Lan 10/100 Baset Cable Assemblies For Fast Ethernet

    ® Ethernet Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Table 1-8 LAN 10/100 BaseT Cable Assemblies for Fast Ethernet ® Description Comcode Cable Metropolis DMX plore Length (feet) Connections 109154476 109142513 LAN 10BaseT 109142521 Cross-over cable 109142539 RJ45 —...

  • Page 75: Office Alarm Cable Installation

    ® Office Alarm Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Office Alarm Cable Installation .................................................... Office alarms are the common method used in a central office for Description maintenance personnel to quickly isolate a failure. Perform this procedure if connection to the office alarm system is required.

  • Page 76: Office Alarm Connections

    ® Office Alarm Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Table 1-10 Office Alarm Connections Pin# Color Name Designation CR/MJ Visual + RYCRMJV1 BL/W CR/MJ Visual - CR/MJ Audible + RYCRMJA1 CR/MJ Audible - MN/ABN Visual + RYMNABNV1 MN/ABN Visual - MN/ABN Audible +...

  • Page 77: Office Alarm Cable Connections

    ® Office Alarm Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Figure 1-14 Office Alarm Cable Connections P W R - A -4 8 V -A R T N -A R T N -C O M G R D P W R - B R T N -B -4 8 V -B...
  • Page 78 ® Office Alarm Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) ................................... Step 4 Cut the office alarm cable to the desired length.................................... Wire-wrap the loose end of the office alarm cable to the alarm panel, Step 5 making connections as listed in Table 1-10, Office Alarm Connections (page 1-34).

  • Page 79: Miscellaneous (Environmental) Discrete Telemetry Cable Installation

    ® Miscellaneous (Environmental) Discrete Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Telemetry Cable Installation Miscellaneous (Environmental) Discrete Telemetry Cable Installation .................................................... The miscellaneous (environmental) discrete telemetry access allows the Description maintenance center to control and monitor equipment collocated with ®...

  • Page 80: Miscellaneous (Environmental) Discrete Telemetry Connections

    ® Miscellaneous (Environmental) Discrete Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Telemetry Cable Installation Table 1-12 Miscellaneous (Environmental) Discrete Telemetry Connections Pin# Color Designation Name Circuit #1 + Env. Input/Output - #1 BL/W Circuit #1 - Env. Input/Output - #2 Circuit #2 + Env.

  • Page 81: Miscellaneous Discrete Cable Connection

    ® Miscellaneous (Environmental) Discrete Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Telemetry Cable Installation Figure 1-16 Miscellaneous Discrete Cable Connection P WR-A -48V -A R TN-A R TN-C OM GR D P WR-B R TN-B -48V -B C GRO UP B GRO UP A/D G RO UP ALARM...

  • Page 82: Miscellaneous Discretes And Office Alarm Cable Routing

    ® Miscellaneous (Environmental) Discrete Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Telemetry Cable Installation Figure 1-17 Miscellaneous Discretes and Office Alarm Cable Routing ................................... Step 3 Cut the miscellaneous (environmental) discrete telemetry cable to the desired length at the telemetry panel....................................

  • Page 83: Oc-3/Oc12 Main Optical Fiber Cable Installation

    ® OC-3/OC12 Main Optical Fiber Cable Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Installation OC-3/OC12 Main Optical Fiber Cable Installation .................................................... This section describes how to route the optical fiber cables from the Description interconnecting equipment (for example, a LGX® optical fiber ®...

  • Page 84: Optical Fiber Routing

    ® OC-3/OC12 Main Optical Fiber Cable Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Installation Procedure Route the optical fiber cables from the interconnecting equipment into Step 1 ® the left side of the Metropolis DMXplore. See Figure 1-18, Optical Fiber Routing (page 1-42) Important! Protective covers must be left on cables.

  • Page 85: Rs-232 Serial Cit Cable Installation

    ® RS-232 Serial CIT Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) RS-232 Serial CIT Cable Installation .................................................... This section provides the procedure to connect the CIT cable from the Description VLNC1 (SYSCTL) to a PC (serial port) to allow communications between the PC and the RS232 port located on the VLNC1.
  • Page 86 ® RS-232 Serial CIT Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Table 1-15 RJ-45 to DB-9 Connector Connections From RJ45 To DB-9 Pin D-type connector connector Pin# Color Pin# Blue Black Green Yellow Notes: 1. The connection and the colors shown above are for RJ-45 to DB- 9 connector.

  • Page 87: Sysctl Lan Cable Installation

    ® SYSCTL LAN Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) SYSCTL LAN Cable Installation .................................................... This section describes how to connect the IAO LAN/TCP-IP (LAN Description ® 10BASE-T) cable to the Metropolis DMXplore shelf and to the interfacing equipment.
  • Page 88 ® SYSCTL LAN Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Table 1-16 LAN 10BASE-T Cable Assemblies Description Cable Cable Assembly # Length (feet) LAN 10BASE-T 109321836 Straight-through 109321844 (Cable to Ethernet Hub / Router) 109321851 848604948 109321869 109321877 109321885...

  • Page 89: Lan 10Base-T Cross-Over Cable Connections

    ® SYSCTL LAN Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Table 1-17 LAN 10BASE-T Cross-over Cable Connections ® SYSCTL Metropolis Color Other Side Design DMX plore Connection Backplane BL - W RDTR W - BL RS232N O - W RRXD W - O...
  • Page 90 ® SYSCTL LAN Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) ................................... Step 2 Are you using... Then... Route the cable to the desired PC Cross-over LAN cable LAN Network Interface card Route the cable to the desired hub Straight-through LAN cable port location ...................................

  • Page 91: Final Operations

    ® Final Operations Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) Final Operations .................................................... Final check on equipment and cable installation. Description ................................... Procedure Step 1 Verify that all the cables are properly dressed/connected.................................... Verify that all cables are properly labeled. Step 2 ...................................
  • Page 92 ® Final Operations Equipment and Cable Installation for Metropolis DMXplore Shelf (Wall-Mount) ................................................... 1 - 5 0 365-372-334 R2.0 Issue 4, November 2004...

  • Page 93: Equipment And Cable Installation For Metropolis Dmxplore Shelf (Rack-Mount)

    Equipment and Cable Installation ® for Metropolis DMXplore Shelf (Rack-Mount) Overview .................................................... This section provides installation and cabling instructions for the Purpose ® Metropolis DMXplore Rack-Mount Shelf. Mounting options for the Rack-Mount unit are: Rear-mount with rear access Front-mount with rear access ®...
  • Page 94 ® Overview Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) DS3 Cable Installation 2-22 2-22 Ethernet Cable Installation 2-24 2-24 Office Alarm Cable Installation 2-26 2-26 Miscellaneous (Environmental) Discrete Telemetry Cable 2-29 2-29 Installation OC-3/OC12 Main Optical Fiber Cable Installation 2-33 2-33 RS-232 Serial CIT Cable Installation...

  • Page 95: (Rack-Mount)

    ® Planning Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Planning .................................................... This section provides information about the following: Description • tools, test equipment and accessories • mounting options • cabling checklist ................................... Listed below are the tools, test equipment and accessories necessary to Tools, Test Equipment and Accessories perform the procedures in this section.
  • Page 96 ® Planning Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Quantity Description Comments Metric & Inch Series Tool Because some Optical Networking Products (also know as Transport) may have some metric fasteners, please ensure that the proper metric tools are R - 6001 available.
  • Page 97 ® Planning Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) ® Mounting options The Rack-Mount mounting brackets for the Metropolis DMXplore Access Multiplexer are adjustable and designed to allow for mounting in the following: • 19-inch bay-frames • Standard 23-inch wide network bay-frames The recommended network bay-frames are the ED-8C500-50 and the ED-8C501-50 (also allows for rear access).
  • Page 98 ® Planning Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) ® Metropolis DMXplore (not included with equipment). 3. One "Single DS1 Cable Assembly" is required for each DS1 supported by the main pack (maximum of 16). Each DS1 Cable Assembly supports 1 pair of 24-gauge RJ45/blunt-cut or RJ45-RJ45 cables.

  • Page 99: Connector References

    ® Connector References Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Connector References .................................................... Figure 2-1, Connector Types and Pinouts (page 2-7) provides the Description pinouts of some of the connectors used to interface with the ® Metropolis DMXplore. Figure 2-1 Connector Types and Pinouts Connector B GROUP...

  • Page 100: Inspection

    ® Inspection Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Inspection .................................................... ® Perform the following procedure before installing the Metropolis Description DMXplore shelf and cables.................................... Procedure Inspect the shelf for visible damage including bent or touching Step 1 backplane pins.

  • Page 101: Metropolis ® Dmxplore Rack-Mount Shelf Installation

    ® ® Metropolis DMXplore Rack-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Installation ® Metropolis DMXplore Rack-Mount Shelf Installation .................................................... ® This section provides instructions for mounting the Metropolis Introduction DMXplore Rack-Mount in the supported bay-frame sizes using the appropriate bracket.

  • Page 102: Mounting Bracket Position For 19 Inch Frame

    ® ® Metropolis DMXplore Rack-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Installation ................................... Step 3 Determine the mounting configuration for the Rack-Mount ® Metropolis DMXplore shelf: • type of bay frame (23-inch or 19-inch wide) • mounting position (front or rear) •...

  • Page 103: Mounting Bracket Position For 23 Inch Frame

    ® ® Metropolis DMXplore Rack-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Installation Figure 2-4 Mounting bracket position for 23 inch frame ................................... ® Determine the position that the Rack-Mount Metropolis DMXplore Step 5 shelf will be mounted. Start at the bottom of the bay and add shelves from bottom to top.

  • Page 104: Safety Ground Screw

    ® ® Metropolis DMXplore Rack-Mount Shelf Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Installation Figure 2-5 Safety Ground Screw Grounding Screw ................................... ® Verify with an ohmmeter that the Metropolis DMXplore shelf is Step 8 ® grounded properly. Measure between the Metropolis DMXplore shelf safety ground screw and the appropriate safety ground.

  • Page 105: Power Cable Installation

    ® Power Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Power Cable Installation .................................................... This section provides instructions on installing the power cabling for Description ® the Metropolis DMXplore shelf. Each power feeder (A and B) requires a single power feed from; the AC/DC power converter (408812394), the battery distribution fuse board (BDFB), or the battery distribution circuit breaker bay (BDCBB) ®...

  • Page 106: Rack-Mount Metropolis ® Dmxplore Connector

    ® Power Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) ® Figure 2-6 Rack-Mount Metropolis DMX plore Connector Table 2-3 Power Connections Shelf Power Designation Name BAT A -48-A BAT A RTN-A BAT A RTN BAT B -48-B BAT B RTN-B...

  • Page 107: Power Connection

    ® Power Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) torque screwdriver set to 0.5 Nm (4.4 lb-in) to tighten. See Figure 2-7, Power Connection (page 2-15). Important! Power cables must be between 12 AWG and 20 AWG and have an 8mm wire strip length for connection to the terminal block.
  • Page 108 ® Power Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) ................................... Step 4 Are you using Lucent orderable AC/DC Converter? IF... Then... Proceed to Step 5 Proceed to Step 7 ................................... If not using the Lucent orderable AC/DC converter (C), verify that the Step 5 converter is fuse limited to on each lead.
  • Page 109 ® Power Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Each feeder should be fused for 2-amperes. Important! ................................... Leave the power supply mechanism disconnected at the power source Step 9 until you are ready to perform the procedures in Chapter 4, Powering ®...

  • Page 110: Ds1 Cable Installation

    ® DS1 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) DS1 Cable Installation .................................................... Description This section describes how to connect the DS1 transmission cables to the A/D function group of the shelf. If applicable, route the cables out of the bay and connect the cables to the DSX panel.

  • Page 111: Ds1 Transmission Connections

    ® DS1 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Table 2-5 DS1 Cable Assemblies Description Cable Length Cable (feet) Assembly # Single DS1 Cable, 26-gauge, 109468132 RJ45 blunt-cut 109142323 109142331 109142349 109142356 109142364 109142372 109142380 Bundle of 16 DS1 Cables, 26 109308437 gauge, RJ45 blunt-cut 109308445...

  • Page 112: Ds1 Access Panel Cable Connectors

    ® DS1 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Procedure Refer to the engineering job specification. Obtain the DS1 cables per Step 1 Table 2-5, DS1 Cable Assemblies (page 2-18). Label the cables, indicating bay and shelf, and direction (IN or OUT of the bay) at each end.
  • Page 113 ® DS1 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) ................................... Step 5 Remove slack and cut the DS1 cables to the desired length at the DSX.................................... Referring to Table 2-6, DS1 Transmission Connections (page 2-19), Step 6 carefully observe color codes and wire-wrap the cables at the DSX.

  • Page 114: Ds3 Cable Installation

    ® DS3 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) DS3 Cable Installation .................................................... This section describes how to connect the DS3 transmission cables to Description the B function group of the shelf. If applicable, route the cables out of the bay and connect the cables to the DSX panel.

  • Page 115: Ds3 Access Panel Cable Connectors

    ® DS3 Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Procedure Refer to the engineering job specification. Obtain the DS3 cables per Step 1 Table 2-7, DS3 Cable Assemblies and note the function group where each cable will be used. Label the cables, indicating bay, shelf, function group (B) and direction (IN or OUT of the bay) at each end.

  • Page 116: Ethernet Cable Installation

    ® Ethernet Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Ethernet Cable Installation .................................................... This section describes how to route the Fast Ethernet (10/100Base T) Overview ® cables from the Rack-Mount Metropolis DMXplore shelf to the 10/100BaseT terminating equipment. If Fast Ethernet Cabling is not available yet, this section may be completed later.

  • Page 117: Lan 10/100 Baset Cable Assemblies For Fast Ethernet

    ® Ethernet Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) ................................... Label the cables, indicating bay (if required), shelf, pack and position Step 4 (1 through 4).................................... Step 5 Connect the cables onto their respective positions at the 10/100BaseT terminating equipment.

  • Page 118: Office Alarm Cable Installation

    ® Office Alarm Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Office Alarm Cable Installation .................................................... Office alarms are the common method used in a central office for Description maintenance personnel to quickly isolate a failure. Perform this procedure if connection to the office alarm system is required.

  • Page 119: Office Alarm Cable Connections

    ® Office Alarm Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Table 2-10 Office Alarm Connections Pin# Color Name Designation CR/MJ Visual RYCRMJV1 BL/W CR/MJ Visual CR/MJ Audible RYCRMJA1 CR/MJ Audible MN/ABN Visual RYMNABNV1 MN/ABN Visual MN/ABN Audible RYMNABNA1 MN/ABN Audible BR/W...

  • Page 120: Alarm Designations (As Shown On Inside Cover)

    ® Office Alarm Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Figure 2-11 Alarm Designations (as shown on inside cover) Figure 2-12 Office Alarm Cable Connections ................................... Step 2 Route the office alarm cable to the office alarm panel. Secure to a tie bar for strain relief.
  • Page 121 ® Office Alarm Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) ................................... Step 5 Wire-wrap the loose end of the office alarm cable to the alarm panel, making connections as listed in Table 2-10, Office Alarm Connections (page 2-27).

  • Page 122: Miscellaneous (Environmental) Discrete Telemetry Cable Installation

    ® Miscellaneous (Environmental) Discrete Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Telemetry Cable Installation Miscellaneous (Environmental) Discrete Telemetry Cable Installation .................................................... The miscellaneous (environmental) discrete telemetry access allows the Description maintenance center to control and monitor equipment collocated with ®...

  • Page 123: Mdi And Mdo Designations (See Inside Cover)

    ® Miscellaneous (Environmental) Discrete Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Telemetry Cable Installation Table 2-12 Miscellaneous (Environmental) Discrete Telemetry Connections Pin# Color Designation Name Circuit #1 Env. Input/Output - #1 BL/W Circuit #1 Env. Input/Output - #2 Circuit #2 Env.

  • Page 124: Miscellaneous Discrete Cable Connection

    ® Miscellaneous (Environmental) Discrete Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Telemetry Cable Installation Figure 2-14 Miscellaneous Discrete Cable Connection ................................... Route the miscellaneous (environmental) discretes cables to the Step 2 telemetry . Secure to a tie bar for strain relief Miscellaneous Discrete connections and Alarm Important! connections may be dressed together in a single bundle.
  • Page 125 ® Miscellaneous (Environmental) Discrete Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Telemetry Cable Installation ................................... Step 5 Check off the appropriate box in Appendix E, Installation Checklist. End of Steps ...................................................................................... 365-372-334 R2.0 2 - 3 3 Issue 4, November 2004...

  • Page 126: Oc-3/Oc12 Main Optical Fiber Cable Installation

    ® OC-3/OC12 Main Optical Fiber Cable Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Installation OC-3/OC12 Main Optical Fiber Cable Installation .................................................... This section describes how to route the optical fiber cables from the Description interconnecting equipment (for example, a LGX® optical fiber ®...

  • Page 127: Optical Fiber Routing

    ® OC-3/OC12 Main Optical Fiber Cable Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Installation Procedure Snap the fiber management module into place on the left of the Rack- Step 1 ® Mount Metropolis DMXplore. See Figure 2-15, Optical Fiber Routing (page 2-35) ...................................
  • Page 128 ® OC-3/OC12 Main Optical Fiber Cable Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Installation ................................... Step 5 Check off the appropriate box in Appendix E, Installation Checklist. End of Steps ...................................................................................... 2 - 3 6 365-372-334 R2.0 Issue 4, November 2004...

  • Page 129: Rs-232 Serial Cit Cable Installation

    ® RS-232 Serial CIT Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) RS-232 Serial CIT Cable Installation .................................................... This section provides the procedure to connect the CIT cable from the Description VLNC1 (SYSCTL) to a PC (serial port) to allow communications between the PC and the RS232 port located on the VLNC1.
  • Page 130 ® RS-232 Serial CIT Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Table 2-15 RJ-45 to DB-9 Connector Connections From RJ45 To DB-9 Pin D-type connector connector Pin# Color Pin# Blue Black Green Yellow Notes: 1. The connection and the colors shown above are for RJ-45 to DB- 9 connector.

  • Page 131: Sysctl Lan Cable Installation

    ® SYSCTL LAN Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) SYSCTL LAN Cable Installation .................................................... This section describes how to connect the IAO LAN/TCP-IP (LAN Description ® 10BASE-T) cable to the Metropolis DMXplore shelf and to the interfacing equipment.
  • Page 132 ® SYSCTL LAN Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Table 2-16 LAN 10BASE-T Cable Assemblies Description Cable Cable Assembly # Length (feet) LAN 10BASE-T 109321836 Straight-through 109321844 (Cable to Ethernet Hub / Router) 109321851 848604948 109321869 109321877 109321885...

  • Page 133: Lan 10Base-T Cross-Over Cable Connections

    ® SYSCTL LAN Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Table 2-17 LAN 10BASE-T Cross-over Cable Connections ® SYSCTL Metropolis Color Other Side Design DMX plore Connection Backplane BL - W RDTR W - BL RS232N O - W RRXD W - O...
  • Page 134 ® SYSCTL LAN Cable Installation Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) ................................... Step 2 Table 2-19 Are you using... Then... Route the cable to the desired PC Cross-over LAN cable LAN Network Interface card Route the cable to the desired hub Straight-through LAN cable port location ...................................

  • Page 135: Final Operations

    ® Final Operations Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) Final Operations .................................................... Final check on equipment and cable installation. Description ................................... Procedure Step 1 Verify that all the cables are properly dressed/connected.................................... Verify that all cables are properly labeled. Step 2 ...................................
  • Page 136 ® Final Operations Equipment and Cable Installation for Metropolis DMXplore Shelf (Rack-Mount) ................................................... 2 - 4 4 365-372-334 R2.0 Issue 4, November 2004...

  • Page 137: Dmxplore Shelf (Wall-Mount)

    Powering and Initial Circuit Pack ® Installation for Metropolis DMXplore Shelf (Wall-Mount) Overview .................................................... This section provides information for performing the following: Purpose • shelf powering • circuit pack installation. Detailed information on the function of each circuit pack is contained ®...

  • Page 138: Description

    Description Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) Description .................................................... This section should be performed on all shelf installations. Overview Listed below are the tools, test equipment and accessories necessary to Tools, Test Equipment and Accessories perform the procedures in this section.

  • Page 139: Powering

    Powering Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) Powering .................................................... ® Overview The following table lists the requirements for the Metropolis DMXplore Shelf. ® DMX plore Shelf Power Supply Table 3-1 Metropolis Requirements Item Description Voltage range, all components -40.0V to -60.0V DC Power Feeders...

  • Page 140: Power Connections On Metropolis

    Powering Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) ® Figure 3-1 Power Connections on Metropolis DMX plore Access Panel 2.75 in. PWR-A -48V-A RTN-A RTN-COM PWR-B RTN-B -48V-B -48V-A C GROUP RTN-A RTN-COM RTN-B B GROUP -48V-B A/D GROUP ALARM...
  • Page 141 Powering Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) ................................... ® Step 6 At the Metropolis DMXplore power cable connector, use a voltmeter and measure the voltage on the power cable between BAT A and BAT A RTN.
  • Page 142 Powering Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) ................................... ® Step 13 Restart the power flow to the “B” power feed of the Metropolis DMXplore Shelf by either: • connecting the corresponding AC/DC converter from the AC power outlet •...

  • Page 143: Circuit Pack Compatibility

    Circuit Pack Compatibility Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) Circuit Pack Compatibility .................................................... Table 3-2, Release 2.0 Circuit Pack Slot Compatibility lists all the Overview circuit packs that are compatible with Release 2.0 and their respective shelf locations (slots).

  • Page 144: Wall-Mount Metropolis

    ~7.0 in. 4.25 in. 2.75 in. ~ 10 in. P WR-A -48V-A R TN -A R TN -C O M ® Lucent Technologies GR D Metropolis DMXplore P WR-B R TN -B -48V-B 30mm 35mm 35mm VLNC15 VLNC7 VLNC7 S1:1...

  • Page 145: Removal Of Cover

    Removal of Cover Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) Removal of Cover .................................................... ® Follow this procedure to remove the cover from the Metropolis Introduction DMXplore shelf. See Cover Installation Wall-Mount (page 8-19) for Important! ®...

  • Page 146: Rotated Cover

    Removal of Cover Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) Figure 3-4 Rotated Cover ................................... Lift cover slightly to allow pivot pins to clear slots in the left and right Step 4 sideplates of shelf. Figure 3-5 Pivot Pins Important! Care should be taken to avoid damage to slot details in...

  • Page 147: Initial Circuit Pack Installation

    Initial Circuit Pack Installation Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) Initial Circuit Pack Installation .................................................... This section provides instructions for installing, BUT NOT fully Description ® seating, circuit packs into the Metropolis DMXplore shelf. After circuit packs have been unpacked, they may be placed in their ®...
  • Page 148 Initial Circuit Pack Installation Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) ................................... Step 3 Place the SYSCTL circuit pack into the lower left-hand slot on the ® Metropolis DMXplore shelf. Do NOT engage the circuit pack in the backplane connector.
  • Page 149 Initial Circuit Pack Installation Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) When installing two Main OLIUs, both circuit packs Important! must be the same type, either both VLNC5s or both VLNC6s.................................... ® Identify the far right slot on the Metropolis DMXplore shelf.
  • Page 150 Initial Circuit Pack Installation Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Wall-Mount) 199L Apparatus Blank Follow this procedure to install 199L Apparatus Blank into the Wall- ® Installation Mount Metropolis DMXplore shelf. If not installing a VLNC15 FE circuit pack in Important! Function Group-C, an 199L Apparatus Blank is required.

  • Page 151: Dmxplore Shelf (Rack-Mount)

    Powering and Initial Circuit Pack ® Installation for Metropolis DMXplore Shelf (Rack-Mount) Overview .................................................... This section provides information for performing the following: Purpose • shelf powering • circuit pack installation. Detailed information on the function of each circuit pack is contained ®...

  • Page 152: Description

    Description Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) Description .................................................... This section should be performed on all shelf installations. Overview Listed below are the tools, test equipment and accessories necessary to Tools, Test Equipment and Accessories perform the procedures in this section.

  • Page 153: Powering

    Powering Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) Powering .................................................... ® Overview The following table lists the requirements for the Metropolis DMXplore Shelf. ® DMX plore Shelf Power Supply Table 4-1 Metropolis Requirements Item Description Voltage range, all components -40.0V to -60.0V DC Power Feeders...

  • Page 154: Powering And Initial Circuit Pack Installation For Metropolis Dmx Plore Shelf

    Powering Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) ® Figure 4-1 Power Connections on Rack-Mount Metropolis DMX plore Access Panel ................................... Step 4 If an AC/DC converter is being used, verify that the power supply is fuse limited to 2-amperes.
  • Page 155 Powering Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) ....................................® At the Metropolis DMXplore power cable connector, use a voltmeter Step 6 and measure the voltage on the power cable between BAT A and BAT A RTN.
  • Page 156 Powering Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) • connecting the corresponding AC/DC converter from the AC power outlet • connecting the corresponding fuse at the BDFB • turning on the corresponding breaker at that BDCBB....................................

  • Page 157: Circuit Pack Compatibility

    Circuit Pack Compatibility Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) Circuit Pack Compatibility .................................................... Overview Table 4-2, Release 2.0 Circuit Pack Slot Compatibility lists all the circuit packs that are compatible with Release 2.0 and their respective shelf locations (slots).

  • Page 158: Removal Of Cover

    Removal of Cover Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) Removal of Cover .................................................... Follow this procedure to remove the cover from the Rack-Mount Introduction ® Metropolis DMXplore shelf. See Cover Installation Wall-Mount (page 8-19) for Important! ®...

  • Page 159: Cover Removal

    Removal of Cover Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) Figure 4-4 Cover Removal ................................... Carefully rotate cover on lower pivot pins. See Figure 4-5, Rotated Step 3 Cover (page 4-9). Figure 4-5 Rotated Cover ...................................

  • Page 160: Rack-Mount Metropolis ® Dmxplore Shelf - Cover Down

    Removal of Cover Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) ® Figure 4-6 Rack-Mount Metropolis DMX plore shelf - cover down Care should be taken to avoid damage to cover. Important! End of Steps ......................................................................................

  • Page 161: Initial Circuit Pack Installation

    Initial Circuit Pack Installation Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) Initial Circuit Pack Installation .................................................... This section provides instructions for installing, BUT NOT fully Description ® seating, circuit packs into the Metropolis DMXplore shelf. After circuit packs have been unpacked, they may be placed in their ®...
  • Page 162 Initial Circuit Pack Installation Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) ................................... Step 3 Holding the SYSCTL upright in your hand, turn the circuit pack 90 degrees to the right and place the SYSCTL circuit pack into the lower ®...
  • Page 163 Initial Circuit Pack Installation Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) ................................... Step 5 Remove the second Main OLIU from the packing material. When installing two Main OLIUs, both circuit packs Important! must be the same type, either both VLNC5s, VLNC6s, VLNC25s or VLNC26s.
  • Page 164 Initial Circuit Pack Installation Powering and Initial Circuit Pack Installation for ® Metropolis DMXplore Shelf (Rack-Mount) ................................... Step 3 Check off the appropriate box in Appendix E, Installation Checklist.................................... Follow this procedure to install 199L Apparatus Blank into the 199L Apparatus Blank Installation ®...

  • Page 165: Part Ii: Metropolis

    ® Part II: Metropolis DMXplore Access Multiplexer Stand-Alone Installation Tests Overview ..................................® Part II covers downloading software to the Metropolis DMXplore Access Multiplexer and then intallation of circuit packs. This section also covers installation and operational tests. • Chapter 5, Software Download and Circuit Pack Installation •...
  • Page 166 ® Metropolis DMXplore Access Multiplexer Stand-Alone Installation Tests ................................................... P A R T 365-372-334 R2.0 x v i Issue 4, November 2004...

  • Page 167: Figure S

    Software Download and Circuit Pack Installation This chapter provides the procedures for initial software download and Purpose use of the craft interface terminal (CIT).................................... Contents This chapter provides information on the following topics: Software Installation Circuit Pack Installation Use of WaveStar® CIT Software A Short Tour of the Command Builder 5-14 5-14...

  • Page 168: Software Download And Circuit Pack Installation

    Software Download and Circuit Pack Installation Tools, Test Equipment and Listed below are the required tools, test equipment and accessories. Accessories Quantity Required Description Comments Personal Computer (PC) See PC Minimum Requirements below. CIT Interface Cable 8-ft. long RJ45 to 9-pin D-sub serial cable. (848748869) LAN 10BASE-T (Cross- Allows for direct connection between the PC...
  • Page 169 Software Download and Circuit Pack Installation requirements are intended to be used as a general guideline to ® optimize WaveStar CIT performance. As the CIT is used with multiple NE connections and multiple NE types, the processor type and speed as well as the memory size will all factor in to CIT performance.

  • Page 170: Software Installation

    Software Installation Software Download and Circuit Pack Installation Software Installation .................................................... ® ® Installation of the Metropolis DMXplore software and WaveStar Description ® software is covered in detail in the Metropolis DMXplore Software Release Description (SRD), which is provided with the software CD. To install the NE and CIT software, please follow the procedures in the ®...

  • Page 171: Circuit Pack Installation

    Circuit Pack Installation Software Download and Circuit Pack Installation Circuit Pack Installation .................................................... This section provides instructions and the recommended order for Description ® installing (fully-seating) the circuit packs in the Metropolis DMXplore shelf. The procedures in this section assume that the System Controller, VLNC1 is installed and software has been successfully downloaded as described in the "New installation"...

  • Page 172: B Fiber Cleaning

    Circuit Pack Installation Software Download and Circuit Pack Installation Circuit Pack Installation Procedure If applicable, fully insert the MAIN 1 OLIU circuit pack and then Step 1 MAIN 2 OLIU circuit pack into the shelf. If installing two MAIN OLIUs, both circuit packs Important! must be the same type, either both VLNC5s, VLNC6s, VLNC25s or VLNC26s.
  • Page 173 Circuit Pack Installation Software Download and Circuit Pack Installation ................................... Step 5 If there are any FAULT or flashing LEDs on any of the inserted circuit packs other than the SYSCTL, press the UPD/INIT push-button on the SYSCTL circuit pack. The operation of the UPD/INIT push-button on the Result: SYSCTL circuit pack will update the system and should clear any...

  • Page 174: Use Of Wavestar Cit Software

    Use of WaveStar® CIT Software Software Download and Circuit Pack Installation ® Use of WaveStar CIT Software .................................................... ® Complete the following steps to login to the Metropolis DMXplore Description via WaveStar™ CIT. It is assumed that the CIT software has been installed on the PC and the NE software has been downloaded to the ®...
  • Page 175 Use of WaveStar® CIT Software Software Download and Circuit Pack Installation ® Figure 5-1 WaveStar CIT Banner ® Figure 5-2 WaveStar CIT Login Prompt ................................... Enter the following in the Login window: Step 3 LUC01 User ID: Password: LUC+01 Note: User ID and password are case sensitive.
  • Page 176 Use of WaveStar® CIT Software Software Download and Circuit Pack Installation ................................... Step 4 Click OK to connect. The following window will appear: ® Figure 5-3 WaveStar CIT Legal Notice ................................... After reading the Legal Notice click Step 5 ................................... The following is displayed.

  • Page 177: Tl1 View Type Selection

    Use of WaveStar® CIT Software Software Download and Circuit Pack Installation ................................... Step 8 Under NE Type click on the drop down menu arrow and choose Metropolis (TM) DMXplore from the drop down list.................................... Under Connection Type, click on the drop down menu arrow and select Step 9 Serial if physically connected to the RS232 port or OSI if physically connected to the LAN port of the system controller.

  • Page 178: Osi Connection Type Selection

    Use of WaveStar® CIT Software Software Download and Circuit Pack Installation Figure 5-6 OSI Connection Type Selection ................................... Select TL1 Maintenance (TL1 Alarms, Events and Command Step 13 Responses) and click OK.................................... Step 14 The following screen appears: Figure 5-7 Network Element Login Prompt ...................................

  • Page 179: Command Builder And Response Windows

    Use of WaveStar® CIT Software Software Download and Circuit Pack Installation Figure 5-8 Command Builder and Response Windows: ................................... Step 16 Check off the appropriate box in Appendix E, Installation Checklist.................................... End of Steps ................................................... 365-372-334 R2.0 5 - 1 3 Issue 4, November 2004...

  • Page 180: A Short Tour Of The Command Builder

    A Short Tour of the Command Builder Software Download and Circuit Pack Installation A Short Tour of the Command Builder .................................................... This section illustrates to the user the features of the TL1 Command Description Builder. The Command Builder window contains two main sections: the Commands section which lists the TL1 commands available;...

  • Page 181: Ent-T1 (Sb): Screen

    A Short Tour of the Command Builder Software Download and Circuit Pack Installation The first parameter displayed in most command’s section Parameters is the aid. This is the access identifier, which is the address of the port, slot, or entity for which the command is intended. See the 365-372-335, ®...

  • Page 182: Ent-T1 (Sb): Screen

    A Short Tour of the Command Builder Software Download and Circuit Pack Installation When the command can set a number of parameters, they can be selected and added to the command line by using the Shift click (holding down the Shift key and right clicking the mouse) or Ctrl...

  • Page 183: Ed-Dat: Screen

    A Short Tour of the Command Builder Software Download and Circuit Pack Installation Some parameters in the section are displayed in square Parameters brackets [ ]. These must be edited by the user on the command line itself to set the proper values. When editing the parameter the square brackets must be removed from the command line.

  • Page 184: Circuit Pack Firmware Version Verification

    Circuit Pack Firmware Version Verification Software Download and Circuit Pack Installation Circuit Pack Firmware Version Verification .................................................... This section provides instructions verifying that firmware versions on Description ® the circuit packs in the Metropolis DMXplore shelf. The procedures in this section assume that the SYSCTL is installed and software has been successfully downloaded and the circuit packs have been installed in the shelf as described in the preceding sections.
  • Page 185 Circuit Pack Firmware Version Verification Software Download and Circuit Pack Installation ................................... Step 5 For each circuit pack listed in the Response Window output note the VRSN= number were displayed and compare it to the table of Firmware Versions in Chapter four of the Software Release Description (SRD).

  • Page 186: Metropolis ® Dmxplore Shelf Initialization

    ® Metropolis DMXplore Shelf Initialization Software Download and Circuit Pack Installation ® Metropolis DMXplore Shelf Initialization .................................................... ® This section provides instructions for initializing the Metropolis Description DMXplore shelf, to insure that all circuit pack databases are correct for the current shelf and software release. The procedures in this section assume that the SYSCTL is installed and software has been successfully downloaded and the circuit packs have all been installed in the shelf as described in the preceding sections.
  • Page 187 ® Metropolis DMXplore Shelf Initialization Software Download and Circuit Pack Installation A command similar to the following example should be Result: displayed in the command window to the left of the Send button. Example: LT-DMXPLORE init-sys: :all:1::9; ................................... Click to issue the command. Step 7 Send will display an output similar to...
  • Page 188 ® Metropolis DMXplore Shelf Initialization Software Download and Circuit Pack Installation ................................................... 5 - 2 2 365-372-334 R2.0 Issue 4, November 2004...
  • Page 189 Installation Tests Overview .................................................... The purpose of this section is to verify proper transmission cabling Purpose installation and Release 2 functionality as well as the associated ® functionality of the Metropolis DMXplore shelf. For end-to-end turn-up and testing procedures, refer to 365-372-332, ®...

  • Page 190: Installation Tests

    Overview Installation Tests Tools, Test Equipment and Listed below are the required tools, test equipment and accessories Accessories For complete listing see Part I or Part II. Quantity Required Description Comments Screwdriver(s) A screwdriver(s) with the appropriate head(s) is (are) required for securing the mounting screws, repositioning the mounting brackets, and installing the interfacing cables.
  • Page 191 Overview Installation Tests PC Minimum Requirements Before beginning this procedure check PC Minimum Requirements (page 5-2) to ensure the PC you are using meets the minimum requirements necessary....................................................................................... 365-372-334 R2.0 6 - 3 Issue 4, November 2004...

  • Page 192: Lbo Software Settings

    LBO Software Settings Installation Tests LBO Software Settings .................................................... This section provides instructions for setting the software Line Build Description Out (LBO) for the DS1 cabling and requires that the SYSCTL and main circuit packs be installed and that software has been downloaded....................................
  • Page 193 LBO Software Settings Installation Tests ................................... Step 6 Under the Parameters section, <T1SB>, click on LBO={20}. Double click on {20} and choose the LBO value determined in Step 2. A command similar to the following example will be Result: displayed in the command window to the left of the button.
  • Page 194 LBO Software Settings Installation Tests ................................... Under the Parameters section, <T3AID>, click on {b}-{1}. • Double click on {b} and choose the Function Group B. • Double click on {1} and choose all.................................... Under the Parameters section, <T3SB>, click on LBO={IN}.

  • Page 195: Clearing Alarms

    Clearing Alarms Installation Tests Clearing Alarms .................................................... ® In order to clear standing alarms the Metropolis DMXplore Description synchronization will be provisioned as "Free Running". The DCC will be disabled in order to prevent DCC alarms from being generated due to the optical loopback on the main OLIUs.
  • Page 196 Clearing Alarms Installation Tests ................................... Step 7 Under the Parameters section, <FECOMSB>, click on COM={ENABLED}. Double click on {ENABLED} and choose DISABLED A command similar to the following example will be Result: displayed in the command window to the left of the Send button.

  • Page 197: Local Equipment And Cross-Connect Tests

    Local Equipment and Cross-connect Tests Installation Tests Local Equipment and Cross-connect Tests .................................................... The tests in this section verify the proper operation of the circuit packs Description ® and the circuit pack positions in the Metropolis DMXplore shelf. It ® verifies proper cabling from the Metropolis DMXplore to the access panel or connecting equipment.
  • Page 198 Local Equipment and Cross-connect Tests Installation Tests DS1 Testing Procedure Perform the following steps to verify backplane cabling to A/D function slot of the access panel. Cabling to DS1 connectors located on the access panel are via backplane connections. If a main pack is installed, DS1 cabling will need to be tested.
  • Page 199 Local Equipment and Cross-connect Tests Installation Tests ................................... Step 2 Click the Send button. The Response Window should display the command Result: followed by a COMPLD message. A facility loopback will exist on the port issued by the command.................................... Once the loopback is up, a test signal shall be generated at the DS1 test Step 3 set which will verify the cabling is correct.
  • Page 200 Local Equipment and Cross-connect Tests Installation Tests ................................... Step 8 Verify that an alarm is present on the port that the test set connections have been removed from. Use the rtrv-alm-all command in the Command Builder window.................................... Repeat entire procedure on each of the remaining DS1 tributaries of Step 9 function group B.
  • Page 201 Local Equipment and Cross-connect Tests Installation Tests The DS3 test set will indicate it is receiving an error Requirement: free signal. Important! By default, DS3 cross connections have already been made. If an error free signal is not received, check for cross- connections with the rtrv-crs-sts1 command.
  • Page 202 Local Equipment and Cross-connect Tests Installation Tests • Verify that the pack is provisioned for the framing format being sent from the test set, CBIT or M13. (rtrv-t3) • Check the DS3 cabling for proper connections.................................... Once the test is complete, remove the loopback. Use the scroll bar in Step 5 the Command Builder window to scroll down to the rls-lpbk-t3 command.
  • Page 203 Local Equipment and Cross-connect Tests Installation Tests This command will remove alarms generated by removing Result: the test signals from the DSX.................................... Check off the appropriate box in Appendix E, Installation Checklist. Step 13 End of Steps ...................................................................................... 365-372-334 R2.0 6 - 1 5 Issue 4, November 2004...

  • Page 204: Led Test

    LED Test Installation Tests LED Test .................................................... ® This test verifies proper operation of all LEDs on the Metropolis Description DMXplore circuit packs. Operation of all the LEDs is necessary to assist in trouble isolation. If there are any LED failures, determine if the Important! problem is with the circuit pack or shelf and replace the faulty unit.

  • Page 205: Operational Tests

    Operational Tests Overview .................................................... This section provides instructions to test protection switching and the Purpose non-transmission cabling. This section is not intended to replace acceptance test procedures. If problems are encountered, refer to 365- ® 372-333, Metropolis DMXplore Access Multiplexer, Alarm Messages and Trouble Clearing Guide for detailed troubleshooting procedures.

  • Page 206: Overview

    Overview Operational Tests Tools, Test Equipment and Listed below are the tools, test equipment and accessories necessary to Accessories perform the procedures in this section. Quantity Required Description Comments Screwdriver(s) A screwdriver(s) with the appropriate head(s) is (are) required for securing the mounting screws, repositioning the mounting brackets, installing the interfacing cables, and for setting the circuit breakers to...
  • Page 207 Overview Operational Tests PC Minimum Requirements Before beginning this procedure check PC Minimum Requirements (page 5-2) to ensure the PC you are using meets the minimum requirements necessary. Safety Instructions Important! All precautions should be observed when handling fiber. WARNING Unterminated optical connectors may emit laser radiation.

  • Page 208: Office Alarm Test

    Office Alarm Test Operational Tests Office Alarm Test .................................................... This test verifies proper operation and wiring of the office alarms in a Description network equipment building system (NEBS) environment. Audible and visual reporting of critical, major, minor alarms will be verified.
  • Page 209 Office Alarm Test Operational Tests Table 7-1 Office Alarm Connections Pin# Color Name Designation CR/MJ Visual RYCRMJV1 BL-W CR/MJ Visual CR/MJ Audible RYCRMJA1 CR/MJ Audible MN/ABN Visual RYMNABNV1 MN/ABN Visual MN/ABN Audible RYMNABNA1 BR-W MN/ABN Audible Procedure Step 1 Use the scroll bar in the Command Builder window to scroll down to ent-rr...
  • Page 210 Office Alarm Test Operational Tests ................................... Step 4 Under the Parameters section, <rrSB>, click on NTFCNCDE={NA}. Double click on and choose the MN. {NA} A command similar to the following example will be Result: displayed in the command window to the left of the button.
  • Page 211 Office Alarm Test Operational Tests ................................... Step 11 Follow Steps 1 to 5 to provision notification code for all DS1 and/or DS3 ports to MJ Example: ent-rr:lt-dmxplore:a-all:ctag:::NTFCNCDE=MJ; Important! Select MJ instead of MN in Step 4.................................... Click to issue the command. Step 12 Send will display the command...
  • Page 212 Office Alarm Test Operational Tests ................................... Step 18 Remove valid DS1 or DS3 signal, and issue an upd-sys command to clear LOS alarm.................................... Disconnect the office alarm cable connected in Step 7 for the remainder Step 19 of the test procedures in this chapter....................................

  • Page 213: Automatic Protection Switching And Alarm Test

    Automatic Protection Switching and Alarm Test Operational Tests Automatic Protection Switching and Alarm Test .................................................... ® This section provides the procedures for verifying the Metropolis Description DMXplore shelf automatic protection switching. Note the following: • These tests do NOT simulate circuit pack failures. •...
  • Page 214 Automatic Protection Switching and Alarm Test Operational Tests MAIN OLIU Switching Test Use this procedure to test the OC3 VLNC6 and VLNC5 Main OLIU circuit packs (use the OC3 commands) or the OC12 VLNC25 and VLNC26 Main OLIU circuit packs (use the OC12 commands). Note: It is assumed that the protection scheme on the Main OLIU cir- cuit packs is 1+1, which is the default value.
  • Page 215 Automatic Protection Switching and Alarm Test Operational Tests ................................... Step 7 Click Send to issue a second rtrv-oc3 or rtrv-oc12 command. The Response Window displays the command followed by Result: indication as well as indicating that the OLIU that was COMPLD active in the previous step is now "aps-line-fail"...

  • Page 216: Manual Switching Tests

    Manual Switching Tests Operational Tests Manual Switching Tests .................................................... This test will initiate switching commands from the CIT TL1 Description Command Builder and verify proper switching and LED indications. Use the OC3 commands for the VLNC5 or VLNC6 OLIU circuit packs and the OC12 commands for the VLNC25 or VLNC26 circuit packs.
  • Page 217 Manual Switching Tests Operational Tests ................................... Step 8 Click Send to issue the command. The Response Window will display the command followed Result: by a indication. COMPLD ................................... Use the scroll bar in the window to scroll down to Step 9 Command Builder command.

  • Page 218: Miscellaneous (Environmental) Discrete Telemetry Test

    Miscellaneous (Environmental) Discrete Operational Tests Telemetry Test Miscellaneous (Environmental) Discrete Telemetry Test .................................................... Miscellaneous discrete telemetry access allows the maintenance center Description ® to control and monitor equipment co-located with the Metropolis DMXplore shelf. See Figure 7-1, Miscellaneous (Environmental) Discrete Functions (page 7-14). Perform this procedure for shelves that are cabled for miscellaneous discrete telemetry.

  • Page 219: Miscellaneous (Environmental) Discrete Inputs Telemetry Connections

    Miscellaneous (Environmental) Discrete Operational Tests Telemetry Test Table 7-2 Miscellaneous (Environmental) Discrete Inputs Telemetry Connections Pin# Color Designation Name TLMI1 Env. Input - #1 BL-W TLMOC Output Common TLMI2 Env. Input - #2 TLMOC Output Common TLMI3 Env. Input - #3 TLMOC Output Common TLMI4...
  • Page 220 Miscellaneous (Environmental) Discrete Operational Tests Telemetry Test ................................... Step 6 Use the scroll bar in the Command Builder window to scroll down to rtrv-alm-env command.................................... Click on the command. Step 7 rtrv-alm-env ................................... Click to issue the command. Step 8 Send The Response Window will display the command followed Result:...
  • Page 221 Miscellaneous (Environmental) Discrete Operational Tests Telemetry Test ................................... Step 4 Click on the opr-ext-cont command. Under the <OPREXTAID> double click on and select control output to operate.................................... Click to issue the command. Step 5 Send Result: The Response Window will display the command followed by a indication as well as indicating the correct control COMPLD...

  • Page 222: Final Operations

    Final Operations Operational Tests Final Operations .................................................... The following procedure ensures that all test signals have been Description ® removed and the Metropolis DMXplore shelf is alarm free and ready for network connection procedures. Procedure Verify that no alarm LEDs are lit and no FAULT LED is lit on any Step 1 circuit pack.

  • Page 223: Part Iii: Metropolis

    ® Part III: Metropolis DMXplore Access Multiplexer Ring Setup and Testing Overview ..................................® This section starts the process of integrating the Metropolis DMXplore into the customer’s network. The section provides the procedures to connect inter-office fibers and verify DCC communications and path switching.
  • Page 224 ® Metropolis DMXplore Access Multiplexer Ring Setup and Testing ................................................... P A R T 365-372-334 R2.0 Issue 4, November 2004...
  • Page 225 Ring Setup and Testing: Integration Procedures Overview .................................................... This procedure is used to make fiber connections between nodes in a Purpose UPSR ring. It is not intended to replace acceptance test procedures. If ® problems are encountered, refer to 365-372-333, Metropolis DMXplore Access Multiplexer, Alarm Messages and Trouble Clearing Guide for detailed troubleshooting procedures.

  • Page 226: Ring Setup And Testing: Integration Procedures

    Overview Ring Setup and Testing: Integration Procedures Tools, Test Equipment and Listed below are the tools, test equipment and accessories necessary to Accessories perform the procedures in this section. Quantity Required Description Comments Screwdriver(s) A screwdriver(s) with the appropriate head(s) is (are) required for securing the mounting screws, repositioning the mounting brackets, and installing the interfacing cables.
  • Page 227 Overview Ring Setup and Testing: Integration Procedures PC Minimum Requirements Before beginning this procedure check PC Minimum Requirements (page 5-2) to ensure the PC you are using meets the minimum requirements necessary. All precautions should be observed when handling Safety Instructions Important! fiber.

  • Page 228: Fiber Installation

    Fiber Installation Ring Setup and Testing: Integration Procedures Fiber Installation .................................................... This section is used to verify proper fiber connections between Description ® Metropolis DMXplore nodes. The following is a list of items to verify before beginning tests in this Prerequisite section.
  • Page 229 Fiber Installation Ring Setup and Testing: Integration Procedures Procedure The following procedures are performed at each end of the optical span being tested. Verify that the office alarm cabling to the ALARM terminal block on Step 1 ® the access panel of the Metropolis DMXplore shelf is disconnected.
  • Page 230 Fiber Installation Ring Setup and Testing: Integration Procedures For DS3, zzz is STS1, and x is b. Important! ................................... Click to issue the command. Step 6 Send Result: All STS1 default cross connections on the shelf will be deleted.................................... Step 7 Use the scroll bar in the Command Builder...
  • Page 231 Fiber Installation Ring Setup and Testing: Integration Procedures ® Mount Metropolis DMXplore Access Multiplexer, dress the optical cables to the left using the fiber management module.................................... Step 13 Route the optical jumpers from the side of the shelf.................................... Establish verbal communications with the technician at the other end of Step 14 the optical span.
  • Page 232 Fiber Installation Ring Setup and Testing: Integration Procedures ................................... Step 17 At each end of the optical spans, connect the optical fiber transmit cables to the OLIU OUT connectors.................................... At each end of the optical span, measure the optical power of the Step 18 optical fiber receive cables using an optical power meter.
  • Page 233 Fiber Installation Ring Setup and Testing: Integration Procedures ................................... Step 23 Verify that LBO has been installed at far end.................................... At the near end, connect the input optical fiber to the proper OLIU IN Step 24 connector. Requirement: The FAULT LED on the OLIU extinguishes after approximately 10 seconds.
  • Page 234 Fiber Installation Ring Setup and Testing: Integration Procedures ................................... Step 29 In order to verify proper network DCC communications, execute the following command from the Command Builder RTRV-MAP-NETWORK Result: The TIDs and NSAPs of all the nodes in the TARP area will be displayed.

  • Page 235: Oc-3/Oc12 Optical Transmission Test

    OC-3/OC12 Optical Transmission Test Ring Setup and Testing: Integration Procedures OC-3/OC12 Optical Transmission Test .................................................... ® This procedure should be conducted when the Metropolis DMXplore Procedure Access Multiplexer shelf is set to UPSR and connected end to end and not looped back on itself. Use the scroll bar in the window to scroll down to Step 1...
  • Page 236 OC-3/OC12 Optical Transmission Test Ring Setup and Testing: Integration Procedures ................................... Step 8 Check off the appropriate box in Appendix E, Installation Checklist....................................................................................... 8 - 1 2 365-372-334 R2.0 Issue 4, November 2004...

  • Page 237: Automatic Protection Switching Test

    Automatic Protection Switching Test Ring Setup and Testing: Integration Procedures Automatic Protection Switching Test .................................................... ® This section provides the procedures for verifying the Metropolis Description DMXplore shelf automatic and manual protection switching. This test may be performed on the VLNC5, VLNC6, VLNC25 and VLNC26 circuit packs.
  • Page 238 Automatic Protection Switching Test Ring Setup and Testing: Integration Procedures The Response Window should display the command Result: followed by a indication as well as indicating whether COMPLD Ring 1 or Ring 2 is the active ring for each cross-connection. MAIN 1 OLIU is associated with Ring 1 and MAIN 2 Important! OLIU is associated with Ring 2.

  • Page 239: Manual Switching Tests

    Manual Switching Tests Ring Setup and Testing: Integration Procedures Manual Switching Tests .................................................... This test will initiate switching commands from the CIT and verify Description proper switching and LED indications for a UPSR ring. This test may be performed on the VLNC5, VLNC6, VLNC25 and VLNC26 circuit packs.
  • Page 240 Manual Switching Tests Ring Setup and Testing: Integration Procedures ................................... Step 6 Click on the opr-protnsw-rr command. Select m{1}-1-1 ................................... If the active ring is Ring 2, change the parameter listed under the Step 7 m{1} column to by double clicking on between the <rrAIDPROTN>...
  • Page 241 Manual Switching Tests Ring Setup and Testing: Integration Procedures ................................... Step 14 Click on the opr-protnsw-rr command.................................... If the active ring is Ring 2, change the parameter listed under the Step 15 m{1} column to by double clicking on between the <rrAIDPROTN>...
  • Page 242 Manual Switching Tests Ring Setup and Testing: Integration Procedures ................................... Step 23 Check off the appropriate box in Appendix E, Installation Checklist. End of Steps ...................................................................................... 8 - 1 8 365-372-334 R2.0 Issue 4, November 2004...

  • Page 243: Cover Installation Wall-Mount

    Cover Installation Wall-Mount Ring Setup and Testing: Integration Procedures Cover Installation Wall-Mount .................................................... ® Follow this procedure to install the cover on the Metropolis Description DMXplore shelf. See Removal of Cover (page 3-1) for instructions for Important! ® removing the Wall-Mount Metropolis DMXplore cover and Removal of Cover (page 4-1) for instructions for removing the ®...
  • Page 244 Cover Installation Wall-Mount Ring Setup and Testing: Integration Procedures ................................... ® Step 4 Tighten captive screw. See Figure 8-2, Metropolis DMXplore Shelf w. Cover (page 8-20). Care should be taken when installing the cover to Important! avoid damage to slots details in shelf sideplates. ®...

  • Page 245: Cover Installation Rack-Mount

    Cover Installation Rack-Mount Ring Setup and Testing: Integration Procedures Cover Installation Rack-Mount ....................................................................................... ® For the Rack-Mount Metropolis DMXplore Access Multiplexer shelf, Step 1 align the slots of the cover with the flange on the shelf. See Rack- Mount Cover Alignment (page 8-21)....................................

  • Page 246: Snapping Cover Into Place

    Cover Installation Rack-Mount Ring Setup and Testing: Integration Procedures Figure 8-4 Snapping cover into place ................................................... 8 - 2 2 365-372-334 R2.0 Issue 4, November 2004...

  • Page 247: Final Operations

    Final Operations Ring Setup and Testing: Integration Procedures Final Operations .................................................... The following procedure ensures that all test signals and cross-connects Description ® have been removed and the Metropolis DMXplore shelf is alarm free and ready for network connection procedures. Procedure Step 1 Use the scroll bar in the...
  • Page 248 Final Operations Ring Setup and Testing: Integration Procedures ................................... Step 3 Click Send to issue the command. The Response Window should display the command Result: followed by a indication. COMPLD ................................... If desired, reconnect the office alarm cable at this time. Step 4 ...................................

  • Page 249: Part Iv: Metropolis ® Dmx Plore Access Multiplexer

    ® Part IV: Metropolis DMXplore Access Multiplexer Supplementary Information and Installation Checklist Overview ..................................This section provides supplementary information that is useful when ® installing the Metropolis DMXplore system and using this Installation Manual. The Installation Checklist is also contained in this part. This section is comprised of the following appendixes: •...
  • Page 250 ® Metropolis DMXplore Access Multiplexer Supplementary Information and Installation Checklist ................................................... P A R T 365-372-334 R2.0 x x v i Issue 4, November 2004...
  • Page 251 Laser Safety and Classifications Overview .................................................... This appendix provides laser safety information and precautions. Purpose Contents This appendix provides information on the following topics: Laser Safety Laser Product Classification ® Metropolis DMXplore Optical Specifications .................................................... 365-372-334 R2.0 A - 1 Issue 4, November 2004...

  • Page 252: Laser Safety

    Laser Safety and Classifications Laser Safety .................................................... The Lucent Technologies system complies with FDA/CDRH 21 CFR System design 1040.10 and 1040.11 as a Class I and with IEC 60825-1 as a Class 1 Optical Fiber Telecommunication laser product. The system has been designed to ensure that the operating personnel is not endangered by laser radiation during normal system operation.
  • Page 253 Laser Safety Laser Safety and Classifications Laser warning labels The laser warning labels indicate either only the laser class or both the laser class and the maximum output power of laser radiation. The following figure shows different types of laser warning labels and their characteristics.
  • Page 254 Laser Safety Laser Safety and Classifications Laser safety instructions Observe the following instructions to avoid exposing yourself and others to risk. • Read the relevant descriptions in the manuals before taking equipment into operation or carrying out any installation and maintenance work on the optical port units, and follow the instructions.

  • Page 255: Laser Product Classification

    Laser Product Classification Laser Safety and Classifications Laser Product Classification .................................................... The product complies with both IEC standards and the Food and Drug Standards compliance Administration’s Center for Devices and Radiological Health (FDA/ CDRH) regulations. Laser products are classified in accordance with the FDA/CDRH - 21 FDA/CDRH regulations CFR 1010 and 1040.

  • Page 256: Laser Classes

    Laser Product Classification Laser Safety and Classifications Laser classes The maximum output power of laser radiation depends on the type of laser diode used. The international standards IEC-60825 or DIN/EN 60825 define the maximum output power of laser radiation for each laser class in accordance with the wavelength.

  • Page 257: Metropolis ® Dmxplore Optical Specifications

    ® Metropolis DMXplore Optical Specifications Laser Safety and Classifications ® Metropolis DMXplore Optical Specifications .................................................... ® Table A-2 provides the optical specifications for Metropolis Overview DMXplore internal laser circuit packs. ® DMX plore Optical Specifications Table A-2 Metropolis Laser Circuit Wavelengt Maximum Fiber Type...
  • Page 258 ® Metropolis DMXplore Optical Specifications Laser Safety and Classifications ................................................... A - 8 365-372-334 R2.0 Issue 4, November 2004...

  • Page 259: Fiber Cleaning

    Fiber Cleaning Overview .................................................... This appendix describes the Lucent recommended method for the Purpose cleaning and inspection of optical connectors using specific tools and materials that have been proven to be effective in the assembly and testing of optical transmission equipment. It is critical that connector faces are clean and free from particular contamination to assure proper performance and reliability of lightwave systems.
  • Page 260 Fiber Cleaning Related Information A course on connector cleaning and the connector inspection process is now offered through Lucent Technologies Learning and Performance Center, Course Code: LMC200H “Understanding Fiber Optic Cleaning, Inspection and Testing.” To learn more about this course, consult your local Lucent Account Representative.

  • Page 261: Equipment Requirements And Recommendations

    Equipment Requirements and Recommendations Fiber Cleaning Equipment Requirements and Recommendations .................................................... For proper cleaning, the following equipment and materials are Description recommended: Table B-1 Required and Recommended Equipment and Materials Product Model/Description Comcode ITE # Installation Order # Optical Fiber Scope Noyes OFS 300-200X 408197028 ITE-7129...

  • Page 262: Safety Instructions

    Safety Instructions Fiber Cleaning Safety Instructions .................................................... WARNING Never view an energized optical cable with the naked eye or with an optical magnifying instrument. Disconnected or separated optical connectors may emit invisible laser radiation and direct exposure can severely injure the eye. If inspecting the endface of a connector with a fiberscope, be absolutely certain that the system is deactivated.

  • Page 263: Cleaning/Inspecting Optical Connectors

    Cleaning/Inspecting Optical Connectors Fiber Cleaning Cleaning/Inspecting Optical Connectors .................................................... The procedure that follows utilizes the “Wet/Dry” method for Introduction connector cleaning. This method first applies a “wet” solvent such as high purity alcohol to the connector endface to dissolve/remove any organic particulate or oily films, followed by a “dry”...

  • Page 264: Cleaning The Ferrule Endface

    Cleaning/Inspecting Optical Connectors Fiber Cleaning Figure B-1 Cleaning the Ferrule Endface ................................... If a CLETOP cassette cleaner is not available, proceed with Step 7. Step 3 Otherwise, hold the CLETOP cassette cleaner in the palm of your hand with the cassette shutter door facing up. See Figure B-2, CLETOP Cleaner (page -7) Rotate the cassette lever all the way down with your thumb.

  • Page 265: Cletop Cleaner

    Cleaning/Inspecting Optical Connectors Fiber Cleaning Figure B-2 CLETOP Cleaner ................................... Insert and press the connector ferrule endface perpendicular against the Step 4 cleaning cloth in the first of two slots of the cleaner. See Figure B-3, Acceptability Criteria for Fiber Cleaning (page -10) Drag it down (in the direction indicated by the arrows on the cleaner).
  • Page 266 Cleaning/Inspecting Optical Connectors Fiber Cleaning cleaning cloth is washable and can be used multiple times, optic wipes are single use and disposable.................................... Step 8 Inspect the connector for cleanliness. If necessary, repeat the cleaning process. See Connector Inspection (page -9) End of Steps ...................................

  • Page 267: Acceptability Criteria For Fiber Cleaning

    Cleaning/Inspecting Optical Connectors Fiber Cleaning Connector Inspection After cleaning the connector, inspect the ferrule endface to ensure that it is free from any particulate contamination using an optical fiber inspection scope of at least 200X magnification. When using an optical fiber scope (for example, the Noyes OFS 300-200X) exercise extreme caution to assure fiber being examined is de-energized.
  • Page 268 Cleaning/Inspecting Optical Connectors Fiber Cleaning Figure B-3 Acceptability Criteria for Fiber Cleaning ................................... After the connector has been verified to be cleaned, it should be Step 3 immediately inserted into the adapter buildout of the optical component. This will assure maximum cleanliness and effectiveness of the connector.
  • Page 269 Cleaning/Inspecting Optical Connectors Fiber Cleaning Fiber Adapters or Circuit During testing and/or trouble shooting activities it may be necessary to Pack Connectors clean the optical buildout adapter or the circuit pack connector. The following procedure is recommended CAUTION Do not attempt to clean ports equipped with yellow Light guide BuildOut (LBO) attenuators.
  • Page 270 Cleaning/Inspecting Optical Connectors Fiber Cleaning ................................................... B - 1 2 365-372-334 R2.0 Issue 4, November 2004...

  • Page 271: Overview

    Installing Fiber Connectors and LBOs Overview .................................................... This appendix provides procedures for installing and removing Line Purpose Build Out units (LBOs) and fiber connectors onto input and output ® ports found on the Metropolis DMXplore optical circuit packs.................................... Contents This chapter provides information on the following topics: LBOs Fiber Connections...

  • Page 272: Lbos

    LBOs Installing Fiber Connectors and LBOs LBOs .................................................... LBOs are fixed-value optical attenuators that mate into mounting General blocks and provide a specific connector interface (LC, ST, FC or SC- ® type) for external fiber connections. The Metropolis DMXplore optical circuit packs are equipped with LC-type connector ports designed for use with LC-type LBOs and fiber connectors.

  • Page 273: Lc-Type Lbo

    LBOs Installing Fiber Connectors and LBOs ® LC-type LBO Metropolis DMXplore utilizes Lucent’s state-of-the-art AllWave ADVANTAGE™ Fiber Optic Attenuators. These attenuators reduce optical power from the transmitter that can result in over-saturation of the receiver, have low reflection to meet stringent system requirements, and are backward-compatible with existing transmission systems.

  • Page 274: Removing Lc-Type Lbo From Lc-Type Connector Port

    LBOs Installing Fiber Connectors and LBOs Removal of LC-type LBO The LC-type LBOs are removed from the LC-type connector port by from LC Block depressing the tab to release the LBO and then pulling straight out. Figure C-4 Removing LC-type LBO from LC-type Connector Port DEPRESS TAB TO RELEASE LBO ...................................

  • Page 275: Fiber Connections

    Fiber Connections Installing Fiber Connectors and LBOs Fiber Connections .................................................... ® Metropolis DMXplore uses AllWave ADVANTAGE Lightguide General Jumpers, part of Lucent’s AllWave ADVANTAGE Optical Connectiv- ity Solution (OCS). These jumpers contain a boot angled at 40 degrees, allowing the jumpers to dress appropriately into the fiber tray. The angled boot eliminates projection outside the front of the shelf assem- bly.

  • Page 276: Lc-Type Fiber Connection

    Fiber Connections Installing Fiber Connectors and LBOs Figure C-6 LC-type Fiber Connection ALIGNMENT SLOT DEPRESS LEVER TO RELEASE THE SNAP-ACTION TAB ...................................................................................... C - 6 365-372-334 R2.0 Issue 4, November 2004...

  • Page 277: D Backplane Pin Replacement

    Backplane Pin Replacement Overview .................................................... This appendix provides information and the procedures used when a Purpose ® connector and/or pin on the Metropolis DMXplore backplane has been bent or broken.................................... Contents This appendix provides information on the following topics: Pin and Connector Background Repair Kits and Tools Simple Repair Methods...
  • Page 278 Overview Backplane Pin Replacement Objectives This appendix provides information and procedures to do the following: • Identify a bent or broken pin • Determine the correct replacement pin and pin kit • Straighten bent pin • Replace broken pins ......................................................................................

  • Page 279: Pin And Connector Background

    Pin and Connector Background Backplane Pin Replacement Pin and Connector Background .................................................... This section describes the procedures for the repair/replacement of the Description ® press-fit connector pins used on the backplane of the Metropolis DMXplore shelf. Trouble clearing procedures may lead you to inspect the backplane for damaged connectors.

  • Page 280: Backplane Pin Replacement

    Pin and Connector Background Backplane Pin Replacement Table D-1 Backplane Locations of METRAL™ Pins Slot Column Type Mating Length Tail Length (mm) (mm) MAIN 001, 103 to 108 a,b,c,d,e Signal Pin 8.00 4.30 SYSCTL 001, 037 to 042 a,b,c,d,e Signal Pin 8.00 4.30 001, 043 to 048...

  • Page 281: Repair Kits And Tools

    Repair Kits and Tools Backplane Pin Replacement Repair Kits and Tools .................................................... For the repair or replacement of METRAL™ signal pins, use one of the Repair Kits following repair kits: • Berg Electronic MT370-01 Shelf Level Press-Fit Repair Kit • IMDARC R-6004 Metral Pin Repair Kit - Comcode 407959881 This kit includes the tools, parts and instructions for repair and replacement of signal pins.

  • Page 282: Simple Repair Methods

    Simple Repair Methods Backplane Pin Replacement Simple Repair Methods .................................................... Precautions CAUTION These procedures should be done with the shelf out of service and powered down to insure no further damage to the equipment or to the person doing the repair. If service cannot be removed or rerouted, contact your next level of support before proceeding.
  • Page 283 Simple Repair Methods Backplane Pin Replacement METRAL™ Backplane Pins CAUTION This is a delicate procedure. Take your time to gently straighten the pin in several small steps. Large movements may damage adjacent pins. Follow the instructions and use the tools provided in the MT370-01 Shelf Level Press-Fit Repair Kit to straighten METRAL pins which may have been bent out of position.

  • Page 284: Replacement Methods

    Replacement Methods Backplane Pin Replacement Replacement Methods .................................................... Connector pins are designed to withstand a considerable removal force. Background An impact-type tool is used to generate a controlled removal force. Similarly, proper insertion of a press-fit connector pin is done with an impact-type tool to control the insertion forces and not damage adjacent pins.
  • Page 285 Replacement Methods Backplane Pin Replacement ................................... Step 6 Install the replacement pin.................................... Verify that the new pin is securely in the backplane. Step 7 ................................... If the replacement is not successful, contact your next level of support. Step 8 End of Steps If it becomes necessary to replace Guide or Keying Pins, contact your Guide and Keying Pin...
  • Page 286 Replacement Methods Backplane Pin Replacement ................................................... D - 1 0 365-372-334 R2.0 Issue 4, November 2004...

  • Page 287: Installation Checklist

    Installation Checklist Overview ..................................Purpose This chapter provides the recommended checklist to follow when ® installing a Metropolis DMXplore system. Use of the installation checklist is required to ensure a quality installation. All completed tasks should be checked off and those not completed should be duly noted as to the reason why.

  • Page 288: Installation Checklist

    Overview Installation Checklist Table E-1 Installation Acceptance Checklist Section and Chapter Procedure Required Completed ® Part I: Metropolis DMXplore Access Multiplexer Physical Installation and Powering Chapter 1, Equipment and Inspection (page 1-8) Cable Installation for ® Metropolis DMXplore Wall-Mount Shelf ®...
  • Page 289 Overview Installation Checklist Table E-1 Installation Acceptance Checklist (Continued) Section and Chapter Procedure Required Completed Chapter 3, Powering and Powering (page 3-3) Initial Circuit Pack VLNC1 (SYSCTL) Installation (page 3-11) ® Installation for Metropolis DMXplore Shelf (Wall- Main OLIU Installation (page 3-12) Mount) Figure , 10/100 T Fast Ethernet Installation See Note 1...

  • Page 290: Installation Acceptance Checklist

    Overview Installation Checklist Table E-1 Installation Acceptance Checklist (Continued) Section and Chapter Procedure Required Completed ® Part II: Metropolis DMXplore Access Multiplexer Stand-Alone Installation Tests Chapter 5, Software Software Installation (page 5-4) Download and Circuit Pack Circuit Pack Installation (page 5-5) Installation Use of WaveStar®...
  • Page 291 Overview Installation Checklist Table E-1 Installation Acceptance Checklist (Continued) Section and Chapter Procedure Required Completed ® Part III: Metropolis DMXplore Access Multiplexer Ring Setup and Testing Fiber Installation (page 8-4) OC-3/OC12 Optical Transmission Test (page 8-11) Automatic Protection Switching Test (page 8-13) Chapter 8, Ring Setup and Manual Switching Tests (page 8-15)
  • Page 292 Overview Installation Checklist ................................................... E - 6 365-372-334 R2.0 Issue 4, November 2004...

  • Page 293: F Fiber Labeling

    Fiber Labeling Overview ..................................This chapter describes the labeling of the fiber. Purpose Contents This chapter contains the following. Fiber Description Fiber Labels .................................................... 365-372-334 R2.0 F - 1 Issue 4, November 2004...

  • Page 294: Fiber Description

    Fiber Description Fiber Labeling Fiber Description ..................................There are three different types of single-mode fiber used with the Fibers DMXplore system, simplex blue fiber, simplex yellow fiber, and the customer's fiber Blue fiber is made up of a single blue colored fiber equipped with LC Blue Fiber connectors at both ends.
  • Page 295 Fiber Description Fiber Labeling Single-Mode Fiber Testing All fibers shall be tested after they are installed as follows: Requirements • All fibers shall be tested after installation, but prior to turn-up • Before fibers are tested, they shall be labeled properly and all cable tags shall be removed.
  • Page 296 Fiber Labels Fiber Labeling Fiber Labels ..................................If pre-printed labels are not available, use a label-maker to create labels Introduction for each end of each fiber. The label should include: • rack location • circuit pack • port • direction (IN,OUT) Labeling the Fibers To apply the labels to the connectors, use the following procedure.
  • Page 297 Glossary Acronyms and Abbreviations ..................................................................Abnormal (status condition) Alarm Cutoff ACO/SW Alarm Cutoff and Test Add/Drop Multiplexer AGNE Alarm Gateway Network Element Alarm Indication Signal Alternate Mark Inversion ANSI American National Standards Institute Automatic Protection Switch Access Resource Manager ...................................................
  • Page 298 AS&C Alarm, Status, and Control ASCII American Standard Code for Information Interchange ASN.1 Abstract Syntax Notation 1 ASNE Alarm Server Network Element Asynchronous Transfer Mode Auto Automatic AUXCTL Auxiliary Control ........................................B3ZS Bipolar 3-Zero Substitution B8ZS Bipolar 8-Zero Substitution BDFB Battery Distribution and Fuse Bay Bit Error Ratio Bit Interleaved Parity...
  • Page 299 CCITT International Telephone and Telegraph Consultative Committee Controlled Environment Vault CD-ROM Compact Disk, Read-Only Memory CDTU Channel and Drop Test Unit Craft Interface Terminal Carrier Line Failure Status Clock CMISE Common Management Information Service Element CMOS Complementary Metal Oxide Semiconductor CMTS Cable Modem Termination System Central Office...
  • Page 300 Channel Service Unit CS&O Customer Support and Operations Coding Violation CVFE Coding Violation Far End ........................................Data Communications Channel Data Communications Equipment DEMUX Demultiplexer Digital Loop Carrier DPLL Digital Phase-Locked Loop Dual Ring Interworking Digital Signal Level 1 Digital Signal Level 3 DSLAM Digital Subscriber Line Access Multiplexer DSNE...
  • Page 301 Distant Terminal Data Terminating Equipment ........................................EC-1 Electrical Carrier Level 1 Equipment Catalog Item EEPROM Electrically-Erasable Programmable Read-Only Memory Electronic Industries Association Electromagnetic Compatibility Electromagnetic Interference EOOF Excessive Out of Frame EPROM Erasable Programmable Read-Only Memory Equipped (memory administrative state) Errored Seconds Electrostatic Discharge Extended Super Frame...
  • Page 302 ........................................Federal Communications Commission FDDI Fiber Distribution Data Interface Far End FE ACTY Far End Activity FEBE Far End Block Error FE ID Far End Identification FEPROM Flash EPROM FERF Far End Receive Failure FE SEL Far End Select ........................................Gigabit Ethernet Gateway Network Element Telcordia Technologies General Requirement...
  • Page 303 ........................................HECI Humans Equipment Catalog Item ........................................Internal Clock Identifier International Electrotechnology Commission Infant Mortality Factor Incoming Status Input/Output Internet Protocol Intermediate Reach In Service ISCI Intershelf control Interface Intershelf Interface ISDN Integrated Services Digital Network International Standards Organization Internet Service Provider ...................................................
  • Page 304 IVHS Intelligent Vehicle Highway System ........................................Local Area Network LAPD Link Access Procedure "D" Line Build Out Local Communications Network Local Exchange Carrier Light-Emitting Diode Loss of Frame Loss of Pointer Loss of Signal Long Reach Low Speed ........................................Mediation Device Major Alarm Multimode ...................................................
  • Page 305 huMan-Machine Language Minor Alarm MPEG Moving Picture Experts Group MSDT Multi-Services Distant Terminal MTBF Mean Time Between Failures MTBMA Mean Time Between Maintenance Activities Mult Multipling Multiplex MXBIU Multiplexer and Backplane Interface Unit ........................................Near End Network Element NE ACTY Near-End Activity NEBS Network Equipment-Building System...
  • Page 306 NMON Not Monitored (provisioning state) Nonreturn to Zero NARTAC Lucent North American Regional Technical Assistance Center call 1-866-LUCENT8 (866-582-3688): Prompt 1 Network-Network Interface Not Service Affecting NSAP Network Services Access Point No Trouble Found ........................................OAM&P Operations, Administration, Maintenance, and Provisioning OC-1 Optical Carrier Level 1 Signal (51.84 Mb/s) OC-3...
  • Page 307 OPS/INE Operations System/Intelligent Network Element Operations System OSGNE Operations System Gateway Network Element Open Systems Interconnection OSMINE Operations Systems Modifications for the Integration of Network Elements Outside Plant ........................................P-bit Performance Bit Personal Computer Power Conversion Unit Program Identification PINFET Positive Intrinsic Negative Field Effect Transistor Pointer Justification Count Phase-Locked Loop...
  • Page 308 Path Overhead Points of Presence POTS Plain Old Telephone Service Performance Report Message PROTN Protection Primary Reference Source Power Supply Unit Permanent Virtual Circuit Power ........................................Random Access Memory Reliability Prediction Procedure (described in Telcordia Technologies TR-NWT- 00032) Remote Terminal Return to Zero ........................................
  • Page 309 SCADA Supervisory Control and Data Acquisition Signal Degrade Synchronous Digital Hierarchy SEFS Severely Errored Frame Seconds Single-Ended Operations Severely Errored Seconds Super Frame (format for DS1 signal) System Identification Service Level Agreements SLIM Subscriber Loop Interface Module Single Mode SONET Synchronous Optical NETwork Synchronous Payload Envelope Sync Quality Unknown...
  • Page 310 STS, STS-n Synchronous Transport Signal Synchronous Transfer Mode STS-1 SPE STS-1 Synchronous Payload Envelope STS-3c Synchronous Transport Level 3 Concatenated Signal STS-12c Synchronous Transport Level 12 Concatenated Signal SYSCTL System Controller (circuit pack) ........................................T1X1 and T1M1 The ANSI committees responsible for telecommunications standards Telcordia Technologies Technical Advisory TABS Telemetry Asynchronous Byte Serial (Protocol)
  • Page 311 Transaction Language 1 Timing Looped Back Task Oriented Practice Telcordia Technologies Technical Requirement Time Slot Assignment Time Slot Interchange Technical Support Organization ........................................Unavailable Seconds User Network Interface Universal Optical Connector UPD/INIT Update/Intialize UPSR Unidirectional Path Switched Rings ........................................Voice Frequency VLAN Virtual Local Area Network VLSI...
  • Page 312 Violation Monitor Violation Monitor and Removal VoIP Voice over Internet Protocol VONU Virtual Optical Network Unit Virtual Private Network Virtual Tributary VT1.5 Virtual Tributary 1.5 (1.728 Mb/s) VT-G Virtual Tributary Group ........................................Wide Area Network ................................................... G L O S S A R Y 365-372-334 R2.0 Issue 4, November 2004 G L - 1 6...
  • Page 313 Terms and Definitions ..................................................................Numerics Set up using unswitched cross connections on UPSR Ring Interfaces. The 1+1 protection switching architecture protects against failures of the optical transmit/receive equipment and their connecting fiber facility. One bidirectional interface (two fibers plus associated OLIUs on each end) is designated "service,"...
  • Page 314 Auto One possible state of a service interface port. In this state, the port will automatically be put "in service" if a good incoming signal is detected on the port. Automatic Protection Switch A feature that allows another synchronization source to be automatically selected and the synchronization source provisioning to be automatically reconfigured in the event of a synchronization source failure or network synchronization change, for example, a fiber cut.
  • Page 315 CCITT - International Telephone and Telegraph Consultative Committee An international advisory committee under United Nations’ sponsorship that has composed and recommended for adoption worldwide standards for international communications. Recently changed to the International Telecommunications Union Telecommunications Standards Sector (ITU-TSS). Channel A logical signal within a port.
  • Page 316 Default Provisioning The parameter values that are preprogrammed as shipped from the factory. Demultiplexing A process applied to a multiplexed signal for recovering signals combined within it and for restoring the distinct individual channels of these signals. DEMUX - Demultiplexer The DEMUX direction is from the fiber toward the DSX.
  • Page 317 ........................................EC-1, EC-n - Electrical Carrier The basic logical building block signal with a rate of 51.840 Mb/s for an EC-1 signal and a rate of n times 51.840 Mb/s for an EC-n signal. An EC-1 signal can be built in two ways: A DS1 can be mapped into a VT1.5 signal and 28 VT1.5 signals multiplexed into an EC-1 (VT1.5 based EC-1), or a DS3 can be mapped directly into an EC-1 (DS3 based EC-1).
  • Page 318 Free Running An operating condition of a clock in which its local oscillator is not locked to an internal synchronization reference and is using no storage techniques to sustain its accuracy. FT-2000 Lucent’s SONET OC-48 Lightwave System. Function Unit Refers to any circuit pack that is designated for Function-Group-C of the ®...
  • Page 319 ........................................LBO - Line Build Out ® An equalizer network between the Metropolis DMXplore and the DSX panel. It guarantees the proper signal level and shape at the DSX panel. LED - Light Emitting Diode Used on a circuit pack faceplate to show failure (red) or service state. It is also used to show the alarm and status condition of the system.
  • Page 320 Multiplexing The process of combining several distinct digital signals into a single composite digital signal........................................NE - Near End The network element the user is at or working on. Also called local. NE - Network Element The basic building block of a telecommunications equipment within a telecommunication network that meets SONET standards.
  • Page 321 OC-3c (STS-3c) Optical Carrier Level 3 Concatenated Signal. Low-speed broadband equivalent to three STS-1s linked together with a single path overhead. OC-12 Optical Carrier Level 12 Signal (622 Mb/s). OC-12c (STS-12c) Optical Carrier Level 12 Concatenated Signal. High-speed broadband equivalent to twelve STS-1s linked together with a single path overhead.
  • Page 322 Port State Provisioning A feature that allows a user to supress alarm reporting and performance monitoring during provisioning by supporting multiple states (automatic, in-service, and not monitored) for low-speed ports. See Channel State Provisioning. Proactive Maintenance Refers to the process of detecting degrading conditions not severe enough to initiate protection switching or alarming, but indicative of an impending signal fail or signal degrade defect (for example, performance monitoring).
