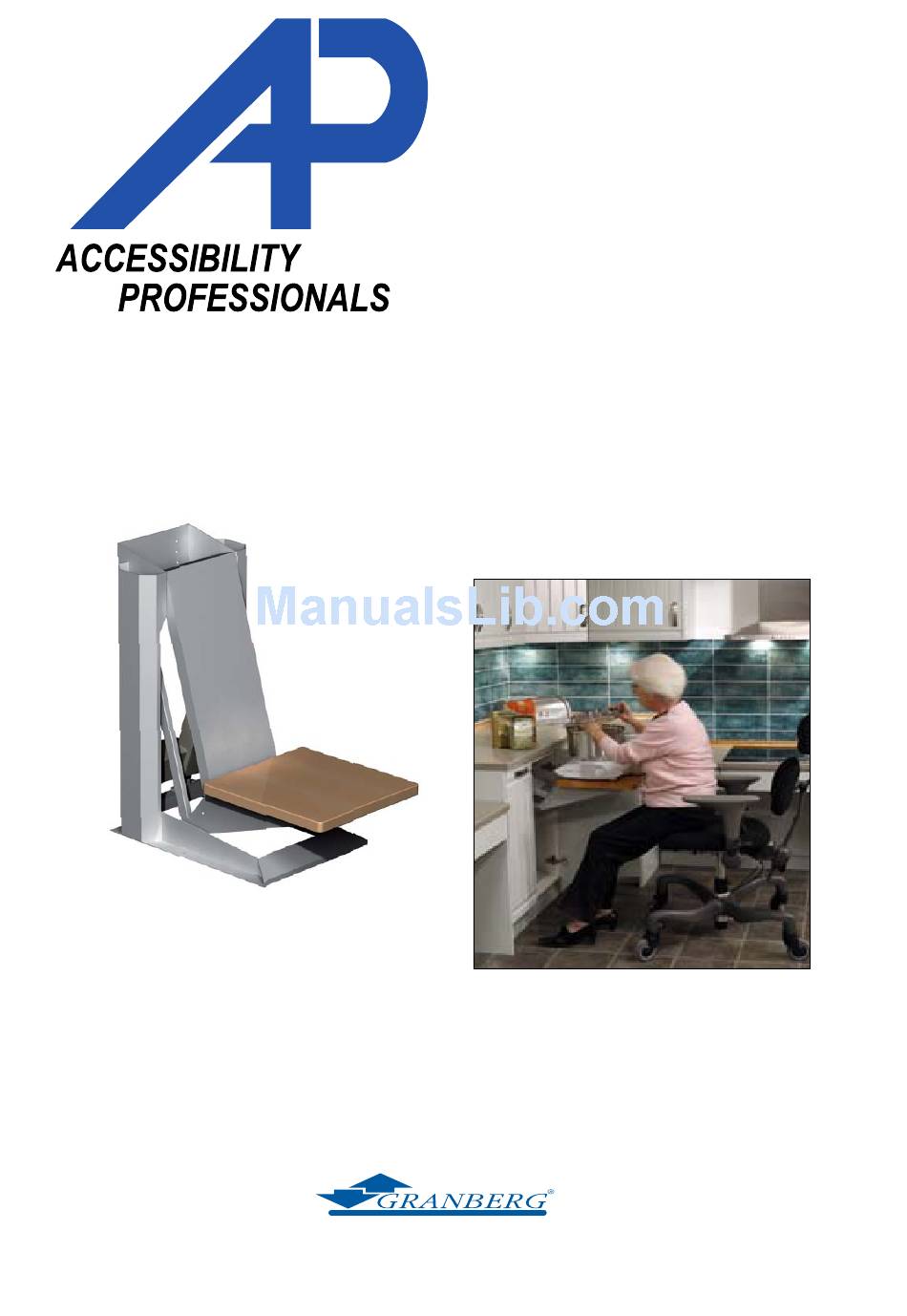

- Page 1 Kitchen Appliance Lift INSTRUCTION MANUAL www.AccessibilityPro.com 1-877-947-7769 Granberg Interior AB Box 6112 SE-600 06 Norrköping SWEDEN Tel: +46 (0)11-19 77 50...
-
Page 2: Table Of Contents
Contents Section: Headline: Page: Introduction ................................4 Declaration of Conformity ...........................4 Intended use - Technical data ........................4 Installation instructions: Mechanical construction ..........................5 Delivery modules ..............................5 Location of electric connections .........................5 Installation in the cabinet ........................... 6 Location of push button unit ........................6 Functional test ..............................7 Operator’s information: Safe use .................................7... -
Page 3: Introduction
Intended use - Technical data The Kitchen appliance lift 870 is intended to achieve a convenient location for handling material, which has been placed on the Lift platform by means of manoeuvring it along an arc-shaped path up to top level, or to bring it into the cabinet. The operation shall be indoors, under normal housing conditions regarding temperature, humidity and lighting. -
Page 4: Mechanical Construction
Location of the electric connection The Kitchen appliance lift must be connected to a separate mains switch, which is placed in the vicinity of the lift. A double electric socket 230 V or 120 V (The voltage depends on which model that is delivered) shall be installed in the cabinet. -
Page 5: Installation In The Cabinet
Be aware of that the maximum height of the load at the rear end of the platform is 36 cm when the Kitchen appliance lift is installed 1 cm from the cabinet front edge, for the standard cabinet described above. Other cabinet dimensions or other load location can allow higher or lower load. -
Page 6: Functional Test
Competent persons shall carry out the installation work. • The operator shall have a clear view of the hazardous parts of the Kitchen appliance lift, the load and the area around it all the time when operations are taking place. -
Page 7: Load Distribution And Side Forces
Actions after use Actions after use The Kitchen appliance lift shall after use be left fully raised to the top level, the parking position. Switch off the main switch or take out the electric plug if unauthorized use can occur. -
Page 8: Control Device Options
Alternative control devices The operator shall have a clear view of the hazardous parts of the Kitchen appliance lift and its motions, but not directly within the work area, as there is a risk that objects may fall out of the cabinet. (Due to limited space it can be necessary to place the control devices is placed within the work area). -
Page 9: Cleaning
Cleaning In its use in a house the mechanism can be exposed to dirt. As the Kitchen appliance lift contains electrical components it is very important that cleaning is made according this instruction. WARNING! * The Kitchen appliance lift must absolutely not be connected to the electric supply when cleaning is carried out. -
Page 10: Instructions For Recycling
Instructions for recycling When the Kitchen appliance lift shall be re-used shall it must be cleaned, inspected and go through a full operation test before it is installed on the new site. We recommend the machine to be sent to Granberg or to the Granberg distributor to get this done. -
Page 11: Warranty
Warranty In accordance with the warranty conditions Orgalime S 2000 the manufacturer will replace or repair all faults which depend on manufacturing or material faults and which appear within twenty-four (24) months from the delivery. For further details about the conditions, see Orgalime S 2000. Note! Alternative warranty conditions may apply. -
Page 12: Service & Maintenance Records
Service and Maintenance Records Type and model:_______________________ Manufacturing No.:________________________ Delivery date:_____________________________ Service & maintenance Service & maintenance Service & maintenance Date:______________________ Date:______________________ Date:______________________ Sign._______________________ Sign._______________________ Sign._______________________ Remarks:___________________ Remarks:___________________ Remarks:___________________ ___________________________ ___________________________ ___________________________ ___________________________ ___________________________ ___________________________ ___________________________ ___________________________ ___________________________ Service & maintenance Service &... -
Page 13: Fault-Finding
If it is not lighting the control box is probably defect. Order a new unit from Granberg. When repair work has been carried out on the Kitchen appliance lift a complete functional test with full load shall be made, before it is taken into use. (See section .6). -
Page 14: Electric Circuit Diagram
Electric circuit diagram Motor out 230V / 50 Hz / 1,5A* 230V / 50 Hz / 1,5A 120V / 60 Hz / 2,7A* * Depends on model CE-Declaration of conformity (According Machinery Directive 98/37/EC, Annexe 2A) Manufacturer: Granberg Interior AB Tel.
