USER GUIDE
USER GUIDE
Clip-On Microphone

Advertisement

Table of Contents
loading

Related Manuals for ReSound Clip-On

Summary of Contents for ReSound Clip-On

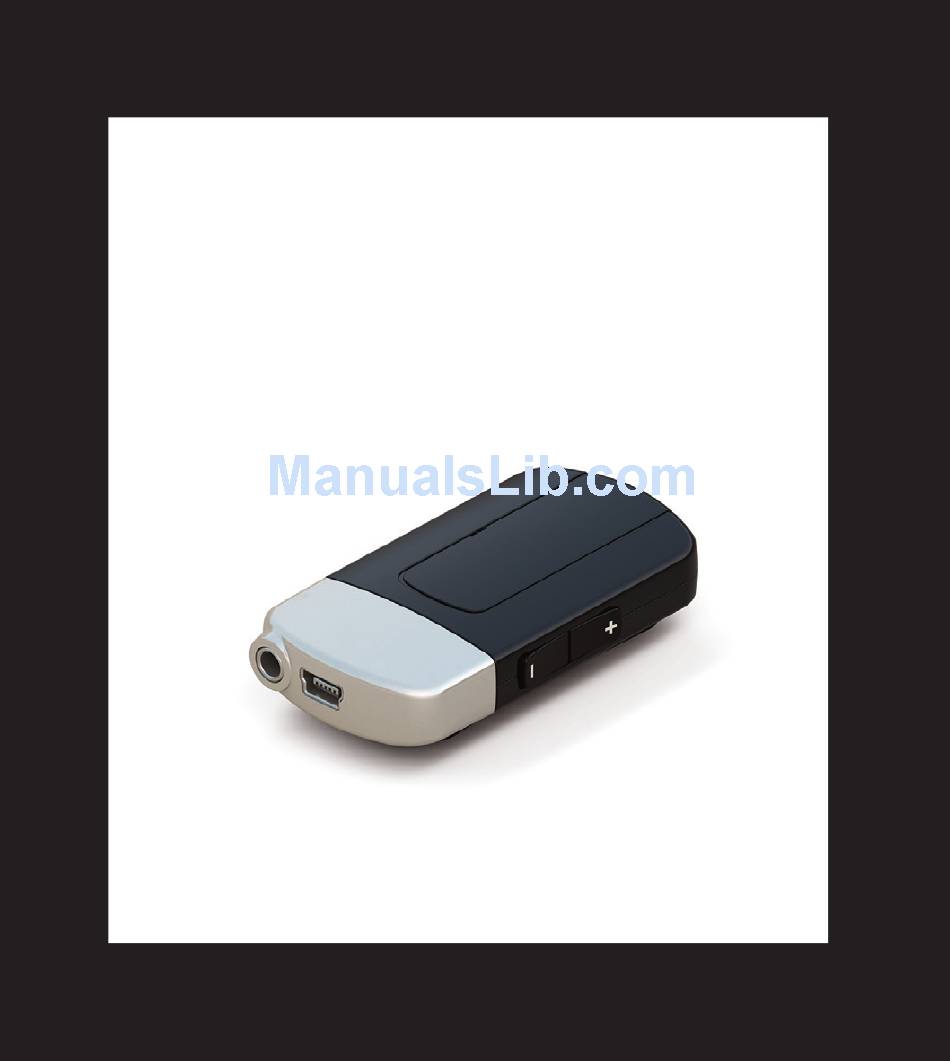

  • Page 1 USER GUIDE USER GUIDE Clip-On Microphone...
  • Page 2 Welcome Congratulations on your purchase of a wireless Clip-On Micro- phone, a high quality streamer of speech and sound. The Clip-On Microphone streams speech directly to your hearing instrument. The line-in functionality of the Clip-On Microphone will provide you with a streamed audio signal (mono) from your audio system, personal computer, TV or similar device directly to your hearing instruments.
  • Page 3 • Reorient or relocate the receiving antenna. • Increase the separation between the Clip-On Microphone and receiver.
  • Page 4 Changes or modifications can void the user’s authority to operate the equipment. Intended use The Clip-On Microphone is intended to enable hearing instrument users to better follow speech or listen to other audio signals. The essential performance of the Clip-On Microphone is to transfer signals from the microphone or other audio devices to a compat- ible wireless hearing instrument.
  • Page 5 - Annex I of Council directive 93/42/EEC for medi- cal devices (MDD) and essential requirements and other relevant provisions of directive 1999/5/EC (R&TTE). The declaration of conformity may be consulted at www.resound.com In US: FCC CFR 47 Part 15, subpart C, section 15.247 In Canada: IC 6941C-SM1 This Class B digital apparatus complies with Canadian ICES-003.
  • Page 6 any interference, including interference that may cause undesired operation of the device. For other identified applicable international regulatory require- ments in countries outside EU and US, please refer to local coun- try requirements. Products are categorized as receiver class 2 according to EN 300 328.

  • Page 7: Table Of Contents

    Stop streaming ........17 Wearing your wireless Clip-On Microphone ....18 Light indicator (LED) .

  • Page 8: Description

    Description 1. Mini-USB connector for charging 2. Microphone inlet 3. Line-in input 4. ON/OFF switch...
  • Page 9 5. Volume control 6. Light indicator (LED) 7. Clip 8. Pairing button...

  • Page 10: Getting Started

    • When charging your wireless Clip-On Microphone for the first time, allow it to charge for at least 3 hours, even if the battery indicator indicates that the battery is fully charged.

  • Page 11: Turning Your Wireless Clip-On Microphone On And Off

    Turning your Clip-On Microphone ON and OFF To turn ON your wireless Clip-On Microphone, slide the ON/OFF switch (#4 on page 8) down to the ON position. A white “I” icon will be visible on the switch and the LED indicator will now blink green every 2.5 seconds.

  • Page 12: Pairing To Your Hearing Instruments

    1, 2 or 3 must be selected when starting the pairing pro- cess. Pairing the Clip-On Microphone in Channel 1 1. Make sure the Clip-On Microphone is turned ON. Your hear- ing instruments must be OFF—the battery doors must be open.
  • Page 13 You are now ready to use your wireless Clip-On Microphone! Pairing the Clip-On Microphone in Channel 2 or 3 To pair the Clip-On Microphone in Channel 2, press the pairing button twice. The LED will now blink yellow twice every 2 seconds to in- dicate that it is ready to be paired in Channel 2.
  • Page 14 To pair the Clip-On Microphone in Channel 3, press the pairing button three times. The LED will now blink yellow three times ev- ery 2 seconds to indicate that it is ready to be paired in Channel 3. Close the battery doors on the hearing instruments.

  • Page 15: Start Streaming

    Start streaming Turn on the Clip-On Microphone and make sure your hearing in- struments are turned on as well. Streaming may then be started in one of two ways. 1. Press and hold the push button on both hearing instruments for about three seconds in order to listen to the streamed audio signal.
  • Page 16 Start streaming on a 2nd or 3rd Clip-On Microphone unit If your hearing instrument is paired to more than one streaming device, you can start streaming in two ways. 1. Press and hold the hearing instrument push button for about 3 seconds a 2nd or 3rd time to access the 2nd or 3rd com- patible streaming device.

  • Page 17: Stop Streaming

    Clip-On Microphone will be temporarily disrupted. When you have ended your phone call, streaming will resume. Note! The Clip-On Microphone will transmit over a range of approximately 20 feet (or more.) Transmission can be interrupted if the distance between the hearing instru- ment and the Clip-On Microphone is increased beyond the transmission range.

  • Page 18: Wearing Your Wireless Clip-On Microphone

    Place the device within a range of 4 to 8 inches from the speaker’s mouth. Light indicator (LED) The Light indicator (#6 on page 9) on your wireless Clip-On Microphone serves as a multipurpose user interface, providing information on the status of your device.

  • Page 19: Using The Line-In Input

    Clip-On Microphone’s line-in feature directly to your hearing instrument. 1. Insert one end of the cable included with your Clip-On Micro- phone into the line-in jack on the Clip-On Microphone. 2. Plug the other end of the cable into the AUDIO OUT on the...
  • Page 20 Note: When using the Clip-On Microphone with a TV, you can use the HEADPHONE output terminal which is usu- ally located on the side or front of the TV. Typically, when using the HEADPHONE output terminal on the TV, only the person wearing the hearing instruments will hear the sound, and the TV speakers will be muted.

  • Page 21: Volume Control

    Volume control The Clip-On Microphone has been designed to provide a comfortable listening level from the moment it is activated. However, for some devices or listening environments it may be desirable to adjust the listening volume. This can be accom- plished in a variety of ways.
  • Page 22 • Use a Remote Control (optional) to adjust the streaming volume in the hearing instrument. Ask your hearing healthcare profes- sional for more information about this accessory. • In some cases,the volume can be further adjusted at the signal source, for example by turning down the volume on the TV it- self.

  • Page 23: Important Information

    • Clean the Clip-On Microphone using a damp cloth. Never use household cleaning products (detergent, soap, etc.) or alcohol to clean the device. • When the Clip-On Microphone is not in use, turn it OFF and store it safely. • Protect the Clip-On Microphone from excessive moisture (bathing, swimming) and heat (radiator, car dashboard).

  • Page 24: General Warnings

    Although unlikely, nearby electronic devices may be af- fected. In that case, move the Clip-On Microphone away from the affected electronic device. • If your Clip-On Microphone is affected by electromagnetic in- terference, move it away from the source of interference.

  • Page 25: General Precautions

    Ignition of flammable atmospheres • Do not use the product in environments where there is a dan- ger of ignition of flammable gasses General precautions • Do not use this device in locations where it is forbidden to use electronic devices. •...
  • Page 26 • The Clip-On Microphone may only be repaired by an autho- rized service center. • Do not use the Clip-On Microphone in areas where RF trans- mission is prohibited, e.g., airplanes, etc. • Only connect your Clip-On Microphone to the cables provided...
  • Page 27 BUILT-IN BATTERY CARE: Please observe the following if the product contains a battery • Your product is powered by a rechargeable battery. • The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. •...
  • Page 28 Any attempt to do so is risky and may result in dam- age of the product. • Only recharge the Clip-On Microphone with a power supply unit that has been supplied with the product. • Dispose of batteries according to local regulations. Please recycle when possible.
  • Page 29 CHARGER CARE: Please observe the following if the product is supplied with a charger • Do not attempt to charge your product with anything other than the AC adapter provided. The use of any other types may dam- age or destroy the product and could be dangerous. Use of other chargers may invalidate any approval or warranty.
  • Page 30 • Avoid charging your product in extremely high or low tempera- tures and do not use the charger outdoors or in damp areas. • Do not charge the Clip-On Microphone while it is on your body.

  • Page 31: Technical Specifications

    Technical specifications Operating range: up to 20 feet or more Power supply: External wall adapter Wireless 2.4 GHz Operating temperature: 32° to 113° F Storage temperature: -4° to 113° F Temperature test, transport and storage information The product is subject to various tests in temperature and damp heating cycling between -13°...

  • Page 32: Warranty

    Warranty The Clip-On Microphone is covered by a limited warranty issued by the manufacturer for a period of 12 months from the day of the original purchase. Please notice that extended warranties may apply in your country. Please contact your local hearing health- care professional for more information.
  • Page 33 What is not covered by this warranty? Problems arising from improper handling or care, excessive use, accidents, repairs made by an unauthorized party, exposure to corrosive conditions or damage due to foreign objects entering the device are NOT covered by the limited warranty and may void it.

  • Page 34: Troubleshooting Guide

    TROUBLESHOOTING GUIDE SYMPTOM CAUSE The Clip-On Microphone and The streaming button on the Remote Control is pressed hearing instruments have not been paired but with no effect at all The Remote Control and hear- ing instruments are not within wireless range...
  • Page 35 Assure that the Clip-On Microphone and hearing instruments are within wireless range, then repeat the pairing process Repeat the pairing process and assure that the battery doors on both hearing instruments are closed within 20 seconds after the pairing button has been pressed on the Clip-On Microphone...
  • Page 36 (indicated by an “X” icon on The Clip-On Microphone is not the display) powered on The battery level of the Clip- On Microphone is too low to...
  • Page 37 POSSIBLE REMEDY Assure that Clip-On Microphone and hearing instruments are within wireless range and activate streaming again Power on the Clip-On Microphone and activate streaming again Charge the battery Power on or unmute the external audio device...
  • Page 38 There is no sound from the hearing instruments despite compatible hearing instrument are out of wireless range being in a streaming program The Clip-On Microphone is no longer powered on The battery level of the Clip- On Microphone has become too low to support streaming...
  • Page 39 POSSIBLE REMEDY Assure that Clip-On Microphone and compatible hearing instruments are within wireless range again Power on the Clip-On Microphone and activate streaming again Charge the battery Power on or unmute the external audio device...
  • Page 40 5 minutes The battery in the hearing instrument is so depleted that it no longer supports audio streaming The sound from the Clip-On An audio device has been connected to the line-in jack Microphone is too high or is distorted...
  • Page 41 Replace the battery in the hearing instrument with a new one, and activate streaming again Adjust the volume using the “+” and “-” keys on the Clip-On Microphone, or using the volume control on the external audio device itself, until the best sound level and quality is obtained.
  • Page 42 TROUBLESHOOTING GUIDE SYMPTOM CAUSE The Clip-On Microphone is not The sound level from the Clip-On Microphone is very worn correctly by the speaker The sound received by the microphone is very low An audio device has been connected to the Line-in jack...
  • Page 43 Increase the volume using the “+” key on the Clip-On Micro- phone Adjust the volume using the “+” and “-” keys on the Clip-On Microphone, or using the volume control on the external audio device, until the best sound level and quality is obtained.
  • Page 44 TROUBLESHOOTING GUIDE SYMPTOM CAUSE The audio volume level of The sound from the Clip-On Microphone is still either too the hearing instruments is not suitable for listening low or too high The sound from the Clip-On The Clip-On Microphone and...
  • Page 45 “+” and “-” keys on the compatible Remote Control Assure that Clip-On Microphone and compatible hearing instruments are within wireless range Assure that no significant obstacles will obstruct the hassle- free streaming from the Clip-On Microphone to the hearing instruments...
  • Page 46 Be aware of information marked with the warning symbols: WARNING points out a situation that could lead to serious injuries, CAUTION indicates a situation that could lead to minor and moderate injuries Advice and tips on how to handle your wireless accessory better.
  • Page 47 Please ask your local hearing healthcare professional concerning disposal of your wireless accessory...
  • Page 48 ReSound North America ReSound Canada 8001 Bloomington Freeway 303 Supertest Road Bloomington, MN 55420 Toronto, Ontario M3J 2M4 phone: 1-888-735-4327 phone: 1-888-737-6863...
