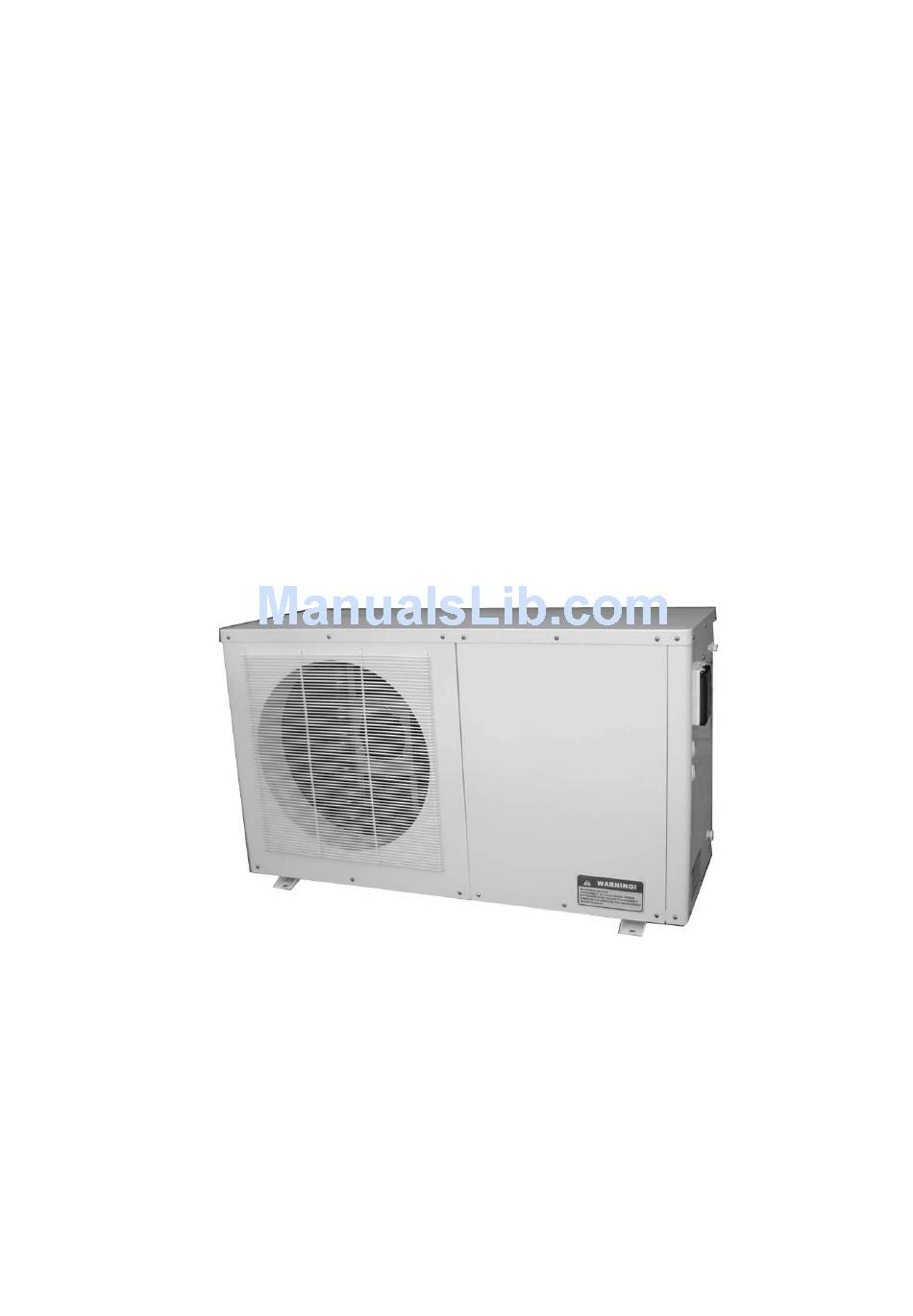

SWIMMING POOL HEAT PUMP UNITS Installation & Instruction Manual DURATECH ® ® ® ® - series Rev. 2.00 18.11.2009... -
Page 2: Table Of Contents
DURATECH heat pumps Contents SWIMMING POOL HEAT PUMP UNITS ______________________________________________1 Contents __________________________________________________________________________2 1. Preface _________________________________________________________________________3 2. Specifications____________________________________________________________________4 2.1 Technical data sheet ________________________________________________________________________ 4 2.2 Dimensions _______________________________________________________________________________ 5 3. Installation and connection ________________________________________________________6 3.1 Remarks _________________________________________________________________________________ 6 3.2 Location of the heat pump____________________________________________________________________ 6 3.3 Distance from the pool ______________________________________________________________________ 7... -
Page 3: Preface
DURATECH heat pumps 1. Preface In order to provide our customers with quality, reliability and versatility, this product has been made according to strict production standards. This manual includes all necessary information about installation, start-up, winterizing and maintenance. Please read this manual carefully before opening or servicing the unit. The unit must be installed by qualified personnel. -
Page 4: Specifications
DURATECH heat pumps 2. Specifications 2.1 Technical data sheet Unit Model DURA-7 DURA-10 DURA-13 DURA-18 DURA-22 DURA-22T DURA-26T Heating capacity A25/W25 BTU/h 24000 34000 44500 61500 75000 75000 89000 11,8 16,5 20,2 20,2 24,2 Heating capacity A15/W25 BTU/h 22000 31000... -
Page 5: Dimensions
DURATECH heat pumps 2.2 Dimensions Model A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) DURA-7 DURA-10 1010 DURA-13 1130 DURA-18 DURA-22 DURA-22T DURA-26T... -
Page 6: Installation And Connection
DURATECH heat pumps 3. Installation and connection 3.1 Remarks The factory only provides the heat pump unit; the other parts, including a contingent by-pass, are to be provided by the user or the installer. Attention: Please take the following steps when installing the heat pump: 1. -
Page 7: Distance From The Pool
DURATECH heat pumps 3.3 Distance from the pool Normally, the pool heat pump is installed within a 7.5 meter radius of the pool. The greater the distance from the pool, the greater the heat loss from the piping. Since the piping is buried for the most part, heat loss is minimal for distances of up to 30 meters (15 meters to and from the pump = 30 meters total), unless the soil is wet or the water level is high. -
Page 8: Typical Setup
DURATECH heat pumps 3.5 Typical setup Note – This setup is just an example 3.6 Adjusting the by-pass Adjust the by-pass as follows: • open the 3 valves completely • slightly close valve 1 until water pressure has increased with approximately 100 to 200 grams (see also 3.8) - Page 9 DURATECH heat pumps 3.7 Electrical hook-up Important - Although the heat pump is electrically isolated from the rest of the unit, this only prevents the passage of electricity to or from the pool water. Grounding the unit is still required to protect yourself from short circuits inside the unit.
- Page 10 DURATECH heat pumps 3.8 First time start-up Note - In order for the unit to heat the pool (or spa), the filter pump must be running so that the water can circulate through the heat pump. Without this circulation, the heat pump will not start.
-
Page 11: Use And Operation
DURATECH heat pumps 4. Use and operation 4.1 Features of the LED control panel LED screen Press “ to modify ▲ ” “ ▼ ” settings Access to parameters Press “CLOCK” to set the On/Off time With the “On/Off” key “ “, the heat pump is turned on or turned off (stand-by status). If the LED next to this key lights up, the heat pump is turned ON. - Page 12 DURATECH heat pumps The first number on the LED screen stands for the number of the parameter and the second one for its value. Parameter Description Standard 20°C Desired temperature in cooling mode (6 28°C) ⇒ 27°C Desired temperature in heating mode (6 4 0°C)
-
Page 13: Checking The Status
DURATECH heat pumps Parameter 7 indicates if the heat pump should or shouldn’t start automatically after an interruption of the power supply. Parameter 11 controls the opening/closing of the expansion valve. This can be controlled from –20 to 20°C and has a standard value of 3°C. -
Page 14: Protection Systems
DURATECH heat pumps 5. Protection systems ® DURATECH heat pumps are equipped with the following standard protection systems: 5.1 Water pressure switch Thanks to this pressure switch, the heat pump will not work when the filter pump is not working (and the water is not circulating). -
Page 15: Anti-Frost Protection During Winter
DURATECH heat pumps 5.7 Anti-frost protection during winter This protection can only be activated if the heat pump is in STAND-BY mode. 5.7.1 First anti-frost protection If the filter pump is controlled by the heat pump (regardless of the value for parameter 9) and when the water temperature lies between 2 and 4 °C and the air temperature is lower than 0 °C, the filter pump will be... -
Page 16: Directions
DURATECH heat pumps 6. Directions 6.1 Swimming pool water chemistry Special attention should be paid to the chemical balance of the pool water. The pool water values should always stay within the following limits: Min. Max. Free chlorine (mg/l) TAC (mg/l) Salt (g/l) Important: failure to comply with these limits will invalidate the warranty. -
Page 17: Heat Pump Winterizing
DURATECH heat pumps 6.3 Heat pump winterizing Important: failure to take the necessary precautions for winterizing can damage the heat pump, which will invalidate the warranty. The heat pump, filter pump, filter and conduits must be protected in areas where the temperature can drop below the freezing point. -
Page 18: Maintenance And Inspection
DURATECH heat pumps 7. Maintenance and inspection 7.1 Maintenance • Check the water inlet and drainage often. The water and air inflow into the system should be sufficient so that its performance and reliability does not get compromised. You should clean the pool filter regularly to avoid damage to the unit caused by clogging of the filter. - Page 19 DURATECH heat pumps Problem: the heat pump doesn’t work Observation: the screen does not light up and the fan/compressor doesn’t make a sound Possible cause Solution No electrical power supply Check power supply (wiring, fuses, ...) Problem: the heat pump doesn’t work Observation: the screen displays “OFF”...
- Page 20 DURATECH heat pumps Problem: the heat pump works but stops after a short while Observation: the screen displays “OFF” Possible cause Solution 1. Wrong setting of parameters 1. Check the settings of the parameters and modify if necessary Problem: the heat pump doesn’t stop...
-
Page 21: Overview Of Possible Error Codes Displayed On The Screen
DURATECH heat pumps 7.3 Overview of possible error codes displayed on the screen Go back to chapter 5 “Protection systems” for more detailed information. The heat pump screen displays one of the following codes: Display Problem Cause Solution “WATER IN” sensor out of... -
Page 22: Check List For Installation
DURATECH heat pumps 7.4 Check list for installation... -
Page 23: Detailed Specifications
DURATECH heat pumps 8. Detailed specifications 8.1 Electrical diagrams... - Page 24 DURATECH heat pumps...
- Page 25 DURATECH heat pumps...
- Page 26 DURATECH heat pumps...
-
Page 27: Refrigeration Diagram
DURATECH heat pumps 8.2 Refrigeration diagram... -
Page 28: Exploded Views
DURATECH heat pumps 8.3 Exploded views DURA-7 Item Code Description Rem. Item Code Description Rem. DURA0601 Evaporator DURA0012 Grid DURA0004 Top panel DURA0013 Back panel DURA0005 Fan fixation DURA0014 Corner panel DURA0006 Fan motor DURA0007 DURA0002 LED display DURA0008 Left panel... - Page 29 DURATECH heat pumps DURA-10 Item Code Description Rem. Item Code Description Rem. DURA0018 Top panel DURA0029 Corner panel DURA0019 Fan fixation DURA0030 Back grid DURA0020 Side grid DURA0815 Evaporator DURA0021 Fan motor DURA0031 Back panel DURA0022 DURA0023 Divider panel DURA0818...
- Page 30 DURATECH heat pumps DURA-13 Item Code Description Rem. Item Code Description Rem. DURA0018 Top panel DURA0029 Corner panel DURA0019 Fan fixation DURA0030 Back grid DURA0020 Side grid DURA1215 Evaporator DURA0021 Fan motor DURA0031 Back panel DURA0022 DURA0023 Divider panel DURA1218...
- Page 31 DURATECH heat pumps DURA-18 Item Code Description Rem. Item Code Description Rem. DURA1701 Top panel DURA1715 Compressor DURA1702 Fan fixation DURA1703 Fan motor DURA1717 Divider panel DURA1704 DURA1718 Evaporator DURA1705 Left corner panel DURA1719 Back grid DURA1706 Left grid DURA1720...
- Page 32 DURATECH heat pumps DURA-22 Item Code Description Rem. Item Code Description Rem. DURA0038 Fan grid DURA2113 Mains connector DURA0052 Evaporator DURA0045 Fan capacitor DURA0039 Top plate DURA2115 Compressor capacitor 1 DURA0040 Fan motor DURA0036 Compressor capacitor 2 DURA0041 DURA0046 Grid...
- Page 33 DURATECH heat pumps DURA-22T Item Code Description Rem. Item Code Description Rem. DURA0038 Fan grid DURA0050 3-phase protector DURA0052 Evaporator DURA0045 Fan capacitor DURA0039 Top plate DURA21T14 Mains connector DURA0040 Fan motor DURA0046 Grid DURA0041 DUTA21T16 Fluid accumulator DURA21T06 Compressor...
- Page 34 DURATECH heat pumps DURA-26T Item Code Description Rem. Item Code Description Rem. DURA0038 Fan grid DURA0050 3-phase protector DURA25T02 Evaporator DURA0045 Fan capacitor DURA0039 Top plate DURA25T14 Mains connector DURA0040 Fan motor DURA0046 Grid DURA0041 DURA25T16 Fluid accumulator DURA25T06 Compressor...
-
Page 35: Warranty And Rma (Return Material Authorization)
DURATECH heat pumps 9. Warranty and RMA (return material authorization) 9.1 Warranty LIMITED WARRANTY Thank you for purchasing our heat pump. We warrant all parts to be free from manufacturing defects in materials and workmanship for a period of two years from the date of retail purchase. -
Page 36: Rma Request Form
DURATECH heat pumps 9.2 RMA Request Form Company: Date: Address: City: Country: code: Contact: Phone: E-mail: Fax: Contact: Date: Internal use RMA #: Issued by: Date: Return for: Copy of customer invoice attached? Other documents attached to RMA request? Description of documents: Model no.:...
