  • Page 1 Quick Guide DURA-V10 DURA-V15 DURA-V20 DURA-V11i DURA-V15i DURA-V20i V / Vi...
  • Page 2: Box Content

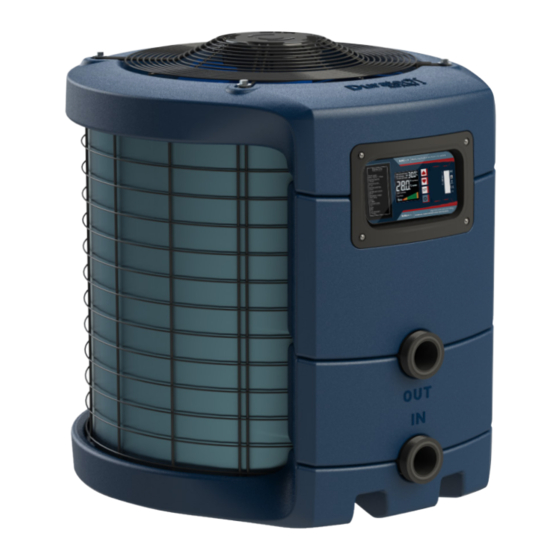

    Box content Heat pump Dura V or Vi Connection clamps Winter cover Drain pipe (Condens Flux) Manual 1. Specifications 1.1 Refrigerant weight Dura V UNIT DURA-V10 DURA-V15 DURA-V20 Refrigerant Refrigerant weight 1,110 1,410 1,645 1.2 Refrigerant weight Dura Vi UNIT...
  • Page 3: Typical Setup

    2. Preparing the heat pump for use 2.1 Typical set-up The factory provides the heat pump, Condens flux, connection kit and winter cover. Other parts, including a contingent by-pass must be provided by the user or installer. The heat pump should be located maximum 7,5m (1) away from the swimming pool.
  • Page 4: Electrical Wiring

    2.3 Electrical wiring Connect the electrical wires using the following steps. Step 1: Remove display. Step 2: Unscrew blue front housing. Step 3: Snap off blue front housing Step 4: Remove flow sensor Please turn off filter pump. Flow must be stopped before disconnecting flow sensor. Drain the water out of the condensor to prevent water loss.
  • Page 5: Operation And Use

    3. Operation and Use 3.1 Types of display interfaces in the heat pump 4 types of interfaces can be found in the heat pump. 1: General interface. 2: Enter Parameter interface. example 3: Error interface example 4: Enter Error parameter interface. example example...
  • Page 6 3.2 General display interface Set: Highlights when the heat pump is unlocked. Meaning the heat pump desired temperature or parameters can be changed. Low air temperature: Set temperature: The heat pump stops Shows the desired temperature of the swimming working and will restart pool.
  • Page 7: Parameter Interface

    3.3 Parameter interface Parameters can be set by a qualified person in order to make the heat pump more efficient depending on the specific conditions of the swimming pool. Parameter name: Name of parameter. The following can be found: Consitant parameter User editable settings/parameter Sensor settings/parameter Installer editable settings/parameter...
  • Page 8: Error Interface

    3.4 Error interface When an issue is deteced the heat pump will try to solve it by analyzing several parameters, restarting components and bypassing electronics. An error is shown on the display when the program can not solve the issue. Please contact your service centre or similarly qualified persons when an error occurs.
  • Page 9 3.5 Error parameter interface A complete list of errors can be found in the error parameter interface. Number of error in the heat pump: Number of error. The following can be found: Noticifaction of Error. Error notification name: Name of error in the heat pump. the following can be found: Ambient temperature sensor error Evaporator temperature sensor error...
  • Page 10: Maintenance And Inspection

    If you need service or information or if you have a problem, please contact your local dealer. If needed they will contact the manufacturer to solve your problem. They are gladly willing to assist you! You can find more information and the full manual on our website www.duratech.be...
  • Page 11 6. Warranty LIMITED WARRANTY We warrant all parts to be free from manufacturing defects in materials and workmanship for a period of THREE years from the date of retail purchase. This warranty is limited to the first retail purchaser, is not transferable, and does not apply to products that have been moved from their original installation sites.
  • Page 12: Contact Details

    Propulsion Systems bvba Dooren 72 1785 Merchtem, Belgium Tel +32 2 461 02 53 Fax +32 2 706 59 60 www.duratech.be info@propulsionsystems.be We reserve the rights to change all or part of the contents of this document without prior notice...
