Panel Layouts - DV Audio Promix 3 Operation Manual

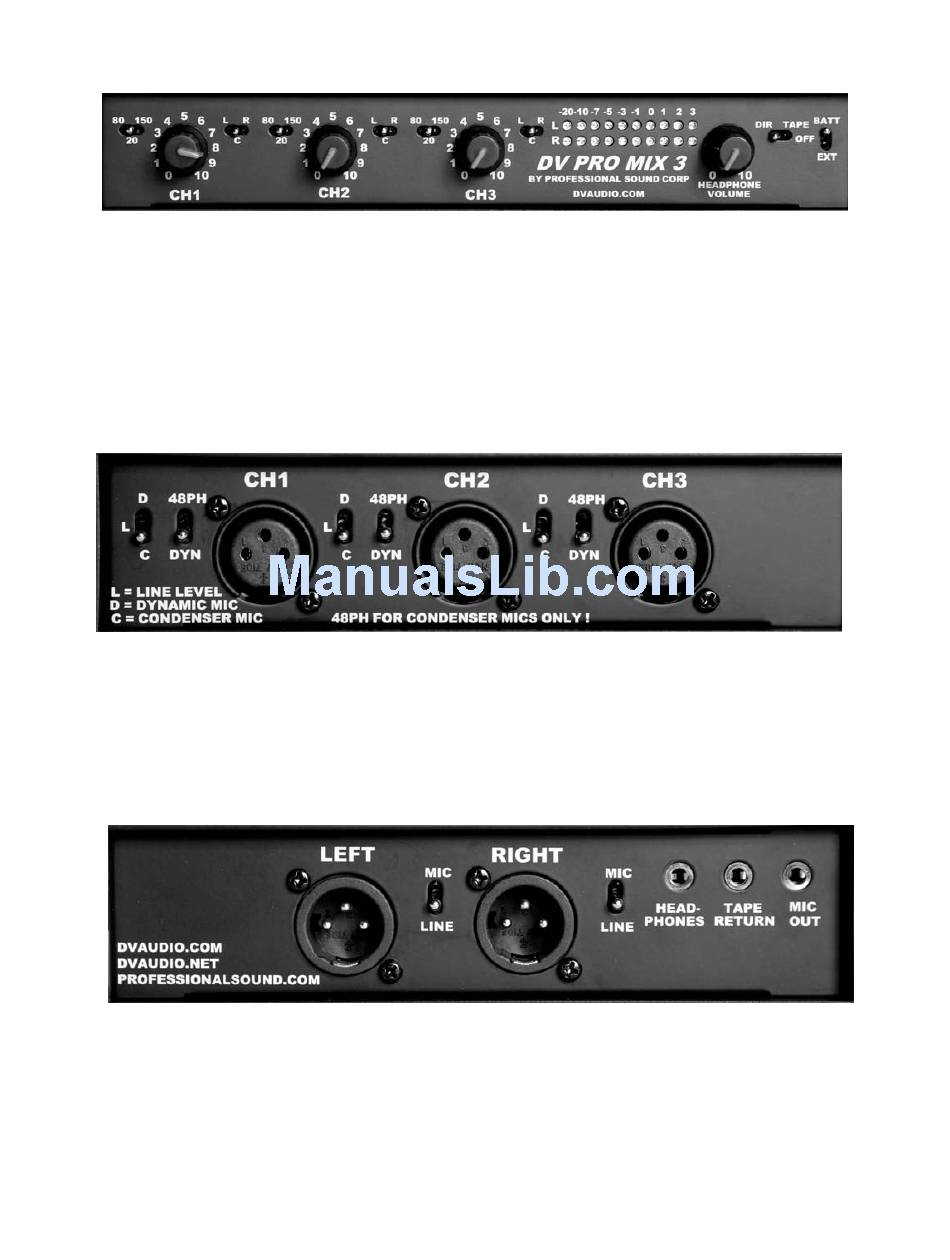

Low Cut Filters (80Hz, 20Hz, 150Hz)
Pan Switches (Left, Center, Right)
Channel Faders (Volume Controls)
Meters (-20 to +3dBv, Green, Amber, Red)
Headphone Monitor (Direct, Tape return)
Headphone Volume (Min to Max)
Power Switch (Internal Battery, Off, External Power)
Input Level Switch: Line Level (0dB Gain), Dynamic Mic (60dB Gain),
Condenser Mic (45dB Gain)
48PH Switch (Applies 48V Phantom Power for 48PH Mics)
Input XLR Female Connector
Output XLR Male Connector
Output Level Switch: Line Level (0dBv nominal balanced signal)
Microphone Level (-50dBv nominal balanced signal)
3.5MM Headphone Jack
3.5MM Tape Return Jack
