with cameras that feature only microphone level inputs. These outputs have
been designed to offer flexibility in output signal levels depending on the type and
wiring of your cables. The line level (0dBv) and Microphone Level (-50dBv) are
only the nominal balanced output signal levels. Other levels are available when
using these outputs in an unbalanced mode. For example, if only pin #2 is used
with respect to ground (pin 1) the DV ProMix 3 will provide a nominal line output
level of –10dBv. This level is compatible with several cameras such as the PD-
150.
PLEASE SEE THE OUTPUT LEVEL INTERFACING CHART AND CABLE
RECOMMENDATIONS AT THE END OF THIS MANUAL FOR FURTHER
SUGGESTIONS
B. OUTPUTS, 3.5MM

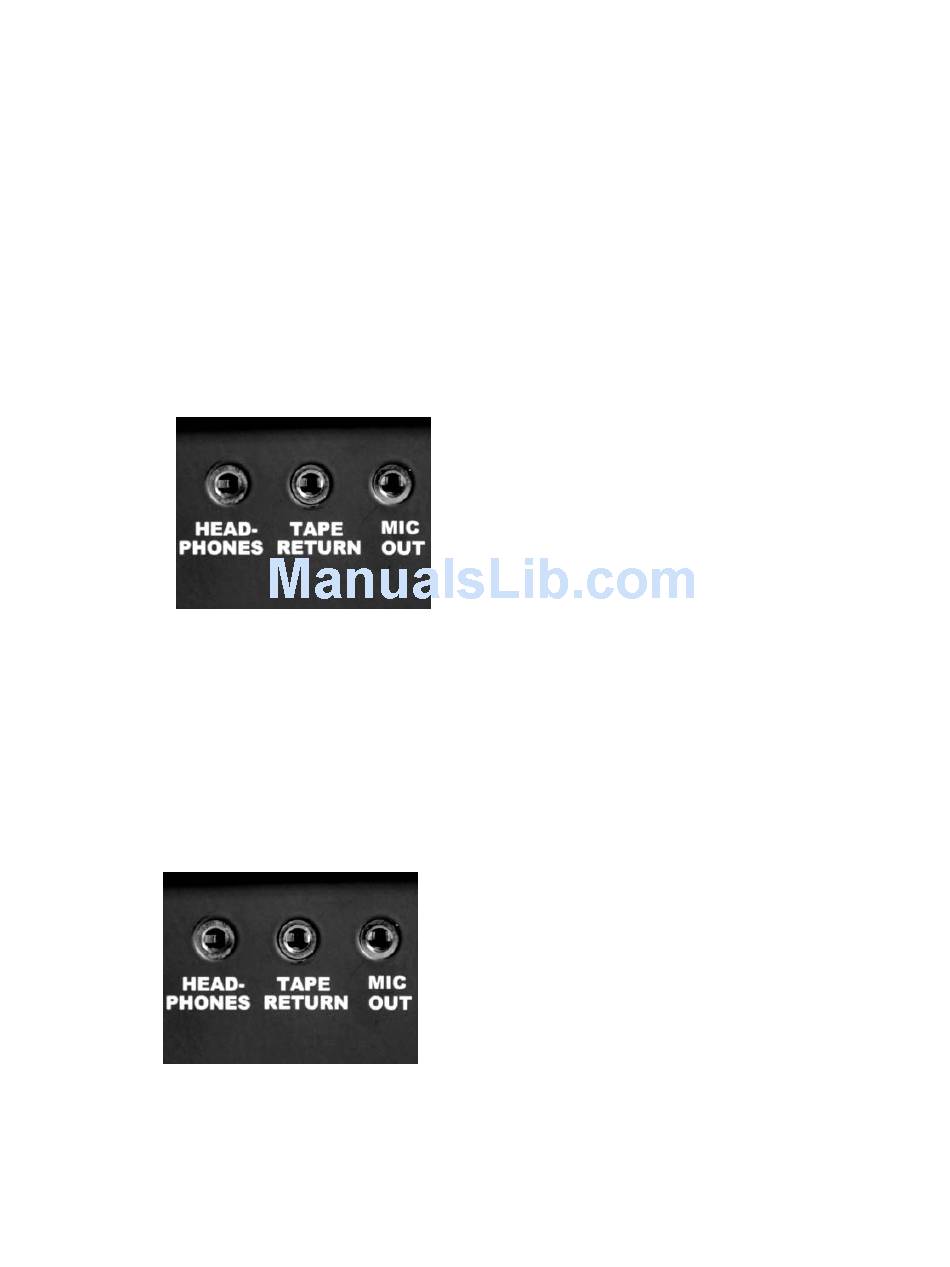

The DV Promix 3 Mixer is also equipped with a 3.5mm stereo jack that outputs
signals at microphone level (-50dB). This output can be used to feed audio to
cameras with only a 3.5mm audio input jack. This output is protected from the
microphone bias supplied by most cameras on their external microphone input.
11
