C.

ENVIRONMENTAL OPERATION

Your new DV Promix 3 Mixer has been designed to operate under extreme field
conditions. The electronics have been designed to operate over a temperature
range of -4 to 158 degrees Fahrenheit (-20 to +70C) less the affects on batteries.
This in addition to the DV Promix 3's ability to operate under high humidity
conditions makes it perfect for harsh field conditions.

INTERFACING

A.

TO PROFESSIONAL DV CAMS (XLR CONNECTORS):

The PSC DV Promix 3 Mixer is especially designed for easy interfacing with all
popular DV Cameras.
connectors on the right side panel. These XLR outputs can provide audio at
either Line Level (0dBv) or Microphone Level (-50dBv).
normally used to feed audio to any device with balanced (XLR) inputs. You can
connect your DV Promix to most, but not all cameras with XLR input connectors
using standard XLR microphone cables. Keep in mind that you must match up
the output level of the DV Promix 3 to the input level required by your camera.
I.E. if your camera has microphone level XLR inputs, then set the DV Promix 3's
output level switches to "MIC". On the other hand, if your camera accepts line
level inputs, then you may set the output level switches to "Line".

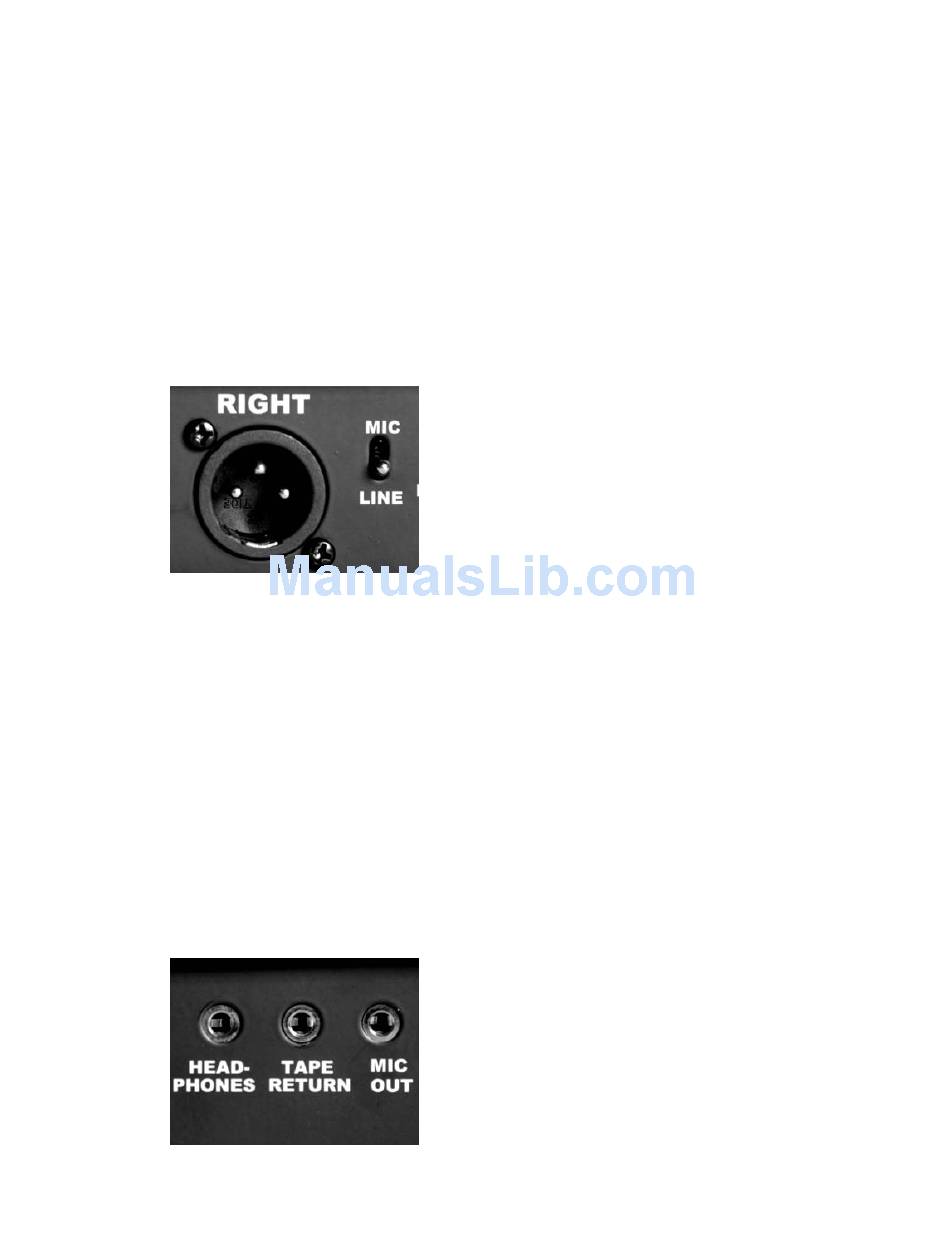

The DV Promix 3 is equipped with two XLR male
17
These outputs are
