F: CABLE WIRING EXAMPLES:

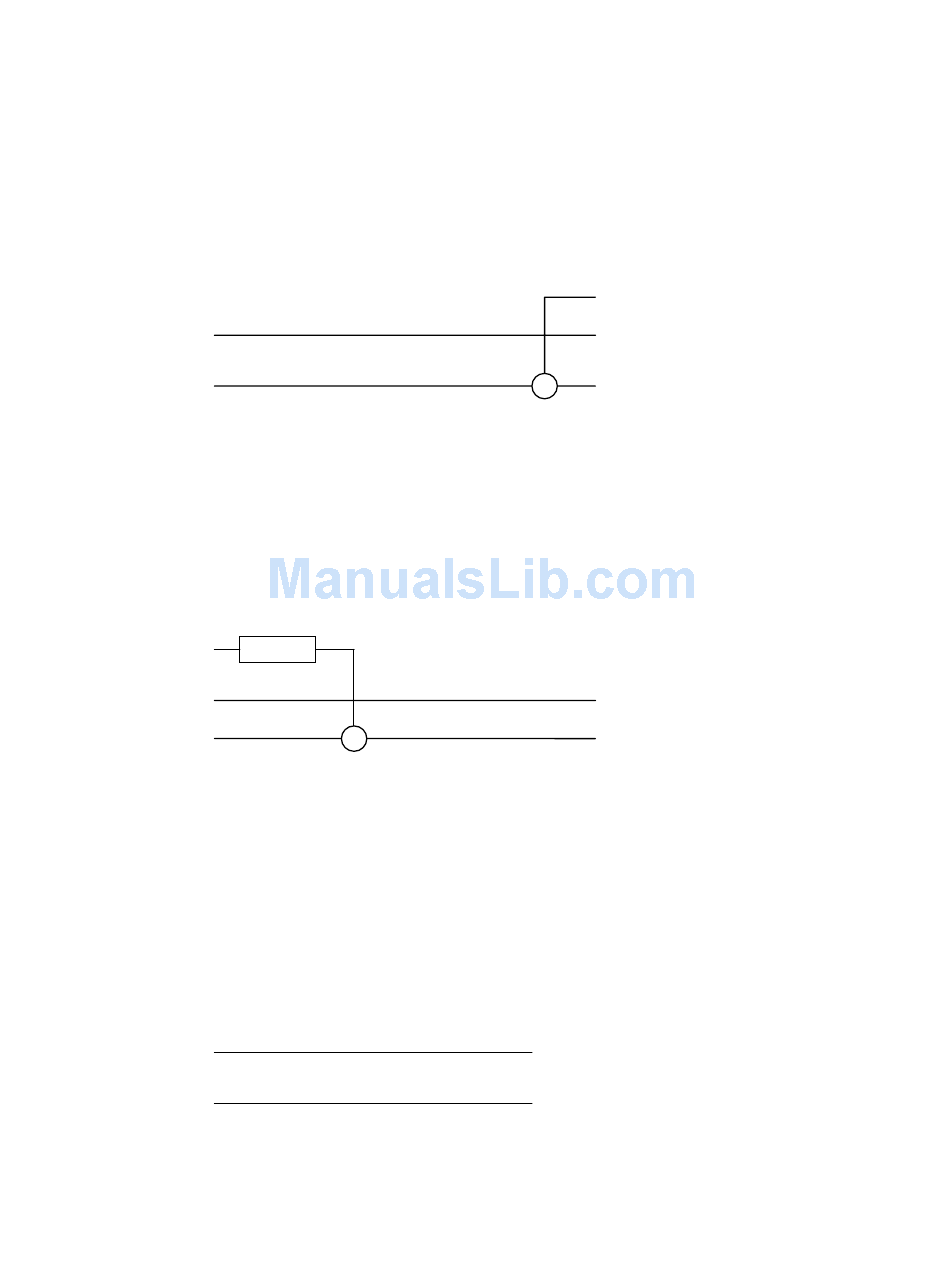

CABLE DIAGRAM #1
SEMI PRO CAMERAS WITH XLR LINE LEVEL INPUTS (-10dBv Signal Level)
SONY PD-150 AND OTHERS:
XLR, 3 PIN, FEMALE
PIN 3 N.C.
PIN 2
PIN 1
CABLE DIAGRAM #2
SEMI PRO CAMERAS WITH XLR MIC LEVEL INPUTS (-35dBv Signal Level)
SONY PD-150 AND OTHERS
XLR, 3PIN, FEMALE
PIN 3
200 OHM
PIN 2
PIN 1
200 OHMS = -35dB, OTHER VALUES
CABLE DIAGRAM #3
SEMI PRO CAMERAS WITH RCA LINE LEVEL INPUT ONLY (-10dBv)
XLR, 3PIN, FEMALE
PIN 3 N.C.
PIN 2
PIN 1
SHEILD
SHEILD
SHEILD
21
XLR, 3PIN, MALE
PIN 3
PIN 2
PIN 1
XLR, 3PIN, MALE
PIN 3
PIN 2
PIN 1
300 OHMS = -30dB,
100 OHMS = -40dB
RCA MALE
TIP
CASE
