- Page 2 Important Do not install this equipment in a confined space such as a book case or similar unit. The apparatus should not be dripped or splashed and no objects filled with liquids, such as vases, should not be placed on the apparatus. This unit should not be used near water (e.g.

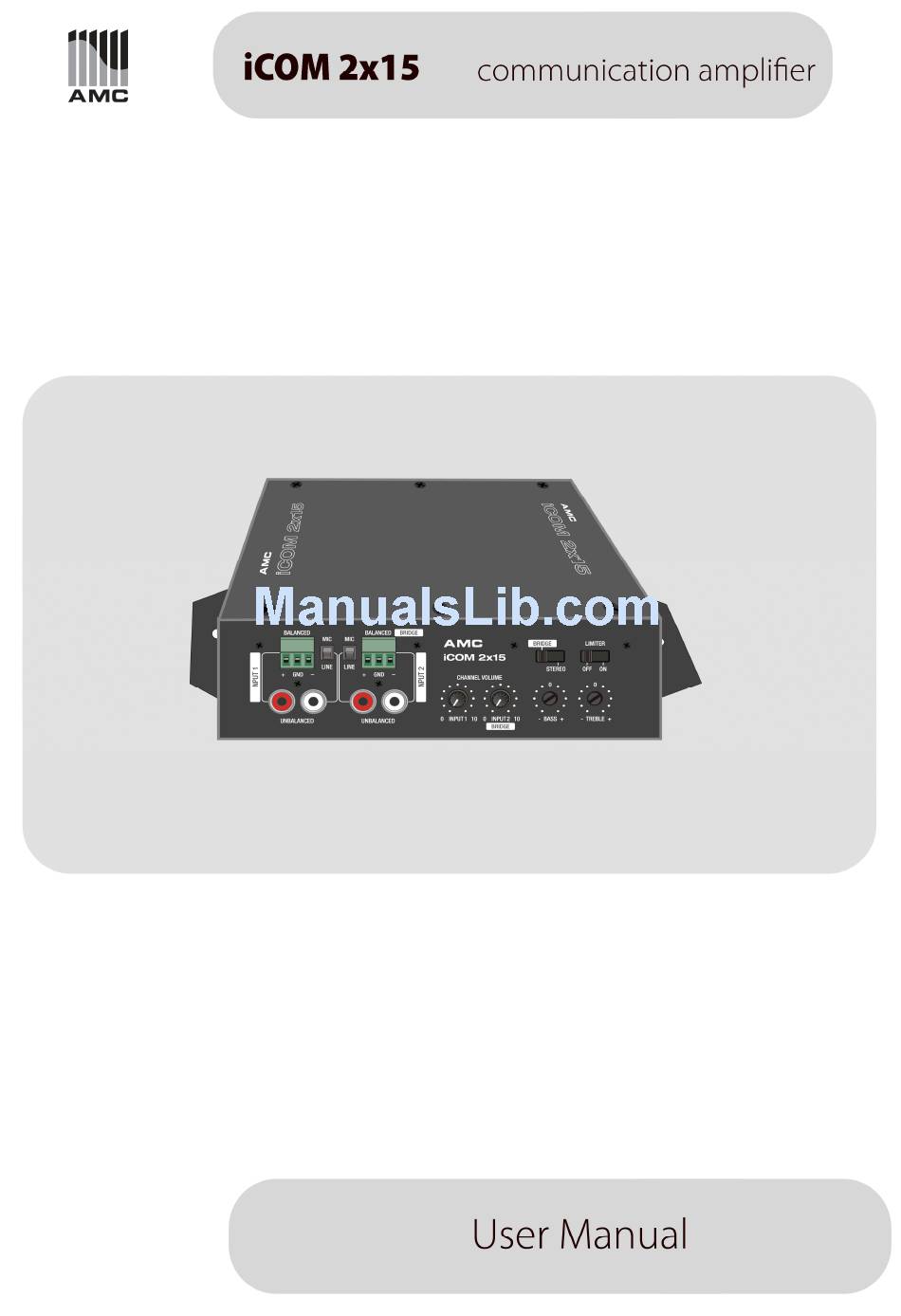

- Page 3 Thank you for purchasing the iCOM 2x15 communication amplifier. This unit is designed for powering speakers in small environments. CONTENTS: Before you start System components Introduction Important Features Controls and connections Front panel Rear panel Operation Limiter Installation Troubleshooting Specifications...
-
Page 4: System Components
System components All system includes: • iCOM 2X15 1pc. • Power supply 1pc. • Instruction manual 1pc. Introduction Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference. -
Page 5: Front Panel
Front Panel 1. Line level RCA and Line/Mic balanced Phoenix inputs. 2. Volume control. 3. Bridge/Stereo switch. Then bridge is selected audio signal must be connected into input 2 4. Limiter on/off switch. Rear Panel 1. Connector for power supply. DC 24V . 2. -
Page 6: Troubleshooting
Operation • Before the start please ensure that amplifier power is off. • Connect sources such as CD player, DVD player or microphone into amplifier’s inputs. • Select bridge or stereo function by bridge/stereo switch. • Connect the outputs from the unit to your speaker. The stereo and bridge outputs are labeled on the panel. -
Page 7: General Specifications
General specifications 1. Power supply DC 24V 2. Rated power 15W each channel 3. Line inputs gain 0 dB 10kΩ 4. MIC input gain -23 dB 600Ω 5. Frequency response 50Hz – 18kHz 6. THD less 1% at 1kHz 1/3 rated power 7. - Page 8 AMC is a registered trademark of AMC Baltic www.amcpro.lt...
