MTD 190-182 Operator's Manual

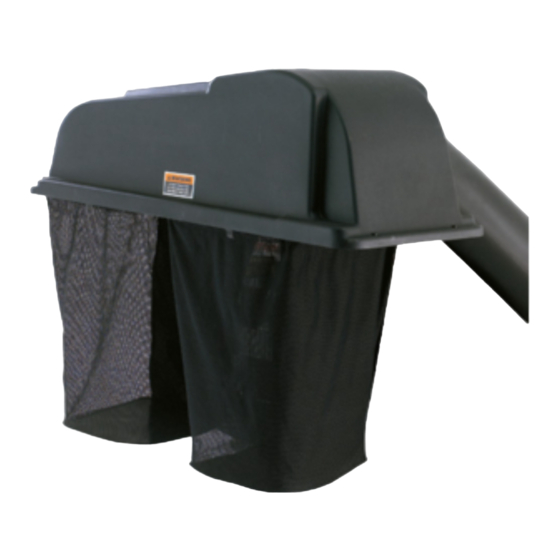

Twin rear bagger kit for lawn tractors & garden tractors with a 46” deck
Hide thumbs Also See for 190-182:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
To The Owner • Carton Contents • Assembly • Parts Lists • Warranty
OPERATOR'S MANUAL
Twin Rear Bagger Kit
For Lawn Tractors & Garden Tractors
with a 46" Deck
Model 190-182
IMPORTANT:
READ SAFETY RULES AND INSTRUCTIONS
CAREFULLY BEFORE OPERATING EQUIPMENT.
769-03137
MTD Products Ltd., P. O. Box 1386, KITCHENER, ONTARIO N2G 4J1
3/1/2007
PRINTED IN U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 190-182 and is the answer not in the manual?

Questions and answers

Related Manuals for MTD 190-182

Summary of Contents for MTD 190-182

  • Page 1 Twin Rear Bagger Kit For Lawn Tractors & Garden Tractors with a 46” Deck Model 190-182 IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATING EQUIPMENT. 769-03137 MTD Products Ltd., P. O. Box 1386, KITCHENER, ONTARIO N2G 4J1 3/1/2007 PRINTED IN U.S.A.

  • Page 2: Customer Support

    This Operator’s Manual is an important part of your new equipment. It will help you assemble, pre- pare and maintain the unit for best performance. Please read and understand what it says. Finding and Recording Model Number BEFORE YOU START ASSEMBLING YOUR NEW EQUIPMENT, please locate the model plate and copy the information from it in this Operator’s Manual for future reference.

  • Page 3: Rider Model Identification

    FastAttach Twin Bag ™ Model Plate Grass Collector The Model OEM-190-182 Twin Bag Grass Collector is a grass collection system designed for use on all MTD 46” cut FastAttach™ compatible lawn tractors (except 2001 Rider Model MTD/Yard-Man Revolution). Identification The instructions in this manual are divided into sections.

  • Page 4: Contents Of Carton

    One Discharge Chute Assembly One Mounting Bracket Carton Two Grass Bag Assemblies Three Blades Contents One Support Tube If you are missing any parts, please do not contact the retailer where you purchased this unit, call MTD directly at 1-800-668-1238 Figure 3...

  • Page 5: Contents Of Hardware Pack

    For all model series 650 through 699 tractors If you are missing any parts, please do not contact the retailer where you purchased this unit, call MTD directly at (LH) (RH) 1-800-668-1238. NOTE: Each item For older tractors only For decks with grass catcher pin...
  • Page 6 Attaching The Bracket Assembly Model Series 00 through 19 Model Series 800 through 819 Attaching IMPORTANT: Before assembly, place the tractor on a firm, level surface, disengage the PTO, stop the tractor Bracket engine and set the parking brake. Assembly 1.
  • Page 7 Assembling Support Brackets Model Series 0 through 99 IMPORTANT: Before assembly, place the tractor on a Attaching firm, level surface, disengage the PTO, stop the tractor engine and set the parking brake. Support 1. Remove the top four self-tapping screws from the rear of the lawn tractor.
  • Page 8 Attaching Bracket Assembly Model Series 0 through 99 1. Remove the two nuts and bolts on each side of the Attaching mounting bracket holding the hitch plate. 2. Rotate the hitch plate 180° from its original position. The Bracket Re-insert the four bolts through mounting bracket and hitch plate frame and secure with nuts removed Clevis Pin Assembly...
  • Page 9 Assembling Support Brackets Model Series 00 Support Self tap Bracket screws 1. Locate the four self-tapping screws supplied in your Attaching hardware pack (B from Fig. 2-2). Attach the right Outside of Bracket Inner Hole hand grass catcher support bracket (F1 from Fig. Support 2-2) using two of the supplied screws in position as shown in Fig.

  • Page 10: Grass Bag

    Attaching Grass Bags & Grass Bag Cover 1. Place the support tube in position on the rear of unit by sliding the support tube down through the holes in the left side of the bracket assembly. Use the inside Attaching hole on the bracket assembly regardless of what size deck your tractor is equipped with.

  • Page 11: Attaching The Blades

    Attaching The Blades Smaller Blade Part No. 742-0645 Remove the blades from your tractor’s cutting deck as follows: 1. Remove the cutting deck from beneath the tractor, (refer to Deck Removal in the MAINTENANCE sec- tion of your tractor’s operator’s manual for detailed Attaching instructions) then gently flip the deck over to expose The Blades...
  • Page 12 3. Raise the deck to its highest position. 4. Raise the chute deflector on the deck and hold it while you position the discharge chute over the chute opening. See Fig. 5-5. 5. Place the top rear edge of the discharge chute over the top rear edge of the chute opening.
  • Page 13 Part List: Rear Twin Bagger For parts and/or accessories please call 1-800-668-1238. 11 5 www.mtdcanada.ca...
  • Page 14 Boulon hex. 5/16-18 x 0,75 po de lg. Qual. 5 742-0644 Star Center Blade, 16.28" Lg. Lame, centre étoile 16,28 po de lg. (model 190-182) (modèle 190-182) 742-0645 Star Center Blade, 14.88" Lg. Lame, centre étoile 14,88 po de lg.

  • Page 15: Two Year Limited Warranty

    Damage resulting from the installation or use of any part, accessory or attachment not approved by MTD for use with the product(s) covered by this manual will void your warranty as to any resulting damage.
