MTD 190 Operator's Manual
  1. Manuals
  2. Brands
  3. MTD Manuals
  4. Lawn Mower Accessories
  5. 190
  6. Operator's manual

MTD 190 Operator's Manual

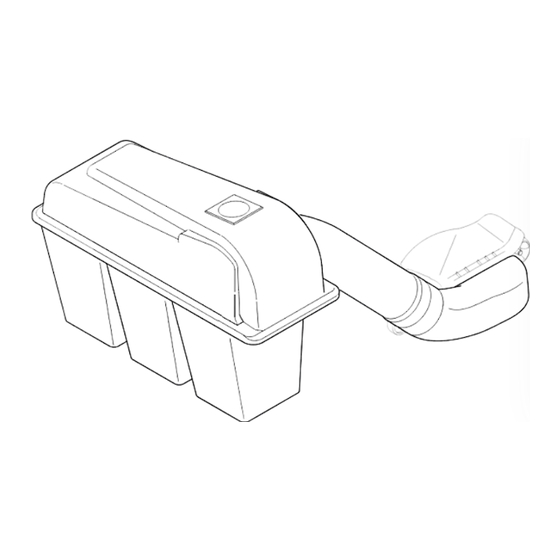

Triple rear bagger for fastattach garden tractors
Hide thumbs Also See for 190:

Advertisement

Quick Links

Download this manual
To The Owner • Carton Contents • Assembly • Parts Lists • Warranty
OPERATOR'S MANUAL
Triple Rear Bagger
For FastAttach
Garden Tractors
™
Models 190 & 192
(for 50-inch decks)
IMPORTANT
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
FORM NO. 769-01136E
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
03/26/2007
PRINTED IN U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 190 and is the answer not in the manual?

Questions and answers

Related Manuals for MTD 190

Summary of Contents for MTD 190

  • Page 1 OPERATOR’S MANUAL Triple Rear Bagger For FastAttach Garden Tractors ™ Models 190 & 192 (for 50-inch decks) IMPORTANT READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION FORM NO. 769-01136E MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 03/26/2007 PRINTED IN U.S.A.

  • Page 2: Customer Support

    Customer Support Department or your authorized dealer. You can locate it by looking on the front, left portion of the plastic grass catcher cover as seen below: Model Number Serial Number MTD LLC P. O. BOX 361131 CLEVELAND,OH 44136 330-220-4683 www.mtdproducts.com...

  • Page 3: Contents Of Carton

    190-190-100 & 190-192- operator’s position. Reference to the FRONT indicates 190 on a 50” deck. Carefully read all sections and study the grille end; to the REAR, the rear end of the tractor. Contents of...

  • Page 4: Mounting Bracket Assembly

    Assembly & Operation NOTE: References to left, right, front and rear of the tractor are from the operator’s position, unless otherwise stated. • Before assembly, place the tractor on a firm, level Assembly surface, disengage the PTO, stop the tractor engine and set the parking brake.

  • Page 5: Assembly And Operation

    Attaching Blades WARNING: Always protect your hands while servicing blades by wearing heavy work gloves or using heavy rags. NOTE: Three 2-in-1 (Discharge/Bag) blades, with a star Assembly mounting hole, are included in the grass catcher kit. These will replace the 3-in-1 (Discharge/Bag/Mulch) blades already installed on the deck of the tractor.
  • Page 6 Attaching Chute Stop Bracket • Remove the carriage bolt and lock nut holding the chute stop to the deck. See Inset A of Fig. 2-8. Save the hardware. • Replace with new chute stop bracket, from the bag- ger kit, at the same position on the deck. See Inset Assembly B of Fig.
  • Page 7 Your triple bagger kit is a valuable accessory to your tractor. Optimize its performance by operating it correctly. NOTE: Model 190 Triple Bagger Kit is designed for use on Fast Attach™ compatible tractors equipped with 50- inch cutting decks only. This will NOT mount, nor operate safely or properly on any other tractor regardless of the tractor’s compatibility with similar accessories.
  • Page 8 †...
  • Page 9 Grass Catcher Bag 736-3092 Flat Washer .265 x 1.0 x .030 777D03361 Cub Cadet Logo (if equipped) 738-0380 Shoulder Screw, .50 x .27, 3/8-16 726-3040 Push Cap (if equipped) 742-04056C Blade, 17.90Lg. Star Mnt, Bag. † Equipped with Model 190-190-100 & OCC-190-192.
  • Page 10 NOTES Use this page to make notes and write down important information.
  • Page 11 NOTES Use this page to make notes and write down important information.
  • Page 12 MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019...

This manual is also suitable for:

192
