MTD 190-182 Operator's Manual

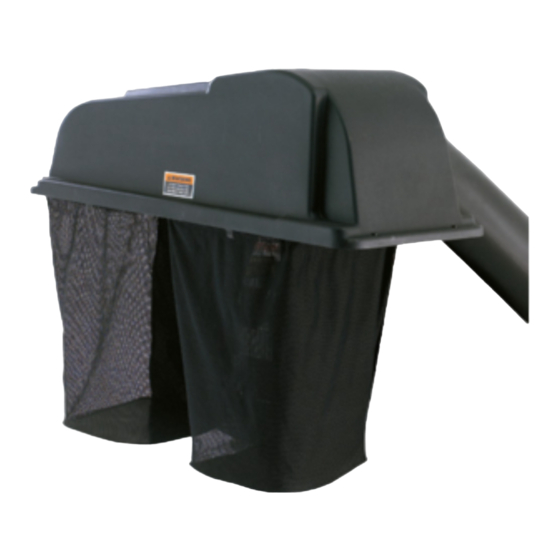

Twin rear bagger kit for lawn tractors & garden tractors with a 46” deck
Hide thumbs Also See for 190-182:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
To The Owner • Carton Contents • Assembly • Parts Lists • Warranty
OPERATOR'S MANUAL
Twin Rear Bagger Kit
For Lawn Tractors & Garden Tractors
with a 46" Deck
Model 190-182
IMPORTANT
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
FORM NO. 769-02303A
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
12/15/2006
PRINTED IN U.S.A.
