u 10-KEYPAD (Depending on version)
The keypad allows you to enter digits to:
• Select memory channels
• Select tone channels
• Select DTMF codes (during transmit)
• Set TX codes
• Set SmarTrunk II™/SmarTrunk 3G™ codes
• Set BIIS status number
• Input text message for SDM operation
• Start up with the passcode
i UP/DOWN KEYS
➥ Push to select an operating channel.
➥ Push to select a TX code channel after pushing
[TX CODE CH SELECT].
➥ Push to select a DTMF channel after pushing [DTMF].
➥ Push to select a scan group after pushing and holding
[SCAN].
➥ Push to select a BIIS code, status number or SDM after
pushing [DIGITAL].
*Desired functions can be programmed independently by your
dealer. (p. 7)
o PTT SWITCH [PTT]
➥ Push and hold to transmit; release to receive.
➥ Push to transmit the call during MSK operation, depend-
ing on the setting.
PANEL DESCRIPTION

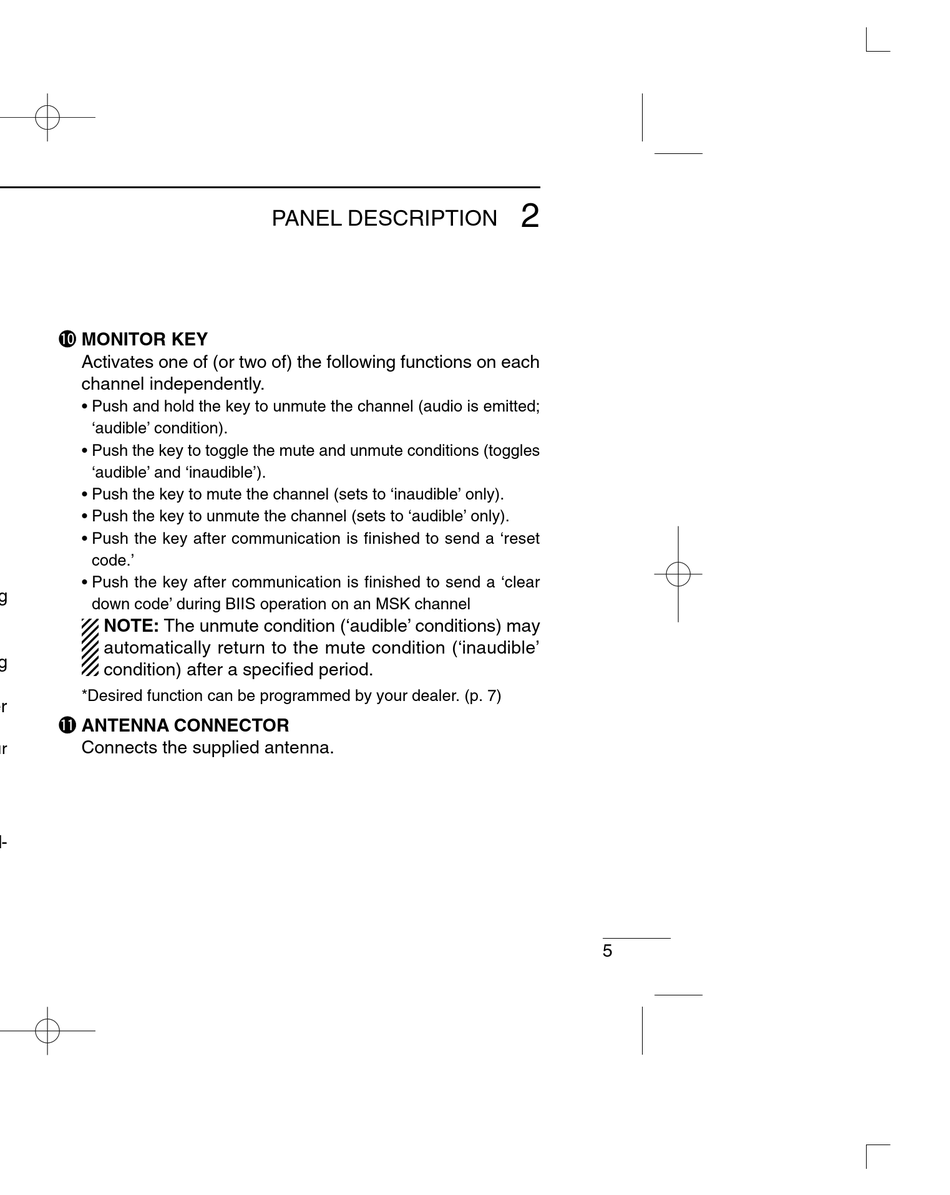

!0 MONITOR KEY
Activates one of (or two of) the following functions on each
channel independently.
• Push and hold the key to unmute the channel (audio is emitted;
'audible' condition).
• Push the key to toggle the mute and unmute conditions (toggles
'audible' and 'inaudible').
• Push the key to mute the channel (sets to 'inaudible' only).
• Push the key to unmute the channel (sets to 'audible' only).
• Push the key after communication is finished to send a 'reset
code.'
• Push the key after communication is finished to send a 'clear
down code' during BIIS operation on an MSK channel
NOTE: The unmute condition ('audible' conditions) may
automatically return to the mute condition ('inaudible'
condition) after a specified period.
*Desired function can be programmed by your dealer. (p. 7)
!1 ANTENNA CONNECTOR
Connects the supplied antenna.
