Icom iF44GT/GS Instruction Manual page 38

7
BATTERY CHARGING
ï Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs. The following are additionally required.
• AD-106 charger adapter
• An AC adapter (may be supplied with BC-119N depending
on version) or the DC power cable (OPC-515L/CP-17L).
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L (for 13.8 V
power source) or CP-17L (for 12
V cigarette lighter socket) can be
used instead of the AC adapter.
34
IC-F44GT/GS
BP-231
AD-106 charger
adapter is installed
in BC-119N.

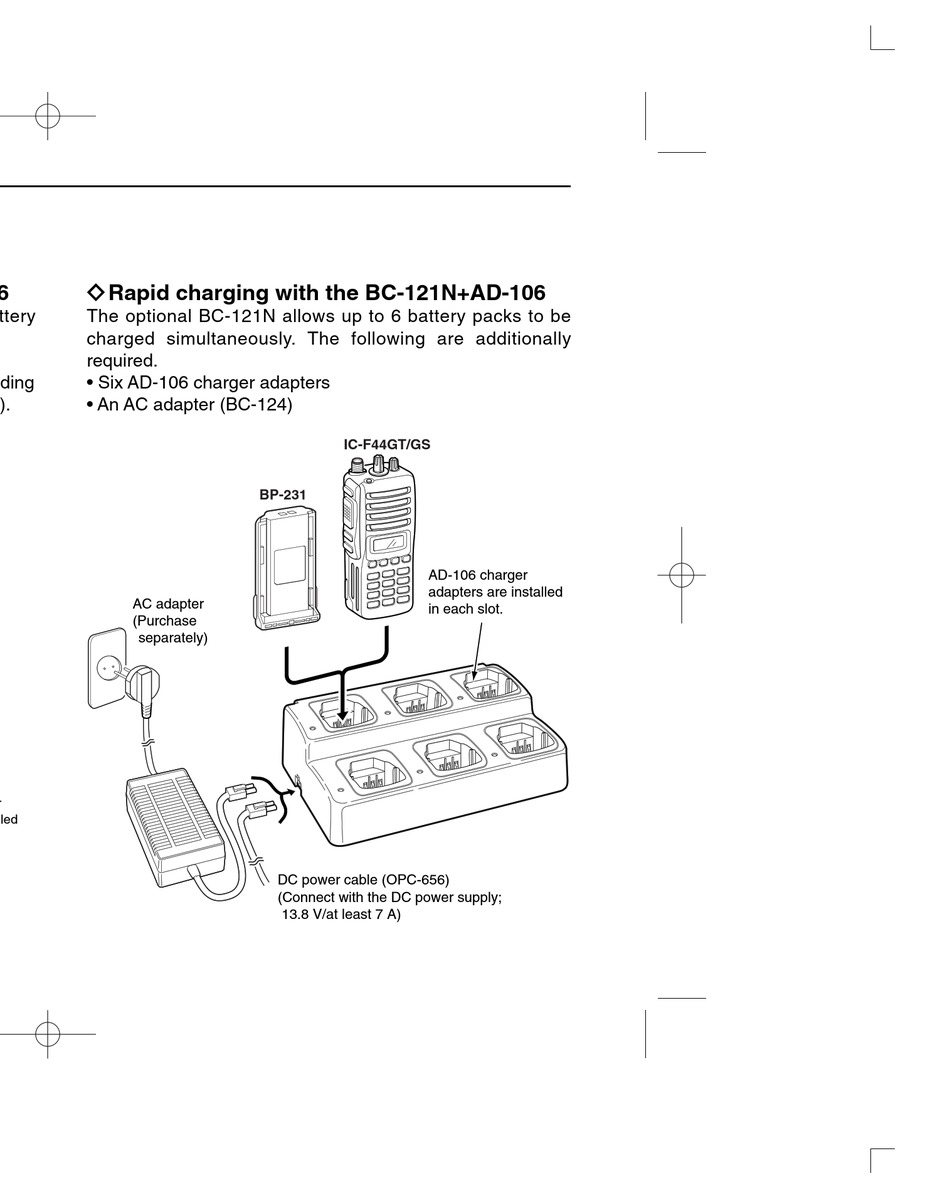

ï Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following are additionally
required.
• Six AD-106 charger adapters
• An AC adapter (BC-124)
BP-231
AC adapter
(Purchase
separately)
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
IC-F44GT/GS
AD-106 charger
adapters are installed
in each slot.
