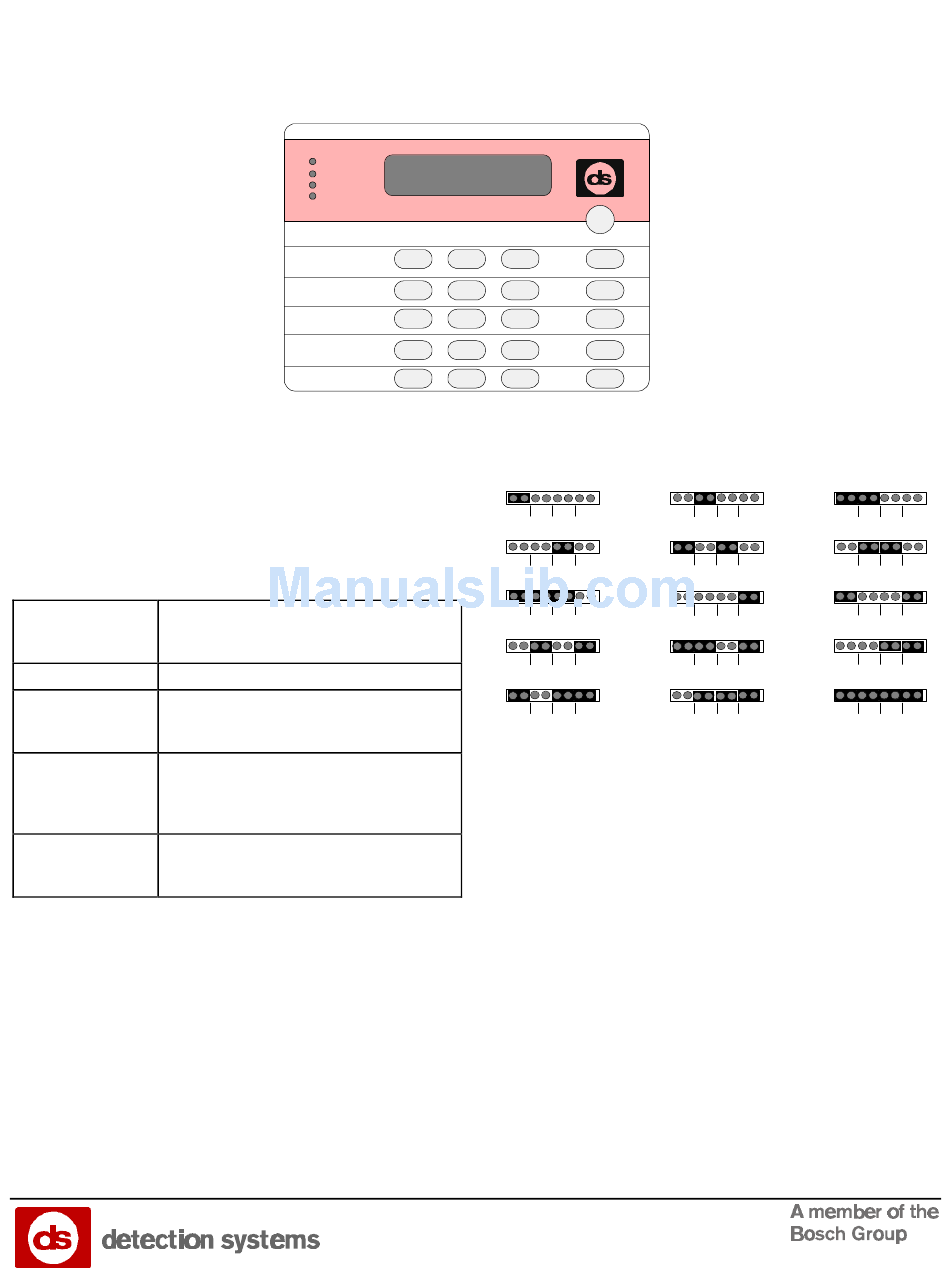

Detection Systems DS9447 Installation Instructions

General Information
The DS9447 is a 4-wire Alpha-Numeric LCD keypad. It may
be surface mounted, mounted to standard single or double
gang boxes, or to 4 inch square boxes.
The following is a chart of general wiring guidelines:
Wire Gage
Wire Type
Max number of
keypads allowed
per system
Max distance
allowed between
the control and
the keypad
Max distance of
keypad wiring
per system
Keypad Addresses
Important: Each keypad must have its address set with its
address pins. The keypads must also be
programmed at the control panel.
• Select the keypad address (1-15).
Place the shorting jumpers over the address pins as
shown at the top of the next column.
Remember: Each keypad must have its own address, and
each address can only support one device.
Installation Instructions
DS9447 Control Station / Keypad
Alarm
Silenced
Power
Trouble
22 AWG (0.8 mm) minimum.
18 AWG (1 mm) is required for
NEC-NFPA-72.
non-shielded, 4-wire
4
1,000 feet (304.8 m)
4,000 feet (1219.2 m)
for the
1 2 3
4 5 6
7 8 9
* #
0
Command
Program
Clear
DS9447
address 1
1 2 4
address 4
1 2 4
address 7
1 2 4
address 10
1 2 4
address 13
1 2 4
Mounting
The keypad should be mounted no higher than shoulder
height of the shortest person using the system.
• Remove the keypad's cover.
Insert a small flat-head screwdriver in each slot at the
bottom of the base. Press up, and pull the cover off.
• Surface Mounting:
Use the base as a template and mark the location of the
mounting holes (use any holes).
Provide an opening in the mounting surface for the wiring.
Pre-start the mounting screws.
Do not secure the base at this point.
• Electrical Box Mounting:
See the diagram on page 2 to select the mounting holes.
Do not secure the base at this point.
Silence
Reset
Drill
Disable
Test
History
address 2
8 1 2 4 8
address 5
8 1 2 4 8
address 8
8 1 2 4 8
address 11
8 1 2 4 8
address 14
8 1 2 4 8
address 3
1 2 4 8
address 6
1 2 4 8
address 9
1 2 4 8
address 12
1 2 4 8
address 15
1 2 4 8
