Marantz SR-12S1 Service Manual

Marantz SR-12S1 Service Manual

Av surround receiver
Hide thumbs Also See for SR-12S1:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Service
Manual
SECTION
1. TECHNICAL SPECIFICATIONS AND SERVICE TOOL ........................................ 1
2. TECHNICAL DESCRIPTION ................................................................................. 4
3. WIRING DIAGRAM................................................................................................ 7
4. BLOCK DIAGRAM................................................................................................. 9
5. SCHEMATIC DIAGRAM ...................................................................................... 11
6. PARTS LOCATION .............................................................................................. 33
7. IC DATA................................................................................................................ 53
8. EXPLODED VIEW AND PARTS LIST ................................................................. 63
9. SERVICE PROGRAM.......................................................................................... 67
10. UPDATE FIRMWARE .......................................................................................... 69
11. POWER AMPLIFIER ADJUSTMENT .................................................................. 71
12. SYSTEM ERROR ................................................................................................ 73
13. TROUBLE SHOOTING ........................................................................................ 75
14. ELECTRICAL PARTS LIST ................................................................................. 77
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
SURROUND
AV SURROUND RECEIVER SR-12S1
DISP
CINEMA
ST
PRO LOGIC
MOVIE
MUSIC
AUTO
TUNED
DIRECT
AUTO SURR
THX SURR EX
TEST
COPY
NIGHT
MULTI
SLEEP
M-SPKR
DOWN
TUNER
F/P
STAMDBY
POEWER ON/OFF
LD
DVD
DSS
TV
VCR1
VCR2/DVD-R
PHONES
AUX1
AUX2
7.1CH INPUT
ATT
S-DIRECT
MEMO
CLEAR

TABLE OF CONTENTS

SR-12S1
AV Surround Receiver
VOLUME
MUSIC
ANALOG
OTHER PCM
L
C
R
PRO LOGIC
ATT
LFE
DIGITAL
DIGITAL
SURROUND
96kHz
SL
S
SR
DISC 6.1
MTX 6.1
PEAK
SLEEP
DOWN
GYRO TUNING
UP
AUTO TUNE
T-MODE
CD
TAPE
CD-R/MD
AUX1 INPUT
DIGITAL
S-VIDEO
VIDEO
L
AUDIO
R
MULTI SPKR
MULTI ROOM
SR-12S1 /
N1G/N1S
UP
PAGE
Part no. 05AJ855010
First Issue 2003.08
ecm

Advertisement

Table of Contents
loading

Related Manuals for Marantz SR-12S1

Summary of Contents for Marantz SR-12S1

  • Page 1: Table Of Contents

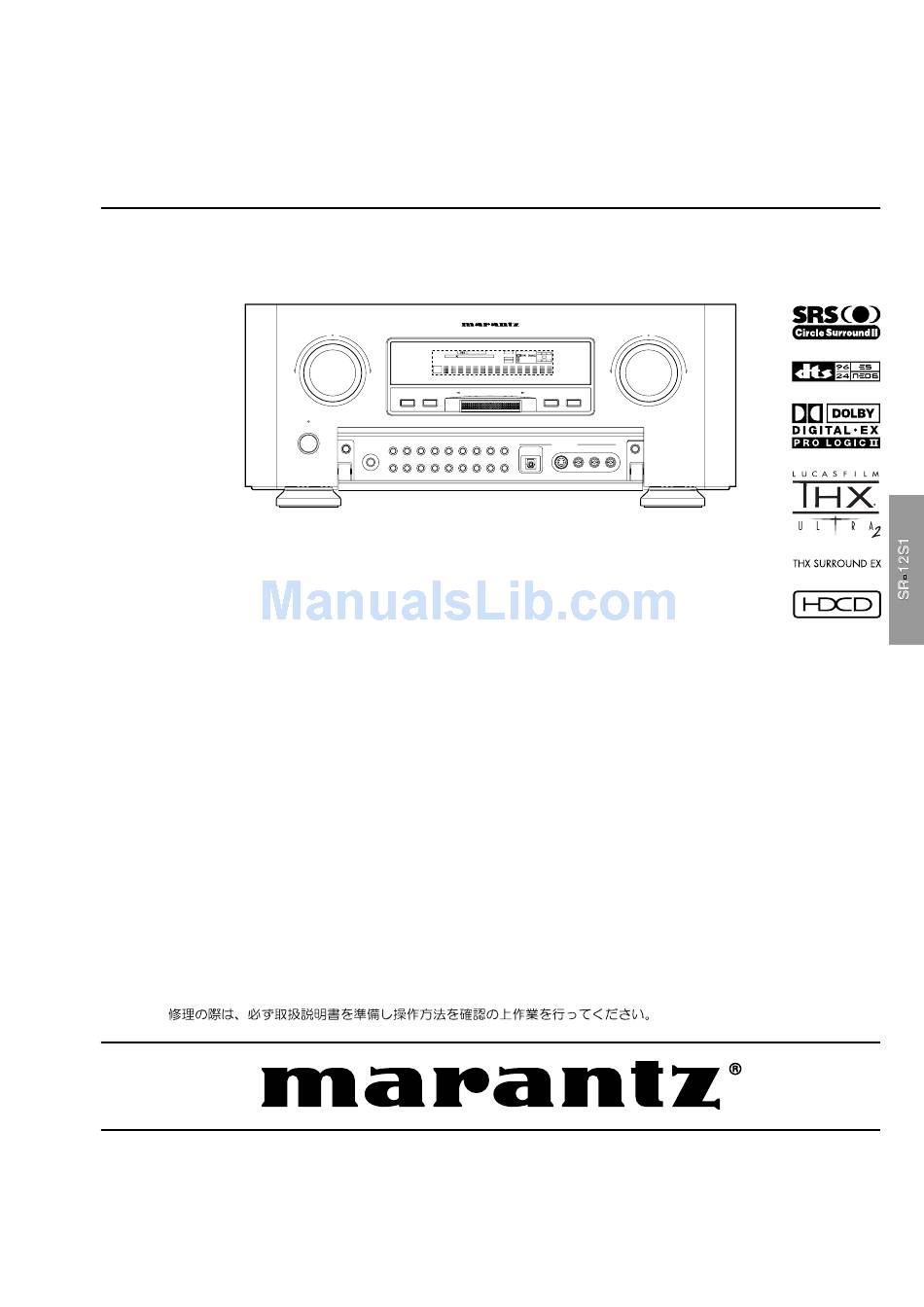

    Service SR-12S1 / N1G/N1S Manual AV Surround Receiver SURROUND AV SURROUND RECEIVER SR-12S1 VOLUME DISP CINEMA MUSIC ANALOG OTHER PCM PRO LOGIC MOVIE MUSIC PRO LOGIC DIGITAL DIGITAL AUTO SURROUND 96kHz TUNED DIRECT AUTO SURR THX SURR EX DISC 6.1 MTX 6.1...
