Broadconnect T7100 Quick Reference Manual

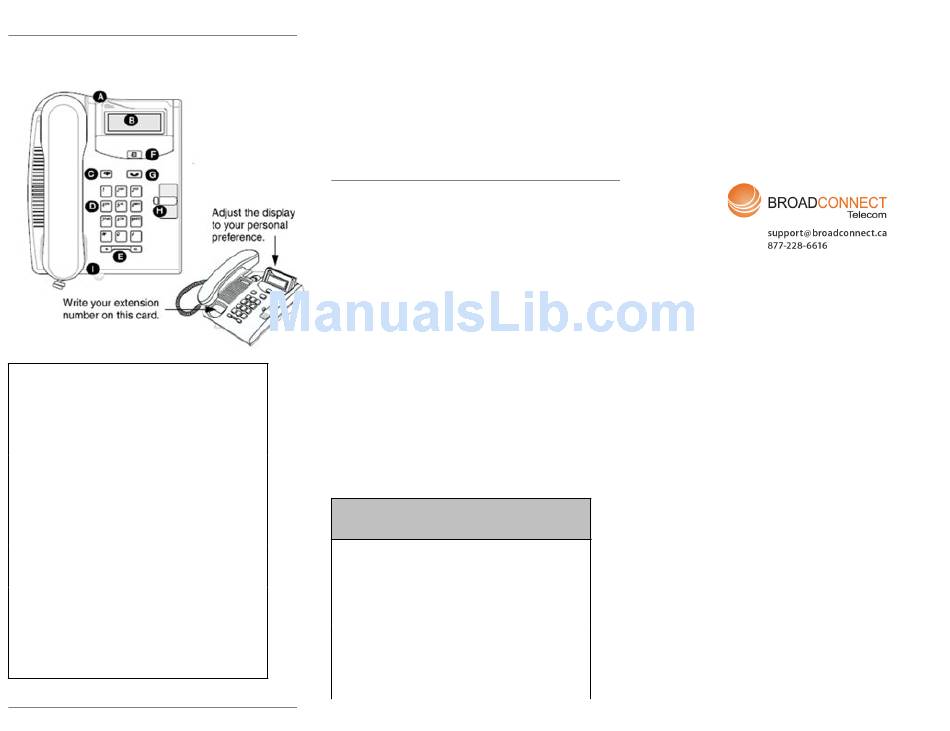

T7100 Digital Deskphone layout
This section describes the location and function of the buttons and
other features on the face of the T7100 Digital Deskphone.
T7100 layout
A Telephone light Flashes for incoming
calls. Lights up when
Message Waiting
Indication (MWI) is
supported by system
software. Contact your
system administrator for
more information.
B Adjustable display Shows time and date,
call, and feature
information.
C Release button Ends an active call or
feature.
D Dial pad Used to dial out and
access features.
E Volume control Adjusts ringer and
handset volume.
F Feature button Starts or ends a feature.
G Hold button Places an active call on
hold.
H Memory button Used to store frequently
used telephone numbers
to the phone memory.
I Feature card plate Storage compartment for
your feature card.

Telephone Setup

Use the following tasks to set up the T7100 Digital Deskphone.
Adjusting the contrast level
Use the following task to adjust the contrast level of the LCD display.
1. Press Feature * 7.
2. Use the number keys to select the contrast level. The higher the
number, the higher the contrast level.
Changing the ring type
Use the following task to change the ring type on the telephone.
1. Press Feature * 6.
2. Press 1 through 4 to select the ring type. A preview tone is
played.
3. Press Feature to store the ring type.
Programming the memory button
The memory button stores an autodial number or feature code to
give you one touch dialing or feature activation. You can program
the memory button with a new number or feature. After you have
programmed the memory button, you can use one of the included
memory button label strips to label the memory button.
Note:
You can use the Desktop Assistant application to customize button
label strips for your telephone. Go to support.avaya.com to
download the Desktop Assistant application.
Programming an external autodial number
You can program an external autodial number to the memory button.
1. Press Feature * 1.
2. Dial the external number you want to save to the memory button.
3. Press Hold to store the number to the telephone memory.
4. Label the memory button with a button label strip.
Programming an internal autodial number
You can program an internal autodial number to the memory button.
1. Press Feature * 2.
2. Dial the extension you want to save to the memory button. If a
valid extension is entered, it is saved to the memory button
automatically.
3. Label the memory button with a button label strip.
Programming a feature code — method 1
You can program a feature code to the memory button.
Feature IP Office IP Office Quick Version/
Standard PARTNER Version/Norstar
Version Version
Personal Feature 0, #80 to #99 (also Feature *4,
Speed Dial *00 to *99 80 to 99).
System Feature 0, Feature 0, 600 to 699
Speed Dial 001 to 999
Ring Again Feature 2 / AutCB works on phones with
(Set/Clear) Feature #2 soft keys.
Conference Feature 3 Feature 3
Forward All Feature 4 / Feature 4 / Feature #4
On/Off Feature #4
Last Number Feature 5 Feature 5
Redial
