KENMORE iNductiON cOOKtOP iNStALLAtiON iNStRuctiONS
Overhead Cabinet Should Not Exceed a
Maximum Depth of 13" (33 cm)
30" (76.2 cm) Min. Clearance
Between the Top of the Cooking
Platform and the Bottom of an
Unprotected Wood or Metal Cabinet
24" (61 cm) Min. when Bottom of
Wood or Metal Cabinet is Protected
by Not Less Than 1/8" (0.3 cm) Flame
Retardant Millboard Covered With
Not Less Than No. 28 MGS Sheet
Steel, 0.015" (0.4 mm) Stainless
Steel, 0.024" (0.6 mm) Aluminum or
0.020" (0.5 mm) Copper.
* Letters on this figure refer to chart
on front page except for J and K.
CAUTION
To eliminate the risk of burns or
fire by reaching over heated surfaces, cabinet
storage space located above the cooktop
should be avoided. If cabinet storage is
provided, risk can be reduced by installing a
range hood that projects horizontally a
minimum of 5" (12.7 cm) beyond the bottom
of the cabinets.
K
Min. Recommended
Distance Between Rear
Edge of Cutout and
Nearest Combustible
Surface Above
Countertop
G
18"
(45.7 cm)
H
24"
(61 cm)
2 1/2" (6.4 cm) Min.
From Edge of Cutout to
Front Edge of Countertop
MOdEL

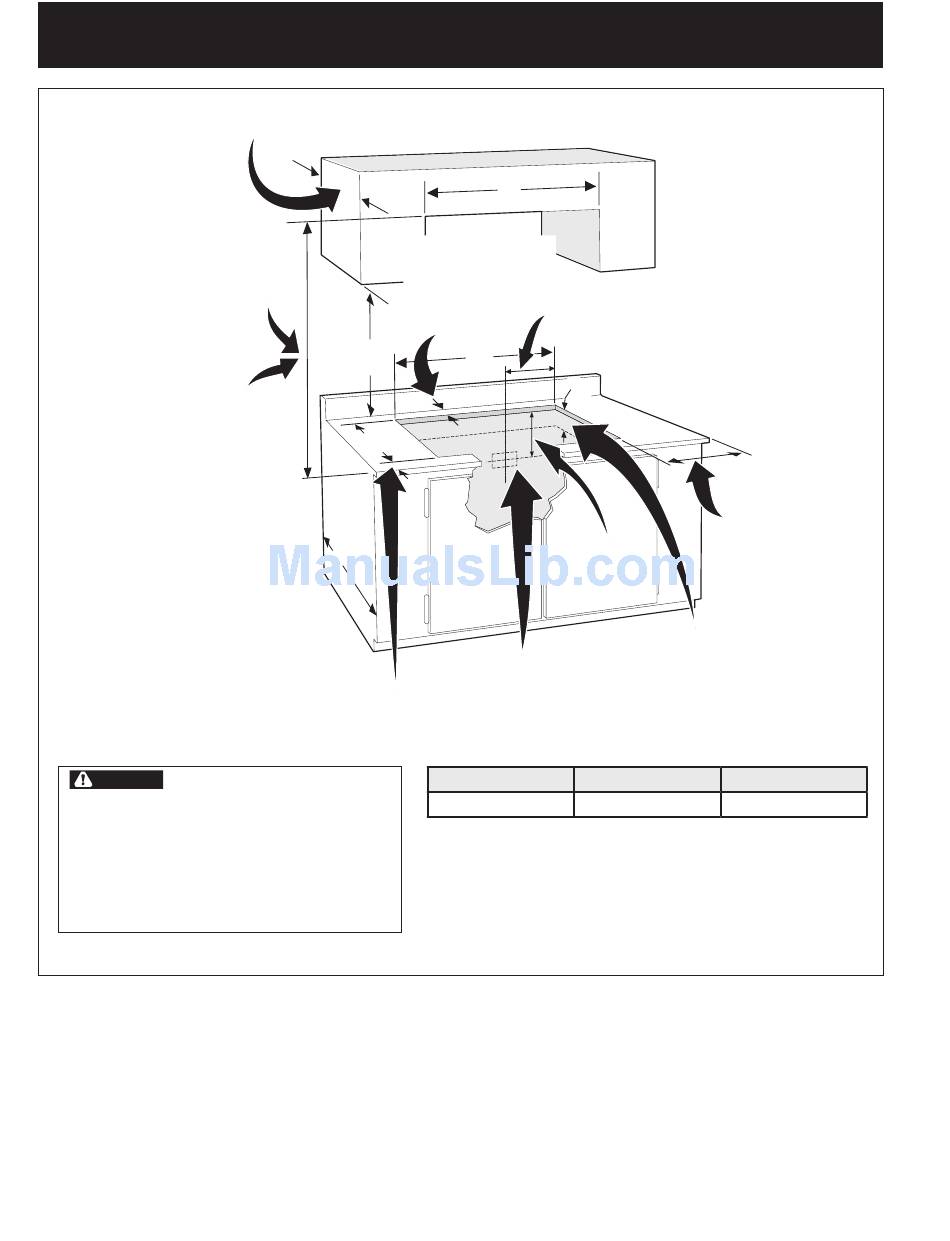

Figure 2 – cOuNtERtOP cutOut OPENiNG
2
A
Min.
10"
( 25.4 cm)
I
12"
(30.5 cm)
Approximate Location
of Junction Box
J
30" 7½ (19.1 cm)
J
Min. From Edge of
Cooktop to Nearest
Combustible Wall
(Either Side of Unit).
It is not recommended to use
drawer underneath cooktop.
Empty space is needed for
installation purpose.
K
1½" (3.8 cm)
