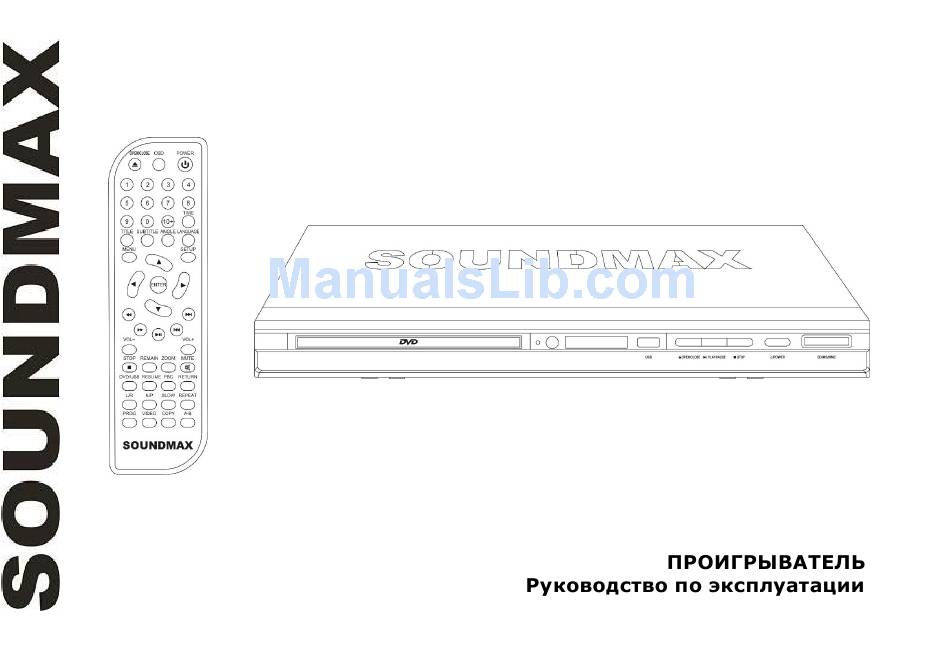

- Page 1 SM-DVD5115 DVD PLAYER DVD- Instruction manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Contents Contents Before you start Control elements Connection Button functions... -
Page 3: Before You Start
Before you start Utilization of the product If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Please contact your local authorities for the correct method of disposal. - Page 4 Don’t try to manually open or close the disc tray to load discs. Disconnect the receiver only when there is no disc therein. If you are not going to use the device for a long time disconnect it from the wall outlet. Before turning the device on, please make sure that you have connected it properly;...
- Page 5 Supported formats Disc types Symbol Contents Audio + Video Audio Video-CD (VCD) Audio + Video SVCD Audio + Video HDCD Audio JPEG Digital Photo CDDA Audio Kodak Picture CD Digital Photo MPEG4 Audio + Video...
-
Page 6: Control Elements
Control elements Front panel 1. Disc tray 2. IR sensor 3. Display 4. USB-port 5. OPEN/CLOSE button 6. PLAY/PAUSE button 7. STOP button 8. POWER button 9. SD/MMC card slot Not indicated: Mic inputs x 2 (right panel) Rear panel 1. - Page 7 Remote control (RC) OPEN/CLOSE button OSD button Number buttons SUBTITLE button TITLE button MENU button LEFT cursor button DOWN cursor button REWIND button 10. FORWARD button 11. VOL- button 12. REMAIN button 13. STOP button 14. DVD/USB button 15. RESUME button 16.
-
Page 8: Battery Installation
Battery installation 1. Remove the battery compartment cover on the back of the RC. 2. Insert the batteries into the battery compartment making sure that the correct polarity is observed. 3. Install the cover back. Use two AAA/1.5V batteries for the RC. The RC should be pointed at remote sensor within 8 meters and within 30 degrees at the left or the right side. -
Page 9: Connection
Connection Note: Before you start connection of external devices, ensure that power of the unit is switched off. Following outputs are available in this unit: Composite video Use the cable with yellow plug of an AV cable to connect the composite video output of this unit to the video input of a TV/monitor. -
Page 10: Button Functions
Button functions OPEN/CLOSE Press OPEN/CLOSE button when power is on, the disc tray is pushed out. Put the disc on the tray with the title faced up. Press OPEN/CLOSE button again to close the disc tray and the unit starts playing automatically. POWER When playing, press POWER button to turn off the unit, and standby mode will be activated;... - Page 11 ENTER Press ENTER button for confirmation of chosen options. STOP When playing DVD, SVCD, VCD, CD disc, press STOP once, the unit will memorize the previous ending point. Press PLAY/PAUSE button to go on the playing. Press STOP for the second time to stop the playing and end memory. FORWARD Press this button for quick forward search.
- Page 12 Press number buttons to input the number of the track, title or chapter. If programmed tracks are over ten, select item and press ENTER button to go on programming. Maximum 20 programmable items are possible. Use cursor buttons to move the cursor to START item. Press ENTER button to start program playback. Press PROG button to cancel programming.
- Page 13 DVD/USB Press this button to access media menu in which you can select Disc or USB playback with cursor buttons. REMAIN Press OSD button to display various info on the current playback: title/chapter time elapsed, etc. RETURN Press this button to return to disc menu while playback. Press again to resume playback. VIDEO Press VIDEO button to select the video output mode.
-
Page 14: System Setup
System setup Press SETUP button to enter the setup menu. In setup mode, press SETUP button again to quit the setup page. Use LEFT/RIGHT cursor buttons to choose a setup page: General setup page, Audio setup page, Dolby Digital setup, Video setup page, Preference page. - Page 15 Audio setup Speaker Setup DOWNMIX LT/RT: The audio out is Left and Right channels format even if the original sound is 5.1CH format. STEREO: The audio out format is stereo even if the original sound is 5.1CH. 5.1CH: Turn off downmix function. If playing 5.1CH discs or the unit is connected with 5.1 channel amplifier, this item should be selected.
- Page 16 Video setup Component: S-Video, YCbCr, YPbPr Sharpness, Brightness, Contrast You can set the sharpness, brightness and contrast according to your preference. Preference (available when playback is on full stop) TV Type This unit is suitable for all kinds of TV systems. You can select one of the PAL, NTSC or AUTO.
-
Page 17: Operations With Various Formats
Operations with various formats USB/MMC/SD operation Insert a USB-drive into the USB slot of this unit; insert an SD or MMC memory card to the memory card slot of this unit. The unit will start to read files contained in it at once. The screen will show the file menu, you can select and play files using cursor buttons and ENTER button. - Page 18 After ripping is started, a menu will appear showing the progress of the procedure. File ripping is performed in real time, so you can listen to files currently under ripping. Notes: While converting the files no buttons are functional except OPEN/CLOSE button and VOL+/VOL- buttons.
- Page 19 Copying data Play data disc or USB/SD/MMC containing MP3/JPG/DivX files. Press COPY button on RC, the COPY menu will appear with option of ALL SELECT/ALL UNSEL/COPY/EXIT. Move the cursor to the target file or folder, press ENTER button to tick it, or select ALL SELECT item to select all the data. Move the cursor to COPY item, then press ENTER button to display the destination (USB or Memory card).
-
Page 20: General Information
General information Handling compact discs Do not insert anything other than a CD into the disc tray. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause damage to the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use. -
Page 21: Troubleshooting Guide
Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution... -
Page 22: Specification
Specification Appearance Dimensions 360x224x38 mm Compatibility Storage support: DVD/DVD±R/DVD±RW, CD/CD-R/CD-RW, USB, SD/MMC/MS Supported formats: DVD-video/DVD-audio /SVCD/VCD/HDCD/CDDA/MP3/Kodak Picture/JPEG/MPEG4 (DivX/XviD) Audio Built-in Dolby Digital decoder Built-in Dolby Prologic II decoder DTS digital out (coaxial) Video Support of subtitle for MPEG4 Progressive scan Support NTSC/PAL Connectors Composite video... - Page 26 Video-CD (VCD) SVCD HDCD JPEG CDDA Kodak Picture CD MPEG4...
- Page 27 4. USB- OPEN/CLOSE PLAY/PAUSE STOP POWER SD/MMC – 2. 5.1- 8. S-Video...
- Page 28 OPEN/CLOSE SUBTITLE TITLE MENU REWIND FORWARD VOL- REMAIN STOP DVD/USB RESUME PROG VIDEO POWER TIME ANGLE LANGUAGE SETUP ENTER NEXT RETURN PREVIOUS PLAY/PAUSE REPEAT VOL+ SLOW ZOOM MUTE COPY...
- Page 29 AAA/1.5V...
- Page 30 S-video S-video- S-video- 5.1- 5.1- 5.1- –...
- Page 31 OPEN/CLOSE OPEN/CLOSE, OPEN/CLOSE POWER POWER, POWER TITLE TITLE SUBTITLE DVD- SUBTITLE USB- SUBTITLE Ripping. ANGLE ANGLE Super-VCD (SVCD), VCD, CD MENU ( MENU PLAY/PAUSE PLAY/PAUSE...
- Page 32 ENTER ENTER STOP DVD, SVCD, VCD, CD STOP PLAY/PAUSE STOP FORWARD : 2X => 4X => 8X => 16X => 32X => REWIND : 2X => 4X => 8X => 16X => 32X => PREVIOUS/NEXT PREVIOUS SVCD, VCD, CD PREVIOUS NEXT SVCD, VCD, CD NEXT...
- Page 33 PAL/ /NTSC. PROG PROG ENTER ENTER PROG. REPEAT REPEAT REPEAT; => => => SVCD, VCD, CD => => => => => ( ). LANGUAGE ZOOM DVD, SVCD, VCD ZOOM MUTE MUTE; MUTE...
- Page 34 TIME TIME. ENTER, COPY MP3 disc USB- VIDEO VIDEO DVD/USB USB- REMAIN RETURN PBC (Playback Control – VCD-...
- Page 35 SETUP, SETUP. Dolby Digital, ENTER, 4:3/PS: 4:3/LB: 16:9: Angle mark ( SUBTITLE...
- Page 36 « » STANDBY POWER 5.1- SPDIF SPDIF OFF: SPDIF/RAW: SPDIF/PCM: Dolby digital...
- Page 37 Dolby Digital Dolby – – – – : S-Video, YCbCr, YPbPr – PAL, NTSC PAL: Auto: NTSC:...
- Page 38 AUDIO SUBTITLE. – 0000. 0000.
- Page 39 USB/ SD/MMC USB- USB- USB- USB- DVD/USB USB- USB- USB- – VCD, MIC, Ripping RIPPING, (CD) RIPPING CDDA ( USB- ID3- CD text, ID3- » « ». RIPPING RIPPING SUBTITLE...
- Page 40 USB- ENTER. « » (bit rate). « » ENTER (« ») (« »). «Start» ENTER. OPEN/CLOSE VOL+/VOL-. USB- RIPPING. USB- MP3/JPEG/ MP3 - MP3- JPEG (Joint Photographic Expert Group) - 15-20 DivX...
- Page 41 , USB- ENTER, ENTER JPEG STOP, , USB- SD/MMC, MP3/JPG/DivX. COPY ALL SELECT ( )/ALL UNSEL ( )/COPY ( ENTER, ALL SELECT, COPY, ENTER, (USB SD/MMC). ENTER USB/CD/MMC USB- COPY ALL SELECT ( )/ALL UNSEL )/COPY ( )/DEL ( ENTER, ENTER...
- Page 44 AAA 1.5V...
- Page 45 360x224x38 : DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC/MS : DVD-video/DVD- audio/SVCD/VCD/HDCD/CDDA/MP3/Kodak Picture/JPEG/MPEG4 (DivX/XviD) Dolby Digital Dolby Prologic II DTS ( MPEG4 NTSC/PAL S-video 5.1- USB- “ ” ~110-240 , 50/60 USB- 2.0/4...
