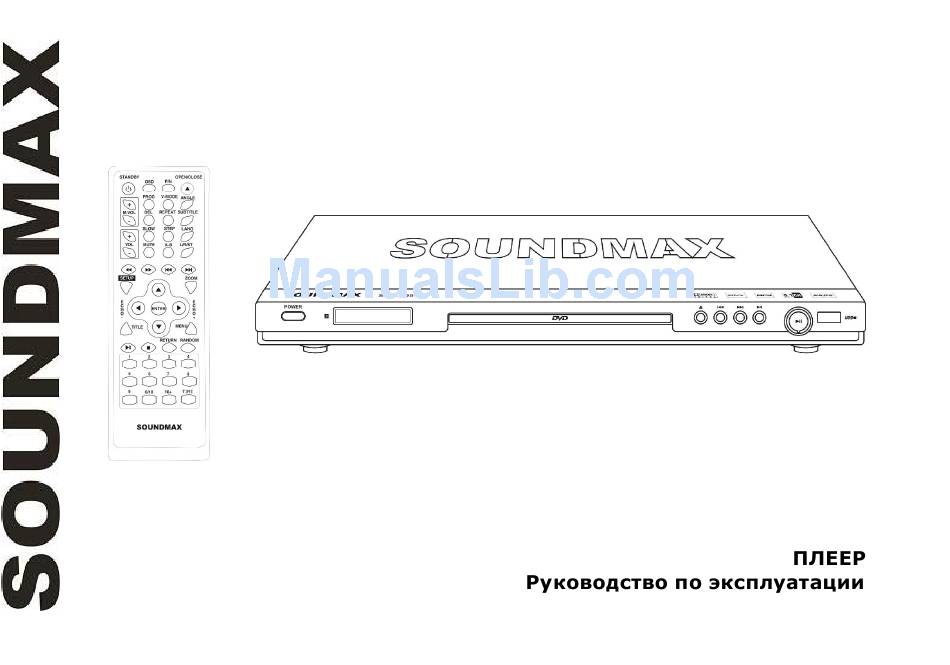

SoundMax SM-DVD5112 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SM-DVD5112
DVD PLAYER
DVD
Instruction manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-DVD5112 and is the answer not in the manual?

Questions and answers

Related Manuals for SoundMax SM-DVD5112

Summary of Contents for SoundMax SM-DVD5112

  • Page 1 SM-DVD5112 DVD PLAYER Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Contents Contents Before you start Control elements Connection Button functions...

  • Page 3: Before You Start

    Before you start Utilization of the product If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.
  • Page 4 When the device is moved from cold premises to the warm room or vice versa, condensate may form on the laser head and the device may not operate properly. In this case please turn the device on for 1-2 hours without disc before playback to heat it to a proper operation temperature. Don’t try to manually open or close the disc tray to load discs.

  • Page 5: Supported Formats

    Supported formats Disc types Symbol Contents Audio + Video Audio Video-CD (VCD) Audio + Video SVCD Audio + Video Audio HDCD JPEG Digital Photo CDDA Audio Kodak Picture CD Digital Photo MPEG4 Audio + Video...

  • Page 6: Control Elements

    Control elements Front panel 1. POWER button 2. Display 3. Disc tray 4. OPEN/CLOSE button 5. PREVIOUS button 6. NEXT button 7. L/R/ST button 8. PLAY/PAUSE button 9. USB slot Rear panel 1. Stereo audio output 2. Component video output 3.
  • Page 7 Remote control (RC) 1. OSD button 2. STANDBY button 3. PROG button 4. M.VOL+/- buttons 5. DEL button 6. VOL+/- buttons 7. SLOW button 8. MUTE button 9. REWIND/FORWARD buttons 10. SETUP button 11. ENTER button 12. TITLE button 13. STOP button 14.
  • Page 8 Battery installation 1. Remove the battery compartment cover on the back of the RC. 2. Insert the batteries into the battery compartment making sure that the correct polarity is observed. 3. Install the cover back. Use two AAA/1.5V batteries for the RC. The RC should be pointed at remote sensor within 8 meters and within 30 degrees at the left or the right side.

  • Page 9: Connection

    Connection Note: Before you start connection of external devices, ensure that power of the unit is switched off. Following outputs are available in this unit: Composite video Use the cable with yellow plug of an AV cable to connect the composite video output of this unit to the video input of a TV/monitor.

  • Page 10: Button Functions

    Button functions OPEN/CLOSE Press OPEN/CLOSE button when power is on, the disc tray is pushed out. Put the disc on the tray with the title faced up. Press OPEN/CLOSE button again to close the disc tray and the unit starts playing automatically. POWER When playing, press POWER button on the panel or STANDBY button on the RC to turn off the unit, and standby mode will be activated;...
  • Page 11 When playing SVCD, VCD2.0 disc, press MENU button and the disc menu will be shown. Use cursor buttons to select contents in the menu. After loading the disc, the unit will enter the menu automatically. Press MENU button, the TV screen shows PBC OFF. In this mode, the menu will not appear, press digit button to select the track directly.
  • Page 12 PREVIOUS/NEXT When playing DVD disc, press PREVIOUS button to go to the previous chapter. When playing SVCD, VCD, CD disc, press PREVIOUS button to go to the previous track. When playing DVD disc, press NEXT button to go to the next chapter. When playing SVCD, VCD, CD disc, press NEXT button to go to the next track.
  • Page 13 A - B Press A-B button at the start point (A) and the ending point (B) to select the repeat fragment. Press A-B button the third time to cancel fragment repeat and return to normal play. LANG When playing DVD with more than one audio stream, press LANG button to select the needed language. ZOOM When playing DVD, SVCD, VCD disc, press ZOOM button to zoom in or zoom out the picture.
  • Page 14 RETURN When playing super VCD, VCD2.0 discs and PCB function is on, press return button, to return to VCD menu. This function is unavailable when PBC is turned off. ECHO+/- Press ECHO- button to decrease the depth of the echo effect. Press ECHO+ button to increase the depth of the echo effect.

  • Page 15: System Setup

    System setup Press SETUP button to enter the setup menu. In setup mode, press SETUP button again to quit the setup page. Use LEFT/RIGHT cursor buttons to choose a setup page: General setup page, Audio setup page, Dolby Digital setup, Video setup page, Preference page. Press DOWN cursor button to enter the setup page selected.
  • Page 16 If the SCREEN SAVER is set ON and the unit is turned on without a disc playing for several minutes, a moving picture appears on the screen, and the unit will go to standby mode after 20 minutes. You can press STANDBY button on the remote control to wake it up.
  • Page 17 Dolby Digital setup Dual Mono Stereo: stereo output signal, L-Mono: left output signal, R-Mono: right output signal, Mix-Mono: left and right output average signal. Dynamic If watching large dynamic scope movie program at night, selecting this mode you can reduce the volume to a very low level, at the same time, to keep the fine details sound.
  • Page 18 Preference (available when no disc is inside) TV Type This unit is suitable for all kinds of TV systems. You can select one of the PAL, NTSC or AUTO. PAL: this system is used in CHINA, EUROPE, HONGKONG etc. AUTO: the TV system is auto switched according to the disc system. NTSC: this system is used in USA, TAIWAN, JAPAN etc.

  • Page 19: Various Disc Operations

    Various disc operations Karaoke Karaoke disc is a DVD or VCD disc with music and subtitles, showing the user when he/she should start singing this or that song part. You need to use a microphone for singing (not included). Connect microphone to MIC jacks on the back panel. Enter system setup menu on the Karaoke page and perform adjustment according to you preference.
  • Page 20 JPEG playback While a file playback, press STOP button, the above menu will be shown on the screen. Press UP/DOWN buttons to select the needed file. Press PLAY/PAUSE or ENTER button to start slide show. In JPEG playback mode, button functions are as follows: Button Function STOP...

  • Page 21: General Information

    General information Handling compact discs Do not insert anything other than a CD into the disc tray. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause damage to the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 22: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 23: Specification

    Specification Appearance Dimensions (W x L x H) 360x210x33 mm Compatibility Storage support: DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB Supported formats: DVD/Super VCD/VCD/HDCD/CDDA/MP3/WMA/Kodak Picture/JPEG/MPEG4(DivX) Audio Built-in Dolby Digital decoder Video Support of subtitle for MPEG4 Progressive scan Support NTSC/PAL Connectors S-Video Composite video Component video (YUV) SCART Stereo audio Coaxial...
  • Page 27 Video-CD (VCD) SVCD HDCD JPEG CDDA Kodak Picture CD MPEG4...
  • Page 28 POWER OPEN/CLOSE PREVIOUS NEXT L/R/ST PLAY/PAUSE 9. USB- 5. S-Video 7. 5.1- SCART...
  • Page 29 STANDBY PROG M.VOL+/- VOL+/- SLOW MUTE REWIND/FORWARD SETUP ENTER TITLE STOP PLAY/PAUSE OPEN/CLOSE V-MODE ANGLE REPEAT SUBTITLE STEP LANG L/R/ST PREVIOUS/NEXT ZOOM (ECHO-)/ (ECHO+)/ MENU RANDOM RETURN TIME...
  • Page 30 AAA/1.5V...
  • Page 31 S-video S-video S-video SCART SCART SCART SCART 5.1- 5.1- 5.1- –...
  • Page 33 OPEN/CLOSE OPEN/CLOSE, OPEN/CLOSE POWER POWER STANDBY POWER POWER STANDBY TITLE TITLE V-MODE V-MODE SUBTITLE SUBTITLE ANGLE ANGLE L/R/ST Super-VCD (SVCD), VCD, CD L/R/ST...
  • Page 34 MENU ( MENU SVCD, VCD2.0 MENU, MENU, PBC OFF ( VCD1.1, CDDA Mp3 PBC PLAY/PAUSE PLAY/PAUSE ENTER ENTER STOP DVD, SVCD, VCD, CD STOP PLAY/PAUSE STOP STEP DVD, SVCD, STEP PLAY/PAUSE FORWARD : 2X => 4X => 8X => 16X => 32X =>...
  • Page 35 REWIND : 2X => 4X => 8X => 16X => 32X => PREVIOUS/NEXT PREVIOUS SVCD, VCD, CD PREVIOUS NEXT SVCD, VCD, CD NEXT PROG PROG ENTER ENTER PROG. SLOW SLOW, : X2 => X4 => X8 => X16 => SETUP SETUP PAL/ /NTSC.
  • Page 36 REPEAT REPEAT REPEAT; => => => SVCD, VCD, CD => => => => => ( ). LANG LANG ZOOM DVD, SVCD, VCD ZOOM VOL+/- VOL+/- M.VOL M.VOL+/-...
  • Page 37 MUTE MUTE; MUTE TIME TIME. ENTER, DEL, RETURN super VCD, VCD2.0 RETURN, VCD. PBC. ECHO+/- ECHO-, ECHO+,...
  • Page 38 SETUP, SETUP. Dolby Digital, ENTER, 4:3/PS: 4:3/LB: 16:9:...
  • Page 39 SUBTITLE « » STANDBY POWER HDCD SPDIF SPDIF SPDIF/RAW: SPDIF/PCM: Dolby digital...
  • Page 40 Dolby Digital – – – – S-Video: S-Video YUV: Y/U/V RGB: SCART VGA: « ». «YUV» «RGB».
  • Page 41 PAL, NTSC PAL: Auto: NTSC: AUDIO SUBTITLE. – 137900. 137900.
  • Page 42 – VCD, MIC, MP3/JPEG/MPEG4 MP3 - MP3- JPEG (Joint Photographic Expert Group) - 15-20 MPEG4 - MP3/MPEG4...
  • Page 43 PLAY/PAUSE ENTER JPEG STOP, PLAY/PAUSE ENTER JPEG STOP NEXT PREVIOUS PLAY/PAUSE ZOOM USB- USB- USB- USB-...
  • Page 44 USB- USB- USB-...
  • Page 47 AAA 1.5V...
  • Page 48 360x210x33 : DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB : DVD/Super VCD/VCD/HDCD/CDDA/MP3/WMA/Kodak Picture/JPEG/MPEG4(DivX) Dolby Digital MPEG4 NTSC/PAL S-Video (YUV) SCART 5.1- ~110-240 , 50/60 USB- 2.0/4...
