SoundMax SM-DVD5111 Instruction Manual

Dvd player soundmax
Hide thumbs Also See for SM-DVD5111:
Table of Contents

Advertisement

Quick Links

Download this manual
SM-DVD5111
DVD PLAYER
DVD
Instruction manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-DVD5111 and is the answer not in the manual?

Questions and answers

Related Manuals for SoundMax SM-DVD5111

Summary of Contents for SoundMax SM-DVD5111

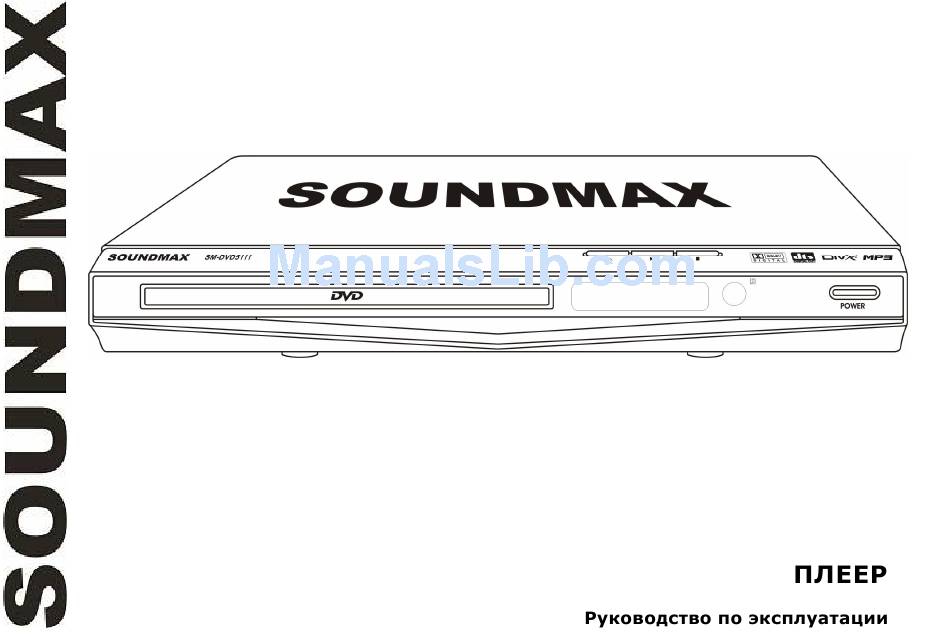

  • Page 1 SM-DVD5111 DVD PLAYER Instruction manual...

  • Page 2: Table Of Contents

    Contents Contents ........................ 2 Before you start ...................... 3 Control elements..................... 6 Connection ......................9 System setup ......................12 Button functions ....................16 General information....................21 Specification......................23...

  • Page 3: Before You Start

    Before you start Utilization of the product If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.
  • Page 4 Don’t try to manually open or close the disc tray to load discs. Disconnect the receiver only when there is no disc therein. If you are not going to use the device for a long time disconnect it from the wall outlet. Before turning the device on, please make sure that you have connected it properly;...

  • Page 5: Supported Formats

    Supported formats Disc types Symbol Contents Audio + Video AC-3 Dolby Digital Audio Audio Video-CD Audio + Video (VCD) SVCD Audio + Video Audio DVCD Audio + Video HDCD Audio JPEG Digital Photo CDDA Audio Kodak Picture Digital Photo MPEG4 Audio + Video...

  • Page 6: Control Elements

    Control elements Front panel OPEN/CLOSE button PLAY/PAUSE button STOP button Disc tray Display IR sensor POWER button Rear panel Audio right/left output Component output Coaxial output Composite video output S-Video output Optical digital output SCART output MIC jack...
  • Page 7 Remote control (RC) OSD button STANDBY button PROG button M.VOL+/- buttons DEL button VOL+/- buttons SLOW button MUTE button REWIND/FORWARD buttons 10. SETUP button 11. ENTER button 12. TITLE button 13. STOP button 14. PLAY/PAUSE button 15. Number buttons 16. P/N button 17.

  • Page 8: Battery Installation

    Battery installation 1. Remove the battery compartment cover on the back of the RC. 2. Insert the batteries into the battery compartment making sure that the correct polarity is observed. 3. Install the cover back. Use two AAA/1.5V batteries for the RC. The RC should be pointed at remote sensor within 8 meters and within 30 degrees at the left or the right side.

  • Page 9: Connection

    Connection Note: Before you start connection of external devices, ensure that power of the unit is switched off. Video system connection component video input composite video and S-video input SCART input component video output composite video and S-video output SCART output Following video outputs are available in this unit.
  • Page 10 Component video Use a 3-core AV cable to connect the components outputs of this unit to the corresponding inputs of a TV/monitor. S-Video Use an S-Video cable to connect the S-Video output of this unit to the S-Video input of a TV/monitor. SCART Use a 21-pin SCART cable to connect the SCART output of this unit to the TV/monitor SCART input.
  • Page 11 Audio connection system Two types of audio output systems: analog audio and digital audio. Analog audio includes 2-channel stereo. Digital audio includes optical and coaxial output. 2 CH audio inputs Digital audio inputs 2 CH audio outputs Optical and coaxial outputs Stereo audio Use a pair of AV cables (red for right/white for left) to connect the stereo audio outputs of this unit to the...

  • Page 12: System Setup

    System setup Press SETUP button to enter the setup menu. In setup mode, press SETUP button again to quit the setup page. 2. Use LEFT/RIGHT cursor buttons to choose a setup page: General setup page, Audio setup page, Dolby Digital setup, Video setup page, Preference page. 3.

  • Page 13: Audio Setup

    HDCD (Not available in 2CH DVD mode) You can select the digital filter at 1x or 2x. The initial factory setup is off. Last Memory When this function is on, the unit can memorize the time elapsed from the last time you played the disc. Then at the next playing, it will resume playing from the memorized time.

  • Page 14: Video Setup

    Video setup Component S-Video: set to this item when connecting to S-Video terminals. YUV: set video output in analog component video format when connecting to Y/U/V terminals. RGB: set video output in Red/Green/Blue format when connecting to SCART terminals. VGA: set to this item when connecting to VGA terminals. The player is always with signal output under all conditions, and if it is connected to the composite video display equipment, suggesting the linkage be set on "OFF".
  • Page 15 Change the password. The initial factory password is 137900. You can set your own password. If you forget your own password, you can use 137900 as general password. Default Restore the initial factory settings.

  • Page 16: Button Functions

    Button functions OPEN/CLOSE Press OPEN/CLOSE button when power is on, the disc tray is pushed out. Put the disc on the tray with the title faced up. Press OPEN/CLOSE button again to close the disc tray and the unit starts playing automatically.
  • Page 17 automatically. Press MENU button, the TV screen shows PBC OFF. In this mode, the menu will not appear, press digit button to select the track directly. VCD1.1, CDDA and MP3 have no PBC menu. PLAY/PAUSE When playing the disc, press PLAY/PAUSE button once to pause; press PLAY/PAUSE button again to return to normal playback.
  • Page 18 When playing SVCD, VCD, CD disc, press NEXT button to go to the next track. PROG If the disc contains 2 or more tracks, chapters or titles, set up the playing order to your preference. Press PROG button to enter program menu. Press number buttons to input the number of the track, title or chapter.
  • Page 19 LANG When playing DVD with more than one audio stream, press LANG button to select the needed language. ZOOM When playing DVD, SVCD, VCD disc, press ZOOM button to zoom in or zoom out the picture. In zoom in mode, press cursor buttons to move the picture for viewing. The picture cannot be moved in zoom out mode.

  • Page 20: Karaoke Playback

    ECHO+/- Press ECHO- button to decrease the depth of the echo effect. Press ECHO+ button to increase the depth of the echo effect. Karaoke playback Karaoke disc is a DVD or VCD disc with music and subtitles, showing the user when he/she should start singing this or that song part.

  • Page 21: General Information

    General information Handling compact discs Do not insert anything other than a CD into the disc tray. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause damage to the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface.
  • Page 22 Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 23: Specification

    Specification Loader Slim Front panel Black Appearance Color Black Dimensions (WxLxH) 255x260x45 mm Formats of disks: DVD, DVD-R/-RW/+R/+RW, CD-R/-RW Formats of playback: DVD, MPEG4 (DivX), SVCD, VCD, CDDA, MP3, Compatibility WMA, Kodak Picture CD, JPEG Support DVD disks of all zones Dolby Digital AC-3 decoder Audio DTS digital out...
  • Page 24 ......................24 .................25 ...................28 ......................31 ....................34 ......................38 ....................44 .................47...
  • Page 27 AC-3 Dolby Digital Video-CD (VCD) SVCD DVCD HDCD JPEG CDDA Kodak Picture CD MPEG4...
  • Page 28 OPEN/CLOSE PLAY/PAUSE STOP POWER S-Video SCART...
  • Page 29 STANDBY PROG M.VOL+/- VOL+/- SLOW MUTE REWIND/FORWARD SETUP ENTER TITLE STOP PLAY/PAUSE OPEN/CLOSE V-MODE ANGLE REPEAT SUBTITLE STEP LANG L/R/ST PREVIOUS/NEXT ZOOM (ECHO-)/ (ECHO+)/ MENU RETURN RANDOM TIME...
  • Page 30 AAA/1.5V...
  • Page 31 S-video SCART S-video SCART...
  • Page 32 S-Video S-Video S-Video S-Video SCART SCART SCART SCART...
  • Page 33 – 2 CH 2 CH – « » « »).
  • Page 34 SETUP, SETUP. Dolby Digital, ENTER, 4:3/PS: 4:3/LB: 16:9:...
  • Page 35 SUBTITLE « » STANDBY POWER HDCD . SPDIF SPDIF: SPDIF/RAW: SPDIF/PCM: Dolby digital...

  • Page 36: Dolby Digital

    Dolby Digital – – – – YUV: Y/U/V RGB: SCART VGA: « ». S-Video: S-Video (P-SCAN) «YUV» «RGB».
  • Page 37 PAL, NTSC PAL: NTSC: AUDIO SUBTITLE. – 137900. 137900.
  • Page 38 OPEN/CLOSE OPEN/CLOSE, OPEN/CLOSE POWER POWER STANDBY POWER POWER STANDBY TITLE TITLE V-MODE V-MODE SUBTITLE SUBTITLE ANGLE ANGLE L/R/ST Super-VCD (SVCD), VCD, CD L/R/ST...
  • Page 39 MENU ( MENU SVCD, VCD2.0 MENU, MENU, PBC OFF ( VCD1.1, CDDA Mp3 PBC PLAY/PAUSE PLAY/PAUSE ENTER ENTER STOP DVD, SVCD, VCD, CD STOP PLAY/PAUSE STOP STEP DVD, SVCD, STEP PLAY/PAUSE FORWARD : 2X => 4X => 8X => 16X => 32X =>...
  • Page 40 REWIND : 2X => 4X => 8X => 16X => 32X => PREVIOUS/NEXT PREVIOUS SVCD, VCD, CD PREVIOUS NEXT SVCD, VCD, CD NEXT PROG PROG ENTER ENTER PROG. SLOW SLOW, : X2 => X4 => X8 => X16 => SETUP SETUP PAL/ /NTSC.
  • Page 41 REPEAT REPEAT REPEAT; => => => SVCD, VCD, CD => => => => => ( ). LANG LANG ZOOM DVD, SVCD, VCD ZOOM VOL+/- VOL+/- M.VOL M.VOL+/- MUTE MUTE; MUTE...
  • Page 42 TIME TIME. ENTER, DEL, RETURN super VCD, VCD2.0 RETURN, VCD. PBC. ECHO+/- ECHO-, ECHO+, – VCD, MIC, MPEG, MP3,...
  • Page 43 MP3. PLAY/PAUSE, PLAY/PAUSE, STOP, ENTER [NEXT]: [PREVIOUS]: [ZOOM]:...
  • Page 46 AAA 1.5V...
  • Page 47 255x260x45 : DVD,DVD-R/-RW/+R/+RW, CD-R/-RW : DVD, MPEG4 (DivX), SVCD, VCD, CDDA, MP3, WMA, Kodak Picture CD, JPEG Dolby Digital AC-3 DTS Digital MPEG4 (DivX) NTSC/PAL S-Video (YUV) SCART ~110-240 , 50/60...
  • Page 48 DivX...
