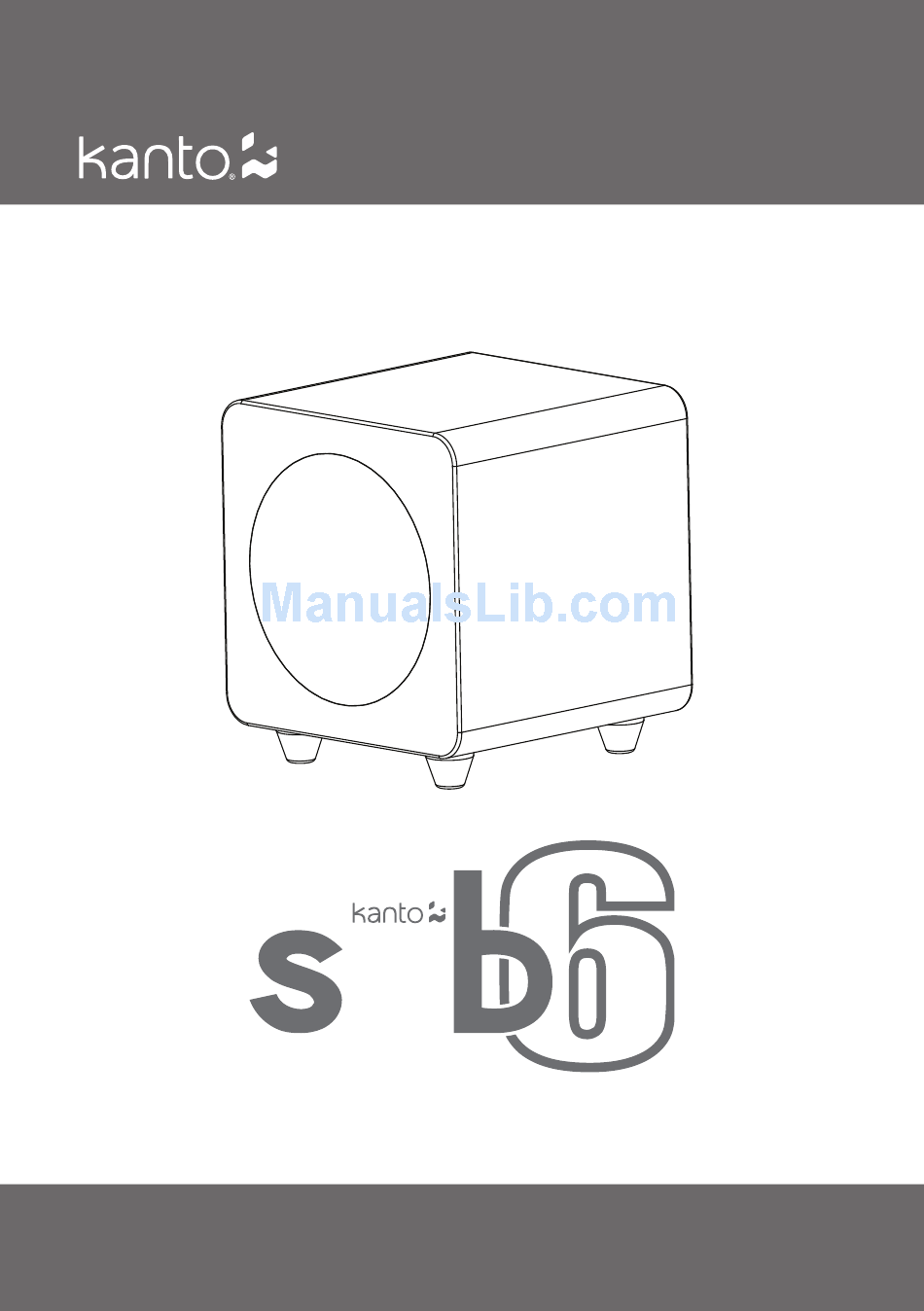

- Page 1 English User Manual sub6 Subwoofer SUBWOOFER ™ Supporting your digital lifestyle...
- Page 2 Table of Contents Important Safety Precautions . . . . . . . 2 Setting up / Connecting your Subwoofer . 5 Introduction / What’s in the Box? . . . . . 3 Specifications .
- Page 3 . We recommend you read all instructions carefully before using the sub6 and keep them for future reference . Kanto cannot be liable for damage or injury caused by incorrect setup or use of this product .
- Page 4 Front & Rear Panels FRONT PANEL 6” Paper Cone Driver REAR PANEL Volume Knob Low-Pass Filter Frequency Control Standby Power Phase Switch Line Level Input ON / OFF Switch AC Input Connection (100 V - 240 V)
- Page 5 . The Phase Switch is normally set to 0° . If the sub6 is positioned significantly farther from the main speakers or if the subwoofer is used in a stereo setup where the amplifier driving the main speakers inverts the phase signal, the 180°...
- Page 6 Setting up and Connecting your Subwoofer Sub Out Sub Out Optical Power WOOFER PRE-OUT AUDIO COMPONENT AUDIO SURROUND VIDEO FRONT REAR SURROUND CENTER AUX INPUT WOOFER AMPLIFIER HOME THEATER RECEIVER...
-
Page 7: Specifications
Specifications sub6 SUBWOOFER Woofer 6” Paper Cone Driver Nominal Impedance 4 Ohm Sensitivity 2 .83V (/1W/1m) 86 dB Amplifier Type Class D Power Output 80 Watts Input Sensitivity 250 mV Total Harmonic Distortion < 0 .3% Frequency Range 30 Hz - 250 Hz Frequency Response 35 Hz - 165 Hz ±... - Page 8 If equipment fails because of such defects and Kanto or an authorized dealer is notified within 24 months from the date of shipment with proof of original invoice . Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications .
