Aurora Multimedia ASP-DTH User Manual

Dvi & audio to hdmi converter
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents


ASP-DTH
DVI & Audio to HDMI
Converter
User Manual











Manual Number: 100901





Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASP-DTH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aurora Multimedia ASP-DTH

Summary of Contents for Aurora Multimedia ASP-DTH

  • Page 1   ASP-DTH DVI & Audio to HDMI Converter User Manual                       Manual Number: 100901        ...

  • Page 2: Safety And Notice

      Safety and Notice  The ASP-DTH DVI & Audio to HDMI Converter has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the ASP-DTH should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

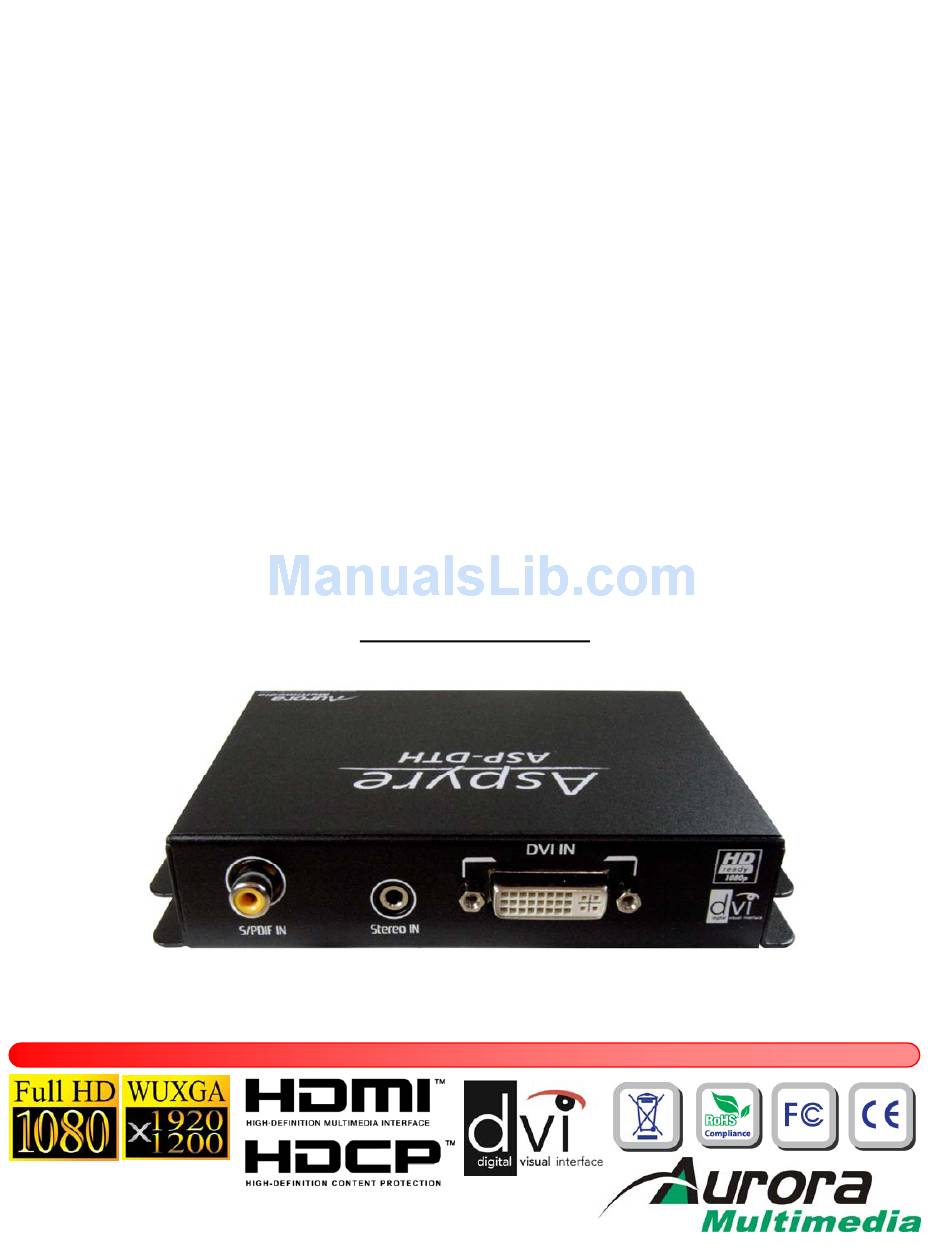

  • Page 3 Introduction The ASP-DTH DVI & Audio to HDMI Converter provides an easy and instant approach for converting digital video (DVI-D) and both digital audio (S/PDIF) and analog stereo audio to digital HDMI. With this module, DVI based devices such as PC with S/PDIF or analog stereo audio can readily connect to your HDMI TV at lowest cost.

  • Page 4: Specifications & Package Contents

    Package Power supply 5V 2A DC Power consumption 4 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x ASP-DTH Package Contents 1x 5V power adapter 1x User Manual   ~ 3 ~...

  • Page 5: Panel Descriptions

    +5V DC: Connect to 5V DC power supply. EDID Learning 1. Power up the ASP-DTH. Connect HDMI display to HDMI Out. 2. Turn the rotary control counterclockwise from 0 to 7. 3. The green light will be bright and then dark to indicate the EDID is learned.

  • Page 6: Hardware Installation

    2. Connect S/PDIF or stereo audio source to RCA jack or 3.5mm earphone jack respectively. 3. Connect HDMI display to the HDMI output connector with a HDMI cable 4. Power up the ASP-DTH. Notice 1. Only HDMI enabled TV sets with underscan/overscan* support, the full active video can be accurately displayed.

  • Page 7: Limited 3 Year Warranty

    Limited 3 Year Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year.
