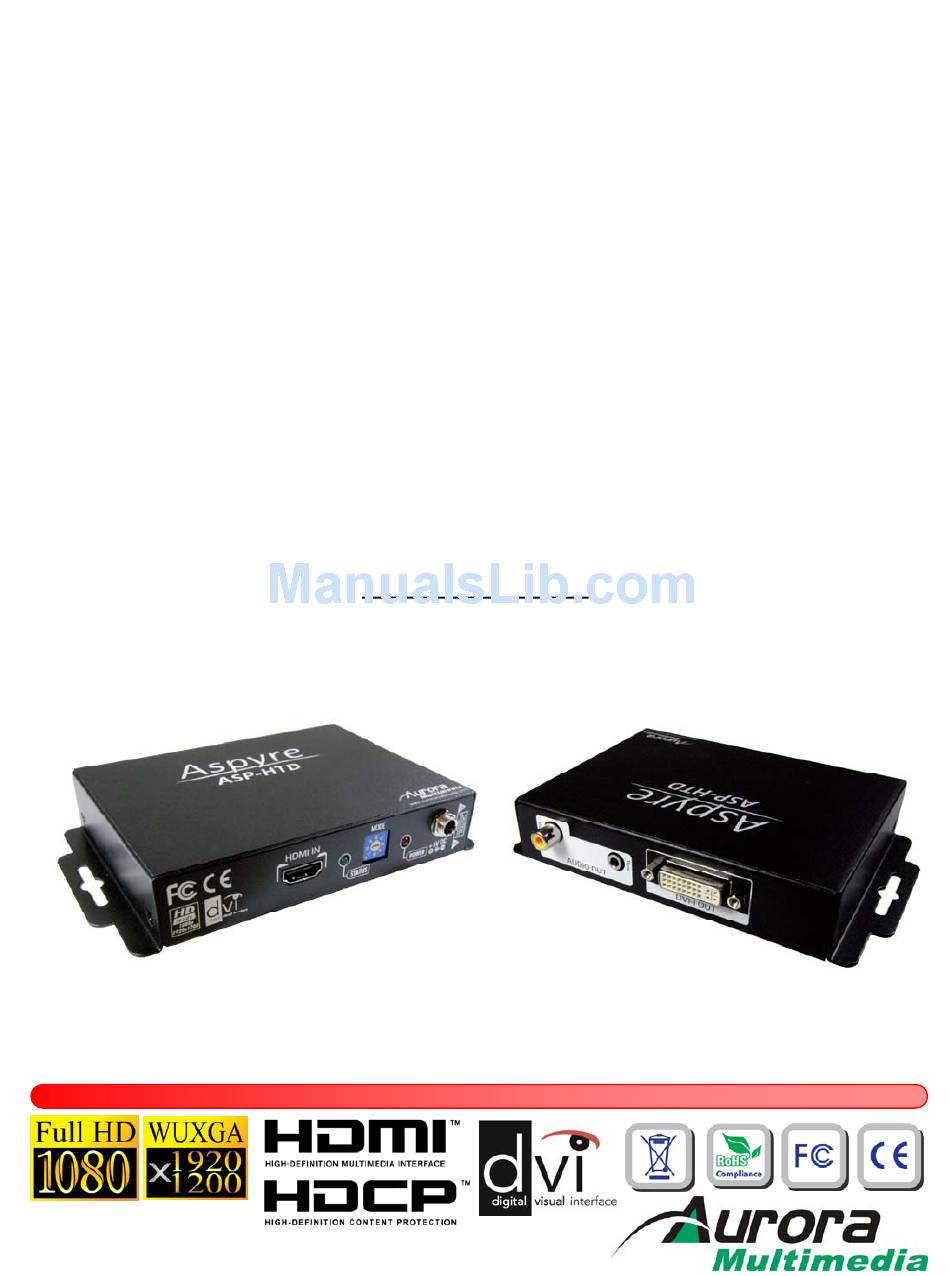

- Page 1 ASP-HTD HDMI to DVI & Audio Converter User Manual Manual Number: 100901 ...
- Page 2 Safety and Notice The ASP-HTD HDMI to DVI & Audio Converter has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the ASP-HTD should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 This device also enables users to connect full digital video and audio to DVI enabled monitor and S/PDIF equipped audio receiver and amplifier, and make the highest compatibility to your home theater devices. DVI cable HDMI cable DVI display/projector 3.5mm audio cable ASP-HTD HDMI Source Analog PC Speaker S/PDIF audio cable S/PDIF AV Amplifier Features ...
- Page 4 Interlocking power jack to prevent power loose Power supply 5V 2A DC Power consumption 4 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x ASP-HTD Package Contents 1x 5V power supply unit 1x User Manual ...
-
Page 5: Panel Descriptions
Panel Descriptions Front Panel 1. HDMI IN: connect to an HDMI source device 2. STATUS: Status indicator [Normal operation] − lights up means the HDMI device is connected [EDID learning mode] − lights off means the start of EDID learning mode; flashes means the learning the EDID from connected display;... -
Page 6: Edid Learning
* S/PDIF format is dependent upon the embedded digital audio part in the input HDMI stream. The S/PDIF receiver must be able to recognize the input S/PDIF format. This ASP-HTD only separates the digital audio in HDMI stream, and bypasses this decoded audio to the output. -
Page 7: Limited 3 Year Warranty
Limited 3 Year Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year.
