Page 1: User Manual

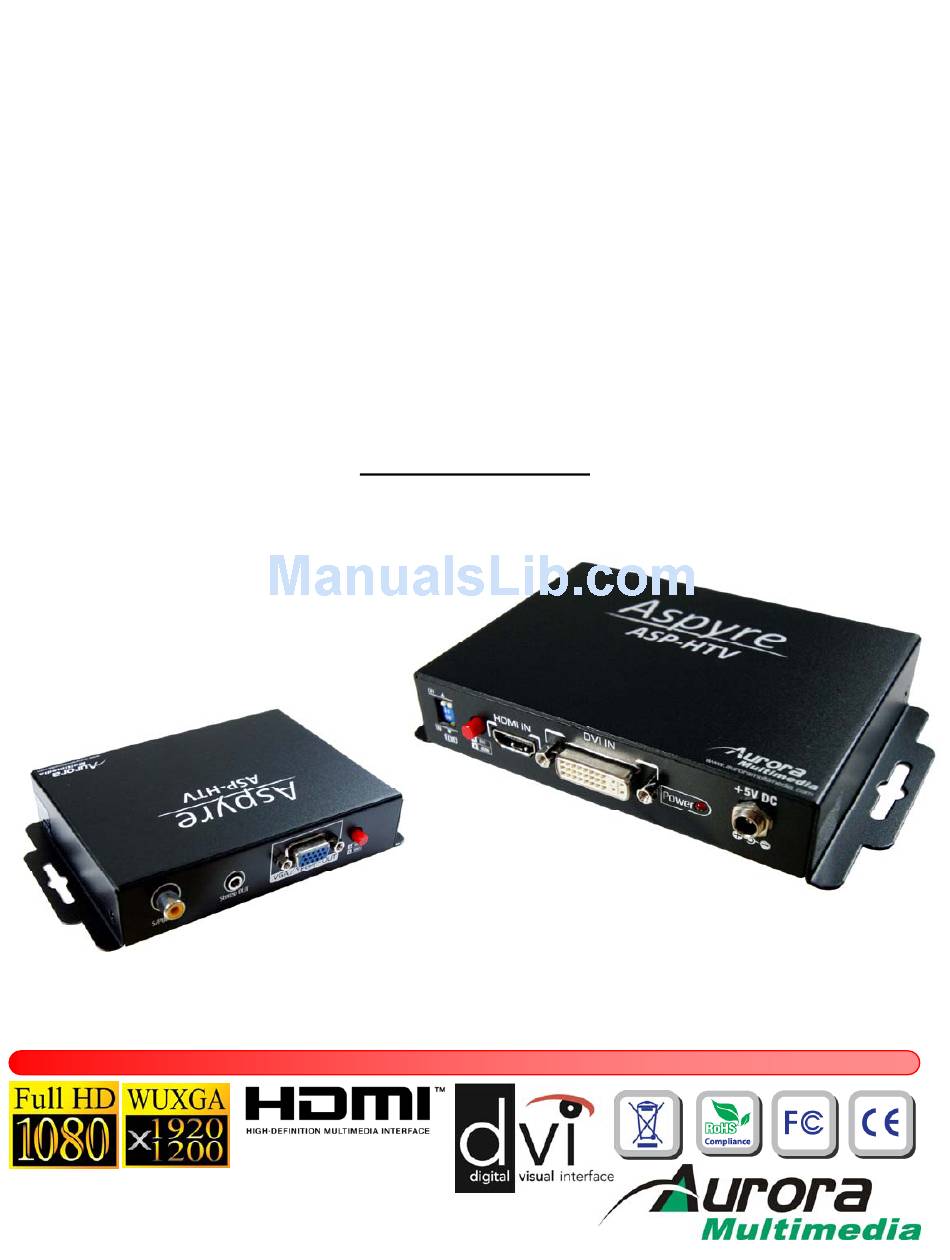

ASP-HTV HDMI/DVI to VGA Converter User Manual Manual Number: 100902 ... -
Page 2: Safety And Notice
The ASP-HTV has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the ASP-HTV should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 Introduction This ASP-HTV HDMI/DVI to VGA/Component & Audio Converter offers an easy and instant approach for converting digital HDMI to analog PC video (VGA) and component video (YPbPr) with digital audio (S/PDIF) and analog stereo audio. With this module, YPbPr/VGA based receivers such as LCD monitors or plasma TV can be readily connected to HDMI sources such as DVD players or PS3.
-
Page 4: Specifications & Package Contents
Specifications & Package Contents Model Name ASP-HTV Technical Role of usage D/A converter HDMI compliance HDMI 1.2a DVI compliance DVI 1.1 Video bandwidth Single-link 165MHz [4.95Gbps] Video support Up to 1080p60, WUXGA [1920x1200@60] & UXGA [1600x1200@60] Audio support Stereo audio Input TMDS signal 1.2 Volts [peak-to-peak]... - Page 5 Resolution Support PC Graphics [DVI or VGA] VESA 640x400 @85Hz VESA 1024x768 @60Hz VESA 1280x960 @85Hz 1152x864@60Hz VESA 720x400 @85Hz VESA 1024x768 @75Hz VESA 1280x1024 @60Hz Mac 480-66A VESA 640x480 @72Hz VESA 1024x768 @85Hz VESA 1280x1024 @85Hz Mac 480-66B VESA 640x480 @75Hz VESA 1152x864 @60Hz VESA 1360x768 @60Hz Mac 600-66...
-
Page 6: Panel Descriptions
Panel Descriptions Front Panel 1. DIP Switch for EDID 3. HDMI input 5. Power on/off indicator 2. HDMI or DVI source switch button 4. DVI input 6. +5V DC interlocked power jack EDID DIP Switch Mode Learn EDID from VGA socket and save EDID to HDMI socket Write back the default EDID to HDMI socket Learn EDID from VGA socket and save EDID to DVI socket Write back the default EDID to DVI socket... -
Page 7: Hardware Installation
1. Power up the ASP-HTV. Connect display to VGA/YPbPr Output. 2. To learn EDID for HDMI source, please power up ASP-HTV first. Secondly pull down the DIP switch 1 to ON, and the red light will be dark and bright to indicate the EDID learning process is complete. Finally, please remember to reboot ASP-HTV for updating. -
Page 8: Limited 3 Year Warranty
Limited 3 Year Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year.
