Page 1: User Manual
ASP-VTH VGA & Audio to HDMI Converter User Manual Manual Number: 100809 ... -
Page 2: Safety And Notice

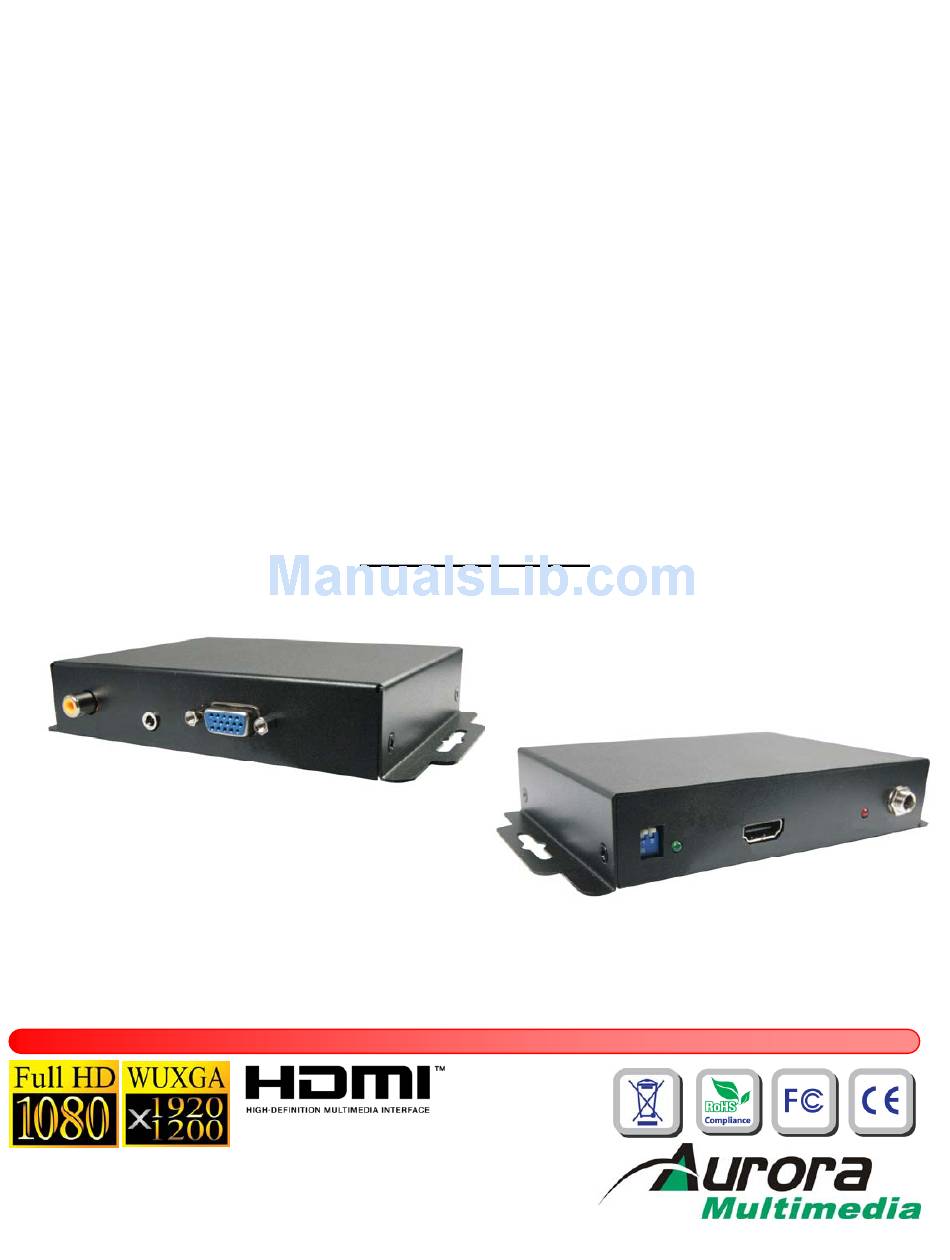

Safety and Notice The ASP-VTH VGA & Audio to HDMI Converter has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the ASP-VTH should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 Introduction This ASP-VTH offers an easy and instant approach for converting analog PC video (VGA) with either digital audio (S/PDIF) or analog stereo audio to digital HDMI. With this module, VGA based devices such as PC with S/PDIF or analog stereo audio can readily connect to your HDMI TV.
-
Page 4: Specifications & Package Contents
Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x CV-105 1x ASP-VTH Package Contents 1x 5V power supply unit 1x 5V power supply unit 1x User manual 1x User manual ~ 3 ~... -
Page 5: Resolution Support
Resolution Support PC video (VGA) 848 x 480 @60Hz 1024 x 768 @75Hz 1600 x 1200 @60Hz 1600 x 1200 @60Hz 640 x 480 @60Hz 1152 x 864 @75Hz 1792 x 1344 @60Hz 1920 x 1080 @50Hz 640 x 480 @72Hz 1280 x 768 @60Hz 1900 x 1200 @60Hz 1920 x 1080 @60Hz... -
Page 6: Panel Descriptions
Panel Descriptions Front Panel 1. S/PDIF Input 2. Audio Input 3. VGA Input Rear Panel Mode Switch HDMI Detection HDMI Output Power Indicator 5V DC ~ 5 ~... -
Page 7: Hardware Installation
4. Power up the ASP-VTH. EDID Learning 1. Power up the ASP-VTH. Connect display to HDMI Output. 2. To learn EDID from HDMI display, pull down the DIP switch 1 to ON [ ], the green light will be dark and bright to indicate the EDID learning process is complete. -
Page 8: Limited 3 Year Warranty
Limited 3 Year Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year.
