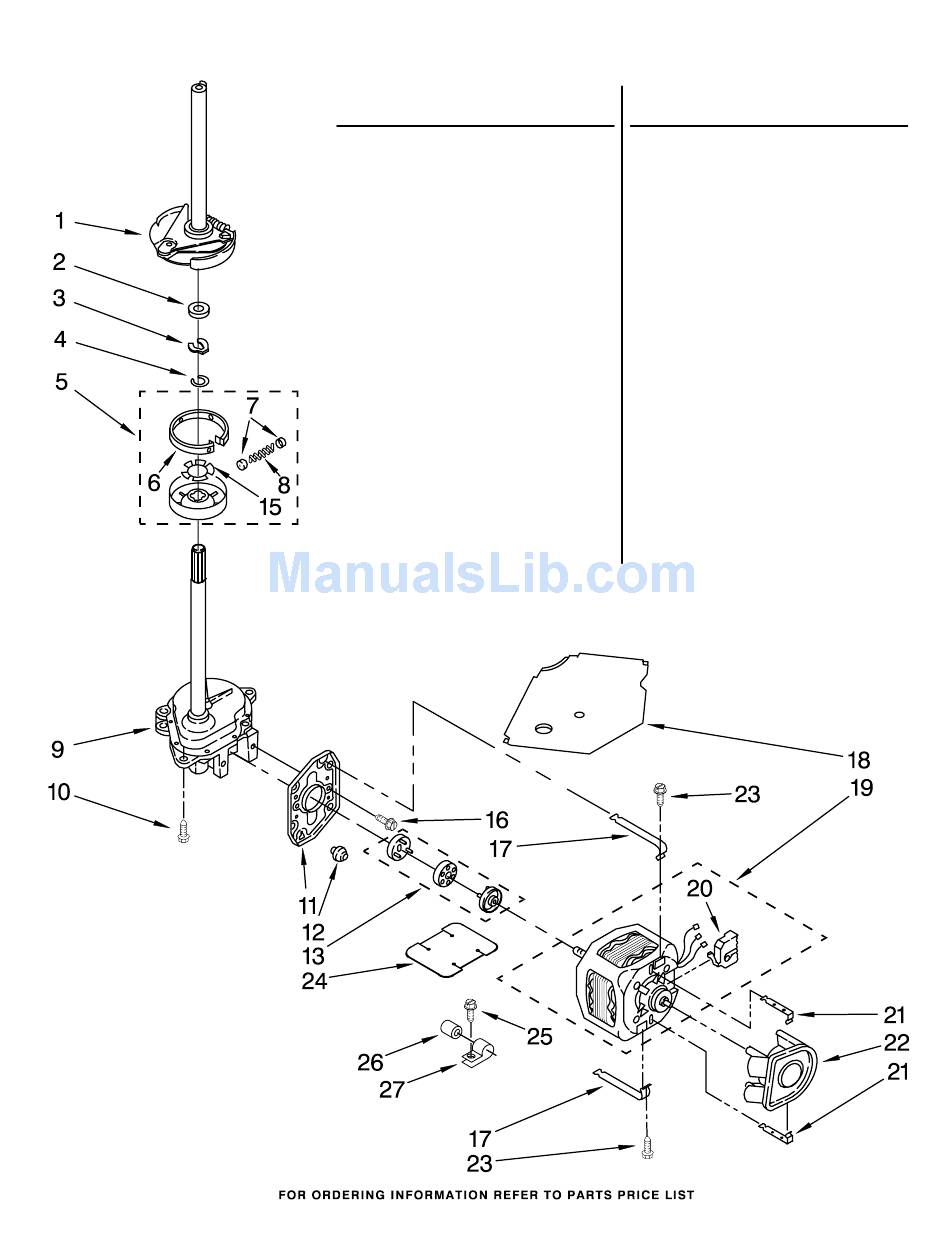

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

881267
For Models: LSV9244DQ0, LSV9244DZ0
(Designer White) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
1 388952 Brake & Drive
Tube (Complete)
(Refer to Page 10
For Further
Breakdown)
2 63292 Washer, Spin
Tube Thrust
3 62697 Ring, Spin
Tube Support
4 63283 Ring, Retainer
5 3946794 Clutch (Complete)
6 3946793 Band & Lining,
Clutch (Includes
Illus. 7 & 8)
7 62646 Cap, Clutch
Spring (2)
8 3363337 Spring, Clutch
9 3360630 Gearcase
(Complete)
(Refer To Page 11
For Further
Breakdown
10 3357334 Screw, Gearcase
To Base (3)
7
Illus. Part
No. No. DESCRIPTION
11 62611 Plate, Motor
Mount To
Gearcase
12 62691 Grommet, Motor (4)
13 3364003 Coupling, Motor
& Isolation
15 3355454 Clip,
Anti−Rattle
16 3357334 Screw
17 3349637 Retainer, Motor (2)
18 3362089 Shield, Tub
To Motor
19 661600 Motor, Main
Drive
20 62850 Switch, Main
Drive Motor
21 62700 Retainer, Pump (2)
22 3363394 Pump (Complete)
23 3387485 Screw, 10−16 x 5/8
24 3351341 Shield, Motor
25 62863 Screw,
10−16 x 3/8
26 357021 Capacitor
27 357030 Clamp, Capacitor
