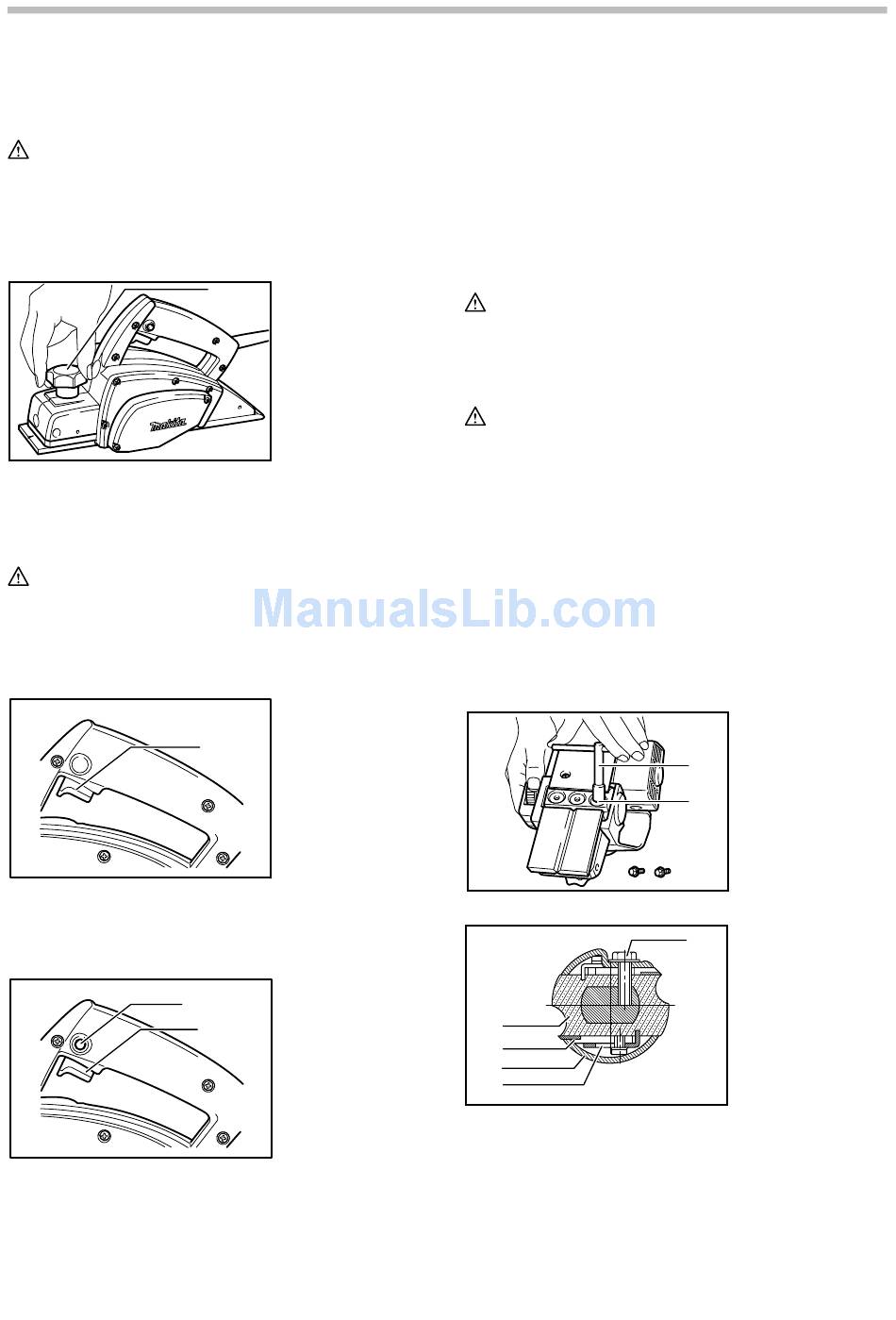

FUNCTIONAL DESCRIPTION

CAUTION:
Always be sure that the tool is switched off and
•
unplugged before adjusting or checking function on
the tool.

Adjusting depth of cut

002549
Depth of cut may be adjusted by simply turning the knob
on the front of the tool.
Switch action
CAUTION:
Before plugging in the tool, always check to see
•
that the switch trigger actuates properly and returns
to the "OFF" position when released.
For tool without lock button and lock-off button
004881
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
For tool with lock button
004884
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
For continuous operation, pull the switch trigger and then
push in the lock button.
1
1. Knob
1. Switch trigger
1
1. Lock button /
1
Lock-off button
2. Switch trigger
2
To stop the tool from the locked position, pull the switch
trigger fully, then release it.
For tool with lock-off button
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided.
To start the tool, depress the lock-off button and pull the
switch trigger. Release the switch trigger to stop.

ASSEMBLY

CAUTION:
Always be sure that the tool is switched off and
•
unplugged before carrying out any work on the tool.

Removing or installing planer blades

CAUTION:
Tighten the blade installation bolts carefully when
•
attaching the blades to the tool. A loose installation
bolt can be dangerous. Always check to see they
are tightened securely.
Handle the blades very carefully. Use gloves or
•
rags to protect your fingers or hands when
removing or installing the blades.
Use only the Makita wrench provided to remove or
•
install the blades. Failure to do so may result in
overtightening or insufficient tightening of the
installation bolts. This could cause an injury.
For tool with standard planer blades
010668
2
3
4
5
002555
5
1. Socket wrench
2. Bolt
1
2
1. Bolt
1
2. Drum
3. Planer blade
4. Drum cover
5. Adjusting plate
