IMPORTANT NOTE: Do not place the SAM1HF on its side. It must be mounted with the UHF DRIVER on the
top, as shown below. Failure to do this will have a negative impact on the performance of this speaker.

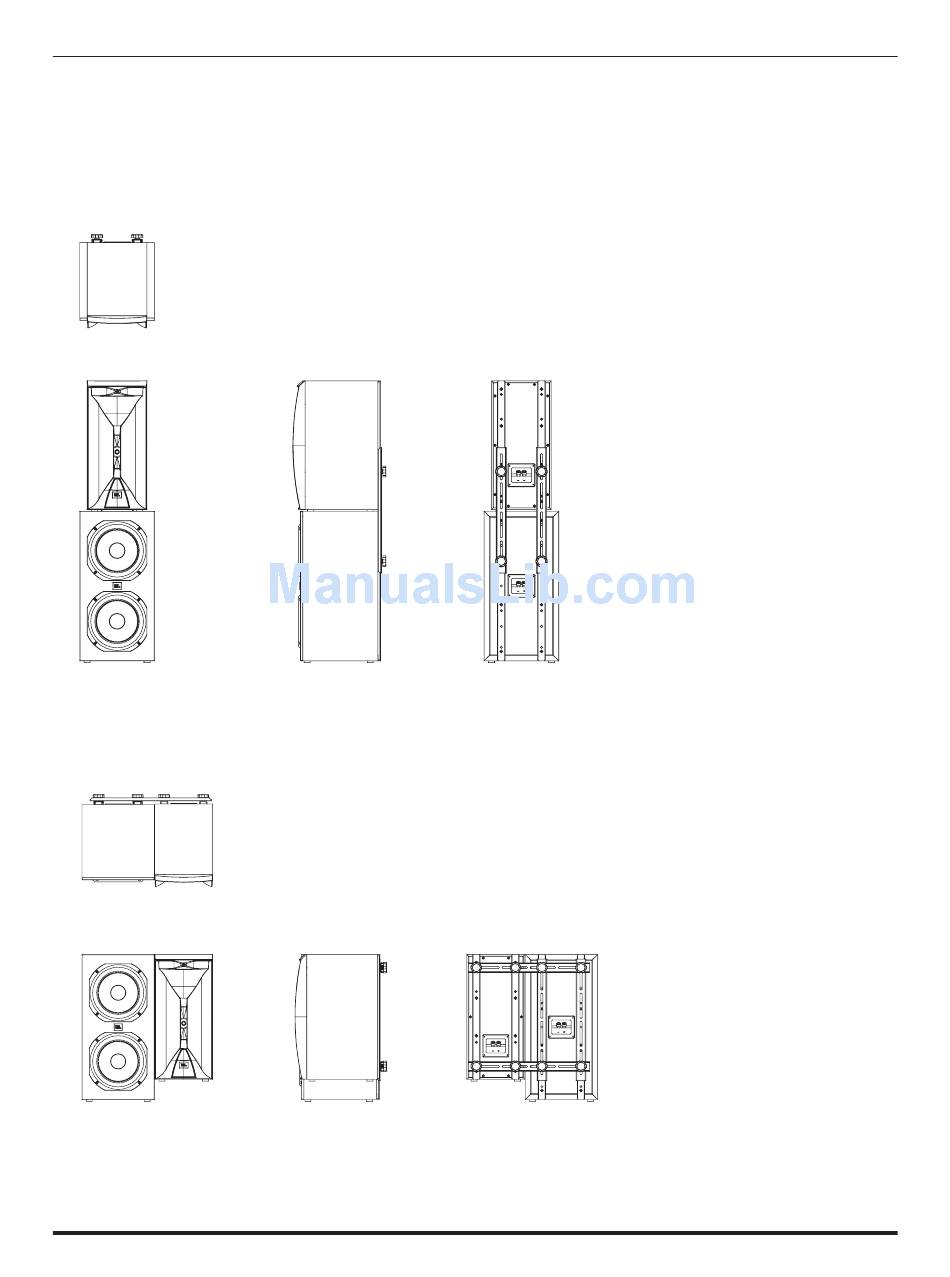

Detailed Configurations and System Connection
Configuration 1: One SAM1HF and one SAM2LF vertical
Configuration 2: One SAM1HF and one SAM2LF horizontal
NOTE: Shown without the trim panel (baffle blocks) installed on the SAM1HF.
