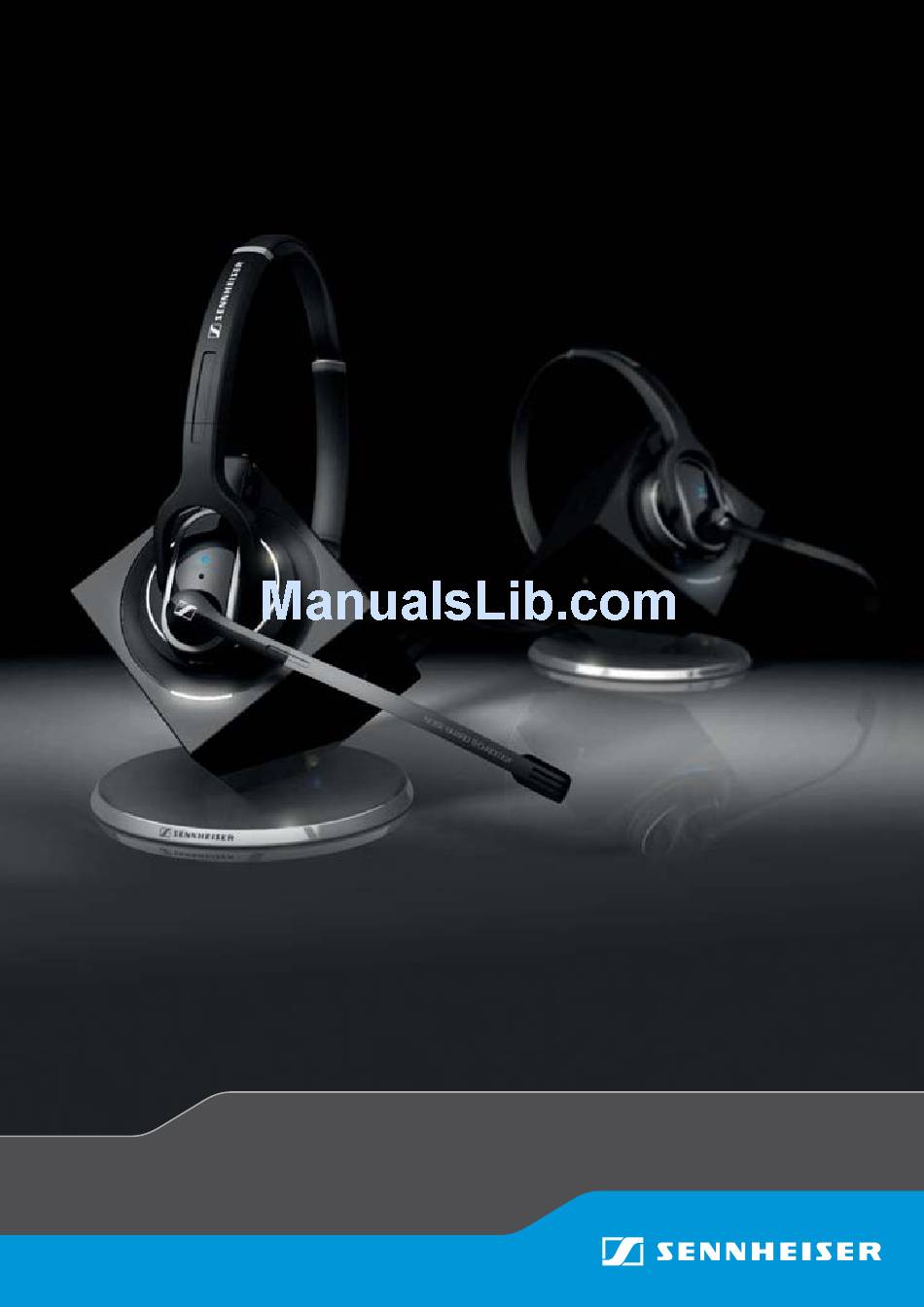

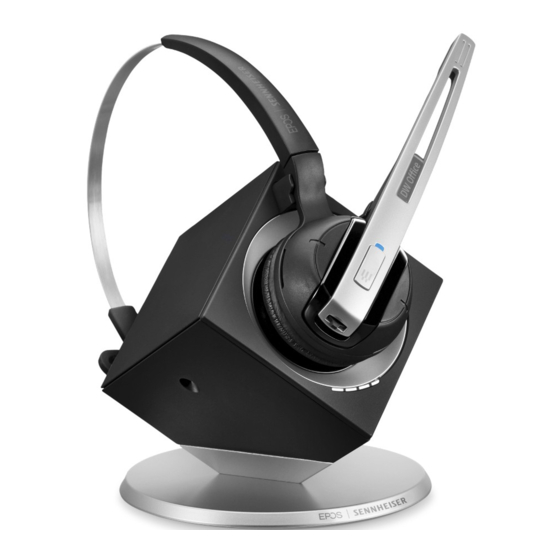

- Page 1 DECT Comfort call SetupGuide DW Series Setup Guide...
-
Page 2: Table Of Contents
Contents “Setup Guide” Contents “Setup Guide” Important safety information ............... 2 Scope of delivery and overview of the DW series ........3 Base stations with components ..............3 Headsets with components ................4 Product overview of the base stations ............5 Overview of the front .................. -
Page 3: Important Safety Information
The risk is to be borne by the user. Sennheiser is not liable for damages to USB devices that are not consistent with the USB specifications. Sennheiser is not liable for damages resulting from the loss of connection due to flat or overaged rechargeable batteries or exceeding the DECT transmission range. -
Page 4: Scope Of Delivery And Overview Of The Dw Series
Scope of delivery and overview of the DW series The DW series allows you to combine base stations (BS) and headsets (HS) to meet your needs. The listed headsets and base stations are compatible with each other. The DW series base stations marked with in their name ... -
Page 5: Headsets With Components
Scope of delivery and overview of the DW series Headsets with components DW Office – HS monaural, with different wearing styles DW Pro1 – HS monaural, with headband DW Pro2 – HS binaural, with headband DW Office – HS DW Pro1 – HS... -
Page 6: Product Overview Of The Base Stations
¾ µ DW BS Phone ¹ ¸ ² ABC µ ACC switch socket ¶ ¸ Microphone volume control Set button º Phone ¹ socket DIP switch row ¾ Handset socket DC IN socket socket (USB) DW Series – Setup Guide... -
Page 7: Setting Up The Base Station
DW BS USB ML DW BS Phone Disconnecting the base station from the mains power supply If the product is not used for extended periods of time, unplug the power supply unit from the wall socket. DW Series – Setup Guide... -
Page 8: Connecting The Base Station To A Fixed Line Phone
Connect the telephone cable to the handset socket on the telephone and to the Phone socket (marked green) on the base station. Use a pointed object (e.g. a ball pen) to set the DIP switches the position shown. DW Series – Setup Guide... - Page 9 Connecting the base station to an optional mechanical handset lifter The Sennheiser HSL 10 mechanical handset lifter is an optional accessory available from your Sennheiser partner. The handset lifter allows you to answer calls even when you are away from your desk.
-
Page 10: Connecting The Base Station To An Optional Electronic Hook Switch Control (Ehs)
Use a pointed object (e.g. a ball pen) to set the DIP switch to the posi- tion shown. Siemens, Agfeo, Aastra, Auerswald, etc. Alcatel For an overview of the available connection and adapter cables, visit the DW series product page on our website at www.sennheiser.com or contact your Sennheiser partner. DW Series – Setup Guide... -
Page 11: Connecting The Base Station To A Computer
USB audio device ”Sennheiser DECT” and installs the neces- sary drivers. Sennheiser PC software The free Sennheiser PC software allows you to add value to your Sennheiser products. The Sennheiser Updater, for example, facilitates easy updating of products with new software. For more information, visit our website at www.sennheiser.com/cco/software. -
Page 12: Charging The Headset
60 min. approx. 8 hrs approx. 12 hrs If the headset is outside the range of the base station, it will switch off after 30 minutes in order to conserve battery power. DW Series – Setup Guide | 11... - Page 13 Charging several headsets simultaneously The MCH 7 multi USB power source is an optional accessory available from your Sennheiser partner. Together with the CH 10 USB, the MCH 7 allows you to charge up to 7 headsets simultaneously. MZH 7 CH 10 USB Refer to the instruction manual of the MCH 7 for more information.
-
Page 14: Testing The Headset System And The Sound Quality
Switch position Function Manual operation Lifts/hangs up the handset manually or using the handset lifter (Sennheiser HSL 10). Electronic hook switch (DHSG standard) Call control via the headset system. For faster link establishment, see Fast Link. Electronic hook switch (MSH standard) Call control via the headset system. - Page 15 Limiting the volume – DIP switch 6 Switch position Function Standard limitation Limited volume (country specific) • AU version: in compliance with Directive AS/ACIF G616:2006 • EU and US version: in compliance with Directive 2003/10/EC 14 | DW Series – Setup Guide...
-
Page 16: Adjusting The Audio Signal By Means Of The Dial Tone
Press the Link button on the headset. The Link LED lights up blue. Lift the handset. You hear a dial tone. Set the switch to the position A, so that you can hear a clear dial tone in the headset. DW Series – Setup Guide | 15... -
Page 17: Adjusting The Volume
Link LED rapidly flashes blue several times. Deactivating the “Auto Audio” function: Use a pointed object to press the Set button for approx. 5 seconds. The Link LED rapidly flashes red several times. 16 | DW Series – Setup Guide... -
Page 18: If A Problem Occurs
If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance. To find a Sennheiser partner in your country, search at www.sennheiser.com under “Service & Support”. DW Series – Setup Guide... -
Page 19: Specifications
55 m Speaker type dynamic, neodymium magnet Microphone type electret microphone, ultra noise canceling Operating temperature range +5°C to +45°C (+41°F to +113°F) Storage temperature range –20°C to +70°C (–4°F to +158°F) 18 | DW Series – Setup Guide... -
Page 20: Power Supply Unit
(DW BS-US & DW BS USB-US) IC: 2099D- TDH1 (DW 10 HS/DW 20 HS/DW 30 HS) IC: 2099D-TDH1 IC: 2099D-TDH1 USA: FCC ID: DMOCDBDIB (DW BS-US) FCC ID: DMOCDBDKB (DW BS USB-US) FCC ID: DMOCDHDFC FCC ID: DMOCDHDEC DW Series – Setup Guide | 19... -
Page 21: Manufacturer Declarations
Manufacturer Declarations Manufacturer Declarations Warranty Sennheiser Communications A/S gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements • WEEE Directive (2002/96/EC) - Page 22 SAR limits for devices used by the general public. Trademarks Sennheiser is a registered trademark of Sennheiser electronic GmbH & Co. KG. Other product and company names mentioned in this instruction manual may be the trademarks or registered trademarks of their respective owners.
- Page 23 Sennheiser Communications A/S Industriparken 27, 2750 Ballerup, Denmark www.sennheiser.com Publ. 07/13, A02...
