Summary of Contents for Whirlpool LET5624BW1

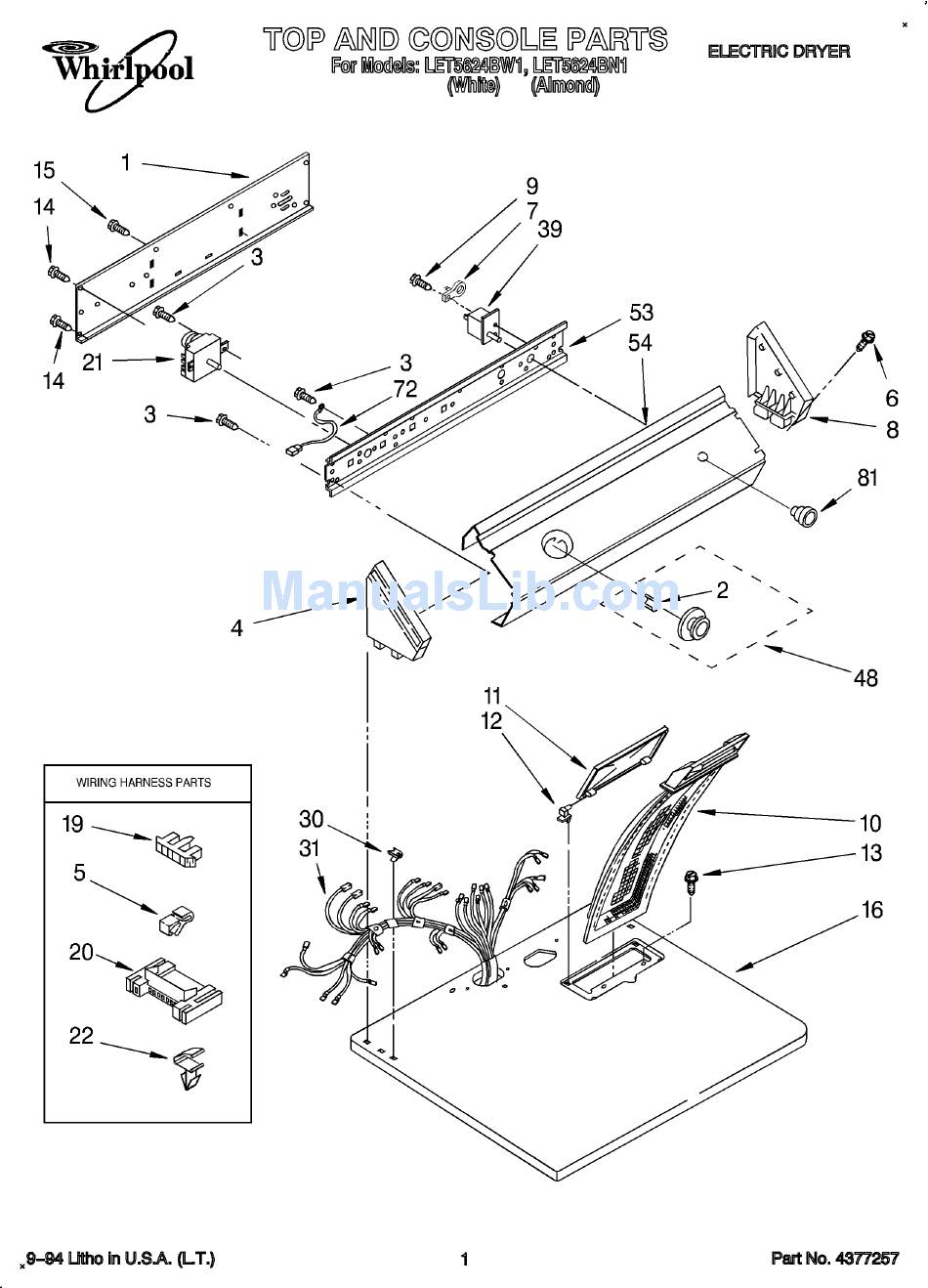

- Page 2 3397545 Panel, Rear Console 688805 Clip 3390646 Screw, 8-18 x 5/16 Cap, End (L.H.) 3358531 White 3358532 Almond 689180 Clip, Retainer 3353145 Screw, Console 3388706 Resistor Cap, End (R.H.) 3358516 White 3358517 Almond 3390647 Screw, 8-18 x 1/2 339392 Screen, Lint Cover, Lint Screen 688150 White...
- Page 3 350930 White 350956 Almond 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut) 978883 Almond (Uncut)
- Page 5 690236 Wire, Ground (Motor) 3393008 Screw, 10-16 x 1/2 3393657 Restrainer, Belt 230131 Cable, Door (2) 3396795 Cover, Terminal Block 694091 Screw 3396807 Panel, Rear 339493 Screw 688160 Screw, 8-15 x 1/2 347207 Switch, Door 98129 Screw, 6-20 x 1-3/8 (2) 691581 Lever, Door Switch 693994...
- Page 6 693995 Screw, 10-16 x 1/2 279318 Terminal, Tinned & Brass (3) (Includes Illus. 40)
- Page 8 694283 Lint Chute Assembly 3400800 Screw 8-18 x 3/4 98460 Nut, Push-In (2) 3388703 Washer, Support 90767 Screw, 8 x 3/8 3398671 Thermal, Cut-Off (Hi-Limit Thermostat Illus. No.15 Included) 347139 Seal, Lint Chute 686889 Pad, Cabinet 3392247 Pad, Blower Housing 694089 Wheel, Blower 695081...
