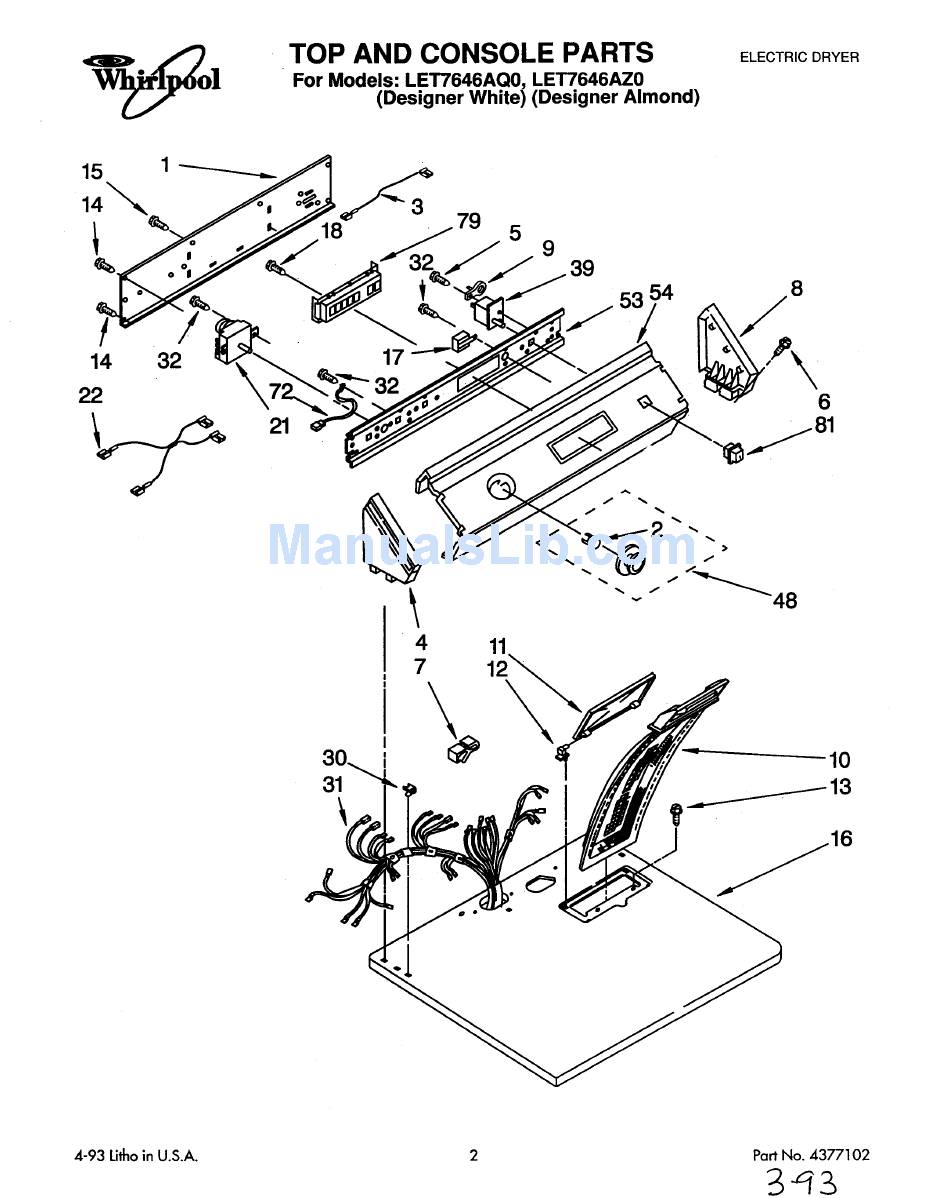

- Page 2 3397545 Panel, Rear Console 688805 Clip Wire, Jumper 3393811 Violet 3393812 Blue Cap, End (L.H.) 3358531 White 3358532 Almond 3390647 Screw, 8-18 x 1/2 3353145 Screw, Console 689180 Clip, Retainer Cap, End (R.H.) 3358516 White 3358517 Almond 3388706 Resistor, Timer 349639 Screen, Lint Cover, Lint Screen...
- Page 3 OPTIONAL PARTS NOT INCLUDED PAINTS PAINT,TOUCH UP (1/2 oz.) 72017 White 72107 Almond PAINT PRESSURIZED SPRAY (13 oz.) 350930 White 350956 Almond 350938 Primer, Gray 350941 Leveler (Thinner) PAINT,BULK (1 qt.) 799344 White (Uncut) 978883 Almond (Uncut) Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS LIT677818 Dryer...
- Page 5 690236 Wire, Ground (Motor) 3393008 Screw, 10-16 x 1/2 3393657 Restrainer, Belt 237979 Spring, Door (2) 690893 Cover, Terminal Block 694091 Screw 348365 Panel, Rear 3388229 Clip, Toe Panel (2) 3357011 Screw, 10-16 x 1/2 347207 Switch, Door 98129 Screw, 6-20 x 1-3/8 (2) 691581 Lever, Door Switch 693994...
- Page 6 685441 (Alt.) 3390733 Seal, Door 697776 Screw, 10-32 x 1/2 (External Ground) 693995 Screw, 10-16 x 1/2 279318 Terminal, Tinned & Brass (3) (Includes Illus. 40)
- Page 8 3396352 Lint Chute Assembly 98460 Nut, Push-In (2) 686889 Pad, Cabinet 90767 Screw, 8 x 3/8 3389946 Thermal, Cut-Off (Hi-Limit Thermostat Illus. No.15 Included) 347139 Seal, Lint Chute 3388703 Washer, Support 694089 Wheel, Blower 695081 Housing, Blower 337272 Clip 343641 Screw, 10-16 x 1/2 695547 Box, Heater...
