6

Receiving Frame Rear Panel

(Figure 4)
Drive Activity
LED Pin
• I/O Connector - The input/output connector provides a standard interface for all SATA
signals.
• SATA Power Connector - 15-Pin SATA power connector to accept DC power.
NOTE:
• Drive Activity LED Pins - Pin 1 is used for host connection (cable not included) to the
Drive Activity LED (Figure 1). Some SATA PC systems/host controllers provide support
for the Drive Activity LED feature (refer to the SATA PC system/host controller manu-
facturer's documentation for further information).
• Factory Reserved Pins - These pins are reserved for factory use only - Do not install
jumper under any circumstances!
• Cooling Fan - Field-replaceable fan provides ample cooling (4.6 CFM) for drive.
StorCase Technology, Inc.
GND
2 4 6
1 3 5
Reserved
Pins

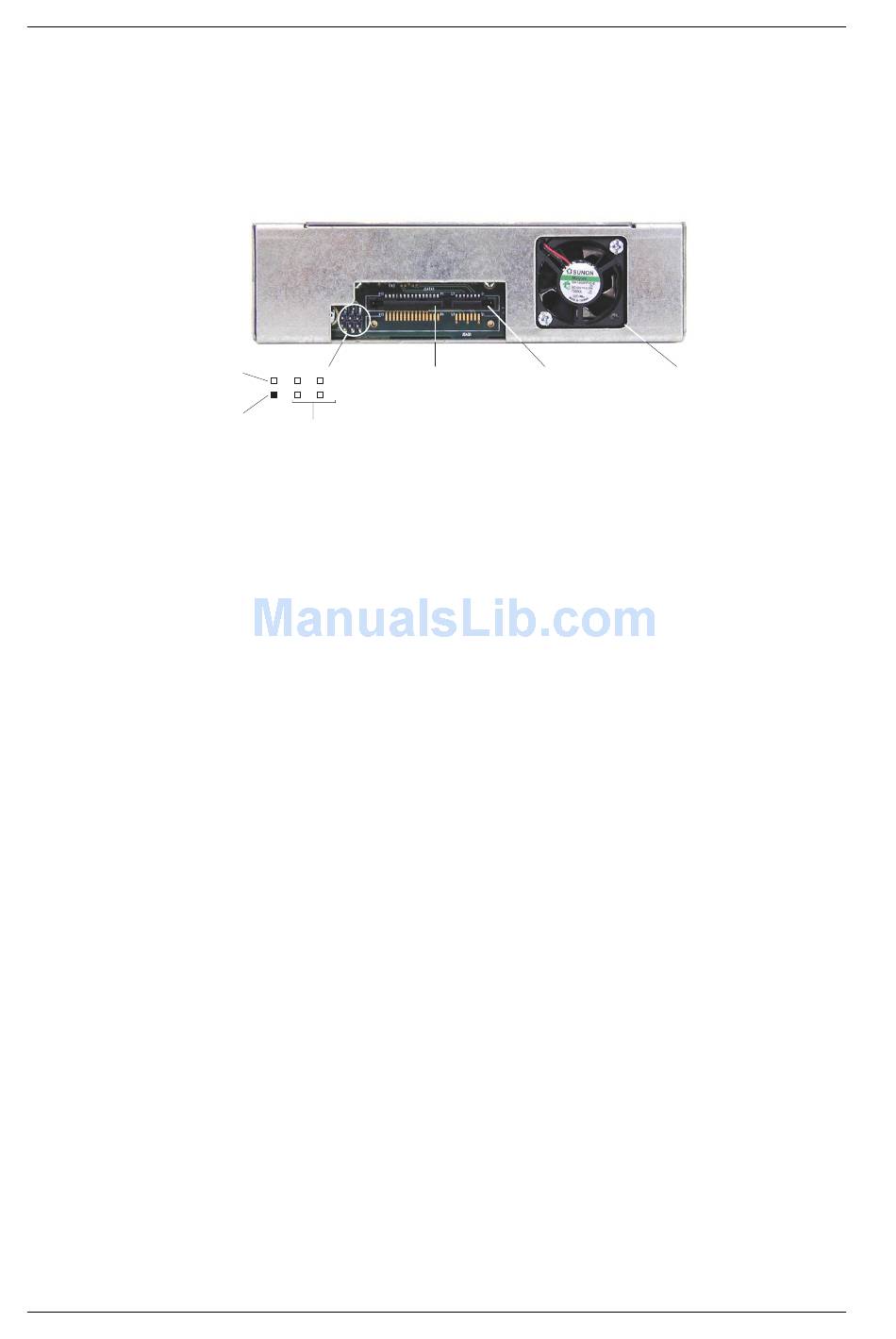

Figure 4: Receiving Frame Motherboard
If your system does not accommodate the SATA power connector, simply
use the SATA-to-DC Power adapter cable (included in the accessory
bag) to connect to your system's DC power.
SATA Power I/O
Connector Connector
(Rear View)
DX115 for Backup User's Guide - Rev. A01
Introduction
Cooling
Fan
