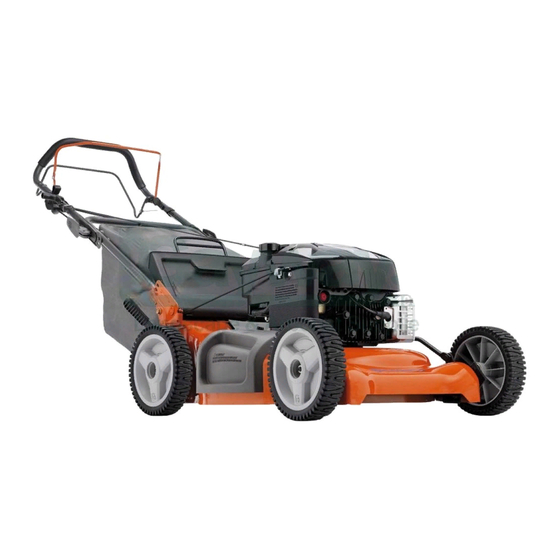

S E R V I C E IPL, R52 S, 96141006005, 2008-02, 532 41 60-68 R52 S Spare parts Ersatzteile Pièces détachées Reserve onderdelen Repuestos Reservdelar 532 41 60-68...
Page 2
ROTARY LAWN MOWER - - MODEL NUMBER R52S (96141006005) PRODUCT NUMBER 961 41 00-60...
Page 3
ROTARY LAWN MOWER - - MODEL NUMBER R52S (96141006005) PRODUCT NUMBER 961 41 00-60 PART PART DESCRIPTION DESCRIPTION 532 85 10-74 Washer, Hardened 532 41 60-58 Handle, Upper, Deluxe Comfort (Includes Grip) 532 85 02-63 Lock Washer, Helical Spring 3/8 532 41 67-03 Handle, Lower 532 85 10-84 Screw, Hex Head 3/8-24 x 1.38 532 40 54-16 Spring, Rear Door, RH...
Page 4
ROTARY LAWN MOWER - - MODEL NUMBER R52S (96141006005) PRODUCT NUMBER 961 41 00-60...
Page 5
ROTARY LAWN MOWER - - MODEL NUMBER R52S (96141006005) PRODUCT NUMBER 961 41 00-60 PART PART DESCRIPTION DESCRIPTION 532 40 65-31 Cable, Drive 532 41 09-22 Shaft Assembly, Rear 532 18 87-60 Bar, Control, Drive 532 41 09-33 Shaft Assembly, Front 532 16 45-57 Bracket, Downstop 532 16 14-63 Retainer, Front Shaft 532 19 96-87 Screw...
