- Page 1 CABINET PARTS REFRIGERATOR For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) 10−09 Litho In U.S.A. (rrm) (eeb) Part No. W10297612 Rev. A...
-
Page 2: Cabinet Parts

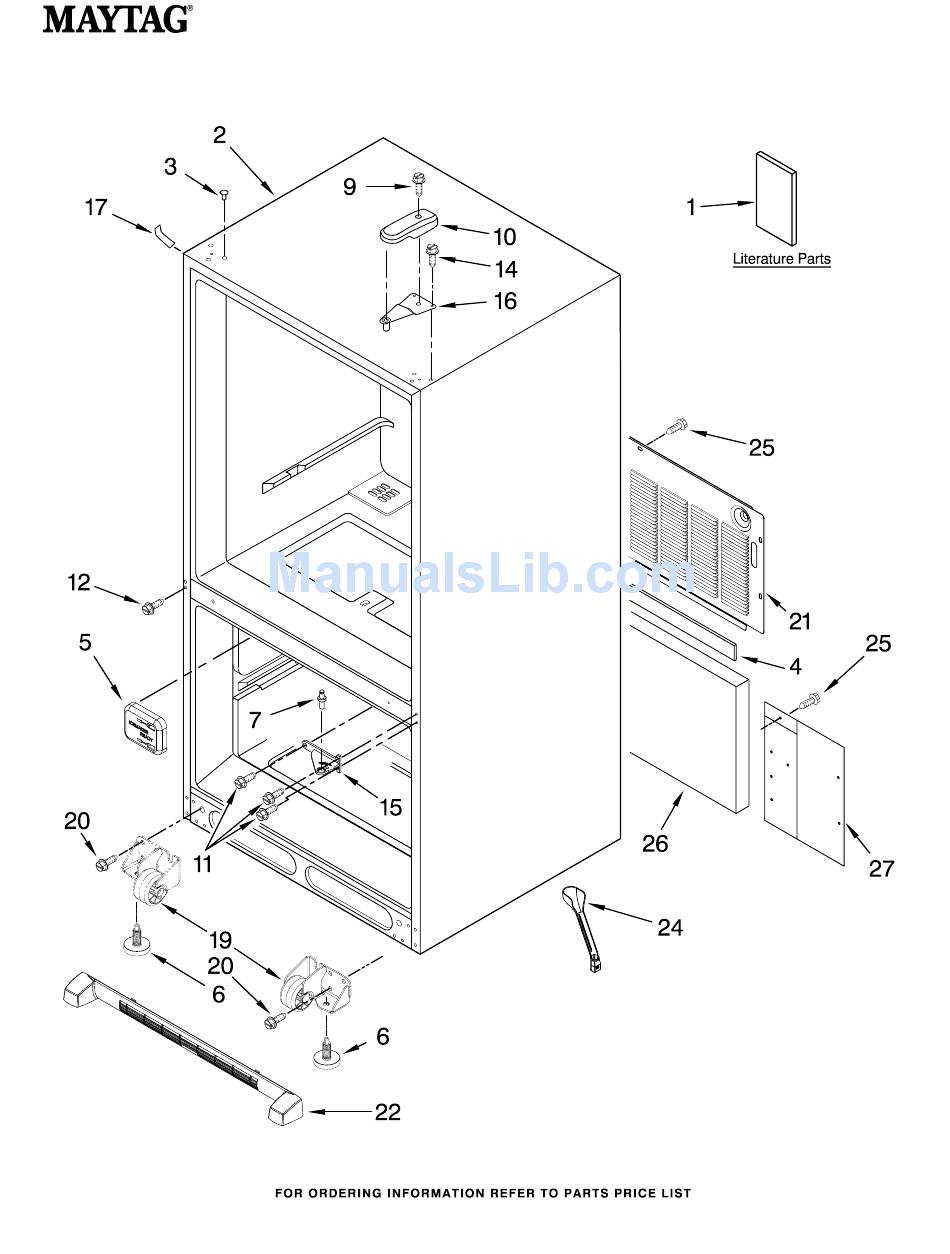

CABINET PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION Literature Parts W10208789 Use & Care Guide W10206543 Energy Guide W10238840 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) M0310731 Black B5759655 Gasket 12477501 Cover−Fill Tube 6 W10141622 Foot, Brake... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) W10297612... - Page 4 FREEZER LINER PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam (2) 12002497 Gear (2) (Includes RH & LH) 12804901 Cover, Light 5 12812901WD Shaft 12570701V Socket, Light 12932103 Guide−Fill Tube...
-
Page 5: Freezer Door Parts
FREEZER DOOR PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION Door, Freezer 13092260SQ Stainless Steel Handle, Door W10197295 Stainless Gasket, Door W10164033 Black 13001201 Mount−Handle−(2) 12991703 Screw−Flat−(2) W10297612... -
Page 6: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A 12002355 Thermistor 12806501 Cover, Light Serviceable Part) 17 M0310343 Plug Button 12806601V Housing, Light 12806301 Bracket, Control 9 W10194422V Bulb, Light (2) -
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) W10297612... - Page 8 REFRIGERATOR DOOR PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION Door, Refrigerator 13023887SQ Stainless Steel−LH 13023886SQ Stainless Steel−RH Screw 13001201 Mount−Handle−(2) 3 12804701SP Door, Dairy 4 12369502SP Tray, Dairy 12801902V Bucket, Medium (2) 12801901V Bucket, Small (2) Gasket, Door...
-
Page 9: Unit Parts
UNIT PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) W10297612... - Page 10 UNIT PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12992301 Screw 20 12225401WD Tray, Drip 12825803 Blade, Fan Following Parts Not Illustrated 12990701 Screw 3 W10210982 Basepan 12726401 Evaporator and Optional Parts Not Included...
-
Page 11: Shelf Parts
SHELF PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) W10297612... - Page 12 SHELF PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) Illus. Part DESCRIPTION 12530701 Rail, Center Crisper 2 W10231339 Trim, Crisper 12990601 Screw 4 W10201224 Basket, Freezer (Upper) 5 W10146449 Basket, Freezer (Lower) 12463608 Shelf (4) 12990515 Screw 8 12530805SP Slide, Humidity...
-
Page 13: Optional Parts
OPTIONAL PARTS For Models: MBL1957VES2, MBR1957VES2 (Stainless−LH) (Stainless−RH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION TORX SCREW WRENCH ICE MAKER PAINT, BULK (1 qt.) FIELD INSTALLABLE 1117510 Torx Key W10261234 IC13B 799344 White (Uncut) 799344 Black (Uncut) ACCESSORIES 4392900 Biscuit (Uncut) PAINT, TOUCH−UP (1/2oz.)
