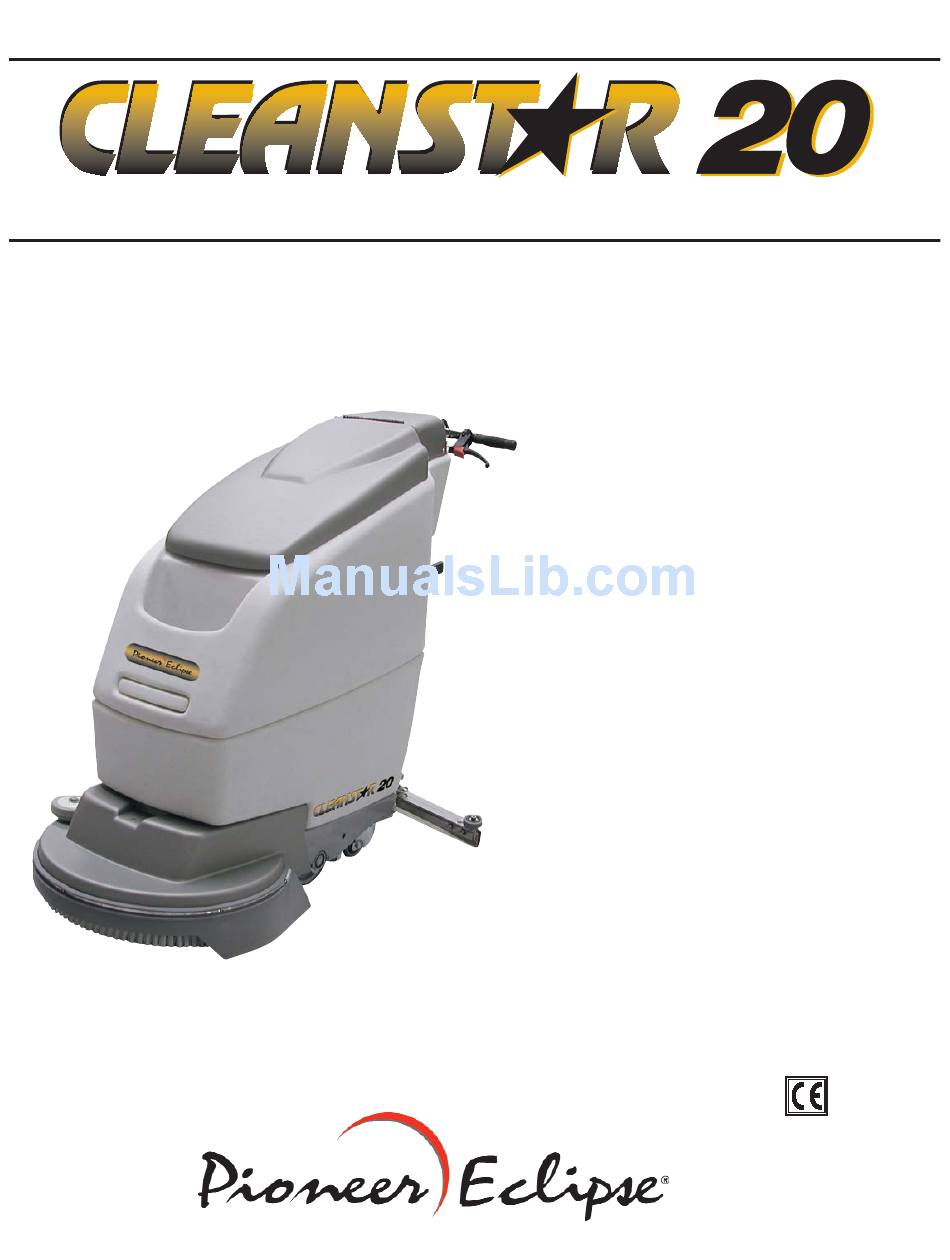

O p e r a t o r ' s M a n u a l
Walk-Behind Automatic Scrubber
Failure to read and understand this manual
before operating this machine or performing service on
this machine may result in injury to the operator or
nearby personnel or result in damage to the machine
or nearby property. Each operator must be trained in
the operation of this machine before being allowed to
use it. Contact Amano Pioneer Eclipse Customer
Service at 1-800-367-3550 or 1-336-372-8080 or an
authorized Amano Pioneer Eclipse Distributor to
inquire about training or to request a replacement
manual.
La falta de leer y de entender este manual antes de
usar esta máquina o de realizar servicio en esta
máquina puede dar lugar a lesión al operador o al
personal próximo o a resultado en daño a la máquina
o propiedad próxima. Cada operador debe ser
entrenado en la operación de esta máquina antes de
ser permitido utilizarla. Ponerse en contacto con el
servicio de Amano Pioneer Eclipse 1-800-367-3550 o
1-336-372-8080 o un distribuidor autorizado por
Amano Pioneer Eclipse para investigar sobre el
entrenamiento o para solicitar un manual.
Manquer de lire et de comprendre ce manuel
d'utilisation avant l'utilisation de cette machine ou
avant faire de maintenance sur la machine peut être
résulter en blessure à l'opérateur ou au personnel
proche ou peut endommagé la machine ou la propriété
proche. Chaque utilisateur doit être entraîné dans
l'opération de cette polisseuse avant l'utilisation.
Veuillez contacter le service àpres-vente de Amano
Pioneer Eclipse à 1-800-367-3550 ou 1-336-372-8080
et/ou un distributeur de Amano Pioneer Eclipse pour
vous renseigner concernant l'entraînement ou pour
obtenir un autre manuel d'utilisation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CleanStar CS 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pioneer Eclipse CleanStar CS 2000

  • Page 1 Chaque utilisateur doit être entraîné dans l'opération de cette polisseuse avant l'utilisation. Veuillez contacter le service àpres-vente de Amano Pioneer Eclipse à 1-800-367-3550 ou 1-336-372-8080 et/ou un distributeur de Amano Pioneer Eclipse pour vous renseigner concernant l'entraînement ou pour obtenir un autre manuel d'utilisation.
  • Page 2: Table Of Contents

    Please read this manual carefully. It will acquaint you with the care, safe handling and operation of the CleanStar CS2000 Walk-Behind Autoscrubber. Table of Contents Machine Description Features ............2 Specifications .
  • Page 3: Machine Description

    Machine Description Features • Large Capacity Tanks require less frequent filling and emptying. • Traction Drive for Ease of Operation • Quick and easy brush or pad replacement • User-friendly instrument panel Specifications Length: 39.4” (100 cm) Width: 21.7” (55 cm) Height: 41.7”...
  • Page 4: General Instructions

    For a longer transport, it is recommended to pack the machine again in its original box. The machine can be thrust-moved for short distances. General Instructions Before using the machine, Pioneer Eclipse strongly recommends that all operators read the General Safety Standards in this manual.
  • Page 5: Spare Parts

    Manufacturer Responsibilities Amano Pioneer Eclipse is not responsible for any inconveniences, failures, accidents, etc. due to the non-acquaintance (or non-fulfillment) of the instructions in this manual. The same applies to changes, modifications, and/or installation of unapproved accessories. In particular, Amano Pioneer Eclipse is not responsible for any damages caused by: •...
  • Page 6 Do not make any change or variation to the machine that can compromise its safety, without prior written authorization by Amano Pioneer Eclipse. Never perform any unsafe operations. Before starting to work, become familiar with the environment of the working place.
  • Page 7: Maintenance Instructions

    Make Sure That: • No strangers are present near the machine. Strangers are never allowed to approach the machine. • No strange objects (appliances, cloths, etc.) are on the machine. • The machine does not emit strange noises after start-up; if so, stop immediately and identify the cause.
  • Page 8 Every six months the efficiency of the safety devices should be verified. This inspection should be performed by qualified personnel authorized by Amano Pioneer Eclipse. To increase the efficiency of the safety devices, a Amano Pioneer Eclipse technician or authorized service center should perform a complete service of the machine after every 800 hours of use, or every six months.
  • Page 9: Preparing And Operating The Cs2000

    For a proper cleaning of the floor, it is important to choose the appropriate cleaner solution. Your Amano Pioneer Eclipse Authorized Distributor can recommend the appropriate Amano Pioneer Eclipse cleaner for your particular needs. Keep in mind that a too-strong chemical agent can compromise the long life of your machine.
  • Page 10: Scrubbing

    Scrubbing • Turn the pad/brush switch to position 1 to engage the pad/brush motor. The pad/brush is lowered to the floor by pushing on the pad/brush plate lowering block. • Immediately use the lever to apply the detergent water, and adjust it accordingly. •...
  • Page 11: Machine Care

    Machine Care Maintenance Schedule After Each Use Clean the recovery tank. Clean the vacuum motor filter. Weekly Check the condition of pad/brush. Check the condition of the rubber squeegee blades. Check the condition of the vacuum hoses and squeegee. Monthly Check the clean water tank filter.
  • Page 12: Squeegee Blade Replacement

    Squeegee Blade Replacement The squeegee blades should be replaced when the contact edge becomes worn. To replace the blades, remove the squeegee from the machine. Remove the screws on the front part and on the rear part of the squeegee, the steel straps, and the worn rubber blades. Perform the inverse procedure and assemble the new blades, then adjust the squeegee.
  • Page 13: Machine Diagrams And Parts List

    Machine Diagrams and Parts List Wiring Schematic: CS2000 032408...
  • Page 14 Wiring Schematic: CS2000 Ref # Part # Description IN064 KEY SWITCH IN067 SWITCH PY602 BATTERY INDICATOR PY612 POTENTIOMETER IN009 MICROSWITCH SL015 RELAY PY234 DIODE MI195 SHEATH PY125 ELECTRONIC GROUP SL001 SOLENOID PY460 GL022 ELECTRIC FLOAT MI287 CABLE HOLDER PY289 FUSE PY619 PLUG PY613...
  • Page 15: Tanks & Cover Group

    Tanks & Cover Group: CS2000 012507...
  • Page 16 Tanks & Cover Group: CS2000 Ref # Part # Description Ref # Part # Description TG100 PLATE RO502 INOX WASHER CO194G 1 CASE VC402 SCREW DD402 INOX NUT GR141 GASKET MV035 BLACK PLASTIC HINGE VC412 SCREW VS410 SCREW DD452 INOX SELF-LOCKING NUT SU451 SUPPORT GR143...
  • Page 17: Brush Housing Group

    Pad Drive Group: CS2000 012507...
  • Page 18 Pad Drive Group: CS2000 Ref # Part # Description ST121 BRACKET VS421 SCREW TP116 BASE FRAME VE492 SCREW BO156 BUSH LV294 LEVER BO157 BUSH VE492 SCREW VS421 SCREW IS001 PEDAL COVER LM175 SQUEEGEE LIFT LEVER PEDAL LV282 LEVER MO212 GEARMOTOR MP084 BRUSH VE492...
  • Page 19: Drive Wheel Assembly Group

    Drive Wheel Assembly Group: CS2000 012507...
  • Page 20 Drive Wheel Assembly Group: CS2000 Ref # Part # Description Ref # Part # Description DD454 INOX SELF-LOCKING NUT BO082 BUSH LV290 LEVER PP024 DRIVE MOTOR PULLEY ST106 BRACKET DD454 INOX SELF-LOCKING NUT ML107 ENCLOSING COVER SPRING VE464 SCREW VE473 SCREW CI037 BELT...
  • Page 21: Squeegee Group

    Squeegee Group: CS2000 032508...
  • Page 22 Squeegee Group: CS2000 Ref # Part # Description Ref # Part # Description SN002 JOINT RC113 UNION MI028 TB179 PIPE DD404 INOX NUT GR118 GASKET TI147 TIE ROD GH018 RING NUT CP206 SPLIT PIN FS031 CLAMP WV010 SCREW TB205 PIPE RO500 WASHER RC119...
  • Page 23: Handle Group

    Handle Group: CS2000 012507...
  • Page 24 Handle Group: CS2000 Ref # Part # Description Ref # Part # Description GI021 SUCTION ENGINE RING RO911 WASHER MI082 U BOLT LV293 LEVER GL019 GASKET VP055 HANDLE MO180 24V BYPASS VACUUM DD453 INOX SELF-LOCKING NUT MOTOR SU430 SUPPORT MP239 24V MOTOR BRUSH PT182 PLATE...
  • Page 25: Limited Warranty

    THE OBLIGATION OF AMANO PIONEER ECLIPSE CORPORATION 1) The obligation of Amano Pioneer Eclipse under this warranty is limited to repairing or replacing, at its option, any part which is proven to be defective in material or workmanship under normal use for the applicable period stated above.
