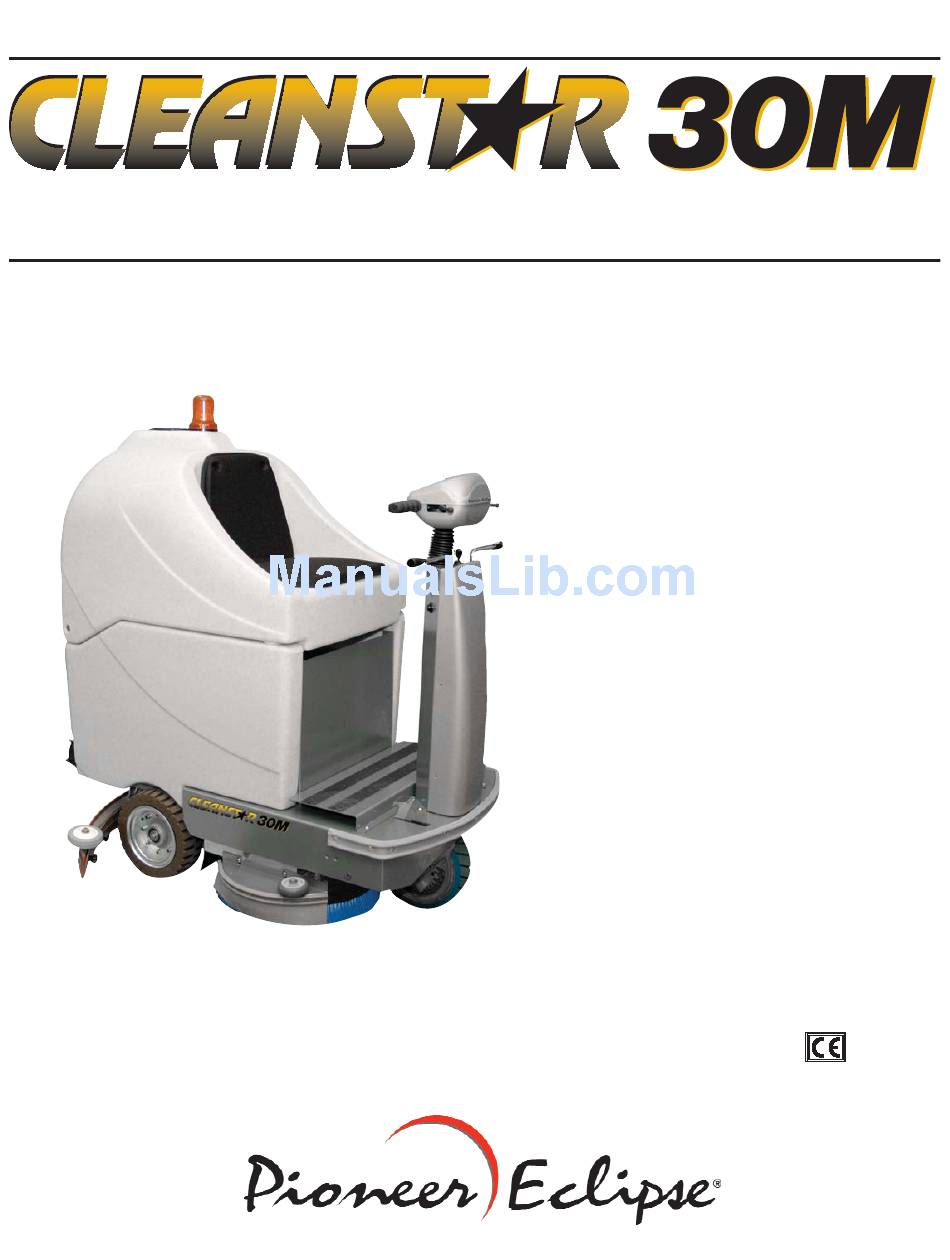

Pioneer Eclipse CS3000M Operator's Manual

Ride-on automatic scrubber

Advertisement

O p e r a t o r ' s M a n u a l
RIDE-ON AUTOMATIC SCRUBBER
FOR MODEL: CS3000M
Failure to read and understand this manual
before operating this machine or performing service on
this machine may result in injury to the operator or
nearby personnel or result in damage to the machine
or nearby property. Each operator must be trained in
the operation of this machine before being allowed to
use it. Contact Amano Pioneer Eclipse Customer
Service at 1-800-367-3550 or 1-336-372-8080 or an
authorized Amano Pioneer Eclipse Distributor to
inquire about training or to request a replacement
manual.
La falta de leer y de entender este manual antes de
usar esta máquina o de realizar servicio en esta
máquina puede dar lugar a lesión al operador o al
personal próximo o a resultado en daño a la máquina
o propiedad próxima. Cada operador debe ser
entrenado en la operación de esta máquina antes de
ser permitido utilizarla. Ponerse en contacto con el
servicio de Amano Pioneer Eclipse 1-800-367-3550 o
1-336-372-8080 o un distribuidor autorizado por
Amano Pioneer Eclipse para investigar sobre el
entrenamiento o para solicitar un manual.
Manquer de lire et de comprendre ce manuel
d'utilisation avant l'utilisation de cette machine ou
avant faire de maintenance sur la machine peut être
résulter en blessure à l'opérateur ou au personnel
proche ou peut endommagé la machine ou la propriété
proche. Chaque utilisateur doit être entraîné dans
l'opération de cette polisseuse avant l'utilisation.
Veuillez contacter le service àpres-vente de Amano
Pioneer Eclipse à 1-800-367-3550 ou 1-336-372-8080
et/ou un distributeur de Amano Pioneer Eclipse pour
vous renseigner concernant l'entraînement ou pour
obtenir un autre manuel d'utilisation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS3000M and is the answer not in the manual?

Questions and answers

Summary of Contents for Pioneer Eclipse CS3000M

  • Page 1 Chaque utilisateur doit être entraîné dans l'opération de cette polisseuse avant l'utilisation. Veuillez contacter le service àpres-vente de Amano Pioneer Eclipse à 1-800-367-3550 ou 1-336-372-8080 et/ou un distributeur de Amano Pioneer Eclipse pour vous renseigner concernant l'entraînement ou pour obtenir un autre manuel d'utilisation.
  • Page 2 FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Record This Important Information Date of Purchase Purchased From Address City State Phone Contact Machine Model Machine Serial Number Important Phone Numbers Medical Emergency...
  • Page 3: Table Of Contents

    Welcome Congratulations on purchasing the CleanStar 30M Ride-On Autoscrubber from Amano Pioneer Eclipse. Please read this manual carefully. It will acquaint you with the care, safe handling and operation of the CleanStar 30M. Contents Machine Features............2 Brush Replacement..........14 Machine Specifications............2 Squeegee Blade Replacement......14 Safety Precautions............3 Maintenance..............15...
  • Page 4: Machine Features

    Machine Features Large capacity tanks require less frequent filling and emptying Compact, highly maneuverable design for ease of operation Cleaning width 29.5” (75 cm) 4 hour run-time, easy access batteries User-friendly instrument panel Variable speed with dynamic braking Machine stops when accelerator is released Pads/brushes stop automatically when accelerator is released 4-position rear squeegee and 2-position front squeegee provide extended life Horn, backup alarm, and beacon light for safety...
  • Page 5: Safety Precautions

    Do not make unauthorized modifications or alterations to this machine. Amano Pioneer Eclipse assumes no CAUTION! DANGER! Crushing can occur when the liabilities for injury or damage resulting from an scrub deck is lowered.
  • Page 6: Operator Responsibility

    The operator cannot use any equipment or other device that can cause or prevent this machine from Amano Pioneer Eclipse is not responsible for accidents working properly. that occur to people or things caused by the improper use of this machine, e.g. using the machine on any surface The components on this machine cannot be modified that can compromise its stability.
  • Page 7: Operator Qualifications

    To start the machine again the operator has to empty the Amano Pioneer Eclipse is not responsible for any recovery tank. damage to people and/or things caused by the non- observance of the instructions provided within this manual.
  • Page 8: Machine Preparation

    Machine Preparation Storage The machine must be stored in an enclosed and dry place Proper use of the CleanStar 30M if not immediately installed in order to keep every part safe. As soon as the machine arrives, please inspect the Relative humidity must be lower than 80% and the storage exterior and all moving parts to verify that no damage has temperature must be between 38°...
  • Page 9: Battery Installation

    Battery Installation WARNING! Batteries emit hydrogen gas when charging. Explosion or fire can result. Keep sparks and open flame away when charging. Do not invert 1. In order to access the battery compartment, lift the polarities. solution tank up. Do not lift the solution tank if it contains any solution.
  • Page 10: Identifying The Machine

    Identifying the Machine Note: A silver label has been place on the side of the steering column. The label identifies the data referring to the “CE” marking. This label should never be removed.
  • Page 11: Machine Operation

    Machine Operation Controls and Instruments Battery Charge Level Indicator Forward/ Reverse Diagnostic Switch Light Solution Lever Squeegee Raise/ Lower and Vacuum Motor On/Off Lever Key Switch...
  • Page 12: Symbols On The Dashboard

    Symbols on the Dashboard Horn Reverse Gear Scrub Brushes On Scrub Brushes Off Battery Charge Diagnostic Light Level Solution Flow...
  • Page 13: How The Machine Functions

    CAUTION! Make sure the cleaner solution is suitable for motor on. the surface. Amano Pioneer Eclipse is not responsible for 3. Pull the solution control lever on the left side of the damages done by too aggressive cleaning solutions.
  • Page 14: Steering Column And Controls

    Steering Column and Controls 1. Steering Pod: is used to turn the machine either left or right. 2. Acceleration Lever: This lever will propel the machine in either forward or reverse. The speed of the machine is variable. The more the lever is pulled, the faster the unit will travel. The scrub brushes will not activate until the acceleration lever is depressed.
  • Page 15: Squeegee Adjustment

    Squeegee Adjustment Draining The Tanks The CleanStar 30 is equipped with two drain hoses. One The squeegee must be adjusted to get a perfectly dry floor. The machine is equipped with a parabolic shaped is for the solution tank on the left side of the back of the squeegee.
  • Page 16: Brush Replacement

    Brush Replacement Squeegee Blade Replacement Squeegee blades must be replaced when their edges are 1. Remove the ignition key from the dashboard in worn. order to avoid the accidental start of the machine. 1. Remove the squeegee from the machine. 2.
  • Page 17: Maintenance

    Trained Technician Complete Check Up Every 5 Years Trained Technician *These items must be performed with the proper tools and training. Contact a Amano Pioneer Eclipse factory certified technician unless you have the proper equipment and mechanical proficiency. Battery Maintenance Safety: Keep flames, sparks, or metal objects away from batteries.
  • Page 18: Vacuum Motor Maintenance

    Inspection and Cleaning: Keep batteries clean and dry from residue. Check that all vent caps are tight. Use a solution of baking soda and water to clean if there is acid residue on batteries or corrosion on the terminals. DO NOT ALLOW ANY BAKING SODA SOLUTION TO ENTER THE BATTERIES. Terminal protectors, protective spray, or petroleum jelly should be applied to terminals to reduce corrosion.
  • Page 19: Tanks And Cover Group

    Tanks and Cover Group: CleanStar 30 020507...
  • Page 20 Tanks and Cover Group: CleanStar 30 Ref. Part # Description Qty. Ref. Part # Description Qty. 51 DT154 TANK SPACER MI256 SEAT 52 TB286 PIPE VA671 SCREW 53 LM530 SHEET MI242 SEAT CLIP 54 VA424 SCREW SB188 SOLUTION TANK (WHITE) 55 VS421 SCREW SB187...
  • Page 21: Frame Group

    Frame Group: CleanStar 30 020507...
  • Page 22 Frame Group: CleanStar 30 Ref. Part # Description Qty. Ref. Part # Description Qty. 53 PE261 TG136 DASHBOARD STICKER 54 RO455 LOCK WASHER VA401 SCREW 55 VB434 SCREW CO240 DASHBOARD COVER 56 FN028 RIGHT BRAKING MASS KIT609 FEED LEVER KIT 57 SG019 SEEGER RING VS419...
  • Page 23: Squeegee And Squeegee Lift Group

    Squeegee and Squeegee Lift Group: CleanStar 30 020507...
  • Page 24: Squeegee And Squeegee Lift Group

    Squeegee and Squeegee Lift Group: CleanStar 30 Ref. Part # Description Qty. Ref. Part # Description Qty. 53 DD454 SELF-LOCKING NUT VE462 SCREW 54 DD455 SELF-LOCKING NUT RO455 LOCK WASHER 55 RO314 LOCK WASHER RO502 LOCK WASHER 56 DD402 LOCK NUT DD454 SELF LOCKING NUT 57 CC5000...
  • Page 25 Scrub Deck Group: CleanStar 30 020507...
  • Page 26 Scrub Deck Group: CleanStar 30 Ref. Part # Description Qty. Ref. Part # Description Qty. PT313 PLATE 57 MP244 CHARCOAL VS411 SCREW 58 CI043 BELT VS421 SCREW 59 PP117 PULLEY LV357 LEVER 60 RC190 UNION LV356 LIFTING LEVER 61 SG019 SEEGER RING BO038 BR.
  • Page 27 Scrub Deck Group Continued: CleanStar 30 020507...
  • Page 28: Scrub Deck Group

    Scrub Deck Group Continued: CleanStar 30 Ref. Part # Description Qty. 103 PT314 PLATE 104 KIT161 HEX. BRUSH CONNECTION 105 VC402 SCREW 106 VB430 SCREW 107 RO455 LOCK WASHER 108 LM528 BRUSHES PLATE SHEET 109 MI265 SHEATH 110 VE492 SCREW 111 RO456 LOCK WASHER 112 VC409...
  • Page 29 Wiring Schematic: CleanStar 30 Page 1 of 3 020507...
  • Page 30 Wiring Schematic: CleanStar 30 Page 2 of 3 020507...
  • Page 31 Wiring Schematic: CleanStar 30 Page 3 of 3 020507...
  • Page 32: Wiring Schematic

    Wiring Schematic: CleanStar 30 Ref. Part # Description Qty. LP030 RED LED LP031 BULB SOCKET PY710 2-WAY-CONNECTOR PY197 AMPEROMETER 24V IN063 6 PIN SNAP SWITCH PY805 POTENTIOMETER IN009 MICRO SWITCH KIT609 FEED LEVER KIT CW250 CABLE 10 CW251 DASHBOARD CABLE 11 SL020 RELAY 12 PY756...
  • Page 33: Warranty

    THE OBLIGATION OF AMANO PIONEER ECLIPSE CORPORATION 1) The obligation of Amano Pioneer Eclipse under this warranty is limited to repairing or replacing, at its option, any part which is proven to be defective in material or workmanship under normal use for the applicable period stated above.
