Pioneer Eclipse PE310AS Manual

Walk-behind autoscrubber
Hide thumbs
Table of Contents

Advertisement

Quick Links

Walk-Behind Autoscrubber
Subtitle
Title
PE310AS
We help you shine.™
Grou p
A company of the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PE310AS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pioneer Eclipse PE310AS

Summary of Contents for Pioneer Eclipse PE310AS

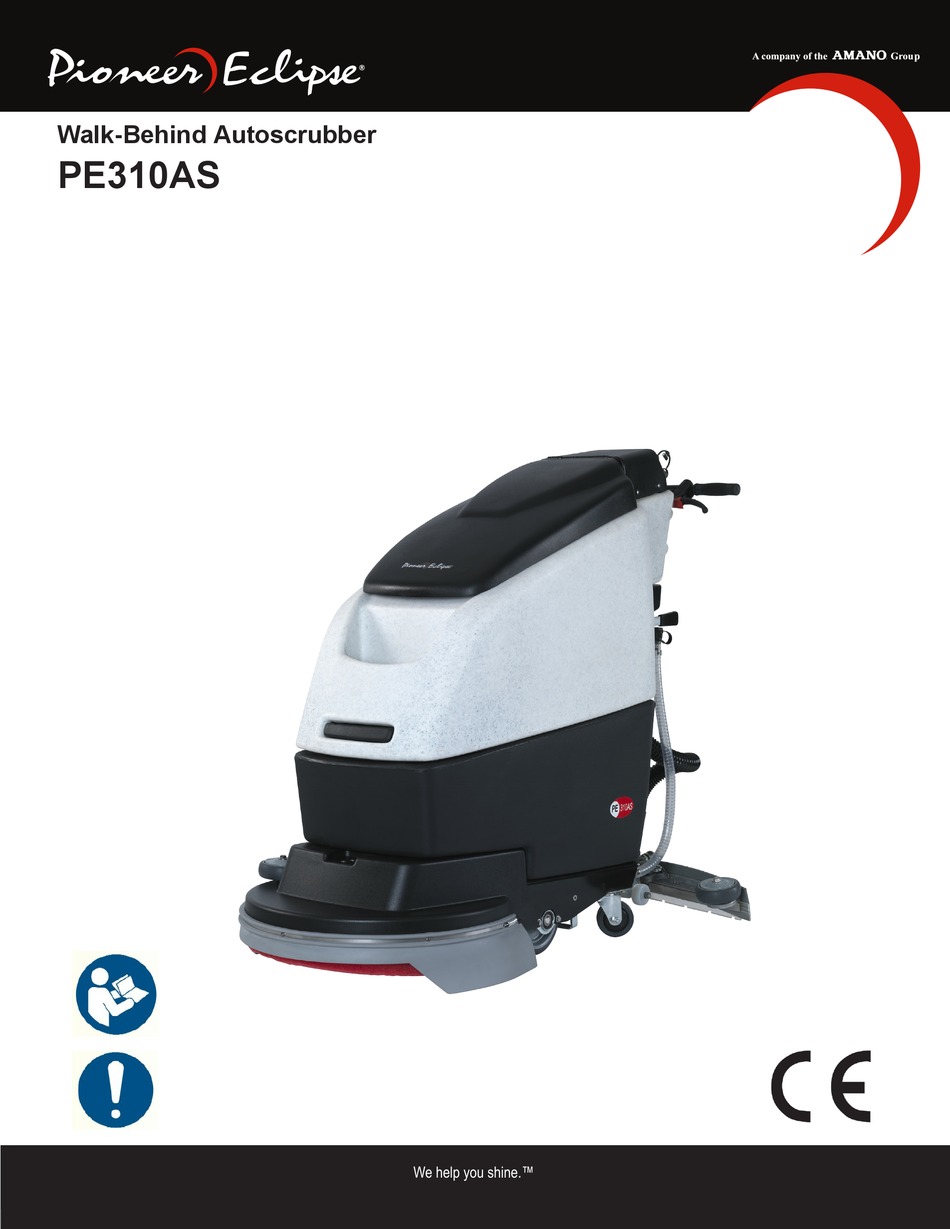

  • Page 1 Grou p A company of the Walk-Behind Autoscrubber Subtitle Title PE310AS We help you shine.™...
  • Page 3 FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Record This Important Information Date of Purchase Purchased From Address City State Phone Contact Machine Model Machine Serial Number Important Phone Numbers Medical Emergency...

  • Page 5: Table Of Contents

    Contents: How the Machine Works............8 Technical Specifications............2 Battery Charging............8 Safety Precautions..............3 Preparing the Machine...........8 Operator Responsibility..........4 Filling Solution Tank..........8 Operator Ear Sound Pressure Level....4 Squeegee Adjustment..........8 Hand-Arm Vibration Test........4 Pad/Brush Installation & Removal......9 Machine Preparation............5 Pad Pressure Adjustment........9 Unpacking the Machine..........5 Scrubbing............9 Transporting the Machine........5 Draining &...

  • Page 6: Technical Specifications

    Technical Specifications: Description Specification Length 39.4” (100 cm) Width (Splash Skirt) 21.7” (55 cm) Height 41.7” (106 cm) Number of Pads Pad Driver Diameter 20” (50 cm)** Pad Pressure 44-88 lbs. (20-40 kg) Squeegee Width 29” (74 cm) Solution Tank Capacity 12 Gal.

  • Page 7: Safety Precautions

    Disconnect battery connections before servicing machine. Use when charging. DO NOT smoke around batteries. Avoid skin only replacement parts supplied by Amano Pioneer Eclipse or contact with the acid contained in the batteries. Never allow an Amano Pioneer Eclipse Authorized Distributor or Service metal objects to lay across battery tops.

  • Page 8: Operator Responsibility

    This machine is designed and manufactured for indoor use Amano Pioneer Eclipse measures and rates the operator-ear on hard floor surfaces. Amano Pioneer Eclipse does not sound pressure level for hand-guided floor treatment and floor recommend use of this machine in any environment other than cleaning machines for industrial use.

  • Page 9: Machine Preparation

    Machine Preparation Installing Batteries PROPOSITION 65 WARNING Unpacking the Machine Battery posts, terminals, and related accessories Unpack the machine with caution. The machine is contain lead and lead compounds, chemicals shipped boxed on a wooden pallet. To unpack machine: known to the State of California to cause cancer and reproductive harm.

  • Page 10: Machine Components

    Machine Components Controls and Instruments Traction Vacuum Pad Motor Breaker Switch Switch Main Key Switch Battery Level Indicator Parking Brake Latch Traction Forward Parking Lever Brake Squeegee Solution Tank Lift Lever Drain Hose Recovery Tank Clean Out Solution Adjustment Recovery Tank Lever Drain Hose Pad / Brush...

  • Page 11: Squeegee Lift Lever

    Machine Components Squeegee Lift Lever This lever will manually lift and lower the squeegee Main Key Switch assembly. To lower the squeegee, pick up on the lever and rotate it towards the right side of the machine. Turns the machine on and off. Allow the lever to fall and the squeegee will rest on the Vacuum Switch floor.

  • Page 12: How The Machine Works

    Only use the supplied or a battery charger approved by the machine, to see the fluid level in the tank. Amano Pioneer Eclipse to charge the batteries. Using the wrong charger can damage the batteries and void For a proper cleaning of the floor, it is important to any warranty.

  • Page 13: Pad/Brush Installation & Removal

    Your Amano settings: 44 lbs (20 kg); 66 lbs (30 kg); & 88 lbs (40 kg). Pioneer Eclipse Authorized Distributor can recommend the appropriate pad/brush for your particular needs. Note: It is not necessary to remove the splash skirt to install or remove the pad holder/brush.

  • Page 14: Battery Maintenance

    Draining & Cleaning Recovery Tank Battery Maintenance When the recovery tank is full or at the end of every The batteries are deep cycle 12 volt batteries. The scrubbing operation, empty the dirty water from the lifetime of the batteries is limited by the number of recovery tank using the drain hose on the back of the charges the batteries receive.

  • Page 15: Vacuum Motor Maintenance

    Check the carbon brushes of motors  Check the electrical system  Check the brake system These items must be performed with the proper tools and training. Contact an Amano Pioneer Eclipse Factory Certified Technician unless you have the proper equipment and mechanical proficiency.

  • Page 16: Machine Troubleshooting

    Machine Troubleshooting Problem Possible Cause Solution Battery plug is not connected Plug the battery plug to the machine. Check for a loose battery connection. Incorrect battery connection Check batteries are wired together correctly via the battery connection diagram. Machine will not turn on Battery voltage is too low Charge the battery using the appropriate charger.
  • Page 17 PE310AS Parts Manual Notes: ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...

  • Page 18: Electrical Schematic

    Electrical Schematic DE LUXE - PIONEER TAV. 6...
  • Page 19 Electrical Schematic (continued) Item Ref. No. Description Item Ref. No. Description IN064 SWITCH, KEY PY001 CABLE, BATTERY IN067 SWITCH, LIGHTED PY350 TERMINAL, 4 POLE, FEMALE PY602 INDICATOR, BATTERY PY351 TERMINAL, 4 POLE, MALE PY612 POTENTIOMETER MO205 MOTOR, TRACTION, 100W, 24V IN009 MICRO SWITCH MO212...

  • Page 20: Tank & Cover Assembly

    Tanks & Cover Assembly DE LUXE - PIONEER TAV. 1...
  • Page 21 Tanks & Cover Assembly (continued) Item Ref. No. Description Item Ref. No. Description TG100 PLATE, PANEL, CONTROL RO500 WASHER, FLAT, M5 CO194 COVER, CONTROL RO502 WASHER, FLAT, M8 X 24 DD402 NUT, HEX, M4 VC402 SCREW, M4 X 10 MV035 HINGE, COVER GR141 SEAL, CAP, TANK, RECOVERY...

  • Page 22: Pad Drive Assembly

    Pad Drive Assembly DE LUXE - PIONEER TAV. 2...
  • Page 23 Pad Drive Assembly (continued) Item Ref. No. Description Item Ref. No. Description ST121 BRACKET, GUIDE, LIFT, PAD CH048 KEY, STRAIGHT, M6 VS421 SCREW, C. SINK, M6 X 12 FL071 FLANGE, DRIVE, MOTOR TP116 FRAME, BASE VI020 WASHER, C.SINK, SPECIAL VE492 SCREW, M10 X 25 WS034 SCREW, C.

  • Page 24: Drive Wheel Assembly

    Drive Wheel Assembly...
  • Page 25 Drive Wheel Assembly (continued) Item Ref. No. Description Item Ref. No. Description DD454 NUT, LOCK, M8 BO082 BUSHING, BRASS, M5 LV290 LEVER, ADJ., PRESSURE, PAD PP024 PULLEY, MOTOR, DRIVE ST106 BRACKET, PRESSURE, PAD DD454 NUT, LOCK, M8 ML107 SPRING, PRESSURE, PAD VE464 SCREW, M8 X 35 VE473...

  • Page 26: Squeegee Assembly

    Squeegee Assembly DE LUXE - PIONEER TAV. 4...
  • Page 27 Squeegee Assembly (continued) Item Ref. No. Description Item Ref. No. Description SN002 YOKE, END, M6 RC113 FITTING, ELBOW, HOSE MI028 PIN, YOKE, M6, w/ SPRING TB179 PIPE, ADAPTER, HOSE DD404 NUT, HEX, M6 GR118 SEAL, GASKET TI147 ROD, CONTROL, SOLUTION GH018 RING, PIPE CP206...

  • Page 28: Handle Assembly

    Handle Assembly DE LUXE - PIONEER TAV. 5...
  • Page 29 Handle Assembly (continued) Item Ref. No. Description Item Ref. No. Description GI021 RING, MOTOR, VAC LV293 LEVER, SOLUTION MI082 CLAMP VP055 GRIP, LEVER, M4 X 20 GL019 FILTER, GASKET DD453 NUT, LOCK, M6 MO180 MOTOR, VACUUM, 24V SU430 BRACKET, PLUG, CHARGER MP239 BRUSH, CARBON PT182...

  • Page 30: Limited Warranty

    (2) The machine must have been purchased from Amano Pioneer 1-800-367-3550 or 1-336-372-8080. If you are dissatisfied with Eclipse Corporation or an authorized Amano Pioneer Eclipse the service that you receive, call or email Amano Pioneer Eclipse Corporation Distributor. Corporation Customer Service Department at apeccs@pioneer- (3) This warranty extends to the original purchaser only and is not eclipse.com for further assistance.
  • Page 32 Sparta, North Carolina 28675  www.pioneereclipse.com +1-336-372-8080 1-800-367-3550 Fax 1-336-372-2913 EC Machinery Directive 2006/42/EC, EC Restriction of Hazardous Substances Directive (2011/65/EU) Harmonized Standards Applied: EN 121001, EN12100-2 LT071400 We help you shine.™ © 2015 Amano Pioneer Eclipse Corporation shine on. 310AS_A...
