JBL Application Engineered AC2212/00 Specification Sheet page 6

Key Features:
100° x 100° Coverage.
PT™ Progressive Transition™
Waveguide for good pattern control
with low distortion.
Bi-Amp/Passive Switchable.
Optional U-Bracket for easy installation
(see AE Series Bracket Guide).
Applications:
Small performing arts facilities
Houses of worship
Theatrical sound design
Auditoriums
Sports facilities
Themed entertainment venues

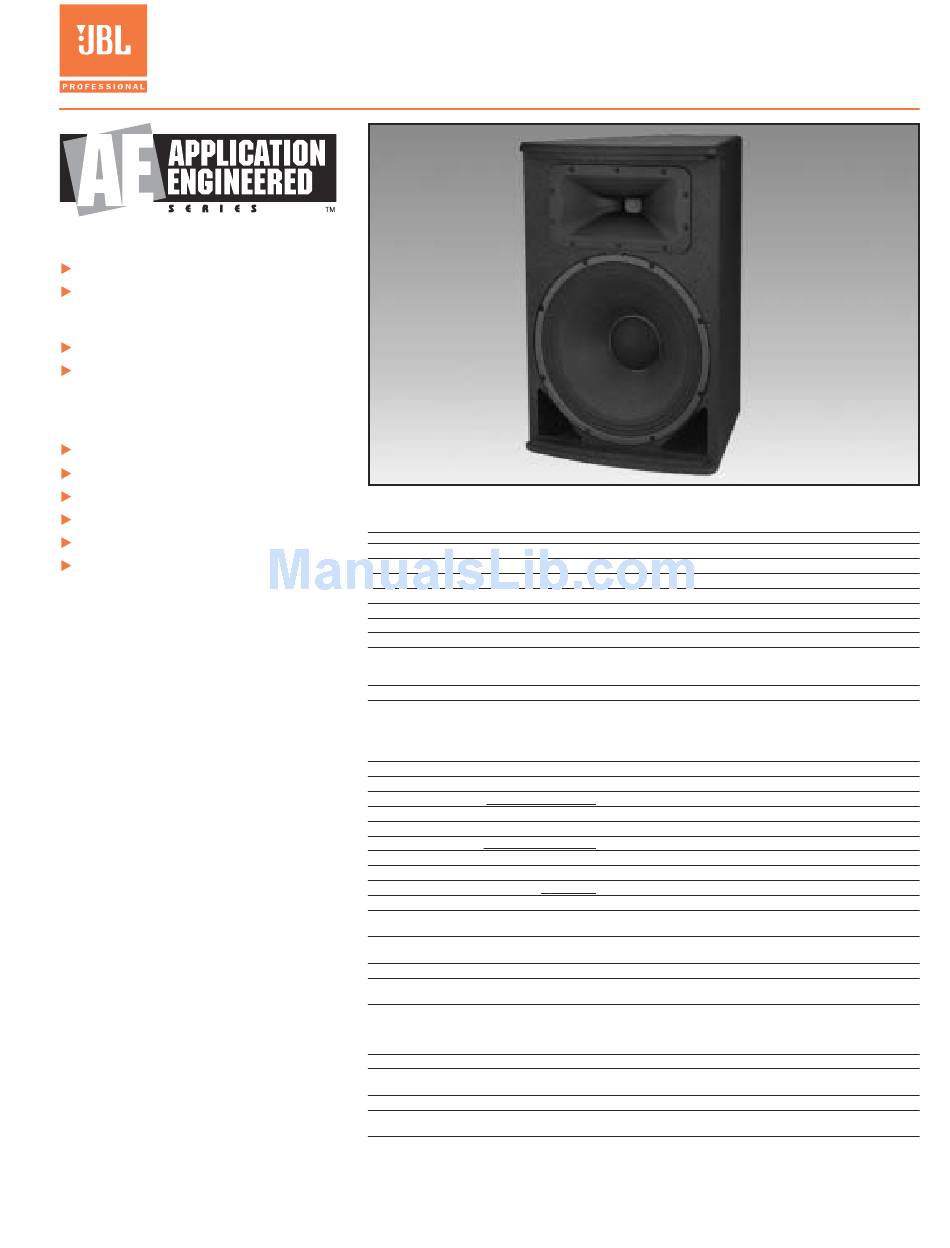

AC2215/00 is a compact 2-way full-
range loudspeaker system comprised of
one 380 mm (15 in) low frequency
driver and one 38 mm (1.5 in) exit/
44 mm (1.75 in) voice-coil compression
driver. The PT Progressive Transition
waveguide provides wide 100° by 100°
coverage. High-slope passive crossovers
minimize band overlap.
The cabinet is fitted with M10
threaded suspension points. Optional
U-bracket is available for easy
installation.
AC2215/00 is part of JBL's AE
Application Engineered Series, a
versatile family of loudspeakers for a
wide variety of fixed installation
applications.
AC2215/00
Specifications:
System:
Long-Term System Power Rating (IEC)
Transducers:
Sensitivity 6 (1W @ 1m, within operational band): 97 dB SPL
Physical:
1 Bi-amp mode, with recommended active tuning.
2 Resultant engineered acoustical response of crossover network and components.
3 AES standard, one decade pink noise with 6 dB crest factor within device's operational band, free air. Standard AES 2 hr rating
plus long-term 100 hr rating are specified for low-frequency transducers.
IEC standard, full bandwidth pink noise with 6 dB crest factor, 100 hours.
4
5 Calculated based on power rating and sensitivity, exclusive of power compression.
Anechoic sensitivity in free field, no additional sensitivity gain from boundary loading.
6
JBL continually engages in research related to product improvement. Changes introduced into existing products without notice
are an expression of that philosophy.
Frequency Range 1 (-10 dB): 42 Hz – 19 kHz
Frequency Response (±3 dB): 50 Hz – 17 kHz
1
Coverage Pattern: 100° x 100°
Directivity Factor (Q): 7.1
Directivity Index (DI): 8.5 dB
Crossover Modes: Bi-amp/Passive switchable
Passive Crossover Slopes 2 : 4th order (24 dB/oct) Butterworth HP & LP, 1300 Hz
Transducer Power Rating (AES) 3 : LF: 275 W (1100 W peak), 2 hrs
HF: 50 W (200 W peak), 2 hrs
4 : Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPL : Bi-amp mode:
5
LF: 121 dB-SPL cont avg (127 dB peak)
HF: 126 dB-SPL cont avg (132 dB peak)
Passive mode:
121 dB-SPL cont avg (127 dB peak)
System Sensitivity (1W @ 1m): Passive mode: 97 dB SPL
6
Low Frequency Driver: 1 x JBL M115-8A 380 mm (15 in) driver with 63 mm (2.5 in) voice coil
Nominal Impedance: 8 ohms
High Frequency Driver: JBL 2418H-1/MTA, 44 mm (1.75 in) voice coil
Nominal Impedance: 8 ohms
Sensitivity (1W @ 1m): 109 dB SPL
Waveguide: PT-F1010HF
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior
grade 11-ply Finnish birch plywood
Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded
hardware
Finish: Black DuraFlex™ finish. White available upon request.
Grille: Powder coated 14 gauge perforated steel, with acoustically trans-
parent black foam backing.
Input Connector: NL4 Neutrik Speakon
terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG)
wire or max width 9 mm (.375 in) spade lugs. Speakon in paral-
lel with barrier strip for loop-through.
Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D): 637 x 422 x 504 mm
(25.1 x 16.6 x 19.9 in)
Net Weight: 25.0 kg (55 lb)
Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers
U-Bracket MTU-2
Compact 2-Way Loudspeaker
with 1 x 15" LF
250 W (1000 W peak), 100 hrs
and CE-compliant covered barrier strip
®
