Key Features; Specifications - JBL Application Engineered AC2212/00 Specification Sheet

AC2215/64

Key Features:

60° x 40° Coverage.
PT™ Progressive Transition™
Waveguide for good pattern control
with low distortion.
Bi-Amp/Passive Switchable.
Optional U-Bracket for easy installation
(see AE Series Bracket Guide).
Applications:
Small performing arts facilities
Houses of worship
Theatrical sound design
Auditoriums
Sports facilities
Themed entertainment venues
Delay/fill locations of larger systems

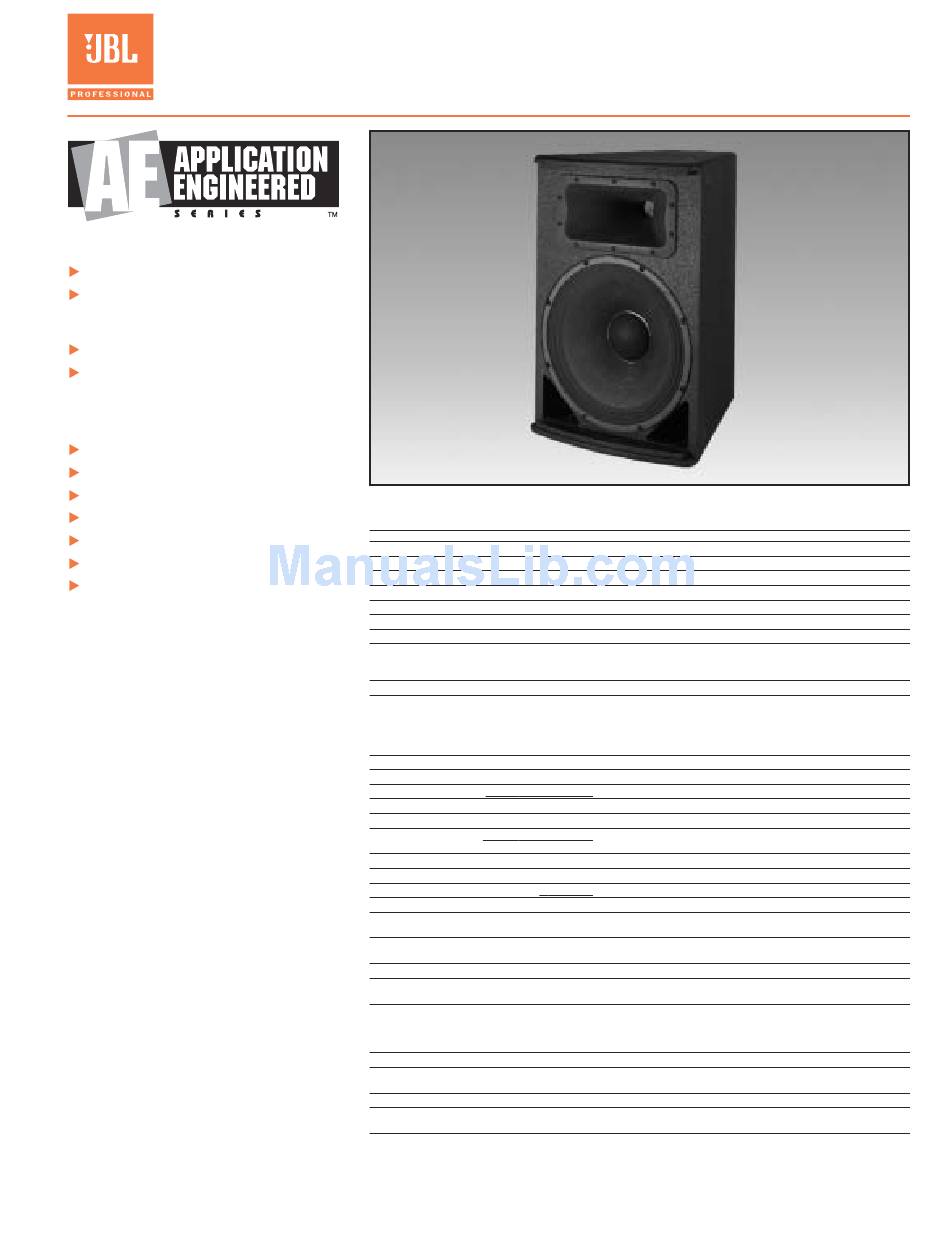

AC2215/64 is a compact 2-way full-
range loudspeaker system comprised of
one 380 mm (15 in) low frequency
driver and one 38 mm (1.5 in)
exit/25 mm (1 in) voice-coil compres-
sion driver. The PT Progressive
Transition waveguide provides 60° by
40° coverage. High-slope passive
crossovers minimize band overlap and
well-controlled off-axis response
enhances arrayability.
The cabinet is fitted with M10
threaded suspension points. Optional
U-bracket is available for easy
installation.
AC2215/64 is part of JBL's AE
Application Engineered Series, a
versatile family of loudspeakers for a
wide variety of fixed installation
applications.
Specifications:
System:
Frequency Range
1
Frequency Response 1
Coverage Pattern: 60° x 40°
Directivity Factor (Q): 17.8
Directivity Index (DI): 12.5 dB
Crossover Modes: Bi-amp/Passive switchable
Passive Crossover Slopes
Transducer Power Rating (AES)
Long-Term System Power Rating (IEC)
Maximum SPL
System Sensitivity 6 (1W @ 1m): Passive mode: 97 dB SPL
Transducers:
Low Frequency Driver: 1 x JBL M115-8A 380 mm (15 in) driver with 63 mm (2.5 in) voice coil
Nominal Impedance: 8 ohms
Sensitivity 6 (1W @ 1m, within operational band): 97 dB SPL
High Frequency Driver: JBL 2412H/MTA, 38 mm (1.5 in) exit compression driver, 25 mm
Nominal Impedance: 8 ohms
Sensitivity (1W @ 1m): 114 dB SPL
Waveguide: PT-F64HF
Physical:
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior
Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded
Input Connector: NL4 Neutrik Speakon
Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D): 637 x 422 x 504 mm
Net Weight: 24.0 kg (53 lb)
Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers
Bi-amp mode, with recommended active tuning.
1
2 Resultant engineered acoustical response of crossover network and components.
3 AES standard, one decade pink noise with 6 dB crest factor within device's operational band, free air. Standard AES 2 hr rating
plus long-term 100 hr rating are specified for low-frequency transducers.
4 IEC standard, full bandwidth pink noise with 6 dB crest factor, 100 hours.
Calculated based on power rating and sensitivity, exclusive of power compression.
5
6 Anechoic sensitivity in free field, no additional sensitivity gain from boundary loading.
JBL continually engages in research related to product improvement. Changes introduced into existing products without notice
are an expression of that philosophy.
Compact 2-Way Loudspeaker
with 1 x 15" LF
(-10 dB): 42 Hz – 19 kHz
(±3 dB): 50 Hz – 17 kHz
2 : 4th order (24 dB/oct) Linkwitz-Riley HP & LP, 2.2 kHz
: LF: 275 W (1100 W peak), 2 hrs
3
250 W (1000 W peak), 100 hrs
HF: 30 W (120 W peak), 2 hrs
4 : Passive mode: 250 W (1000 W peak), 100 hrs
5 : Bi-amp mode:
LF: 121 dB-SPL cont avg (127 dB peak)
HF: 129 dB-SPL cont avg (135 dB peak)
Passive mode:
121 dB-SPL cont avg (127 dB peak)
(1 in) voice coil
grade 11-ply Finnish birch plywood
hardware
Finish: Black DuraFlex™ finish. White available upon request.
Grille: Powder coated 14 gauge perforated steel, with acoustically trans-
parent black foam backing.
® and CE-compliant covered barrier strip
terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG)
wire or max width 9 mm (.375 in) spade lugs. Speakon in paral-
lel with barrier strip for loop-through.
(25.1 x 16.6 x 19.9 in)
U-Bracket MTU-2
