ELECTRICAL EQUIPMENT
The electrical equipment is fed by alternating current, nominal voltage 6 V. This
equipment consists of the following lighting and signalling devices: The headlamp,
dia. 115 mm., 6 V - 25/25 W bulb ( main and dipped beam) ; front pilot light and
light for registration plate 6V - 5 W ; Speedometer light 6 V - 0,6 W, Stop light 6
V - 10 W ; Horne 6 V a. c.. The flywheel is provided with 6 poles.

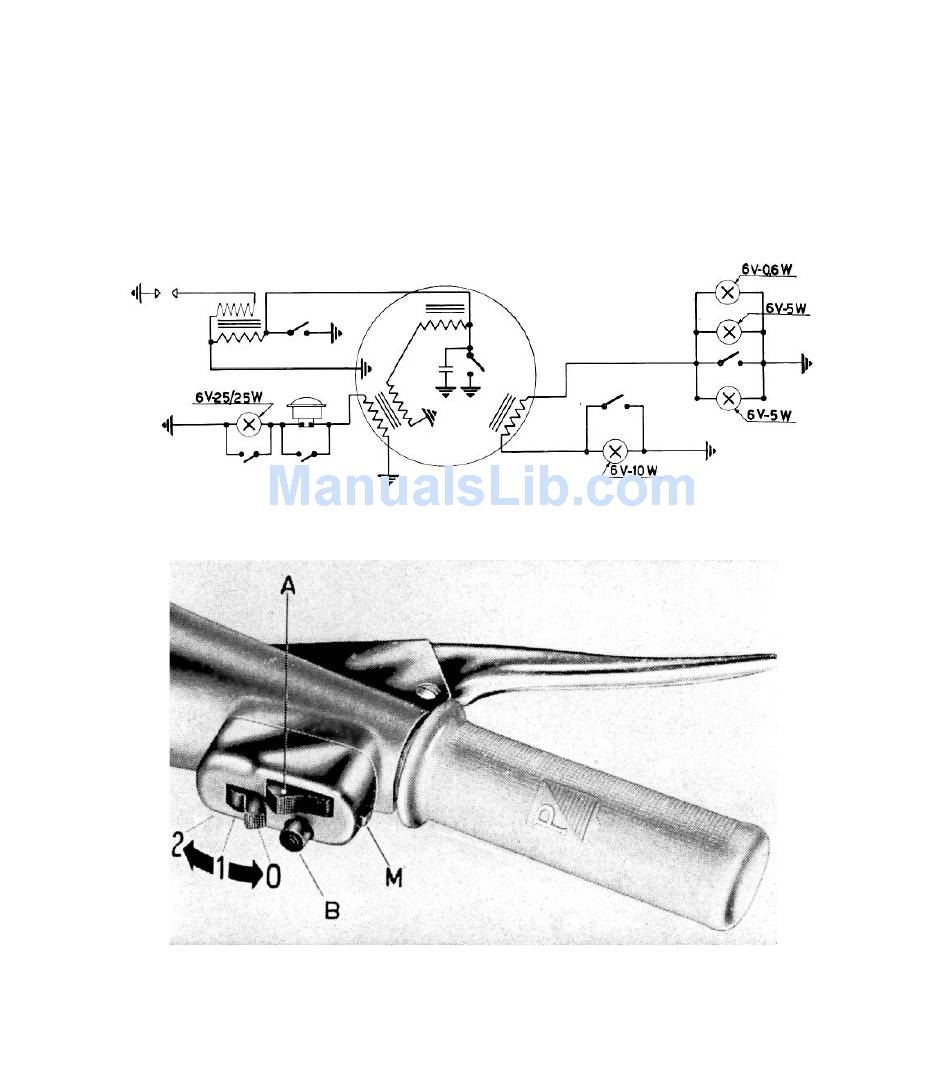

Fig. 23 - Installation of electrical equipment - see Fig. at previous page and electrical
connections - see Fig. at the present page.
Fig. 24 - Light and dip switch
0-1-2: Switching lever positions. - 0. Lights off. - 1. Pilot light and tail lamp on. - 2. Head
light and tail lamp on - A: Main and dipped beam switch - B: Horn button - M: Engine cut-
out.
