Whirlpool GR2FHTXVB00 Parts Manual

Whirlpool refrigerator parts list
Hide thumbs Also See for GR2FHTXVB00:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Using

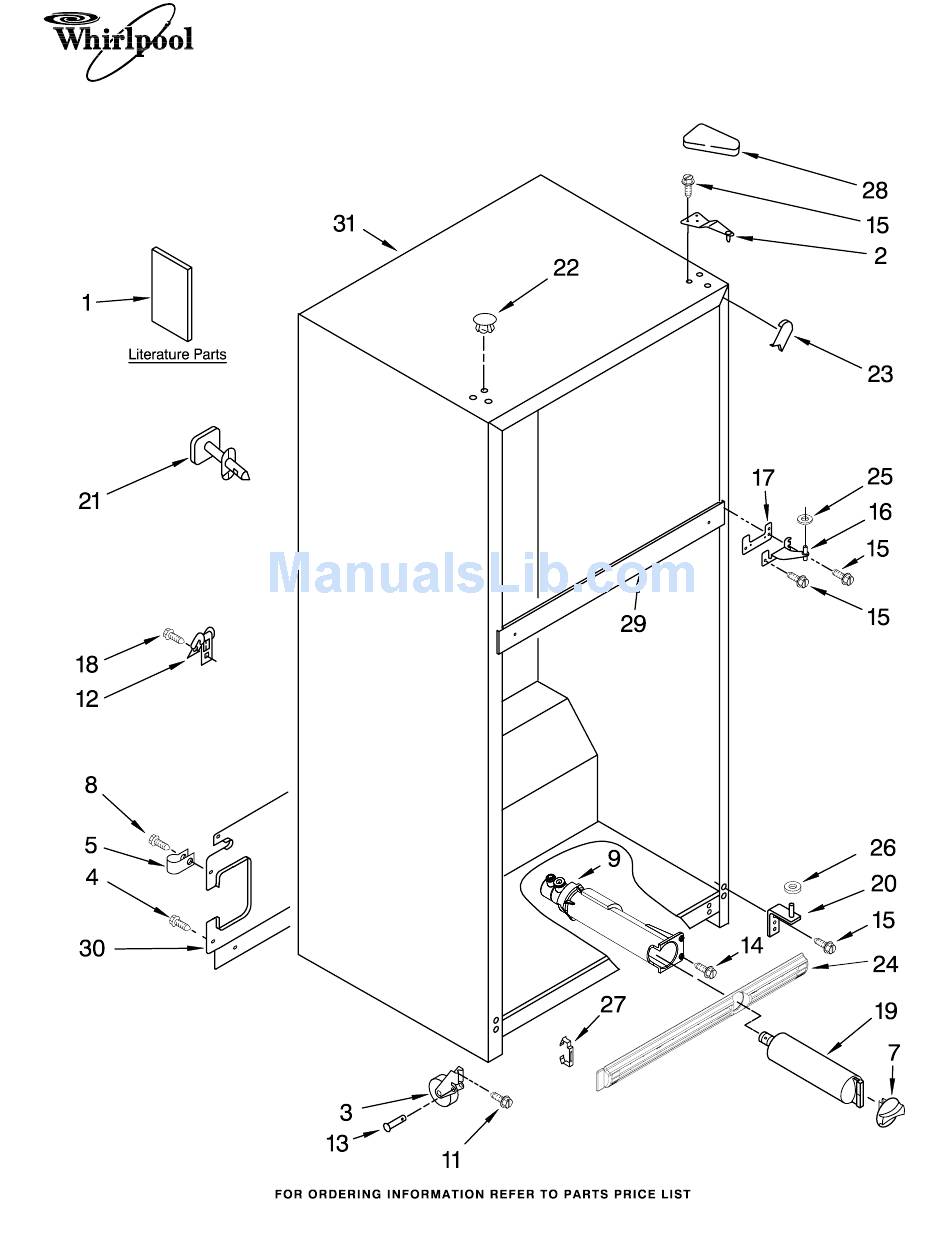

CABINET PARTS
REFRIGERATOR
For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00
(White)
(Black)
(Stainless Steel) (Stainless VCM)
1
1−08 Litho In U.S.A. (rrm)
Part No. W10180463 Rev.A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR2FHTXVB00 and is the answer not in the manual?

Questions and answers

Related Manuals for Whirlpool GR2FHTXVB00

Summary of Contents for Whirlpool GR2FHTXVB00

  • Page 1 CABINET PARTS REFRIGERATOR For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 (White) (Black) (Stainless Steel) (Stainless VCM) 1−08 Litho In U.S.A. (rrm) Part No. W10180463 Rev.A...

  • Page 2: Cabinet Parts

    For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 Illus. Part DESCRIPTION Literature Parts W10142144 Service & Wiring Sheet W10178138 Energy Label 2225623 Modular Icemaker Service Sheet Use & Care Guide W10131411 Bilingual W10131419 Trilingual 2302485 Customer Instruct Sheet, Wtr Filter Following May Be Purchased DO−IT−YOURSELF...
  • Page 3 LINER PARTS For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 (White) (Black) (Stainless Steel) (Stainless VCM) W10180463...
  • Page 4 For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2197380 Grommet (2) 2254360 Gasket, Evaporator Cover (2) 2304093 Adaptive Defrost Control 2212485 Thermostat Tube Barrier 488208 Screw 2310076 Wire Assembly, Control Box 2162085 Socket, Light...

  • Page 5: Shelf Parts

    SHELF PARTS For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 (White) (Black) (Stainless Steel) (Stainless VCM) W10180463...
  • Page 6 SHELF PARTS For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 (White) (Black) Illus. Part 2210522 Shelf, Ladder (2) 2300520 Shelf, Ladder 2163762 Cup, Shelf Mtg. 489478 Screw 3400065 Screw 2214913 Glass, Shelf 2254352 Ice Bucket 2314500 Crisper Cover 2214909K Shelf Assembly 2210573 Glass, Crisper 2214892 Frame Assembly, 2254458 Deflector−Air...

  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 (White) (Black) (Stainless Steel) (Stainless VCM) W10180463...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 (White) (Black) Illus. Part 2202519 White 2204867 Black 2218278 Stainless Steel 2218505 Stainless VCM 2300431 Mat, Rubber 2189202 Bracket, Door 2204837 White 2204840 Black 489276 Screw, 8−18 x 3/4 2212648 White...

  • Page 9: Unit Parts

    UNIT PARTS For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 (White) (Black) (Stainless Steel) (Stainless VCM) W10180463...
  • Page 10 For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 Illus. Part DESCRIPTION 2320187 Plate, Unit Mounting 2169104 Insulation, Sound Dampening 2214960 Condenser 2314157 Heater, Defrost 2254249 Evaporator Assy. 8533859 Screw 2254295 Drain Pan 2176301 Bracket, Heater 2319835 Grommet−Cond(4) 2300638 Extension, Air Baffle 4387731 Cover...

  • Page 11: Icemaker Parts

    ICEMAKER PARTS For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 (White) (Black) (Stainless Steel) (Stainless VCM) W10180463...
  • Page 12 ICEMAKER PARTS For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 (White) (Black) Illus. Part 488878 Clamp, Tube 2181939 Insert, Tube 628379 Clip, Fuse 2210514 Tube, Water 2188808 Valve (Double), 488886 Screw 2210484 Cover 8 W10122527 Mold & Heater 628515 Cup, Water Fill...

  • Page 13: Freezer Door Parts

    For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 Illus. Part DESCRIPTION Freezer Door (Includes Illus. 6 & 7) 2202520 White 2204856 Black 2212419 Stainless 2218508 Stainless VCM 2189202 Bracket, Door Stop Hole Plug, Endcap 2204837 White 2204840 Black W10180463 FREEZER DOOR PARTS...
  • Page 14 WATER DISPENSER PARTS For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 (White) (Black) Illus. Part 2210500 Housing, Dispenser 2210567 Button, Dispenser 2320316 Reservoir, Tube 2210523 Flange, Tube 2187291 Wire Assembly 2162361 Switch 2210547 Shield, Switch 489415 Screw (Stainless Steel) (Stainless VCM) DESCRIPTION...

  • Page 15: Optional Parts

    For Models: GR2FHTXVQ00, GR2FHTXVB00, GR2FHTXVS00, GR2FHTXVL00 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
