- Page 1 CABINET PARTS REFRIGERATOR For Models: PF36BNDFBKPB (Black) Part No. W10182513 Rev.A 12−07 Litho In U.S.A. (PAL)
-
Page 2: Cabinet Parts

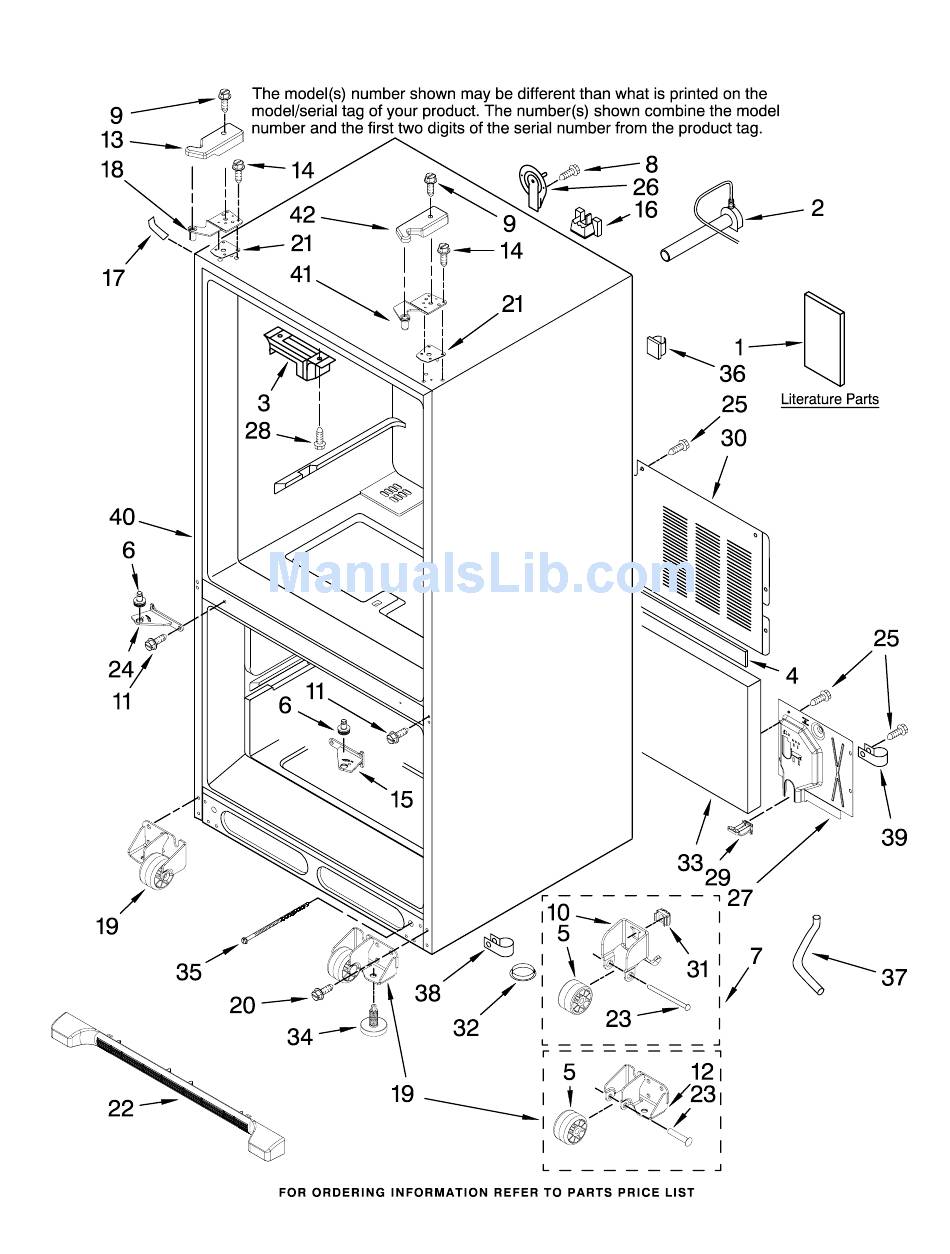

CABINET PARTS For Models: PF36BNDFBKPB (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67003331 Cover, Water Line Cover, Left Hinge Literature Parts 67004098 Cover, Water Valve 67006726 Black 67006616 Tech Sheet 67006669 Screw (2) 67006303 Screw (6) W10171467 Owners Manual... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: PF36BNDFBKPB (Black) W10182513... - Page 4 FREEZER LINER PARTS For Models: PF36BNDFBKPB (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 28 W10180420 Slide, Drawer (2) Liner (Not A 67006530 Screw Adapter, Slide Seviceable Part) D7753903 Funnel, Drain 67004971 Left 67001291 Gasket, Foam 19 M0500703 Seal...
-
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: PF36BNDFBKPB (Black) W10182513... - Page 6 REFRIGERATOR LINER PARTS For Models: PF36BNDFBKPB (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67003899 Cover, Damper 67002816 Clip, Waterline Liner (Not A 67006909 Facade, Disp (Top) Serviceable Part) 67006604 Insulation 67004078 Module, Light 15 W10127429 Control, Damper...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: PF36BNDFBKPB (Black) W10182513... - Page 8 REFRIGERATOR DOOR PARTS For Models: PF36BNDFBKPB (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006113 Mount, Handle Plug, Button Door, Left 67004838 Black W10179490 Black 67002731 Bushing, Door Door, Right (Bottom Right) Bushing, Door W10179489 Black 67005258 Bin, Shelf (2)
-
Page 9: Unit Parts
UNIT PARTS For Models: PF36BNDFBKPB (Black) W10182513... - Page 10 UNIT PARTS For Models: PF36BNDFBKPB (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12002041 Evaporator Kit 67006433 Screw (Incl. Evap., Heat 2 W10162928 Blade, Fan Following Parts Not Illustrated Shield, & Instr. 67005889 Basepan and Optional Parts Not Included...
-
Page 11: Shelf Parts
SHELF PARTS For Models: PF36BNDFBKPB (Black) W10182513... - Page 12 SHELF PARTS For Models: PF36BNDFBKPB (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006400 Screw 67003794 Rod, Temperature 67002332 Glass, Pantry Endcap, Pantry Control 67002321 Divider, 67005862 Left 67003530 Drawer, Pantry Pantry Drawer 67006912 Right 67003791 Knob, Temperature...
-
Page 13: Freezer Door Parts
FREEZER DOOR PARTS For Models: PF36BNDFBKPB (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Door, Freezer Gasket, Door Plug, Button (2) W10179491 Black W10131754 Black 67004838 Black 67006113 Mount, Handle 5 W10133608 Screw 67007042 Screw (3) 67006408 Screw (8) -
Page 14: Icemaker Parts
ICEMAKER PARTS For Models: PF36BNDFBKPB (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10122527 Mold & Heater 489464 Screw (3) 626678 Module Assembly Assembly (Also 67001255 Pan, Ice 489276 Screw (3) Order 542638 628379 Clip 8533917 Screw (2) - Page 15 OPTIONAL PARTS (NOT INCLUDED) For Models: PF36BNDFBKPB (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous TORX SCREW WRENCH Parts Not Illustrated and Optional Parts (Not Included) 1117510 Torx Key 212643 Sealer, Gum (4 Feet) PAINT, TOUCH−UP (1/2oz.) 479502 Tape, Vinyl (3/4 x 108")
