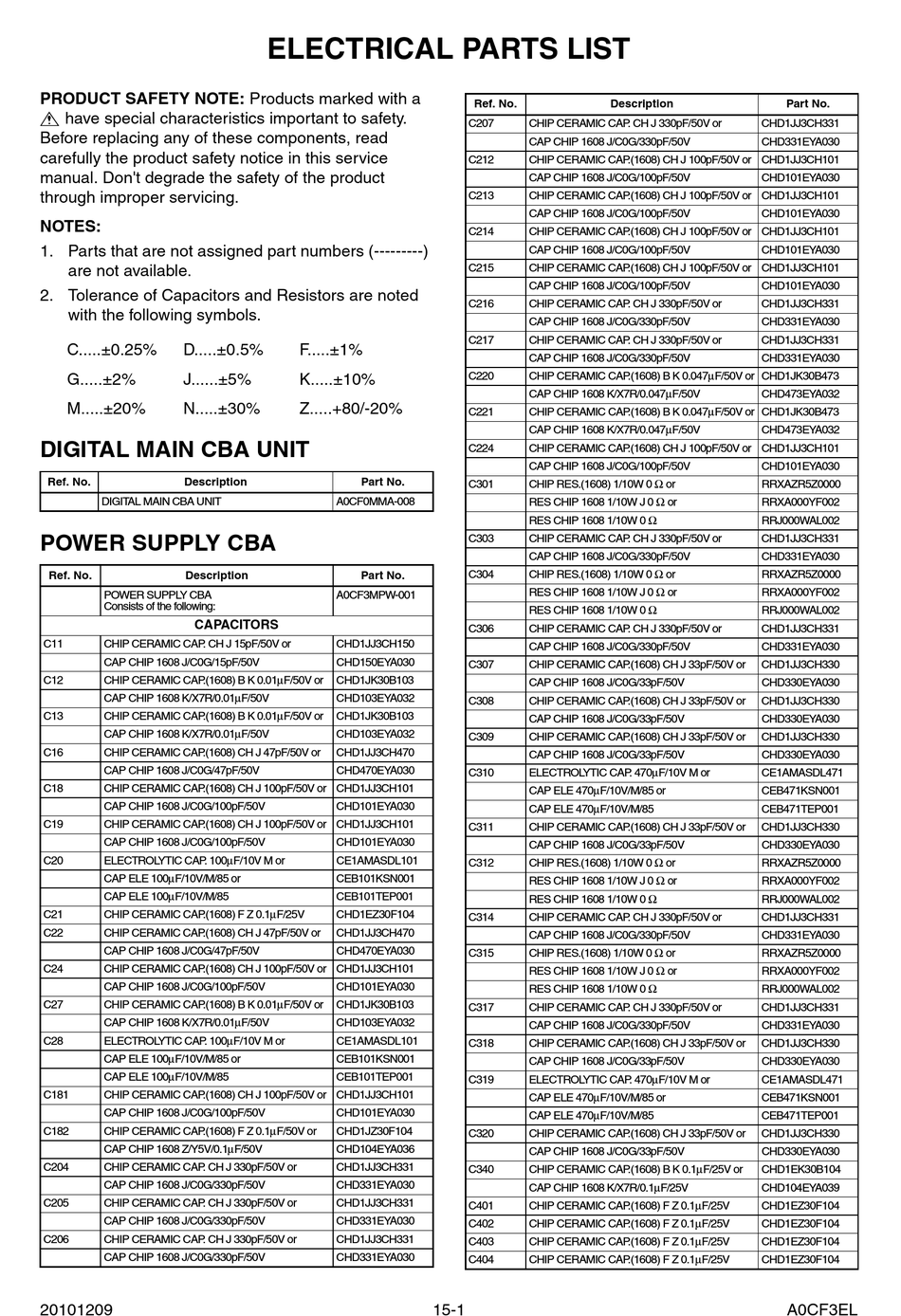

Electrical Parts List; Power Supply Cba - FUNAI LT850-M32 Service Manual

PRODUCT SAFETY NOTE: Products marked with a
! have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTES:
1. Parts that are not assigned part numbers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
C.....±0.25% D.....±0.5%
G.....±2% J......±5%
M.....±20% N.....±30%
DIGITAL MAIN CBA UNIT
Ref. No. Description
DIGITAL MAIN CBA UNIT

POWER SUPPLY CBA

Ref. No. Description
POWER SUPPLY CBA
Consists of the following:
CAPACITORS
C11 CHIP CERAMIC CAP . CH J 15pF/50V or
CAP CHIP 1608 J/C0G/15pF/50V
C12 CHIP CERAMIC CAP .(1608) B K 0.01µF/50V or
CAP CHIP 1608 K/X7R/0.01µF/50V
C13 CHIP CERAMIC CAP .(1608) B K 0.01µF/50V or
CAP CHIP 1608 K/X7R/0.01µF/50V
C16 CHIP CERAMIC CAP .(1608) CH J 47pF/50V or
CAP CHIP 1608 J/C0G/47pF/50V
C18 CHIP CERAMIC CAP .(1608) CH J 100pF/50V or CHD1JJ3CH101
CAP CHIP 1608 J/C0G/100pF/50V
C19 CHIP CERAMIC CAP .(1608) CH J 100pF/50V or CHD1JJ3CH101
CAP CHIP 1608 J/C0G/100pF/50V
C20 ELECTROLYTIC CAP . 100µF/10V M or
CAP ELE 100µF/10V/M/85 or
CAP ELE 100µF/10V/M/85
C21 CHIP CERAMIC CAP .(1608) F Z 0.1µF/25V
C22 CHIP CERAMIC CAP .(1608) CH J 47pF/50V or
CAP CHIP 1608 J/C0G/47pF/50V
C24 CHIP CERAMIC CAP .(1608) CH J 100pF/50V or CHD1JJ3CH101
CAP CHIP 1608 J/C0G/100pF/50V
C27 CHIP CERAMIC CAP .(1608) B K 0.01µF/50V or
CAP CHIP 1608 K/X7R/0.01µF/50V
C28 ELECTROLYTIC CAP . 100µF/10V M or
CAP ELE 100µF/10V/M/85 or
CAP ELE 100µF/10V/M/85
C181 CHIP CERAMIC CAP .(1608) CH J 100pF/50V or CHD1JJ3CH101
CAP CHIP 1608 J/C0G/100pF/50V
C182 CHIP CERAMIC CAP .(1608) F Z 0.1µF/50V or
CAP CHIP 1608 Z/Y5V/0.1µF/50V
C204 CHIP CERAMIC CAP . CH J 330pF/50V or
CAP CHIP 1608 J/C0G/330pF/50V
C205 CHIP CERAMIC CAP . CH J 330pF/50V or
CAP CHIP 1608 J/C0G/330pF/50V
C206 CHIP CERAMIC CAP . CH J 330pF/50V or
CAP CHIP 1608 J/C0G/330pF/50V
20101209

ELECTRICAL PARTS LIST

F.....±1%
K.....±10%
Z.....+80/-20%
Part No.
A0CF0MMA-008
Part No.
A0CF3MPW-001
CHD1JJ3CH150
CHD150EYA030
CHD1JK30B103
CHD103EYA032
CHD1JK30B103
CHD103EYA032
CHD1JJ3CH470
CHD470EYA030
CHD101EYA030
CHD101EYA030
CE1AMASDL101
CEB101KSN001
CEB101TEP001
CHD1EZ30F104
CHD1JJ3CH470
CHD470EYA030
CHD101EYA030
CHD1JK30B103
CHD103EYA032
CE1AMASDL101
CEB101KSN001
CEB101TEP001
CHD101EYA030
CHD1JZ30F104
CHD104EYA036
CHD1JJ3CH331
CHD331EYA030
CHD1JJ3CH331
CHD331EYA030
CHD1JJ3CH331
CHD331EYA030
15-1
Ref. No. Description
C207 CHIP CERAMIC CAP . CH J 330pF/50V or
CAP CHIP 1608 J/C0G/330pF/50V
C212 CHIP CERAMIC CAP .(1608) CH J 100pF/50V or CHD1JJ3CH101
CAP CHIP 1608 J/C0G/100pF/50V
C213 CHIP CERAMIC CAP .(1608) CH J 100pF/50V or CHD1JJ3CH101
CAP CHIP 1608 J/C0G/100pF/50V
C214 CHIP CERAMIC CAP .(1608) CH J 100pF/50V or CHD1JJ3CH101
CAP CHIP 1608 J/C0G/100pF/50V
C215 CHIP CERAMIC CAP .(1608) CH J 100pF/50V or CHD1JJ3CH101
CAP CHIP 1608 J/C0G/100pF/50V
C216 CHIP CERAMIC CAP . CH J 330pF/50V or
CAP CHIP 1608 J/C0G/330pF/50V
C217 CHIP CERAMIC CAP . CH J 330pF/50V or
CAP CHIP 1608 J/C0G/330pF/50V
C220 CHIP CERAMIC CAP .(1608) B K 0.047µF/50V or CHD1JK30B473
CAP CHIP 1608 K/X7R/0.047µF/50V
C221 CHIP CERAMIC CAP .(1608) B K 0.047µF/50V or CHD1JK30B473
CAP CHIP 1608 K/X7R/0.047µF/50V
C224 CHIP CERAMIC CAP .(1608) CH J 100pF/50V or CHD1JJ3CH101
CAP CHIP 1608 J/C0G/100pF/50V
CHIP RES.(1608) 1/10W 0 Ω or
C301
RES CHIP 1608 1/10W J 0 Ω or
RES CHIP 1608 1/10W 0 Ω
C303 CHIP CERAMIC CAP . CH J 330pF/50V or
CAP CHIP 1608 J/C0G/330pF/50V
CHIP RES.(1608) 1/10W 0 Ω or
C304
RES CHIP 1608 1/10W J 0 Ω or
RES CHIP 1608 1/10W 0 Ω
C306 CHIP CERAMIC CAP . CH J 330pF/50V or
CAP CHIP 1608 J/C0G/330pF/50V
C307 CHIP CERAMIC CAP .(1608) CH J 33pF/50V or
CAP CHIP 1608 J/C0G/33pF/50V
C308 CHIP CERAMIC CAP .(1608) CH J 33pF/50V or
CAP CHIP 1608 J/C0G/33pF/50V
C309 CHIP CERAMIC CAP .(1608) CH J 33pF/50V or
CAP CHIP 1608 J/C0G/33pF/50V
C310 ELECTROLYTIC CAP . 470µF/10V M or
CAP ELE 470µF/10V/M/85 or
CAP ELE 470µF/10V/M/85
C311 CHIP CERAMIC CAP .(1608) CH J 33pF/50V or
CAP CHIP 1608 J/C0G/33pF/50V
CHIP RES.(1608) 1/10W 0 Ω or
C312
RES CHIP 1608 1/10W J 0 Ω or
RES CHIP 1608 1/10W 0 Ω
C314 CHIP CERAMIC CAP . CH J 330pF/50V or
CAP CHIP 1608 J/C0G/330pF/50V
CHIP RES.(1608) 1/10W 0 Ω or
C315
RES CHIP 1608 1/10W J 0 Ω or
RES CHIP 1608 1/10W 0 Ω
C317 CHIP CERAMIC CAP . CH J 330pF/50V or
CAP CHIP 1608 J/C0G/330pF/50V
C318 CHIP CERAMIC CAP .(1608) CH J 33pF/50V or
CAP CHIP 1608 J/C0G/33pF/50V
C319 ELECTROLYTIC CAP . 470µF/10V M or
CAP ELE 470µF/10V/M/85 or
CAP ELE 470µF/10V/M/85
C320 CHIP CERAMIC CAP .(1608) CH J 33pF/50V or
CAP CHIP 1608 J/C0G/33pF/50V
C340 CHIP CERAMIC CAP .(1608) B K 0.1µF/25V or
CAP CHIP 1608 K/X7R/0.1µF/25V
C401 CHIP CERAMIC CAP .(1608) F Z 0.1µF/25V
C402 CHIP CERAMIC CAP .(1608) F Z 0.1µF/25V
C403 CHIP CERAMIC CAP .(1608) F Z 0.1µF/25V
C404 CHIP CERAMIC CAP .(1608) F Z 0.1µF/25V
Part No.
CHD1JJ3CH331
CHD331EYA030
CHD101EYA030
CHD101EYA030
CHD101EYA030
CHD101EYA030
CHD1JJ3CH331
CHD331EYA030
CHD1JJ3CH331
CHD331EYA030
CHD473EYA032
CHD473EYA032
CHD101EYA030
RRXAZR5Z0000
RRXA000YF002
RRJ000WAL002
CHD1JJ3CH331
CHD331EYA030
RRXAZR5Z0000
RRXA000YF002
RRJ000WAL002
CHD1JJ3CH331
CHD331EYA030
CHD1JJ3CH330
CHD330EYA030
CHD1JJ3CH330
CHD330EYA030
CHD1JJ3CH330
CHD330EYA030
CE1AMASDL471
CEB471KSN001
CEB471TEP001
CHD1JJ3CH330
CHD330EYA030
RRXAZR5Z0000
RRXA000YF002
RRJ000WAL002
CHD1JJ3CH331
CHD331EYA030
RRXAZR5Z0000
RRXA000YF002
RRJ000WAL002
CHD1JJ3CH331
CHD331EYA030
CHD1JJ3CH330
CHD330EYA030
CE1AMASDL471
CEB471KSN001
CEB471TEP001
CHD1JJ3CH330
CHD330EYA030
CHD1EK30B104
CHD104EYA039
CHD1EZ30F104
CHD1EZ30F104
CHD1EZ30F104
CHD1EZ30F104
A0CF3EL
