Mechanical Parts List - FUNAI LT850-M32 Service Manual

PRODUCT SAFETY NOTE: Products marked with a
! have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTE: Parts that are not assigned part numbers
(---------) are not available.
Ref. No. Description
STAND ASSEMBLY A0CF3PH
A1 FRONT CABINET A93F0FP
A2 CONTROL PLATE A91F0UH
A3 DECORATION PLATE A0CF0EP
A4 REAR CABINET A0CF0EP
A6 AC CORD HOLDER A94F0UH
A8! RATING LABEL A0CF3PH
A10 POP LABEL A0CN0EP
A11 JACK HOLDER A93F0FP
A12 JACK HOLDER(HP) A93F0FP
B1 SHILED BOX(32W-EU) A93F0FP
B2 TUNER SHIELD A93F0FP
B3 STAND HOLDER 32W A94F0UH
B4 WALL MOUNT BRACKET A84N0UH
B5 SPEAKER HOLDER (L) A94F0UH
B6 SPEAKER HOLDER (R) A94F0UH
B7 PCB STUD A93F0FP
B8 AC SWITCH HOLDER A0CF0EP
B14 SEPARATION SHEET (POW) A93F0FP
B15 SEPARATION SHEET (INV) A93F0FP
B16 CLOTH(10X180XT0.5) L0336JG
B17 GASKET A8AF0UH
B18 GASKET(4X15XT3.0) A0CN0EP
B20 CLOTH(B) L5201U0 15X10X1.0T
CL401 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM
CL402 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM
CL403 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM
CL404 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM
CL600 WIRE ASSEMBLY 15PIN FFC 15PIN 140MM
CL801 WIRE ASSEMBLY 2PIN 2PIN 100MM RED
BLACK
CL802 WIRE ASSEMBLY 2PIN 2PIN 310MM RED
BLACK
CL1003 WIRE ASSEMBLY 11PIN FFC 11PIN 110MM
CL3901 WIRE ASSEMBLY 24PIN FFC 24PIN 117.5MM
L1 SCREW P-TIGHT M4X14 BIND HEAD+BLK
L2 SCREW P-TIGHT 3X10 BIND HEAD+
L4 SCREW S-TIGHT M3X8 BIND HEAD+
L5 DOUBLE SEMS SCREW M4X10 + BLK
L6 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH
L7 STAND SCREW KIT A0CF3PH
L9 HEX SCREW #4-40 7MM
L10 SCREW S-TIGHT 3X10 WASHER HEAD+BLK
LCD1 LCD MODULE CMO 6BIT A GRADE or
LCD MODULE CMO 6BIT A GRADE
SP801 SPEAKER MAGNETIC YDP411-17FN or
SPEAKER MAGNETIC S0412F08
SP802 SPEAKER MAGNETIC YDP411-17FN or
SPEAKER MAGNETIC S0412F08
X3301 THERMOSTAR TMS-L-2(12*12HC)
PACKING
S1 CARTON A0CF3PH
S2 STYROFOAM TOP A91F0UH
S3 STYROFOAM BOTTOM A91F0UH
20101209

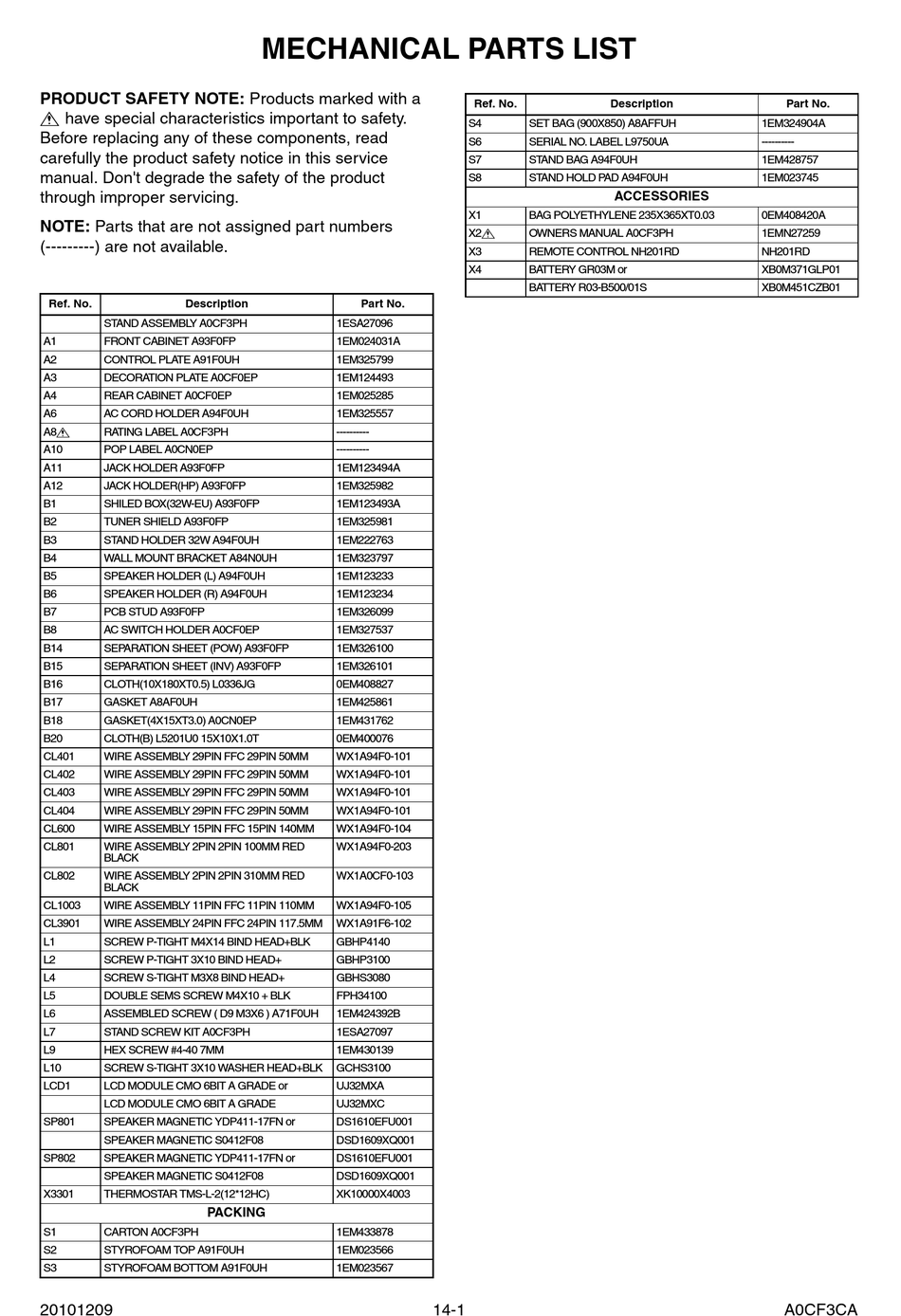

MECHANICAL PARTS LIST

Part No.
1ESA27096
1EM024031A
1EM325799
1EM124493
1EM025285
1EM325557
----------
----------
1EM123494A
1EM325982
1EM123493A
1EM325981
1EM222763
1EM323797
1EM123233
1EM123234
1EM326099
1EM327537
1EM326100
1EM326101
0EM408827
1EM425861
1EM431762
0EM400076
WX1A94F0-101
WX1A94F0-101
WX1A94F0-101
WX1A94F0-101
WX1A94F0-104
WX1A94F0-203
WX1A0CF0-103
WX1A94F0-105
WX1A91F6-102
GBHP4140
GBHP3100
GBHS3080
FPH34100
1EM424392B
1ESA27097
1EM430139
GCHS3100
UJ32MXA
UJ32MXC
DS1610EFU001
DSD1609XQ001
DS1610EFU001
DSD1609XQ001
XK10000X4003
1EM433878
1EM023566
1EM023567
Ref. No.
S4 SET BAG (900X850) A8AFFUH
S6 SERIAL NO. LABEL L9750UA
S7 STAND BAG A94F0UH
S8 STAND HOLD PAD A94F0UH
X1 BAG POLYETHYLENE 235X365XT0.03
X2! OWNERS MANUAL A0CF3PH
X3 REMOTE CONTROL NH201RD
X4 BATTERY GR03M or
BATTERY R03-B500/01S
14-1
Description
1EM324904A
----------
1EM428757
1EM023745
ACCESSORIES
0EM408420A
1EMN27259
NH201RD
XB0M371GLP01
XB0M451CZB01
Part No.
A0CF3CA
